Operating Manual

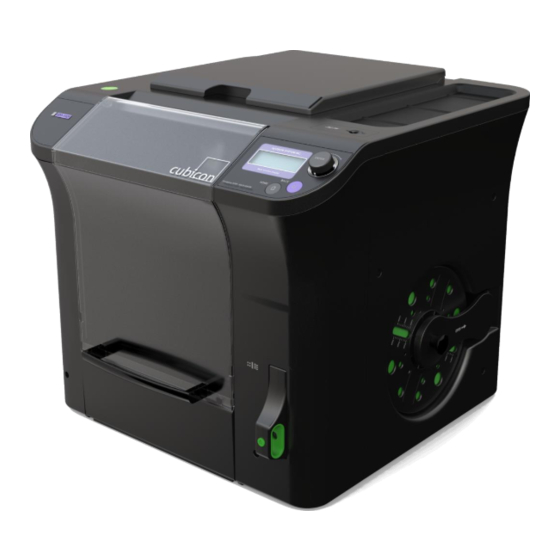

Cubicon Single (3DP-110F)
Quick Start Guide
∙ Please read the safety cautions carefully before using the product, and
use the product appropriately.
∙ This document is provided to ensure the safety of users and to
prevent property damage.
∙ The Quick Start Guide only provides information on how to unpack the
package and install it.
Please refer to the Operation Manual for more
detailed information.
www.3dcubicon.com
Advertisement
Related Manuals for Cubicon 3DP-110F
Summary of Contents for Cubicon 3DP-110F
-
Page 1: Quick Start Guide
Cubicon Single (3DP-110F) Quick Start Guide ∙ Please read the safety cautions carefully before using the product, and use the product appropriately. ∙ This document is provided to ensure the safety of users and to prevent property damage. ∙ The Quick Start Guide only provides information on how to unpack the package and install it. -
Page 2: Safety Caution
Safety Caution Thank you for purchasing Cubicon Single! Please read this ‘Safety Caution’ before using the printer and always follow the guideline provided. This guideline is provided to ensure the safety of users, prevent the injury of third parties and prevent damage to the printer. -
Page 3: External Printer Parts
External Printer Parts The printer is packaged after a total test of output conditions. This testing may leave traces of usage on the heating bed, nozzle, etc. Be assured that these are traces of testing, and that there is no problem with the product. Used for maintenance such as the filament replacement [1] Top door (loading / unloading), separation of detachable extruder, etc. - Page 4 Internal Printer Parts and Extruder The path to supply the filament to the printer extruder (be careful not to bend, [1] Teflon tube etc.) [2] Extruder part The extruder exudes the filament and melts it through the nozzle [3] Heating bed The platform to output the printed material during printing Extruder part [E1] Filament insertion hole...
- Page 5 * The type and specification of the accessories included in the part may be changed without notice to enhance the product. * Please use the Cubicon homepage or contact a distributor to purchase additional accessories. Using an unauthorized filament or part may cause damage to the product. Any problem related to the use of an unauthorized part will not be covered by the after-sales service.
-
Page 6: Unpacking And Installation
Unpacking and Installation (1/4) * Be careful when unpacking and installing the product, as excessive force or ripping can damage the content. * Considering the size and weight of the product, it is recommended to have two or more people move the product. Unpacking ①... - Page 7 Unpacking and Installation (2/4) ⑦ Remove the package and tape. Set the horizontal levelness of the printer by adjusting the feet, while referring to the inclinometer. Inclinometer * The driving part is fixed with packaging material only, without using a cable tie, in order to prevent potential problems when the printer is operated.
- Page 8 Unpacking and Installation (3/4) Mounting of Filament Spool ① Prepare the filament spool to be used. Cut off the filament sticking out of the filament fixing hole at the center of the spool and remove the fixing tape of the filament.
- Page 9 * The figures on the screen will change according to the surrounding temperature. * The ‘Cubicon Ready’ statement may be different text. * When you disconnect the power or USB cable, do not grip the cable part, but grip the connector and pull it out.
- Page 10 [5]HOME button Move to the status display LCD Display of Status When Cubicon Single is turned on or when the menu is not activated for functional setting, the current printer status is shown on the LCD display. [1] Extruder nozzle temperature...
- Page 11 SD memory card after the printer is installed. Before you print the sample, you are recommended to carefully read the latest operation manual inside the SD card, or downloaded from Cubicon homepage (www.3dcubicon.com). ① Mount the filament spool to the spool carrier of the ②...
- Page 12 This document has described how to install the printer and print a sample. Please carefully read the latest operation manual included in the SD card or downloaded from Cubicon homepage (www.3dcubicon.com) before using the printer. Thank you again for purchasing Cubicon Single! Copyright Reserved HyVISION System Inc.
