Parrot MULTICAN User Manual page 14

Citroën

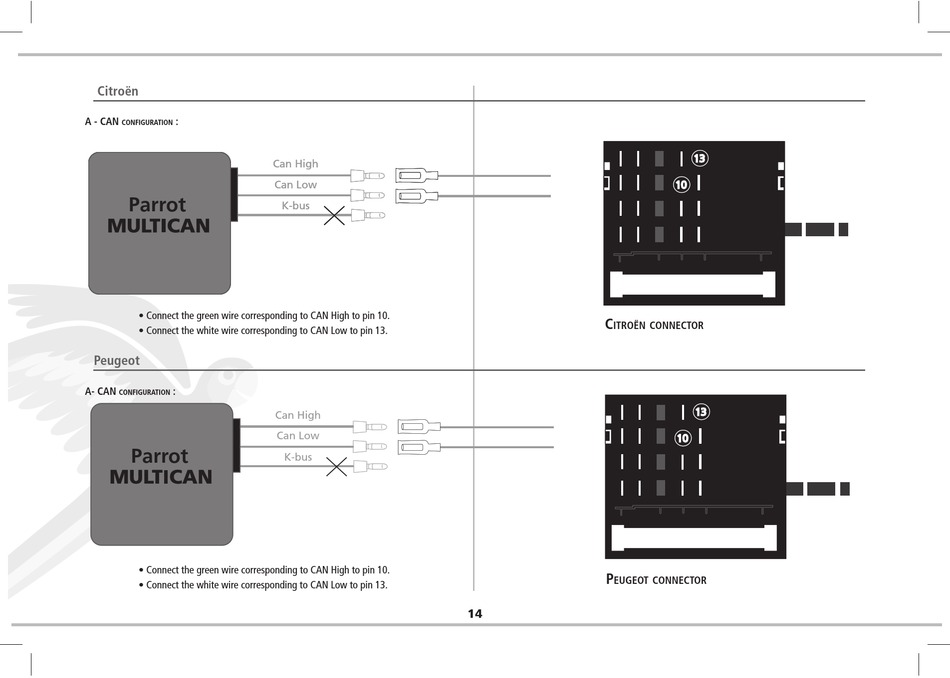

A - CAN :
CoNfigurAtioN
Parrot Parrot
• Connect the green wire corresponding to CAN High to pin 10.
• Connect the white wire corresponding to CAN Low to pin 13.
Peugeot
A- CAN :
CoNfigurAtioN
Parrot
• Connect the green wire corresponding to CAN High to pin 10.
• Connect the white wire corresponding to CAN Low to pin 13.
BMW
Can High Can High
Can Low Can Low
K-bus K-bus
Audi Volsvagen opel Audi Volsvagen opel
Can High
Can Low
K-bus
Audi Volsvagen opel
PSA PSA
Mercedès
C
itroëN CoNNeCtor
PSA
p
eugeot CoNNeCtor
1
