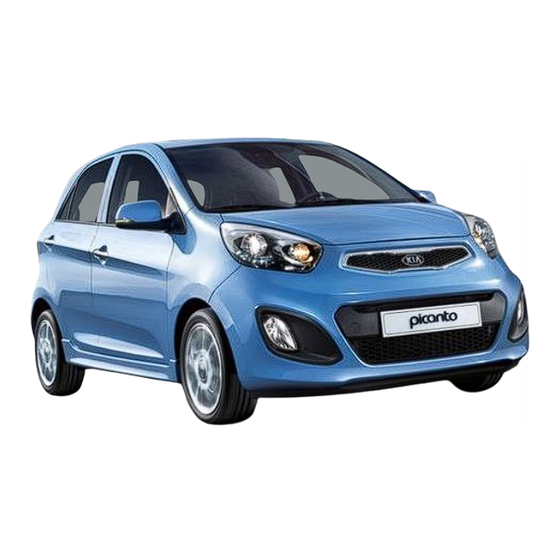

For kia picanto

Hide thumbs Also See for Parrot MKi + Parrot CK3100 range:

User manual (16 pages)

Installation manual (15 pages)

User manual (48 pages)

Table Of Contents

page of 10

/ 10
Bookmarks

Quick Links

Download this manual See also: User Manual, Installation Manual

Installation manual:

Parrot MKi + Parrot

CK3100 range

This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in

The brand name KIA PICANTO and the KIA logo are the property of KIA MOTORS.

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

This document is only valid for the vehicle model PICANTO® year 2011, excluding all other models in the same range and excluding later

modifications made to the vehicle by the manufacturer.

the authorisation of Parrot SA. Pictures for information only.

The Parrot brand name and logos are the exclusive property of Parrot SA.

Need help?

Do you have a question about the Parrot MKi + Parrot CK3100 range and is the answer not in the manual?

Questions and answers

Summary of Contents for Parrot Parrot MKi + Parrot CK3100 range

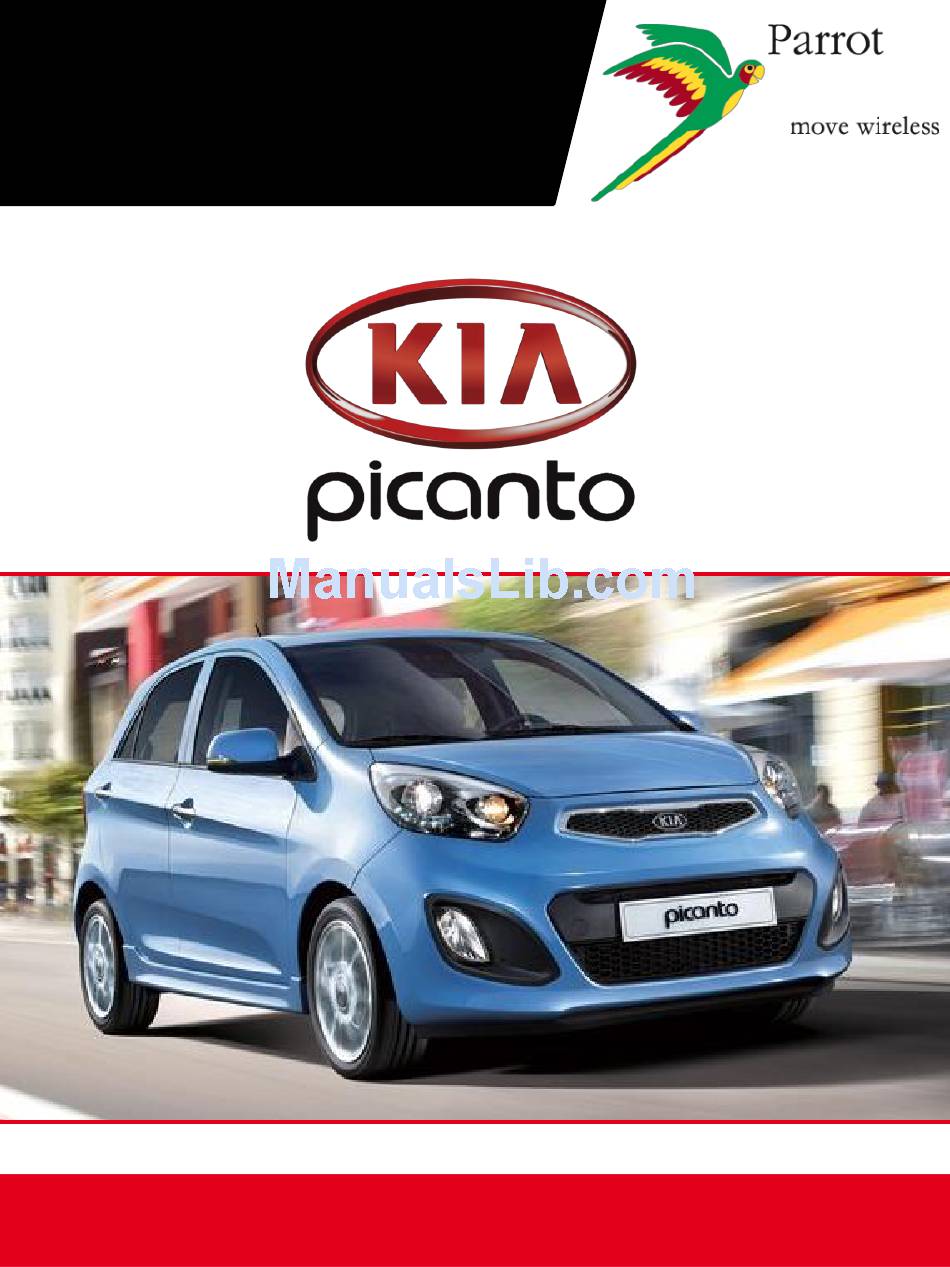

Page 1 This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in The brand name KIA PICANTO and the KIA logo are the property of KIA MOTORS. compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible This document is only valid for the vehicle model PICANTO®...
Page 2 Fitting time (estimated) / Main features Disassembly 20min +APC Mounting kit 30min Refitting 20min UNIKA Testing 15min FRONT SPEAKER TEL mode Total 1h25min MUSIC mode Tools - Phillips screwdriver Plastic trim removal tools - Multimeter or Test lamp FACOM / BOJO - Wire tie - Round file (or a knife) Accessories required...
Page 3 Disassembly This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible for the quality of the installation.
Page 4 Disassembly Using the plastic trim tools, firmly unclip the radio cover and the air Unscrew screws 1 and 2 located vents and remove the radio on the left side of the radio Pull and lift the radio Unscrew screws 3 and 4 located on disconnecting the connectors the right side of the radio and the antenna...
Page 5 Microphone passage Glue the bracket (supplied) to Using the plastic trim tools, run the windscreen, after having the cable under the head liner thoroughly degreased the surface Run the cable replacing the seal Pass the cable into the on the passenger door dashboard on the right side Run it behind the glove box Then pass the cable towards the...
Page 6 Feeding the accessory cable In the glove box, using a semi- Pass the cable from the top right rigid guide towards the radio Be careful to leave enough length This document is a tool to assist with the installation of a Parrot product and is supplied purely for information. Any installation performed in compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible for the quality of the installation.
Page 7 Fitting the hands-free system 1 / 2 Connect the adaptor (86394 for the CK or 84394X389 for the Mki) to the original connector and connect all of the wires to the blue box as shown in the diagram below. Test the assembly before reassembly and then slide everything behind the air conditioning control unit ISO adapter...
Page 8 Fitting the hands-free system 2 / 2 Glue the bracket to the top left of Using a drill or file, make a notch in the screen, after carefully the air vent cover at the top degreasing the surface opposite the screen mounting This document is a tool to assist with the installation of a Parrot product and is supplied purely for information.
Page 9 Testing Before refitting the system, switch the kit on using the ignition (or by starting the car). By pushing the central knob of the remote control, check: 1 - that the menu is displayed on the screen (language or iPod etc) 2 - that the radio system is muted when the kit is in use (click in the blue box) 3 - that the sound through all speakers is properly muted...
Page 10: Table Of Contents
Refitting Refit the system using the following procedure: 1 - reinstall the radio reconnecting the adaptor and the antenna 2 - refit the 4 screws (1, 2, 3 and 4) around the radio 3 - re-clip the cover with the air vents placing the screen cable in the notch (pay ATTENTION to avoid cutting the cable) 4 - refit the right dashboard panel...
