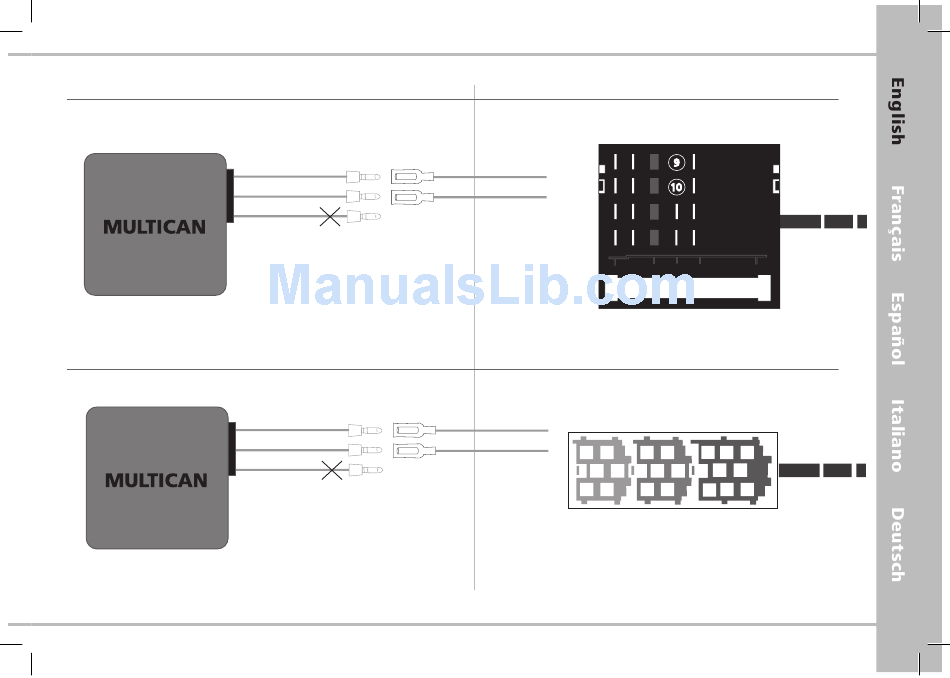

Opel
A - CAN :
CoNfigurAtioN
Parrot
• Connect the green wire corresponding to CAN High to pin 9.
• Connect the white wire corresponding to CAN Low to pin 10.
renault
A - CAN :
CoNfigurAtioN
Parrot
•Connect the green wire corresponding to CAN High to pin 2.
•Connect the white wire corresponding to CAN Low to pin 1.
Can High
Can Low
K-bus
Can High
Can Low
K-bus
Audi Volsvagen opel
o
pel CoNNeCtor
1
2
r
eNAult CoNNeCtor
1
6 5
