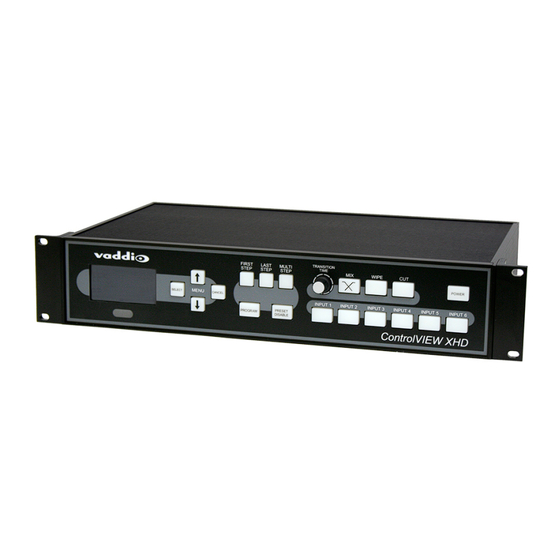

VADDIO CONTROLVIEW XHD Installation And User Manual

Hd/sd seamless video switching, video transitions, up/down converting of inputs and outputs, preset ptz camera control functionality
Hide thumbs

Advertisement

Quick Links

Download this manual

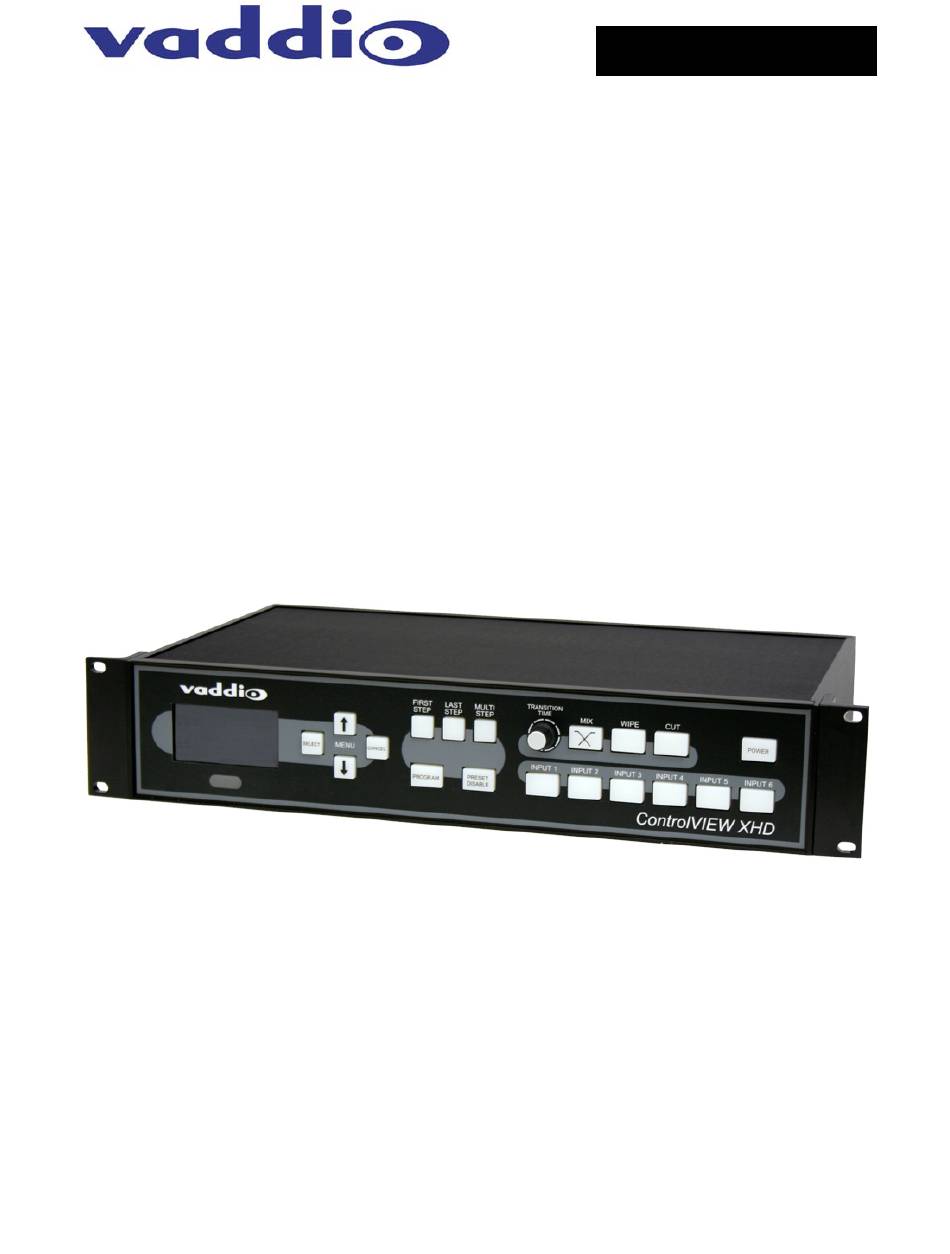

Installation and User Guide
Camera and Electronic Products for Integrators
V
™ C
VIEW™ XHD
ADDIO
ONTROL
HD/SD Seamless Video Switching, Video Transitions, Up/Down Converting
of Inputs and Outputs, Preset PTZ Camera Control Functionality
Model Number 999-5672-000 (NTSC)
Model Number 999-5672-001 (PAL)
©2009 Vaddio - All Rights Reserved. ControlVIEW XHD - Document Number 341-917
Rev. A

Advertisement

loading
Need help?

Need help?

Do you have a question about the CONTROLVIEW XHD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VADDIO CONTROLVIEW XHD

Summary of Contents for VADDIO CONTROLVIEW XHD

  • Page 1 ONTROL HD/SD Seamless Video Switching, Video Transitions, Up/Down Converting of Inputs and Outputs, Preset PTZ Camera Control Functionality Model Number 999-5672-000 (NTSC) Model Number 999-5672-001 (PAL) ©2009 Vaddio - All Rights Reserved. ControlVIEW XHD - Document Number 341-917 Rev. A...

  • Page 2: Key Technical Features

    • Tally Ports -- The ControlVIEW XHD also has six Tally ports for controlling tally lights on external sources, such as Vaddio’s WallVIEW CCUs and PreVIEW HD monitors. •...
  • Page 3 Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged. In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock, do not immerse in water or other liquids and avoid extremely humid conditions.
  • Page 4 7. Po wer: Pressing the Power button turns ControlVIEW XHD on or off. If the system is on, press and hold the Power button for three seconds to power the unit off.
  • Page 5 (selectable via internal menu) on both connectors. See the Video Resolutions table at the back of the manual for all supported input/output video signals. 18. Link In / Link Out: The Link In / Link Out connectors allow ControlVIEW XHD to seamlessly integrate with Vaddio’s Precision Camera Controller, when used as an operator controlled seamless switcher.
  • Page 6 999-0001-000 – MicVIEW 12 input Mic Switcher/Mixer 701-0001-891 – Unidirectional Boundary Microphone Vaddio TouchVIEW Trigger Device 999-1201-000 – TouchVIEW System with 4 RF buttons & 1 Receiver Setting Up and Programming ControlVIEW XHD Manual 341-917 Rev. A Page 6 of 22...
  • Page 7 Once all of the inputs, outputs, trigger devices and the PowerRite power supply are connected, plug the AC cord into an outlet. ControlVIEW XHD will boot up and scan for cameras. After boot up, a menu will appear on the blue LCD screen.
  • Page 8 ControlVIEW XHD Figure 2: ControlVIEW XHD with three WallVIEW HD-18 camera systems and a laptop connected as video inputs. Preset trigger devices connected include three AutoVIEW IR sensors, two StepVIEW mats and a MicVIEW with four push-to-talk microphones. The output of ControlVIEW XHD is connected to a streaming media encoder.
  • Page 9 Precision Camera Controller, used as an operator controlled system. Figure 5 (bottom): ControlVIEW XHD connected to TrackVIEW and trigger devices for a completely automated tracking and switching presenter controlled system. Operating the ControlVIEW XHD: ControlVIEW XHD Manual 341-917 Rev. A Page 9 of 22...
  • Page 10 Preset Location Storage Options: This feature allows the user to store 72 First Step/Last Step camera presets in the ControlVIEW XHD on up to six PTZ cameras. Any number of presets can be stored on any number of cameras (i.e. 72 presets can be stored on one camera, 24 presets on three cameras, etc.).
  • Page 11 Select the type of effect (wipe, cut or mix) that ControlVIEW XHD will use to transition from one input to the other. Pressing a different input, other than the current input that is selected (current input is indicated by the button being lit) will allow ControlVIEW XHD to transition from the current signal to the one selected.
  • Page 12 DVD player) and two outputs (a computer monitor and an LCD projector). Simply connect the Link Out port of Precision Camera Controller to the Link In port on ControlVIEW XHD to establish communication between the two products (see the diagram below).
  • Page 13 ControlVIEW XHD ControlVIEW XHD Menu Structure The ControlVIEW XHD has an 8-line LCD that displays the system menus. The menus are navigated with the up/down arrows, select and cancel buttons. The menu structure is as follows: Menu Section Screen ControlVIEW XHD V01.00.00 (software version)
  • Page 14 >Select >Global >By Preset The currently selected transition will switch cameras in Global mode. In By Preset mode, the selected transition when a preset is stored will by the transition. ControlVIEW XHD Manual 341-917 Rev. A Page 14 of 22...
  • Page 15 Cam Presets Off Selects only input port without moving camera > Cancel Returns to Main Menu Figure 6: ControlVIEW XHD Back Panel with I/O Information Power: 12 VDC, 3A (5.5mm OD x 2.5mm ID) Video In 1-6: HD Component (Y, Pb, Pr), RGBHV, S-Video (Y-C) or Composite (DE-15 female x 6)

  • Page 16: Compliance And Ce Declaration Of Conformity

    This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance...

  • Page 17: Warranty Information

    Vaddio Customer service – Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products.
  • Page 18 ** Certain equipment my not supply appropriate resolutions, and therefore may not function properly ControlVIEW XHD 999-5672-000 (North America) Part Numbers: 999-5672-001 (International) Compatible Cameras: Vaddio, Panasonic, Sony & Canon (see page 2 for specific models) Video Formats Supported: NTSC and PAL Video Switcher: 6 x 1 Video Transitions:...

  • Page 19: Appendix 1: Rs-232 Control

    ControlVIEW XHD Appendix 1: RS-232 Control The ControlVIEW XHD has six (6) discrete camera control ports which eliminates the need for daisy- chaining control cabling. With ControlVIEW XHD, all cabling configurations are home-run wiring configurations. Each Channel will auto-configure the input channel for control of the camera attached.
  • Page 20 Select Wipe (0-10) Zoom Zoom (in/Out/Stop)[,9](cr) Zoom Camera, optional speed (1-7) ZoomSpeed ZoomSpeed [9](cr) Set Preset Zoom Speed Appendix 2: Pin-outs for Connectors on ControlVIEW XHD Video Pin-out (both input and output connectors) RGBHV YPbPr Y/C & Composite Adapter Cable Green Blue...
  • Page 21 PIN# Signal Unused Unused Unused Unused Unused 12345678 TXD (to RXD of camera) RXD (from TXD of camera) Control Ports 25 – 48 and 49 – 72 on DB-25 Connectors: ControlVIEW XHD Manual 341-917 Rev. A Page 21 of 22...
  • Page 22 ControlVIEW XHD ControlVIEW XHD Manual 341-917 Rev. A Page 22 of 22...
