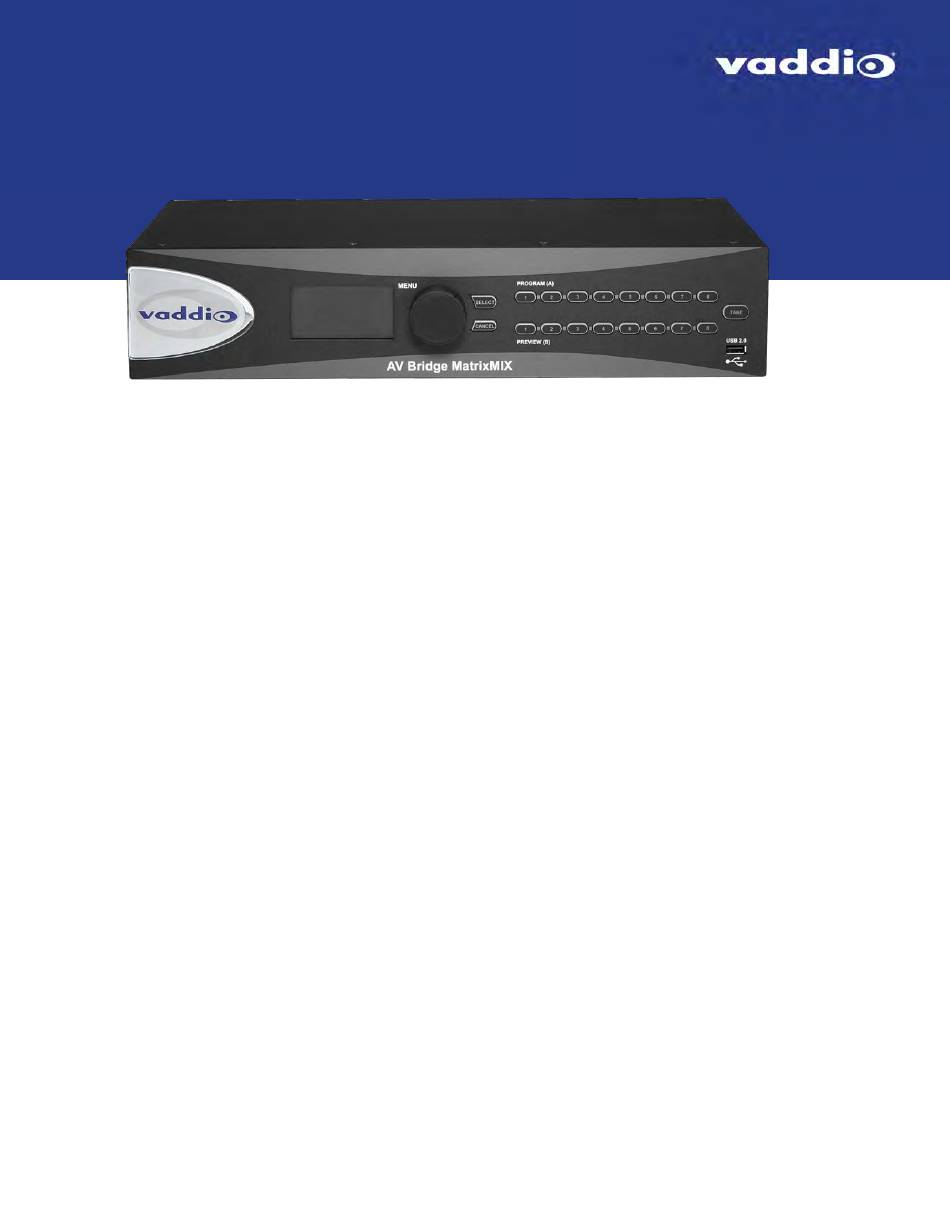

- Page 1 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Document 411-0006-30 Rev A August 2017...
-
Page 2: Table Of Contents
Adding Room Information Rebooting Exporting and Importing Configuration Data Updating the Firmware Restoring Factory Defaults Contacting Vaddio Technical Support Viewing Diagnostic Logs Performance and Behavior Settings Working with Video Inputs Configuring Video Outputs Operating the Switcher from the Admin Interface... - Page 3 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Configuring A/B Mode and Dual-Bus Mode Transitions Separately Enabling Phantom Power to Microphones Configuring Audio Settings Muting the Microphones Controlling Volume on Individual Inputs or Outputs Default Microphone Settings...
- Page 4 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher camera ccu set camera ccu scene camera standby video mute video source video pip graphics enable graphics source switch mode switch take trigger streaming settings get network settings get...
-
Page 5: Overview
Warranty and compliance/conformity information For your convenience, this information is also available in smaller, limited-purpose manuals: Installation Guide for the AV Bridge MatrixMIX Multipurpose AV Switcher – unpacking, physical features, switch settings, installation, and initial power-up Configuration and Administration Guide for the AV Bridge MatrixMIX Multipurpose AV Switcher –... -
Page 6: Product Compatibility
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Product Compatibility The AV Bridge MatrixMIX is compatible with the following products. Control Devices PCC MatrixMIX live production controller PCC Premier precision camera controller TeleTouch 27 USB touch-screen multiview display Vaddio Cameras May require an update to the camera's firmware. -
Page 7: Unpacking The Switcher
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Unpacking the Switcher Make sure you received all the items you expected. Here are the packing lists for the AV Bridge MatrixMIXmultipurpose AV switcher. North America: AV Bridge MatrixMIX, part number 999-5660-000... -

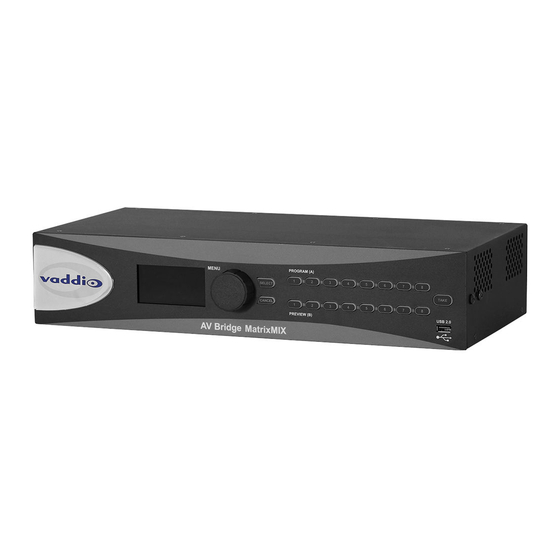

Page 8: A Quick Look At The Switcher
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher A Quick Look at the Switcher 8-line illuminated display – View basic operation and configuration menu and system information Menu knob – Navigate the operation/configuration menu Select and Cancel buttons – Work with the operation/configuration menu Program and Preview buttons 1 through 8 –... -
Page 9: Installation
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Installation This section covers how to install and connect the product. It also provides safety information and other guidance related to installing the product. Note This product is intended for installation and use only in environments where all RS-232 and PoE+ connections originate within the building. -
Page 10: Basic Connections
The diagram below shows a basic live production setup. Ensuring Compatibility The camera controller may be unable to communicate with Vaddio cameras if their firmware is out of date. When you set up the camera controller, be sure the associated Vaddio cameras have been updated to a firmware version that supports the controller. -
Page 11: Web Interface
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Web Interface The multipurpose AV switcher provides a web interface to allow configuration via the IP network connection, using a browser. The web interface allows you to: Set idle session behavior and passwords... -
Page 12: User Access
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher User Access You can access the web interface using the device's IP address. If your network supports hostname resolution, you can use the hostname instead. Note Only the operator's pages are available with guest or user access. -
Page 13: Admin Access
Diagnostics page– View or download logs when troubleshooting issues System page– Reboot, restore factory defaults, run firmware updates, and view firmware version Help page– Tech support contact information and a link to the product information library on the Vaddio website Logout button–... -
Page 14: Web Interface Cheat Sheet
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Web Interface Cheat Sheet Where to find the controls you need right now. What do you need? Go to this page Audio mute/unmute Available from any page All audio functions... -
Page 15: System Administration Tasks
Change a password – Select Edit Password for the appropriate account (user or admin) to open the Edit Password dialog box. Note For best security, Vaddio strongly recommends changing the user and admin passwords. Using the default passwords leaves the product vulnerable to tampering. -
Page 16: Setting System Time And Time Zone
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Setting System Time and Time Zone ETWORKING PAGE Allowing the switcher to contact a network time protocol (NTP) server ensures that its system time is correct, and makes the time zone editable. You also have the option to specify which NTP server to use. -
Page 17: Configuring The Switcher For Your Network
Note If you don't completely understand all the implications of the steps below, please contact your IT staff or Vaddio Technical Support for assistance. Changes in network configuration can result in loss of network contact with the device. 1. Edit the device hostname if necessary. The hostname serves as the device URL. If the network supports hostname resolution, you can use the hostname instead of the device's IP address when you open a web interface session. -
Page 18: Adding Room Information
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Adding Room Information ABELS PAGE Enter information about the location of the equipment and the local IT or A/V help line. This information will be displayed on all pages of the web interface. -
Page 19: Exporting And Importing Configuration Data
If your organization uses several of the same product, you may choose to configure one of them, verify that the configuration is good, and then copy it to the others. Most Vaddio professional AV products and cameras have this capability. - Page 20 2. Select Choose File, and browse to the .dat file to be imported. 3. Select Begin Importing Data. When the import is complete, the device reboots and you will need to log in again. Note Currently, Vaddio products cannot import a configuration file that was exported from a different version of firmware.
-
Page 21: Updating The Firmware
From time to time, we issue new firmware to introduce new features and other product improvements, and to fix issues that turn up. We recommend keeping all your Vaddio products up to date, to get the most out of them. -
Page 22: Restoring Factory Defaults
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Restoring Factory Defaults YSTEM PAGE Restoring factory settings will overwrite anything you have added or customized, such as the admin password, graphics library, video, and audio configurations. (If you export a known good configuration, you can import it again after restoring factory settings. -
Page 23: Contacting Vaddio Technical Support
You'll find technical support contact information on the Help page. Viewing Diagnostic Logs IAGNOSTICS PAGE If you encounter a problem that you can’t solve, your Vaddio technical support representative may ask you to download and email the log file available from the Diagnostics screen. -
Page 24: Performance And Behavior Settings
The web interface provides a control page with tabs for each camera and other video input device, allowing you to control the connected cameras without accessing their individual web interfaces. The tabs for connected Vaddio cameras present the same controls present in the cameras' own web interfaces. -
Page 25: Configuring Video Outputs
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Configuring Video Outputs The Video Outputs page provides controls to configure each video output. Controls available for the Program and Preview outputs include: Output resolution/frame rate Color space Video mute pattern... - Page 26 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Controls for the USB Stream and IP Stream outputs include the video mute pattern and the video source. Set the multiviewer output as the source for the IP stream for remote live operation.
-
Page 27: Operating The Switcher From The Admin Interface
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Operating the Switcher from the Admin Interface The Video Switching page provides most of the same controls available on the operator's pages (guest access or user account login). Changing the Switching Mode... -
Page 28: Setting Current Transition Type And Speed
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Setting Current Transition Type and Speed IDEO WITCHING PAGE In the Global settings area, select the transition type for the currently selected switching mode. If necessary, adjust the transition time. -
Page 29: Enabling Phantom Power To Microphones
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Enabling Phantom Power to Microphones UDIO PAGE NALOG TAB To supply 48 VDC phantom power to a connected microphone, check the Phantom Power checkbox below the controls for the Line/Mic input. -
Page 30: Configuring Audio Settings
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Configuring Audio Settings UDIO PAGE The web interface provides separate controls for each of the audio inputs and outputs: Analog (corresponding to the Audio I/O area of the connector panel) – Line/Mic inputs 1 and 2; audio line out 1 and 2 HDMI Inputs (corresponding to the HDMI Inputs area of the connector panel) –... -
Page 31: Controlling Volume On Individual Inputs Or Outputs
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Controlling Volume on Individual Inputs or Outputs , HDMI I UDIO PAGE NALOG TREAMING TABS Use the button to mute the desired audio input or output. Use the slider to set the volume. -
Page 32: Default Microphone Settings
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Default Microphone Settings UDIO PAGE NALOG TAB Acoustic Echo Cancellation – Enabled; prevents audio feedback by cancelling the specified output signal out of the line/mic input. Noise Cancellation – Enabled; suppresses ambient noise. -
Page 33: Microphone Settings For Environments With Audiences
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Microphone Settings for Environments with Audiences UDIO PAGE NALOG AND ATRIX TABS Speech Lift: Feeds the signal from the specified microphone to the speakers in the room, so that people in the back of the room can hear the person who is speaking. -
Page 34: Speaker Adjustments
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Speaker Adjustments UDIO PAGE NALOG AND TREAMING TABS To sync the sound with the video: If the video lags noticeably behind the audio, check the Delay box for the appropriate audio outputs (Analog or Streaming tab) and enter a delay value in msec. -
Page 35: Routing Audio
To specify how the AV Bridge MatrixMIX uses a given audio input, locate its row. Locate the column representing the desired output and select the table cell where the desired row and column intersect. -
Page 36: Selecting Stream Sources
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Selecting Stream Sources , USB S IP S IDEO UTPUTS PAGE TREAM UTPUT AND TREAM UTPUT TABS By default, the USB stream and IP stream both use the Program output as their source. -
Page 37: Enable Or Disable Streaming
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Enable or Disable Streaming IP and USB streaming are enabled by default. Use the Enable USB Streaming and Enable IP Streaming checkboxes to change this. You may need to reboot the device for your change to take effect. -
Page 38: Setting Up Macros And Triggers
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Setting up Macros and Triggers ONTROL EVICES PAGE Macros may use any of the commands listed in the Telnet Serial Command API chapter. To edit an existing macro: Select the Edit button associated with the macro, or select the macro name. The macro opens in the Macro Editor. -
Page 39: Working With Graphics
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Working with Graphics RAPHICS IBRARY PAGE Use the graphics library to set up keying and placement for on-screen graphics. To upload a graphics file: 1. Select Upload. The Upload Graphics box opens. -
Page 40: Configuring Standby Behavior
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher To manage the graphics library: Right-click the filename to edit it. Select the X to delete the file. Configuring Standby Behavior NTERFACE PAGE To place the cameras in standby mode along with the switcher, check the box marked "Standby Connected Cameras when AV Bridge MatrixMIX Enters Standby."... -
Page 41: Operating The Switcher
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Operating the Switcher The AV Bridge MatrixMIX web interface provides an operator interface for basic functions; however, to take advantage of the full range of the switcher's capabilities, we recommend using it with the TeleTouch 27 USB multiviewer and PCC MatrixMIX live production controller. -
Page 42: Selecting Cameras
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Selecting Cameras OME PAGE OPERATOR S WEB INTERFACE The front panel, web interface, and multiviewer show the program (on-air) camera in red on the Program row, and the preview camera in green on the Preview row. Select the desired video source. -
Page 43: Working With On-Screen Graphics
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Working with On-Screen Graphics Select the output to work with – Preview or Program. To add or remove an existing graphic, select or deselect the Layer button associated with it. - Page 44 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher To associate a graphic with a layer: 1. Select Sources. The Keying > Sources box displays the filename of the graphic (if any) associated with each layer. 2. To delete a graphic from a layer, select the X to the right of the filename.
-
Page 45: Selecting A Pip Source And Layout
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Selecting a PIP Source and Layout 1. Select the output to work with – Preview or Program. 2. Select the camera or other video source to use as the PIP source. -
Page 46: Using Camera Presets
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Using Camera Presets PERATOR OME PAGE To move the preview camera to a preset position, select the desired preset. Depending on the camera and the preset definition, presets may include zoom, speed, and lighting information along with the pan, tilt, and focus. -
Page 47: Telnet Serial Command Api
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Telnet Serial Command API The Vaddio Telnet command API allows an external device such as an AMX or Crestron presentation system to control the device. It is also used for device macros. -
Page 48: Audio Mute
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher audio mute Gets or sets the mute status of the specified audio channel. Synopsis audio [channel] mute {get | on | off | toggle} Channels master Gets or sets the mute status of master audio mute, the emergency mute for all channels. -
Page 49: Audio Volume
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher audio volume Gets or sets the volume of the specified audio channel. The valid range depends on the channel. Synopsis audio [ channel ] volume { get | up | down | set <level> }... -
Page 50: Audio Route
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher audio route Gets or sets the input routed to the specified output. Note The designated master (AEC reference) output must have speech lift in its route list if it’s enabled. The designated master output cannot have the auto_mic_mix input in its route list. -
Page 51: Audio Crosspoint-Gain
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher audio crosspoint-gain Returns or sets the input routing gain, in dB, for a given output and input. Synopsis audio <output> crosspoint-gain <input> {get | set <level>} Outputs usb3_record_left Gets or sets the gain for the input routed to the usb3_record_right USB3 Record Left/Right channel. -
Page 52: Camera Home
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher camera home Moves the specified camera to its home position. Synopsis camera <1 - 8> home Required <1..8> Specify the camera to move. Example camera 3 home Moves camera 3 to its home position. -
Page 53: Camera Zoom
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher camera zoom Moves the specified camera in toward the subject or out away from the subject. Synopsis camera <1..8> zoom { in [<speed>] | out [<speed>] | stop } Required <1..8>... -
Page 54: Camera Focus
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher camera focus Changes the camera focus. Synopsis camera <1..8> focus {{ near [<speed>] | far [<speed>]} | {mode [auto | manual | get]} | stop } Required <1..8> Specify the camera to focus. -
Page 55: Camera Preset
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher camera preset Moves the camera to the specified preset, or stores the current camera position and optionally CCU information, either with or without specifying that Tri-Synchronous Motion is to be used when moving to this position. -
Page 56: Camera Ccu Get
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher camera ccu get Returns or sets CCU (lighting) information for the specified camera. Synopsis camera <1..8> ccu get <param> Options auto_white_balance Returns the current state of the auto white balance setting (on or off). -
Page 57: Camera Ccu Set
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher camera ccu set Sets the specified CCU (lighting) information. Synopsis camera <1..8> ccu set <param> <value> Options auto_white_balance {on Sets the current state of the auto white balance | off} setting (on or off). -
Page 58: Camera Ccu Scene
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher camera ccu scene Stores the current CCU scene to the specified camera, or recalls the specified ccu scene for the specified camera. Synopsis camera <1..8> ccu scene {recall {factory <1..6> | custom <1..3>} | store custom <1..3>}... -
Page 59: Video Mute
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher video mute Gets or sets the video mute status of the specified channel. When video is muted, the device sends a mute pattern such as blue or black video with an on-screen message stating that video mute is on. This can be desirable when preparing the room or when privacy is needed. -
Page 60: Video Source
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher video source Gets or sets the source for the specified video output. Synopsis video <output channel> source {get | set} <source channel> Output channels program The program output, or the bus A output in dual- bus mode. -
Page 61: Video Pip
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher video pip Get or set the state of a graphics layer on the program or preview output. Synopsis video { program | preview } pip { get | off | source <input1..input8>}... -
Page 62: Graphics Enable
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher graphics enable Get or set the state of a graphics layer on the program or preview output. Synopsis graphics <channel> enable <layer> { get | on | off | toggle}... -
Page 63: Graphics Source
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher graphics source Get or set the state of a graphics layer on the program or preview output. Synopsis graphics <channel> source <layer> { get | set <selection> } Channels program Get or set the state of a layer on the program output. -
Page 64: Switch Mode
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher switch mode Get or set the current switching mode – a/b switching or dual-bus mode. Note After changing switching mode, we recommend rebooting the connected controller(s). Synopsis switch mode { get | a_b | dual_bus } Options Returns the current switching mode. -
Page 65: Trigger
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher trigger Turn an existing trigger on or off. This command has no effect if the specified trigger has not been defined. Note If the web interface's macro/trigger test mode is in use, this command is disabled. -
Page 66: Streaming Settings Get
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher streaming settings get Returns current IP and USB streaming settings. Synopsis streaming settings get Parameters IP Custom_Frame_Rate Frame rate selected in Custom quality mode. IP Custom_Resolution Resolution selected in Custom quality mode. -
Page 67: Network Ping
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher network ping Sends an ICMP ECHO_REQUEST to the specified IP address or hostname. Synopsis network ping [count <count>] [size <size>] <destination-ip> Options <count> The number of ECHO_REQUEST packets to send. -
Page 68: System Factory-Reset
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher system factory-reset Gets or sets the factory reset status. When the factory reset status is on, the system resets to factory defaults on reboot. Synopsis system factory-reset { get | on | off}... -
Page 69: Version
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher version Returns the current firmware version. Synopsis version Example version Returns current firmware version information in a form something like this: Audio 1.07-1.00 Commit 289e985e9557617497005bde771a9922c153cdec System Version AVBMM 1.0.0 01.00.017... -
Page 70: Help
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher help Displays an overview of the CLI syntax. Synopsis help Example help Note: Use ? as a command parameter to see information about a given command's syntax. exit Ends the command session and then closes the Telnet socket. -
Page 71: Specifications
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Specifications Camera and Video HDMI Inputs Program, Preview, and Multiview HDMI Outputs Color Space YCbCr or sRGB Color Space YCbCr or sRGB Resolution (Inputs 1-6) 720p/50 to 1080p/60 Resolution... -
Page 72: Troubleshooting And Care
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Troubleshooting and Care If the equipment does not behave as you expect, use this table to determine whether to call Vaddio Technical Support. What is it doing? Possible causes Check and correct Nothing. -
Page 73: Compliance Statements And Declarations Of Conformity
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Compliance Statements and Declarations of Conformity Compliance testing was performed to the following regulations: FCC Part 15 (15.107, 15.109), Subpart B Class A ICES-003, Issue 54: 2012 Class A... -
Page 74: European Compliance
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher European Compliance This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ... -
Page 75: Warranty Information
Vaddio Service Department: Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair. All components must be returned for testing as a complete unit. Vaddio will not... -
Page 76: Photo Credits
Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Photo Credits European Space Agency (ESA) astronaut Samantha Cristoforetti, a Flight Engineer with Expedition 42, photographs the Earth through a window in the Cupola on the International Space Station By NASA - https://blogs.nasa.gov/ISS_Science_Blog/2015/03/06/women-in-space-part-two-whats-... -
Page 77: Index
camera presets 42 recalling 42 Index camera select buttons 4 camera status indicators 4 cameras 20, 38 controlling 20 accessories 3 selecting 38 acoustic echo cancellation 28 capabilities 1, 67 adjusting microphones 29 CCU scenes 54 admin login 7, 9, 11 custom 54 changing 11 recalling 54... - Page 78 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher exporting configuration data 16 default 13 discovering 7-8 IP streaming 32-33, 62 factory defaults, restoring 18, 64 enabling 32 fault isolation 68 latency 37 firmware 6, 17, 65 resolutions and frame rates 32...
- Page 79 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher dual-bus 60 PIP 21, 41, 57 multiviewer output 21, 37 configuring 21 configuring 21 layout 41 viewing as an IP stream 37 source 41, 57 muting 26-27, 38, 44, 55...
- Page 80 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher source 21, 31 transitions, video 24 audio 31 for A/B and dual-bus switching modes 24 IP stream 21 time 24 USB stream 21 type 24 speakers 27, 30, 38...
- Page 81 Integrator's Complete Guide to the AV Bridge MatrixMIX Multipurpose AV Switcher Control Devices page 34 Diagnostics page 19 Graphics Library 35 Help page 19 Networking page 12-13 Room Labels 14 Security page 11 Streaming page 32 System page 14-15, 17-18...
- Page 82 Vaddio, AV Bridge, and MatrixMIX are trademarks or registered trademarks of Milestone AV Technologies. The term HDMI and the HDMI logo are trademarkes or registered trademarks of HDMI Licensing LLC in the United States and other countries.
