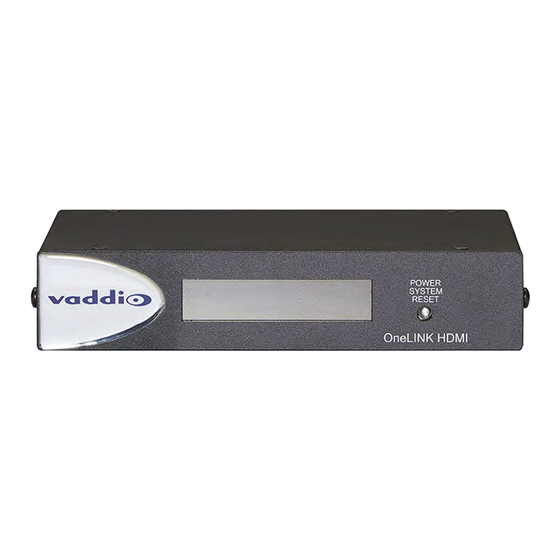

Integrator's Complete Guide to the
OneLINK HDMI
Extension Module for HDBaseT Cameras
Document 411-0005-30 Rev. B
February 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OneLINK HDMI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VADDIO OneLINK HDMI

Summary of Contents for VADDIO OneLINK HDMI

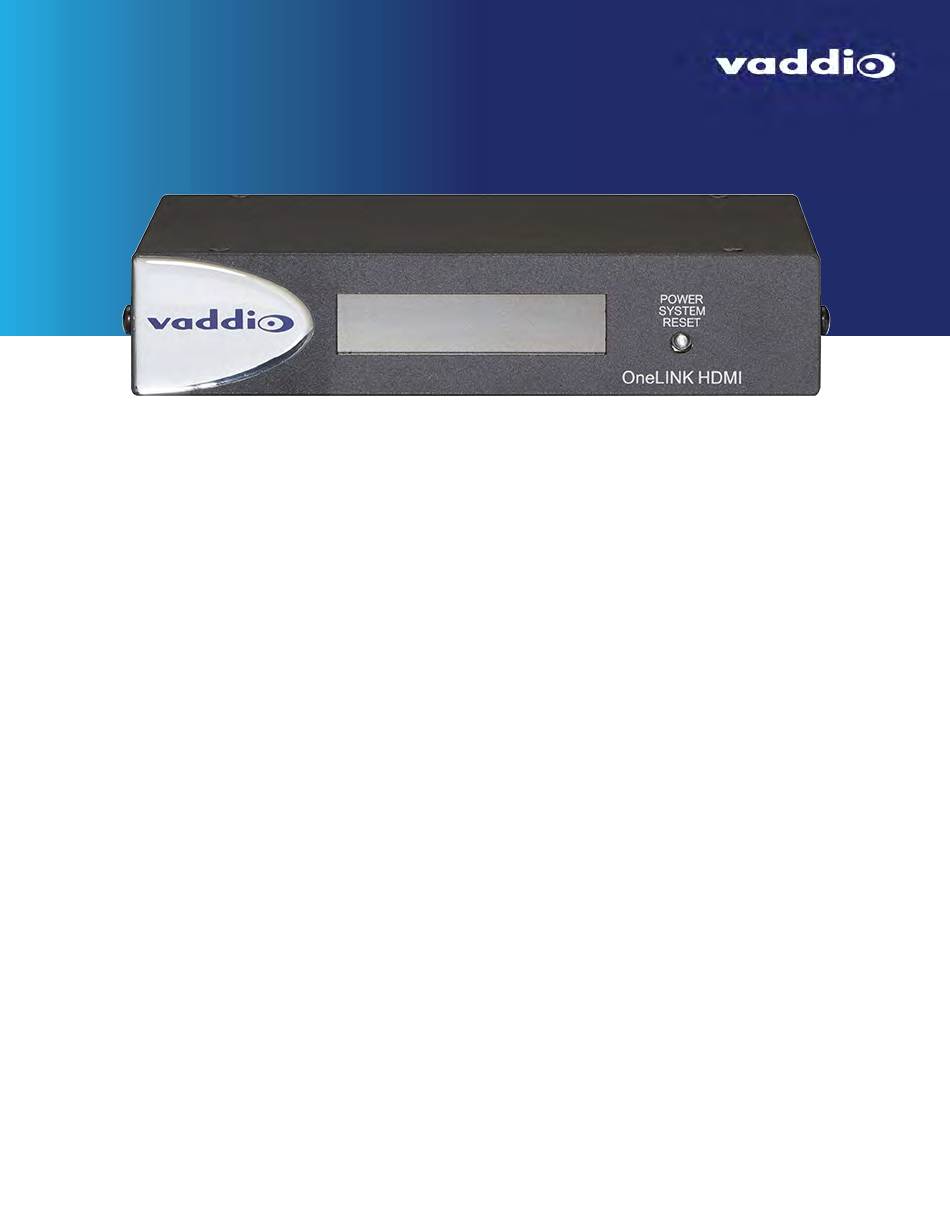

  • Page 1 Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Document 411-0005-30 Rev. B February 2017...

  • Page 2: Table Of Contents

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Contents Overview Features Unpacking A Quick Look at the OneLINK HDMI Camera Extension Module Front Panel Back Panel Installing the Camera Extension Module Don’t Void Your Warranty! Cabling Notes...
  • Page 3 Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Specifications Troubleshooting Warranty Information Compliance and Declarations of Conformity FCC Part 15 Compliance ICES-003 Compliance European Compliance Index...

  • Page 4: Overview

    999-1105-043, North America 999-1105-143, UK and Europe 999-1105-943, Australia and New Zealand This guide provides information about: Unpacking and installing the OneLINK HDMI extension module The OneLINK extension module's physical features Configuring the OneLINK extension module Specifications Troubleshooting and maintenance...

  • Page 5: Unpacking

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Unpacking Make sure you received all the items you expected. North America Part Number 999-1105-043: OneLINK HDMI extension module 48 VDC, 1.36 A power supply AC cord set for North America...

  • Page 6: A Quick Look At The Onelink Hdmi Camera Extension Module

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras A Quick Look at the OneLINK HDMI Camera Extension Module This section covers the physical features of the OneLINK HDMI extension module for HDBaseT cameras. Note The extension module is not a camera control device. You cannot access camera control from the OneLINK HDMI camera extension module's IP address.

  • Page 7: Back Panel

    HDMI Output – HDMI video output from the camera. RS-232 port – Connect to a camera controller. IR Forwarding – To forward IR signals from the camera, if available. Modulated and non-modulated outputs provided. Network IP Port – Connect the OneLINK HDMI extension module to the network.

  • Page 8: Installing The Camera Extension Module

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Installing the Camera Extension Module This section covers: Things to know before you start the installation Basic connection example Rack mounting brackets are available for the OneLINK HDMI camera extension module.

  • Page 9: Mounting The Extension Module

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Mounting the Extension Module If you purchased a mounting kit for this product, follow the instructions supplied with the mount. RS-232 and IR Forwarding Port Connector Pin-Outs RS-232 Control Port RJ-45 connection for a camera controller 1.

  • Page 10: Basic Connections

    OneLINK HDMI camera extension module. This example also shows a ProductionVIEW PCC connected directly to the OneLINK HDMI extension module via RS-232, with a PCC Premier camera controller also able to control the camera from elsewhere on the network.

  • Page 11: Configuring The Camera Extension Module

    IP address, viewing diagnostics, and installing firmware updates. If the network has a DHCP server, the OneLINK HDMI extension module will get its IP address, gateway and routing information automatically and you will be able to browse to it. In the absence of a DHCP server, the extension module's default IP address is 169.254.10.1 and its subnet mask is 255.255.255.0.

  • Page 12: Accessing The Web Interface As Admin

    Accessing the Web Interface as Admin ANDING PAGE 1. Make sure the OneLINK HDMI extension module is connected to the network, or directly to a PC. 2. Read the IP address from the display on the front. 3. Enter the IP address in your browser's address bar. Either a login dialog or the Help page opens.

  • Page 13: Web Interface Cheat Sheet

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Web Interface Cheat Sheet When you log in as Admin, you have access to the pages for all system administration tasks. What do you need to do? Go to this page...

  • Page 14: Configuring Network Settings

    After you enter or change information on this page, click Save. Note Changes on the OneLINK HDMI web interface do not affect the attached camera's network configuration. The camera has its own separate IP address. Use the camera's own web interface to configure the camera.

  • Page 15: Specifying Time Zone And Ntp Server

    4. Click Refresh to update the displayed date and time. Assigning a Hostname The default hostname for the OneLINK HDMI camera extension module is the string vaddio-onelink- hdmi- followed by the module's MAC address. You can change this in the Hostname field.

  • Page 16: Network Configuration

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Network Configuration By default, the OneLINK HDMI extension module is configured to use DHCP. If the LAN has a DHCP server, the OneLINK HDMI camera extension module will get its IP address, gateway and routing information automatically.

  • Page 17: Managing Access And Passwords

    Change the password for the admin account (default is password) Change the password for the user account (default is password) Note For best security, Vaddio strongly recommends changing the user and admin passwords from the default. Using the default passwords leaves the product vulnerable to tampering. Pro Tip...

  • Page 18: Adding Room Information To The Web Interface

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Adding Room Information to the Web Interface ABELS PAGE On this page, you can provide information about the OneLINK HDMI camera extension module's location: Name of the organization Name of the room where the equipment is installed...

  • Page 19: Rebooting, Updating, And Resetting

    The system information includes the version – so you don't need to guess about whether the latest update has already been installed. Reboot This may help if the camera attached to the OneLINK HDMI extension module stops responding as you expect. In the System Utilities section of the System page, click Reboot.

  • Page 20: Save Or Restore Configuration

    To restore an exported configuration: 1. Click Import Data. The Import Data dialog opens. 2. Click Choose File, and select the configuration file. The filename is the same as the OneLINK HDMI extension module's hostname, with the file extension .dat - for example, vaddio-onelink-hdmi- EC-11-27-FD-B7-E3.dat.

  • Page 21: Start A Firmware Update

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Start a Firmware Update 1. Be sure you have downloaded the appropriate update file to your computer. 2. Click Choose File from the Firmware Update section of the System page, and select the update file.

  • Page 22: Contacting Vaddio Technical Support

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Contacting Vaddio Technical Support ELP PAGE This page provides Vaddio Technical Support contact information.

  • Page 23: Viewing Diagnostic Logs

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Viewing Diagnostic Logs IAGNOSTICS PAGE If you encounter a problem that you can’t solve, your Vaddio technical support representative may ask you to download and email the log file available from the Diagnostics screen.

  • Page 24: Telnet Serial Command Api

    [parameter] – Parameter is not required. Note The commands in this guide refer to the OneLINK HDMI camera extension module. To control the camera itself, open a Telnet session to the camera's IP address and use the camera's Telnet commands.

  • Page 25: Link Power

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras link power Sets the camera connection on or off. Note The camera extension module is not a camera control device. To set the camera to standby instead of powering it off, use the camera's remote or other camera control interface to issue a standby command directly to the camera.

  • Page 26: Network Ping

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras network ping Sends an ICMP ECHO_REQUEST to the specified IP address or hostname. Synopsis network ping [count <count>] [size <size>] <destination-ip> Options <count> The number of ECHO_REQUEST packets to send.

  • Page 27: System Factory-Reset

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras system factory-reset Gets or sets the factory reset status. When the factory reset status is on, the extension module resets to factory defaults on reboot. Note This does not reset the camera.

  • Page 28: Sleep

    Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras sleep Pauses for the specified number of milliseconds before evaluating and executing the next command. Synopsis sleep <milliseconds> Options <milliseconds> The number of milliseconds (1 to 10000) to pause.
  • Page 29 Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras Specifications Capabilities Video output HDMI 1.4b – matches camera Power to camera 12 VDC, 3 Amp passed from resolution, up to 2160p/29.97 camera Compatible RoboSHOT 20 UHD, OneLINK HDMI power 48 VDC, 1.36 Amp...
  • Page 30 Refer to the camera manual for more information on camera status indications and troubleshooting. Next, check the OneLINK HDMI web interface for error messages. If neither of these reveal the problem, use this table to determine whether it's time to call Vaddio Technical Support.
  • Page 31 Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras What is it doing? Possible causes Check and correct The camera is on but Possible camera issue Refer to troubleshooting in the camera not transmitting video. manual. Camera does not go Camera firmware may be out of Check the camera's firmware version;...
  • Page 32 Vaddio receives notice of such defects during the warranty. Vaddio, at its option, will repair or replace products that prove to be defective. Vaddio manufactures its hardware products from parts and components that are new or...
  • Page 33 This device must accept any interference including interference that may cause undesired operation of the device. Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority to operate this equipment. ICES-003 Compliance This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. ...
  • Page 34 Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras European Compliance This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and meets the requirements for a Class A digital device.  In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. ...
  • Page 35 firmware version 24 front panel display 3 Index getting help 19 guest access, allowing 14 admin login 9, 14 changing 14 anatomy of the extension module 3 hardware reset 3 API 21 Help page (web) 19 syntax help 21 hostname 11-12 automatic inactivity time-out (web interface) 14 automatic NTP updating 12...
  • Page 36 Integrator's Complete Guide to the OneLINK HDMI Extension Module for HDBaseT Cameras physical and environmental specifications 26 user login 14 pin-outs for RS-232 and IR forwarding con- changing 14 nectors 6 ping command 23 power on/power off 22 version, firmware 24...
  • Page 37 Vaddio, OneLINK, and RoboSHOT are trademarks or registered trademarks of Milestone AV Technologies. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo, are trademarkes or registered trademarks of HDMI Licensing LLC in the United States and other countries.
