Kalahari RC
&
Camber RC

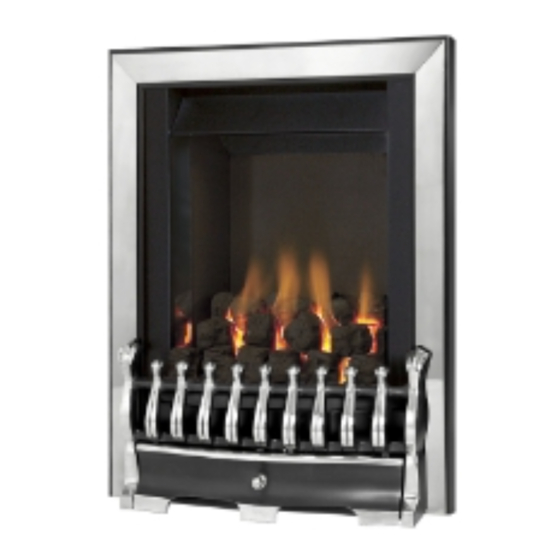

DECORATIVE FUEL EFFECT GAS FIRE
Installation and Maintenance Instructions
Hand these instructions to the user
Model No's KRDC**RN & KRDP**RN are for use on Natural Gas (G20)
at a supply pressure of 20 mbar in G.B. / I.E.
** denotes trim / fascia variant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Camber RC and is the answer not in the manual?

Questions and answers

Related Manuals for Kinder Camber RC

Summary of Contents for Kinder Camber RC

  • Page 1 Kalahari RC & Camber RC DECORATIVE FUEL EFFECT GAS FIRE Installation and Maintenance Instructions Hand these instructions to the user Model No’s KRDC**RN & KRDP**RN are for use on Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.

  • Page 2: Table Of Contents

    CONTENTS Section 1 Information and Requirements PAGE Appliance Information Conditions of Installation Flue and chimney suitability Fireplace / surround suitability Shelf position Chimney inspection Fire place opening / catchment space Precast Flues Metal Flue boxes Hearths 1.10 Spillage Monitoring System Section 2 Installation of Fire Unpacking the fire...

  • Page 3: Information And Requirements

    SECTION 1 INFORMATION AND REQUIREMENTS APPLIANCE INFORMATION Model KRDC**RN & KRDP**RN Gas Type Main injectors (2 off) Size 260 Pilot Type Copreci 21100 / 162 Max. Gross Heat Input : 6.9 kW Min. Gross Heat Input : 4.2 kW Cold Pressure : 20.0 +/-1.0 mbar Ignition : 9V Battery Generator...

  • Page 4: Conditions Of Installation

    INSTALLATION REQUIREMENTS CONDITIONS OF INSTALLATION It is the law that all gas appliances are installed only by a CORGI Registered Installer, in accordance with these installation instructions and the Gas Safety (Installation and Use) Regulations 1998 as amended. Failure to install appliances correctly could lead to prosecution.

  • Page 5: Fireplace / Surround Suitability

    FIREPLACE / SURROUND SUITABILITY The fire must only be installed on a hearth it must not be installed directly onto carpet or other combustible floor materials. The fire is suitable for fitting to non-combustible fire place surrounds and propri- etary fire place surrounds with a temperature rating of at least 150 o c. If a heating appliance is fitted directly against a wall without the use of a fire surround or fire place all combustible material must be removed from behind the trim.

  • Page 6: Fire Place Opening / Catchment Space

    There must be no leakage of smoke through the structure of the chimney during or after the smoke pellet test and it is important to check inside upstairs rooms adjacent to the chimney / flue. Check the chimney pot / terminal and general condition of the brickwork or masonry.
  • Page 7 Table A - Installation Depth Requirements for a Kinder Kalahari / Camber being installed into a brick built chimney, requiring 12.0 litres of debris collection volume (fig. 2). When installing this product into a builders opening / brick-built chimney, the depth required is a minimum of 170mm.

  • Page 8: Precast Flues

    1.7 FITTING TO PRE-CAST FLUE INSTALLATIONS When installing this appliance into pre-cast flues, always ensure that the spigot restrictor baffle has been removed. To install the fire box in to pre-cast flue starter blocks, there must be at least 170mm from the mounting face of the fire to the rear of the pre-cast flue starter block to allow sufficient space for debris collection.

  • Page 9: Spillage Monitoring System

    1.10 SPILLAGE MONITORING SYSTEM This appliance is fitted with an atmosphere sensing spillage monitoring system in the form of an oxygen sensing pilot. This is designed to shut the fire off in the event of a partial or complete blockage of the flue causing a build up of combustion products in the room in which the fire is operated.

  • Page 10: Installation Of Fire

    SECTION 2 INSTALLATION OF FIRE UNPACKING THE FIRE Carefully lift the fire out of the carton. Remove the loose item packaging carefully from the front of the appliance. Check the contents as listed :- Packing Check List 1off Fire box / burner assembly 1off Boxed fuelbed base, ceramic front rail and 14 synthetic pebbles or 18 synthetic coals...
  • Page 11 Proceed as follows :- Remove the trim. Remove the burner heat shield from the front of the fire box to allow access to the burner. See fig. 3 below. (Kalahari model shown in Fig. 3 below with aeration lever.) Fig. 3 Ensure that the hearth is protected from damage and carefully lift the fire box into the fire opening, then slide it back into position.
  • Page 12 Whilst the fire box is still in position, decide which side the gas supply is to enter the fire from. If concealed pipe work is required plan the pipe run to enter the fire box through one of the openings in the sides of the fire box below the fuelbed support panel and connect to the isolating / inlet elbow.
  • Page 13 IMPORTANT : Sealing of the Gas Unused Gas Pipe Inlet Apertures In line with current CORGI regulations, it is imperative that the gas supply inlet apertures that are not utilised during the installation are sealed with the foil tape as supplied. Failure to seal these inlet apertures could lead to flame reversal, which in turn will damage the burner and control systems of the product.
  • Page 14 There is a choice of methods of fixing the firebox which are provided to enable the installer to deal with any type of installation. The preferred method of fixing which is suitable for almost all situations is the cable fixing method which is described in the following section in detail. If the 50mm black spacer is used (only suitable for use on Kalahari models), the fire may be secured using the cable method as described below, or alternatively, in installations where the cable method is not suitable (eg.
  • Page 15 Position the fire carefully on the (protected) surface of the hearth and reach into the fire opening. Thread each of the cables vertically downwards through the pair of fixing eyes on the same side of the fire. Thread the free end of the cables through the corresponding circular hole on each side of the lower rear of the fire.
  • Page 16 Refit the front burner heat shield to the sides of the fire box (2 Screws) and secure the trim to the fire using the magnets provided. Before making the final gas connection, thoroughly purge the gas supply pipework to remove all foreign matter, otherwise serious damage may be caused to the gas control valve on the fire.

  • Page 17: Gas Tightness And Inlet Pressure

    SECTION 3.1A ASSEMBLING FUEL BED AND COMMISSIONING - KINDER CAMBER (PEBBLE FUELBED MODELS) NOTE : The position of the fuel-bed components are critical to the performance of the product. Therefore please ensure that the fuel-bed components are positioned as described in the following section prior to requesting a service call due to soot build up, poor flame pattern etc.
  • Page 18 Position front ceramic rail on burner front ceramic support and ensure that the locating channel in the front ceramic rail is correctly located onto the lip on the burner front ceramic support. (See fig. 11 below) Fig. 11 Pick pebbles A to E and arrange along the the front rail, ensuring that they are evenly spaced.
  • Page 19 Select pebbles F to I and arrange behind the front row of pebbles, ensuring that flame paths as indicated below are not interupted. (See fig. 13 below) Fig. 13 Pebble H Pebble F Pebble I Pebble G Select pebbles K, L & M and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement.
  • Page 20 The exact position and fit of the pebbles may be finely adjusted to give the most pleasing and random appearance. Warning : Use only the pebbles supplied with the fire. When replacing the pebbles remove the old pebbles and discard them. Fit a complete set of pebbles of the correct type.

  • Page 21: Assembling The Ceramics And Fuel Bed (Pebble Models)

    SECTION 3.1B ASSEMBLING FUEL BED AND COMMISSIONING - KINDER KALAHARI (COAL FUELBED MODELS) NOTE : The position of the fuel-bed components are critical to the performance of the product. Therefore please ensure that the fuel-bed components are positioned as described in the following section prior to requesting a service call due to soot build up, poor flame pattern etc.
  • Page 22 Fit five of the large sized coals onto the front ceramic rail, ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. (See fig. 17 below) Fig. 17 Select four of the large coals and arrange behind the front row of coals, ensuring that flame paths as indicated below are not interupted.
  • Page 23 Select three of the large coals and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. (See fig. 19 below) Fig. 19 Select the two small coals and position to fill the gaps at each end of the third row of coals, as shown.
  • Page 24 Select the remaining four coals and position along the rear edge of the fuelbed (See fig. 21 below) Fig. 21 The exact position and fit of the coals may be finely adjusted to give the most pleasing and random appearance. Warning : Use only the coals supplied with the fire.

  • Page 25: Connection Of The Lithium Battery Pack

    CONNECTING THE BATTERY PACK To prevent un-necessary battery drain, the battery pack that is used to provide the remote control function for this product is disconnected at the factory. Prior to attempting to light the product, can the installer please ensure that the battery pack is re-connected as shown in section b), c) &...

  • Page 26: Fixing The Infrared Sensor In Position

    FIXING THE INFRARED SENSOR IN POSITION Due to the large amount of different fascia’s that can be supplied with these fires, the infrared sensor is supplied from the factory attached to a self adhesive pad. This pad can therefore be attached to the hearth in a position to suit the form of the fret or contemporary trim assembly that is chosen with the product.

  • Page 27: Lighting The Appliance

    LIGHTING THE APPLIANCE The Remote control handset generates an infrared signal, which will be received by the sensor situated at the front right of your fire, behind the black controls cover. This infrared signal requires direct line of sight from the handset to the sensor on the fire to ensure good operation. If the handset is lost or broken, the fire can be lit manually, see the user instructions for details on how to operate the fire manually.

  • Page 28: Checking For Clearance Of Combustion

    CHECKING FOR CLEARANCE OF COMBUSTION PRODUCTS Close all doors and windows in the room. Light the fire and allow to run for approximately 5 minutes on high position. After approximately 5 minutes hold a smoke match just inside and below the centre of the lower front edge of the top of the fire. (It is recommended that a suitable smoke match holder is used when check ing for clearance of combustion products).

  • Page 29: Maintenance

    SECTION 4 MAINTENANCE Servicing Notes Servicing should be carried out annually by a competent person such as a CORGI registered engineer. The service should include visually checking the chimney and fire opening for accumulations of debris and a smoke test to check for a positive up-draught in the chimney.

  • Page 30: Removal Of The Valve

    Removing the Valve 4.2.1 Remove the burner assembly as in section 4.1 4.2.2 Remove the thermocouple retaing nut from the valve. remove the main pipe, inlet pipe and pilot pipe from the valve. 4.2.3 Remove the valve retaining screws and remove. Re-assemble in reverse order and carry out a gas tightness test.

  • Page 31: Parts Shortlist

    PARTS SHORTLIST Replacement of any other parts must be carried out by a competent person such as a CORGI registered gas installer. The part numbers of the replaceable parts are as follows, these are available from your local stockist, whose details may be found on the BFM Europe website, details as below.

  • Page 32: Bfm Europe Ltd

    Due to our policy of continual improvement and development the exact accuracy of illustrations and descriptions contained in this book cannot be guaranteed Part No. B-108080 Issue 2 BFM Europe Ltd. Trentham Lakes Stoke-on-Trent Staffordshire ST4 4TJ www.bfm-europe.com Telephone - General Enquiries : (01782) 339000 Telephone - Service : (0844) 7700169...
