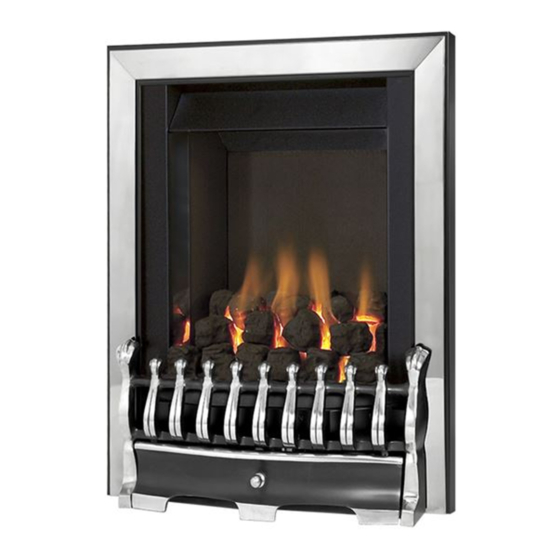

Kalahari
DECORATIVE FUEL EFFECT GAS FIRE
User Instructions
These instructions should be read by the user before operating the
appliance and retained for future reference
Model No. KRDC00MN & KRDC00SN are only for use on Natural Gas
(G20) at a supply pressure of 20 mbar in G.B. / I.E.
Model No. KRDC00MP & KRDC00SP are only for use on Propane Gas
(G31) at a supply pressure of 37 mbar in G.B. / I.E.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kinder Kalahari
Summary of Contents for Kinder Kalahari
- Page 1 Kalahari DECORATIVE FUEL EFFECT GAS FIRE User Instructions These instructions should be read by the user before operating the appliance and retained for future reference Model No. KRDC00MN & KRDC00SN are only for use on Natural Gas (G20) at a supply pressure of 20 mbar in G.B. / I.E.
-
Page 2: Installation Information
INSTALLATION INFORMATION CONDITIONS OF INSTALLATION It is the law that all gas appliances are installed only by a competent (e.g. GAS SAFE Registered) Installer, in accordance with the installation instructions and the Gas Safety (Installation and Use) Regulations 1998. Failure to install appliances correctly could lead to prosecution. -
Page 3: Important Safety Information
ABOUT YOUR NEW KALAHARI The Kinder Kalahari coal effect gas fire incorporates a unique and highly developed fuel bed which gives the realism of a loose coal layout combined with realistic flames and glow. The use of durable ceramic material in the construction of the fuelbed components ensures long and trouble free operation. -
Page 4: Operating The Fire (Manual Control Models)
Always keep furniture and combustible materials well clear of the fire and never dry clothing or items either on or near to the fire. Never use aerosols or flamma- ble cleaning products near to the fire when it is in use. The ceramic fuel bed remains hot for a considerable period after use and sufficient time should be allowed for the fire to cool before cleaning etc. -
Page 5: Operating The Fire (Slide Control Models)
WARNING If the fire goes out for any reason or is turned off and it is necessary to re-light the fire it is important to allow the fire to cool for 3 minutes before attempting to re-light it. OPERATING THE FIRE (SLIDE CONTROL MODELS) The controls comprise a control lever, to turn the fire on and off and adjust the gas rate, and a flame adjuster to alter the flame picture. -
Page 6: Spillage Monitoring System
allowed to warm up for a few minutes with the flame adjuster set to the left hand position and the control lever set to high. The gas control can be moved from the High to Low position to give the desired heat output and the flame control adjusted to give the most pleasing flame effect or maximum glow. -
Page 7: Cleaning The Fuel Bed
If a Kinder Fires fender was supplied with the fire, it is laquered to protect the finish and therefore must only be cleaned using a clean damp cloth. Abrasive cleaners, chemical cleaning agents or any type of polish must never be used as damage to the finish may result. -
Page 8: Re-Assembling The Fuel Bed
RE-ASSEMBLING THE FUEL BED NOTE : The position of the fuel-bed components are critical to the performance of the product. Therefore please ensure that the fuel-bed components are positioned as described in the following section prior to requesting a service call due to soot build up, poor flame pattern etc. Place the ribbed ceramic fuelbed base on top of the fuelbed support and pull fully forwards to the burner. - Page 9 Fit five of the large sized coals onto the front ceramic rail, ensuring that they are evenly spaced. Use the recess’s in the front ceramic rail as a guide for placement. (See fig. 3 below) Fig. 3 Select four of the large coals and arrange behind the front row of coals, ensuring that flame paths as indicated below are not interupted.
- Page 10 Select three of the large coals and arrange along the rear of the fuelbed, using the ribs in the rear of the fuelbed as a guide for placement. (See fig. 5 below) Fig. 5 Select the two small coals and position to fill the gaps at each end of the third row of coals, as shown.
- Page 11 Select the remaining four coals and position along the rear edge of the fuelbed (see fig. 8 below) Fig. 8 The exact position and fit of the coals may be finely adjusted to give the most pleasing and random appearance. Warning : Use only the coals supplied with the fire.
-
Page 12: Removal / Re-Fitting The Trim
REMOVAL / RE-FITTING THE TRIM The trim is positioned on the firebox fixing flange and is secured with magnets. USER REPLACEABLE PARTS The only user replaceable parts on this fire are the fuelbed components and coals which may be replaced as described in the above section. Replacement of any other parts must be carried out by a competent person such as a GAS SAFE registered gas installer. - Page 13 Due to our policy of continual improvement and development the exact accuracy of descriptions and illustrations cannot be guarantee Part No. B-103560 Issue 3 BFM Europe Ltd Trentham Lakes Stoke-on-Trent Staffordshire ST4 4TJ www.bfm-europe.com Telephone - General Enquiries : (01782) 339000 Telephone - Service : (0844) 7700169...
