You'll also want to rotate the hobbed gear so that the hole for the grub screw is aligned with the
little rounded notch that's formed in the body of the filament tensioner. Put a small amount of thread
locker on to the grub screw and install & tighten it.

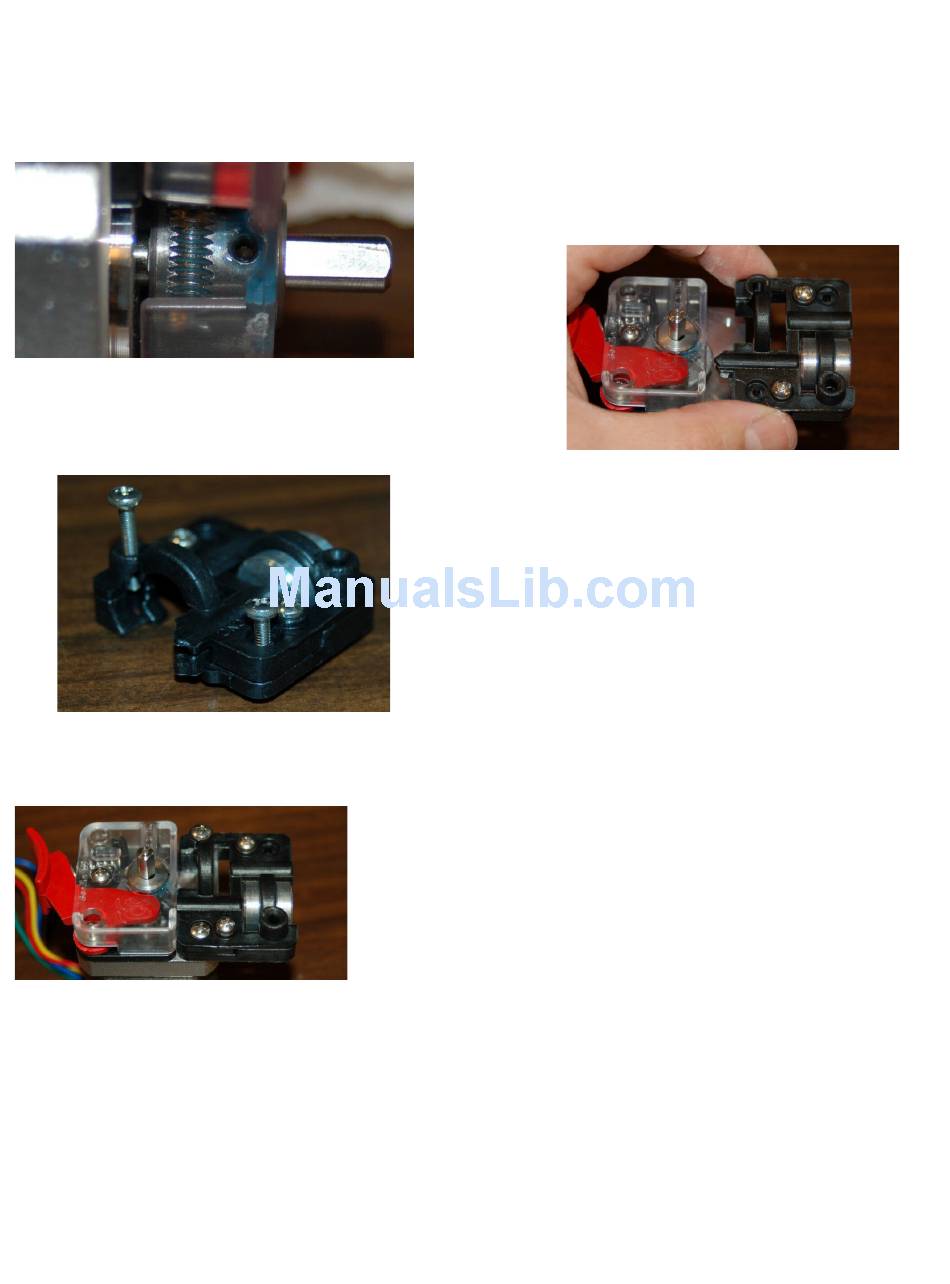

Fig. 10.1-6: Grub screw installed, mess with
thread locker made.
Fig. 10.1-8: Mounting screw locations.
Set the filament guide block on to the stepper motor and tighten the attachment screws.
Fig. 10.1-9: Assembled EZStruder.
Rostock MAX v2 Assembly Guide – 4thEd.
on to the stepper motor.
stepper motor using the two metric screws included in
the hardware pack. Using Fig. 10.1-8 as a guide, insert
the shorter screw in the hole to the right and the longer
screw in the hole to the left.
10 – Assembling and Installing the EZStruder – 91
Now you need to install the filament guide block
Fig. 10.1-7: Filament guide block
orientation.
The filament guide block is installed on to the
