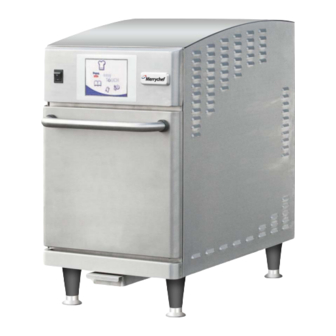

- Page 1 Microwave Combination Oven Read instructions before use Merrychef eikon e2 Installation and User Manual – Original, GBR Part Number 32Z3838 Installation and User Manual – Original, GBR Part Number 32Z3838 Issue 7...
-
Page 2: Introduction
MEASURES. The instructions outlined in this guide are intended to ensure the safety and long life of your Merrychef® eikon® oven. PLEASE READ THE FOLLOWING SAFETY INSTRUCTIONS CAREFULLY Installation and User Manual – Original, GBR... -
Page 3: Table Of Contents
CONTENTS INTRODUCTION SAFETY & REGULATIONS IMPORTANT SAFETY INSTRUCTIONS PRECAUTIONS TO BE OBSERVED SUITABLE COOKING UTENSILS PRODUCT DETAILS MAIN FEATURES TECHNICAL SPECIFICATIONS Specifications Serial Number (Rating Plate) Compliances INSTALLATION Oven Location and Positioning ELECTRICAL INSTALLATION ELECTRICAL INSTALLATION GUIDE Phase Loading OPERATION & CONTROLS QUICK START GUIDE: QUICK SERVICE OVEN Start up Using a Cooking Program... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic steam outlet. safety precautions should be followed, 11. Do not store this appliance outdoors. including the following: Do not use this product near water —– WARNING: To reduce the risk of burns, for example, near a kitchen sink, in a wet electric shock, fire, injury to persons, or basement, or near a swimming pool, and... - Page 5 IMPORTANT SAFETY INSTRUCTIONS 18. DO NOT operate using microwave only or combination function without food or liquid inside the oven as this may result in overheating and may cause damage. 19. Eggs in their shells and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
-
Page 6: Precautions To Be Observed
Do not use items with metallic decoration. Earthenware (porcelain/crockery/china etc.) Metallic & Foil Trays Metallic trays Only Merrychef approved metal containers/trays may be used. DO NOT USE ANY OTHER METAL OR FOIL CONTAINERS Plastic containers Dual-ovenable plastic containers (to be used up to certain temperatures) are available. -
Page 7: Main Features
These ensure a tight seal around the door. They should be kept clean and checked regularly for signs of damage. At the first sign of wear they should be replaced by a Merrychef® approved Service Agent. 10 CRUMB FILTERS, IMPINGER PLATE & COOK PLATE The metal crumb filters covering the convection paths in the oven cavity sides must be kept clean and free of debris. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Specifications Description unit e2 per oven e2P (TWIN) Touch screen controls programs 1024 Ambient operating temperature °C/°F <40/104 External HxWxD 635x375x775 635x866x775 External HxWxD inches 25x15x31 25x34x31 Internal HxWxD 244x244x305 Internal HxWxD inches 9.6x9.6x12 Cooking chamber Ltr (cu.ins) 19.4 (1175) Power output microwave Watts... - Page 9 GU3 1LR S35 9ZX Equipment Details Generic Model Numbers Merrychef® eikon® e2 Description Commercial Combination Microwave Oven Declaration of Conformity with Directives and Standards The manufacturer hereby declares that its commercial combination microwave ovens listed above comply with the following directives and standards.
-
Page 10: Installation
INSTALLATION TWIN OVEN CONFIGURATIONS Check for obvious signs of transit damage. If necessary, inform the freight company IMMEDIATELY. Position adjacent ovens allowing the minimum clearances shown. Note that if a parent oven is used, this is connected Remove packing material and protective film from the to the mains supply and on the rear panel a mains socket oven and safely discard. -
Page 11: Electrical Installation
ELECTRICAL INSTALLATION DANGER! THIS APPLIANCE MUST BE EARTHED. FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK AND DEATH. The oven must be connected to a separate electrical supply installed by a qualified and approved electrician. A suitably rated isolating switch with a 3mm contact gap on all poles should be fitted for each oven installed. -
Page 12: Electrical Installation Guide
ELECTRICAL INSTALLATION GUIDE DANGER! WARNING THIS APPLIANCE MUST BE EARTHED. HIGH LEAKAGE CURRENT. FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK AND DEATH. EQUIPOTENTIAL The oven must be connected to a separate electrical supply installed by a qualified and An Equipotential Earth point is provided on approved electrician. -
Page 13: Quick Start Guide: Quick Service Oven
QUICK START GUIDE: QUICK SERVICE OVEN The easyToUCH® screen display, layout and icons shown herein are for guidance purposes only and are not intended to be an exact representation of those supplied with the oven. START UP 1. Switch the oven on. Make all the relevant safety checks and ensure the oven is clean and empty before pressing the oven switch down to activate the oven. -
Page 14: Using A Cooking Program
USING A COOKING PROGRAM CAUTION Taking all the necessary precautions to ensure you do not burn yourself, open the oven door to place the food into the hot oven and close the door. 1. Select a program group, for example ‘BURGERS’ , to display the individual cooking programs. -
Page 15: Operating Guide: Full Service Oven
OPERATING GUIDE: FULL SERVICE OVEN easyToUCH® MAIN MENU & KEYBOARD SCREEN MAIN MENU SCREEN: 1. DEVELOPMENT MODE enables multistage cooking programs to be developed, then stored under a name and symbol for reuse. 2. Press&GO® allows quick access to use the cooking programs that are already stored. -
Page 16: Development Mode: Creating A Cooking Program
DEVELOPMENT MODE: CREATING A COOKING PROGRAM 1. Select the ‘chef’s hat’ symbol from the Main Menu to enter Development Mode. Enter Stage 1 of the Cooking Program 2. The temperature displays the set preheated oven temperature. To increase or decrease the temperature required, select the temperature symbol (2), enter the temperature in the keypad within the limits displayed and select OK. -
Page 17: Press&Go
Press&GO® Running a Cooking Program from the Press&GO® Menu 1. Select ‘Press&GO’ from the Main Menu Screen. 2. Select the item required to cook. 3. The display shows the cooking time count down. The timer bar turns red to indicate the cooking cycle has finished. -
Page 18: Changing The Oven Temperature
4. Select the required Cooking Program to start cooking. For example, ‘1 BURGER’ . 5. The program either starts immediately displaying a countdown timer, or an instruction is displayed first. Follow the stage instruction and then select OK to start cooking. If the oven door is not opened within 30 seconds a warning message appears. -
Page 19: Adding A New Program Group
ADDING A NEW PROGRAM GROUP 1. Select ‘COOKBOOK’ from the Main Menu Screen. 2. Select ‘EDIT COOKBOOK’ . 3. Select the ‘ADD A NEW GROUP’ symbol. 4. Select the camera icon to open pictures. 5. Select a picture to represent the Program Group (use the scroll arrows for more pictures). -
Page 20: Adding A Cooking Program To A Program Group
ADDING A COOKING PROGRAM TO A PROGRAM GROUP Example: Add program ‘4 BURGERS’ to the Program Group ‘BURGERS’ . 1. Select ‘COOKBOOK’ from the Main Menu Screen. 2. Select the ‘BURGERS’ Program Group. 3. Select ‘EDIT COOKBOOK’ . 4. In the lower part of the screen use the up/down scroll arrows on the right side to find and select the ‘4 BURGERS’... -
Page 21: Oven Control Settings
OVEN CONTROL SETTINGS 1. Select the ‘settings’ symbol from the main menu screen. 2. Enter the password and select OK to display the Settings menu (3) comprising: A. Oven mode/navigation settings. B. Language options. C. Oven temperature settings and labels. D. -
Page 22: Recipe Counters (E)
Recipe Counters (E) Select the clipboard symbol to display a listing of recipe counters. If shown, use the arrows (bottom right) to scroll up and down the list. Date and Time Settings (F) Select the time/date symbol to display the setting options. -
Page 23: Usb Oven Programs (J)
Check that the key has the correct number/code for the programs you want to load into the oven memory (1 ‘.cbr’ + ‘autoupd.ate’). With the oven switched off, slide the Merrychef badge (oven front top right) upwards and insert the USB Memory Stick into the slot. -
Page 24: Cooling The Oven Down Before Cleaning
Equipment required (not supplied) ● Merrychef® approved oven cleaner ● Merrychef® approved oven protector ● Heat proof gloves ● Protective rubber gloves ●... -
Page 25: Cold Oven Cleaning Instructions
DO NOT USE THE OVEN WITHOUT A CLEAN AIR FILTER IN PLACE. Apply Oven Protector 1. Only apply to a clean oven. Spray Merrychef® approved oven protector onto a sponge. 2. Spread oven protector lightly onto the internal surfaces of the oven avoiding crumb filters and cooking plates. -
Page 26: Fault Finding Chart
FAULT FINDING CHART Although every effort is made to ensure your oven will continue to perform to a high standard, please check the chart to see if the problem can be easily resolved before contacting your service agent. PROBLEM POSSIBLE CAUSE REMEDY Check if there is a power cut. -
Page 27: Servicing
SERVICING Merrychef approved Service Agent: Correct disposal of this product (Waste Electrical & Electronic Equipment) Applicable in the European Union and other European countries with separate collection systems. This marking shown on the product or its literature indicates that it should not be disposed with other household wastes at the end of its working life. - Page 28 OLD PORTSMOUTH ROAD, GUILDFORD, GU3 1LR | UNITED KINGDOM, T +44(0) 1483 464900, F +44(0) 1483 464905 WWW.MERRYCHEF.COM, WWW.MANITOWOCFOODSERVICE.COM Merrychef eikon e2 Installation and User Manual – Original, GBR Part Number 32Z3838 – Issue 7 Manitowoc Foodservice is one of the world’s largest manufacturers and suppliers of professional gastronomic appliances.
