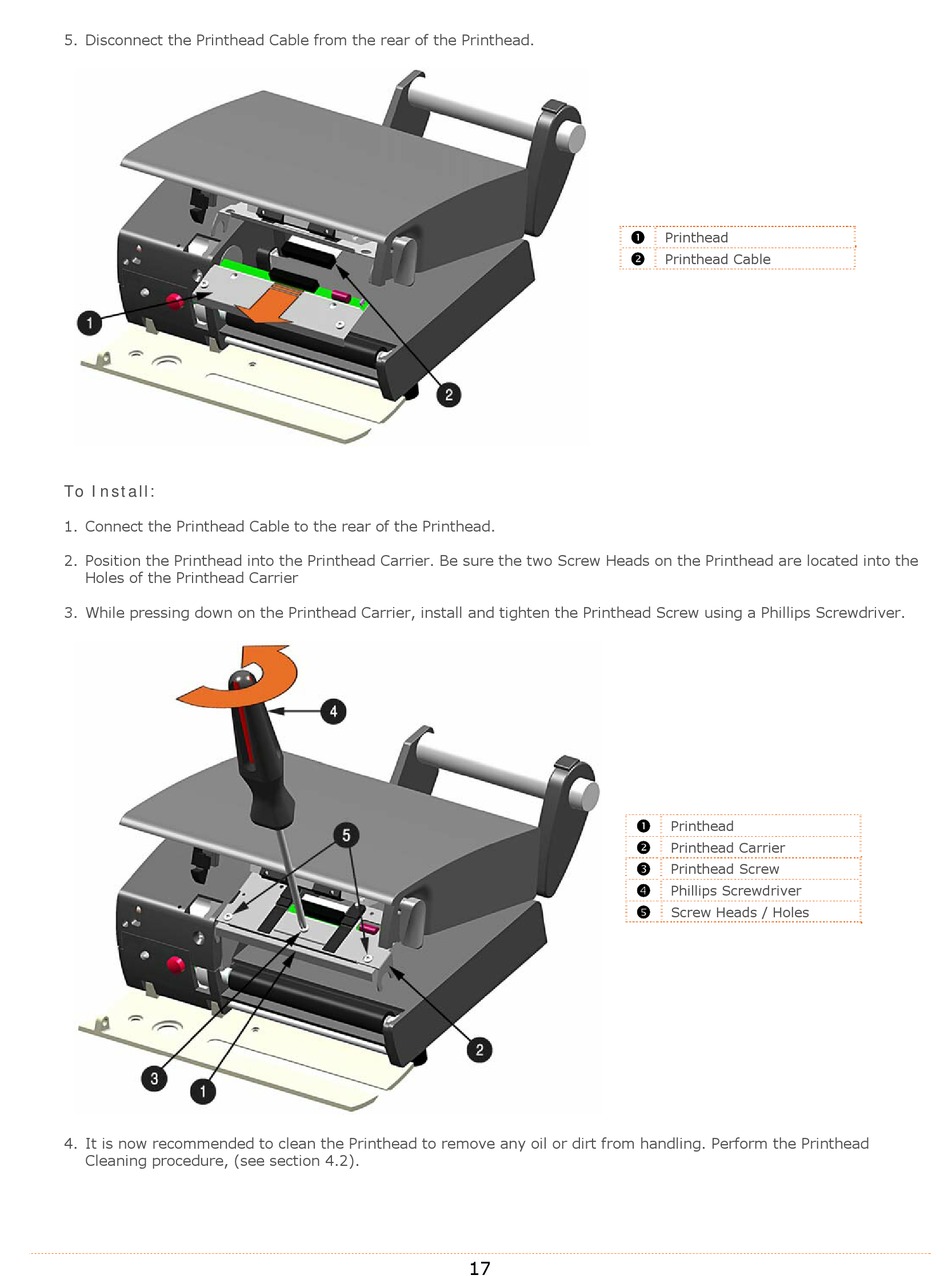

5. Disconnect the Printhead Cable from the rear of the Printhead.
To Install:
1. Connect the Printhead Cable to the rear of the Printhead.
2. Position the Printhead into the Printhead Carrier. Be sure the two Screw Heads on the Printhead are located into the
Holes of the Printhead Carrier
3. While pressing down on the Printhead Carrier, install and tighten the Printhead Screw using a Phillips Screwdriver.
4. It is now recommended to clean the Printhead to remove any oil or dirt from handling. Perform the Printhead
Cleaning procedure, (see section 4.2).
17
Printhead
Printhead Cable
Printhead
Printhead Carrier
Printhead Screw
Phillips Screwdriver
Screw Heads / Holes
