Datamax MP Compact4 Mobile Mark II Operator's Manual page 12

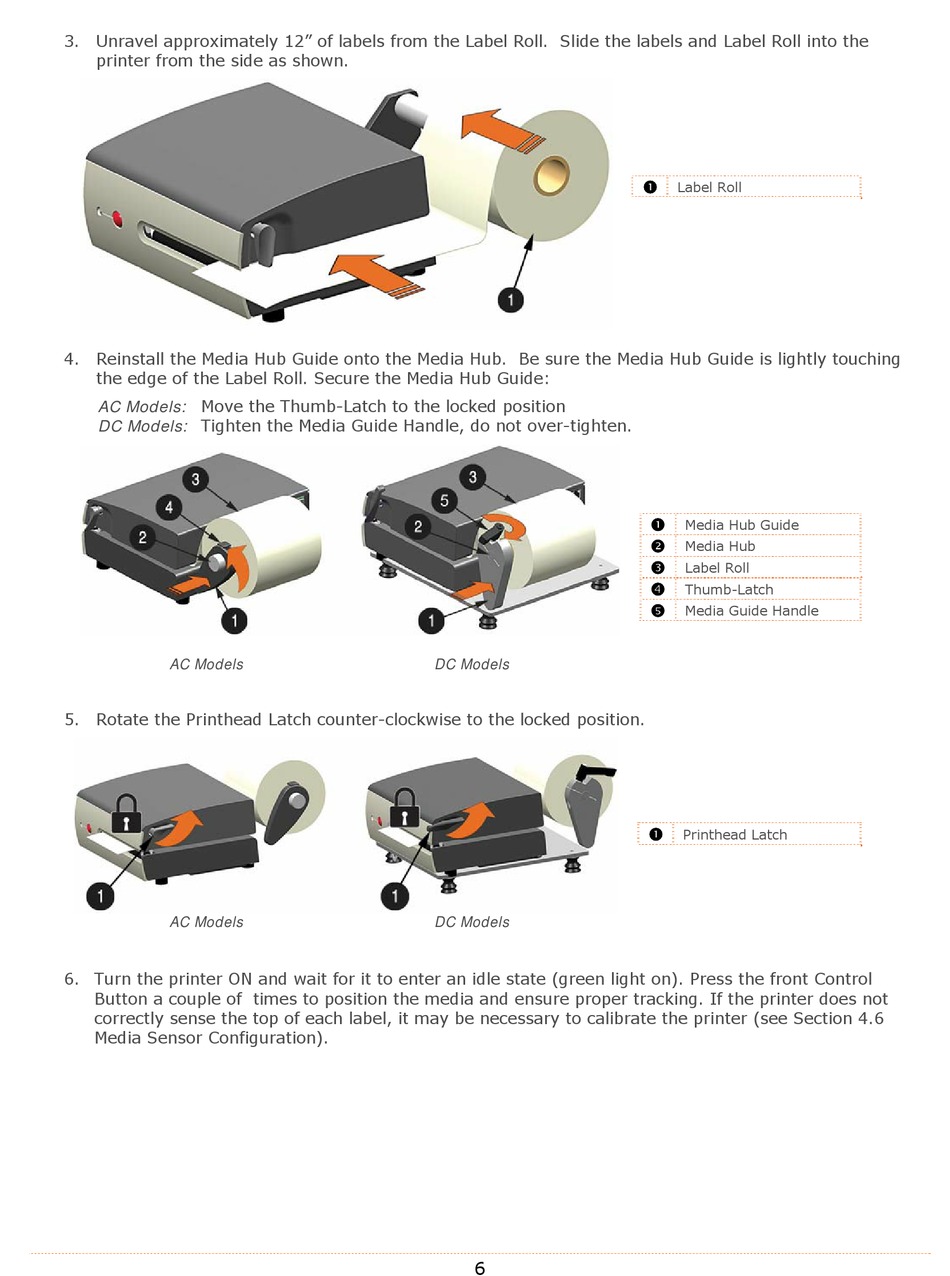

3. Unravel approximately 12" of labels from the Label Roll. Slide the labels and Label Roll into the
printer from the side as shown.
4. Reinstall the Media Hub Guide onto the Media Hub. Be sure the Media Hub Guide is lightly touching
the edge of the Label Roll. Secure the Media Hub Guide:
AC Models: Move the Thumb-Latch to the locked position
DC Models: Tighten the Media Guide Handle, do not over-tighten.
AC Models
5. Rotate the Printhead Latch counter-clockwise to the locked position.
AC Models
6. Turn the printer ON and wait for it to enter an idle state (green light on). Press the front Control
Button a couple of times to position the media and ensure proper tracking. If the printer does not
correctly sense the top of each label, it may be necessary to calibrate the printer (see Section 4.6
Media Sensor Configuration).
DC Models
DC Models
6

Label Roll

Media Hub Guide

Media Hub

Label Roll

Thumb-Latch

Media Guide Handle

Printhead Latch
