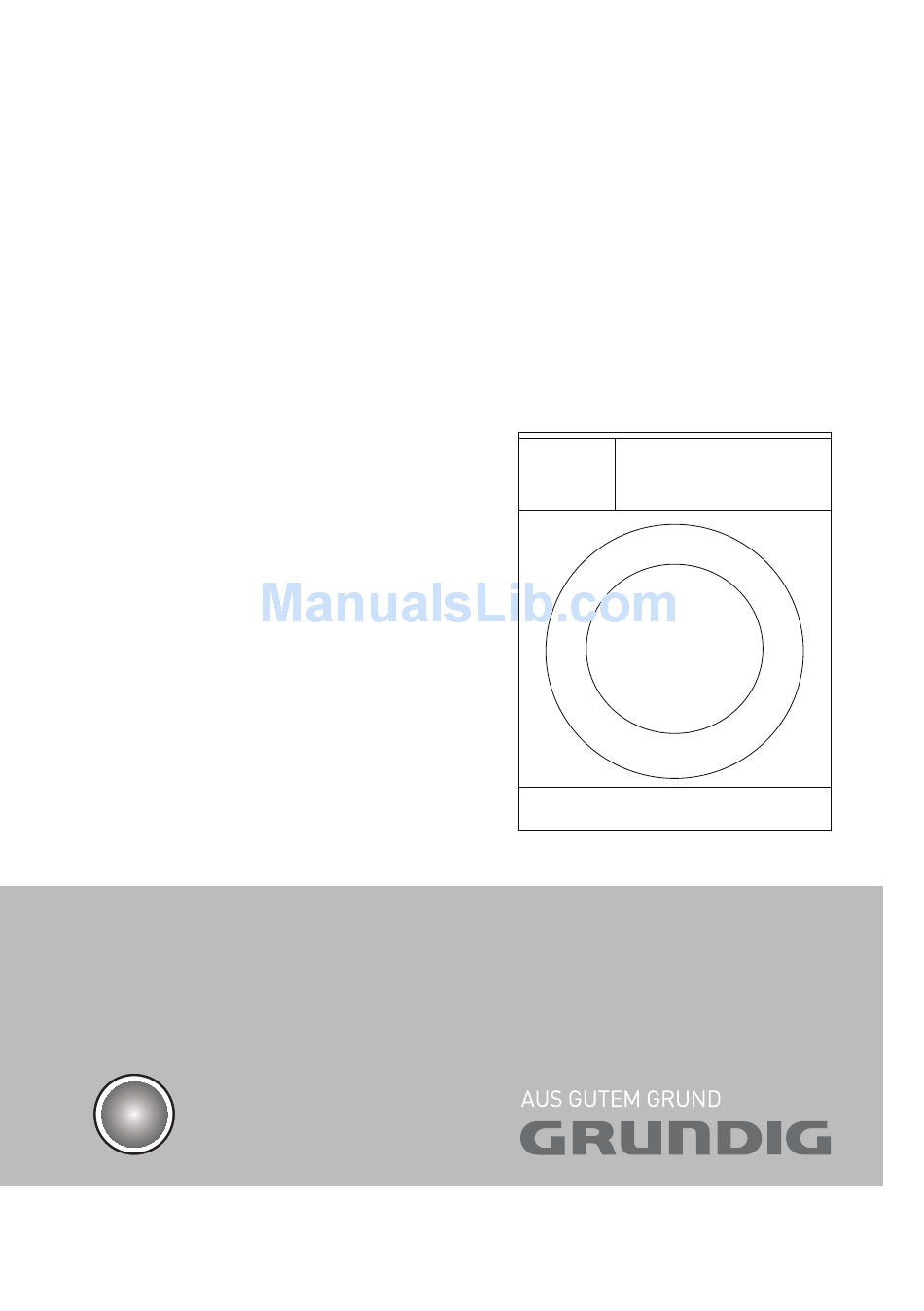

Page 1: Washing Machine
WASHING MACHINE USER‘S MANUAL GWN 48430 CW Document Number 2820523628/ 20-09-13.(1 1:04) - Page 2 Please read this user manual first! Dear Customer, Thank you for preferring a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 Important instructions for safety 5 Operating the product and environment 5.1 Control panel .....24 1.1 General safety..... . 4 5.2 Display symbols . -
Page 4: Important Instructions For Safety And Environment
Important instructions for safety and environment This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty. 1.1 General safety This product can be used by children at and above 8 ĥ... -
Page 5: Electrical Safety
Important instructions for safety and environment 1.1.1 Electrical safety If the product has a failure, it should not be operated ĥ unless it is repaired by the Authorized Service Agent. There is the risk of electric shock! This product is designed to resume operating in the ĥ... -
Page 6: Product Safety
Important instructions for safety and environment 1.1.2 Product safety The water supply and draining hoses must be securely ĥ fastened and remain undamaged. Otherwise, there is the risk of water leakage. Never open the loading door or remove the filter while ĥ... -
Page 7: Children's Safety
Important instructions for safety and environment 1.3 Children's safety Packaging materials are dangerous to children. Keep ĥ packaging materials in a safe place away from reach of the children. Electrical products are dangerous to children. Keep chil- ĥ dren away from the product when it is in use. Do not let them to tamper with the product. -
Page 8: Compliance With The Weee Directive
Important instructions for safety and environment 1.4 Compliance with the WEEE Directive This product complies with EU WEEE Directive (2012/19/EU). This product bears a classifica- tion symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 9: Your Washing Machine
Your washing machine 2.1 Overview 1- Power cable 5- Adjustable feet 2- Top panel 6- Loading door 3- Control panel 7- Detergent drawer 4- Filter cap 8- Drain hose 9 / EN Washing Machine / User‘s Manual... -
Page 10: Package Contents
Your washing machine 2.2 Package Contents Power cable 2- Drain hose 3- Transportation safety bolts * 4- Mains water inlet hose (One of the following filter types is used for the mains hose connection.) a- Electronic water shut-off b- Mechanical water shut-off c- Standard 5- Liquid detergent container** 6- User Manual... -
Page 11: Technical Specifications
Your washing machine 2.3 Technical specifications Models (EN) GWN48430CW Maximum dry laundry capacity (kg) Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) 230 V / 50Hz Electrical input (V/Hz) Total current (A) 2200 Total power (W) 1400 Spin speed (rpm/ min., max.) 0.64 Stand-by mode power (W) Off-mode power (W) -
Page 12: Installation
Installation 3.2 Removing packaging Refer to the nearest Authorised Service Agent for installation of the product. To make the reinforcement product ready for use, review the information Tilt the machine backwards to remove in the user manual and make sure that the the packaging reinforcement. -
Page 13: Connecting Water Supply
Installation ƒ3. Attach the plastic covers supplied in the ƒ1. Connect the special hoses supplied with User Manual bag into the holes on the the product to the water inlets on the rear panel. (P) product. Red hose (left) (max. 90 ºC) is for hot water inlet, blue hose (right) (max. -
Page 14: Connecting To The Drain
Installation 3.5 Connecting to the drain To prevent flowing of dirty water back ĥ into the machine and to allow for easy ĥ The end of the drain hose must be directly discharge, do not immerse the hose end connected to the wastewater drain or to into the dirty water or do not drive it in the the washbasin. -
Page 15: Adjusting The Feet
Installation 3.6 Adjusting the feet 3.7 Electrical connection Connect the product to a grounded outlet WARNING: In order to ensure protected by a 13 A fuse. Our company shall that the product operates more silently not be liable for any damages that will arise and vibration-free, it must stand level when the product is used without grounding in and balanced on its feet. -
Page 16: Transportation Of The Product
Installation The moulded plug on this appliance Transportation of the product incorporates a 13A fuse. Should the fuse need ƒ1. Unplug the product before transporting it. to be replaced an ASTA approved BS1362 ƒ2. Remove water drain and water supply fuse of the same rating must be used. -
Page 17: Preparation
Preparation 4.1 Sorting the laundry ĥ Sort laundry according to type of fabric, colour, and degree of soiling and allowable water temperature. Always obey the instructions given on the garment tags. ĥ LAUNDRY WASH SYMBOLS Machine Wash Symbols WASH Maximum Water Temperatures ... -
Page 18: Preparing Laundry For Washing
Preparation 4.2 Preparing laundry 4.3 Things to be done for washing for energy saving Laundry items with metal attachments such Following information will help you use the ĥ as, underwired bras, belt buckles or metal product in an ecological and energy-efficient buttons will damage the machine. -
Page 19: Initial Use
Preparation 4.4 Initial use 4.5 Correct load capacity Before starting to use the product, make The maximum load capacity depends on the sure that all preparations are completed in type of laundry, the degree of soiling and the accordance with the instructions in sections washing programme desired. -
Page 20: Using Detergent And Softener
Preparation 4.7 Using detergent ĥ If you are using liquid detergent, do not forget to place the liquid detergent and softener cup into the main wash compartment When using detergent, softener, starch, (compartment nr. "2"). fabric dye, bleach or limescale remover, Choosing the detergent type read the manufacturer's instructions on The type of detergent to be used depends on... - Page 21 Preparation Using liquid detergents Using gel and tablet detergent If the product contains a liquid If the gel detergent thickness is fluidal and ĥ detergent cup: your machine does not contain a special liquid detergent cup, put the gel detergent ĥ...
- Page 22 Preparation ĥ Use just a little amount (approx. 50 ml) of bleaching agent and rinse the clothes very well as it causes skin irritation. Do not pour the bleaching agent onto the clothes and do not use it for coloured clothes. When using oxygen based bleaches, ĥ...
-
Page 23: Tips For Efficient Washing
Preparation 4.8 Tips for efficient washing Clothes Light colours and Delicates/ Colours Dark colours whites Woolens/Silks (Recommended (Recommended (Recommended (Recommended temperature temperature temperature range temperature range range based on range based on based on soiling level: based on soiling level: soiling level: cold soiling level: cold 40-90 o C) -
Page 24: Operating The Product
Operating the product 5.1 Control panel 1 - Programme Selection display 6 - Auxiliary Function buttons 2 - Display 7 - Spin Speed Adjustment button 3 - Programme Follow-up indicator 8 - Temperature Adjustment button 4 - Start / Pause button 9 - Programme Selection knob 5 - End Time Adjustment button 10 - On / Off button 5.2 Display symbols... -
Page 25: Preparing The Machine
Operating the product 5.3 Preparing the machine 5.5 Main programmes ƒ1 Check if the hoses are connected tightly. Depending on the type of fabric, use the ƒ2 Plug in your machine. following main programmes. ƒ3 Turn the tap on completely. •... - Page 26 Operating the product • Sensewash Use this to wash your frequently washable cotton, synthetic or blended (cotton+synthetic) clothes. Programme detects the type and quantity of the laundry to automatically adjust water consumption and programme time. WARNING: Do not wash your woolen and delicate clothes in this programme.
- Page 27 Operating the product Suitable clothes and the appropriate Automatic programme settings for washing them are shown in the table below. Selectable Max. Type of laundry Laundry content temperature laundry levels amount Home textiles (duvet cover, bed sheet, pillowcase, coverlet, towel, bathrobe, table ˚C Cotton, lycra Full capacity...
-
Page 28: Additional Programmes
Operating the product 5.6 Additional programmes liquid detergent or woolen shampoo for dark coloured laundry. For special cases, additional programmes are available in the machine. • QuickWash 40° / 40’ Use this programme to wash lightly soiled and • GentleCare unspotted cotton clothes in a short time. -
Page 29: Special Programmes
Operating the product 5.8 Temperature selection WARNING: Do not wash the items apart from duvets such as carpets, rugs Whenever a new programme is selected, the and etc. in the machine. Permanent recommended temperature for the programme damage occurs in the machine. appears on the temperature indicator. -
Page 30: Selecting The Spin Speed
Operating the product 5.9 Selecting the spin speed If you want to spin your laundry after the Rinse Hold function: Whenever a new programme is selected, - Adjust the Spin Speed. the recommended spin speed of the selected - Press Start / Pause button. The programme programme is displayed on the Spin Speed resumes. -
Page 31: Programme And Consumption Table
Operating the product 5.10 Programme and consumption table Auxiliary functions Selectable temperature range Programme (°C) °C Sensewash **** **** 1600 • • • • • • Cold-60 Cotton Eco 60** 0.92 1600 Cold-60 Cotton Eco 60** 0.81 1600 Cold-60 Cotton Eco 40** 0.81 1600... - Page 32 Operating the product ** “Cotton eco 40°C and Cotton eco 60°C are standard programmes.” These programmes are known as '40°C cotton standard programme' and '60°C cotton standard programme' and shown on the panel with symbols. The auxiliary functions in the table may vary according to the model of your machine. Water and power consumption may vary subject to the changes in water pressure, water hardness and temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in electric voltage.
-
Page 33: Auxiliary Function Selection
Operating the product 5.11 Auxiliary function selection • Express This function can be used in Cottons and Select the desired auxiliary functions before Synthetics programmes. It decreases the starting the programme. Whenever a washing times and also the number of rinsing programme is selected, frames of the auxiliary steps for lightly soiled laundry. -
Page 34: Time Display
Operating the product Open the loading door, place the laundry Time display ƒ1 and put detergent, etc. Remaining time for the completion of the Select the washing programme, programme while it is running is displayed as ƒ2 temperature, spin speed and, if required, “01:30”... -
Page 35: Loading Door Lock
Operating the product 5.14 Loading door lock Switching the machine to pause mode: Press Start / Pause button to pause the There is a locking system on the loading machine, a wait symbol will start flashing on door of the machine that prevents opening the display. -
Page 36: Child Lock
Operating the product 5.16 Child Lock 5.18 End of programme Use Child Lock function to prevent children When the programme completes, End symbol from tampering with the machine. Thus will be displayed. you can avoid any changes in a running If you do not press any button for 10 minutes, programme. -
Page 37: Quick User Guide
Quick User Guide 6.1 Preparing the machine 6.6 Cancelling the programme ƒ1 Check if the hoses are connected tightly. The programme is cancelled when the ƒ2 Plug in your machine. machine is turned off and on again. Press and hold On / Off button for 3 seconds. After the ƒ3 Turn the tap on completely. -
Page 38: Maintenance And Cleaning
Maintenance and cleaning 7.2 Cleaning the loading Service life of the product extends and frequently faced problems decrease if cleaned door and the drum at regular intervals. Residues of softener, detergent and dirt may accumulate in your machine in time and 7.1 Cleaning the may cause unpleasant odours and washing detergent drawer complaints. -
Page 39: Cleaning The Body And Control Panel
Maintenance and cleaning ƒ4 Replace the gaskets and filters carefully in WARNING: Never use sponge their places and tighten the hose nuts by or scrub materials. These will damage hand. the painted, chrome plated and plastic surfaces. 7.5 Draining remaining water 7.3 Cleaning the body and cleaning the pump filter and control panel... - Page 40 Maintenance and cleaning ƒb Place a large container at the end of the WARNING: Temperature of the hose. Drain the water into the container water inside the machine may rise up by pulling out the plug at the end of the to 90 ºC.
-
Page 41: Troubleshooting
Troubleshooting Programme cannot be started or selected. Washing machine has switched to self protection mode due to a supply problem (line voltage, water ĥ pressure, etc.). >>> Press and hold Start / Pause button for 3 seconds to reset the machine to factory settings. - Page 42 Troubleshooting Washing takes longer than the specified in the manual.(*) ĥ Water pressure is low. >>> Machine waits until taking in adequate amount of water to prevent poor washing quality due to the decreased amount of water. Therefore, the washing time extends. Voltage might be low.
- Page 43 Troubleshooting Washing performance is poor: Stains persist or the laundry is not whitened. (**) ĥ Insufficient amount of detergent is used. >>> Use recommended amount of detergent appropriate for the laundry. Excessive laundry was loaded in. >>> Do not load the machine in excess. Load with amounts ĥ...
- Page 44 Troubleshooting Laundry does not smell like the softener. (**) ĥ Detergent is put in the wrong compartment. >>> If detergent is put in the prewash compartment although prewash cycle is not selected, machine can take this detergent during rinsing or softener step. Wash and clean the dispenser with hot water.
- Page 45 Troubleshooting Foam is overflowing from the detergent drawer. ƒ• Too much detergent is used. >>> Mix 1 tablespoonful softener and ½ l water and pour into the main wash compartment of the detergent drawer. Put detergent into the machine suitable for the programmes and maximum loads indicated in the ƒ•...
-
Page 46: Product Fiche
PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 1061/201 Supplier name or trademark Grundig Model name GWN48430CW Rated capacity (kg) A+++ Energy efficiency class Annual Energy Consumption (kWh) Energy consumption of the standard 60°C cotton programme at full load (kWh) 0.920... - Page 48 Beko Deutschland GmbH Thomas-Edison-Platz3 63263 Neu Isenburg...
