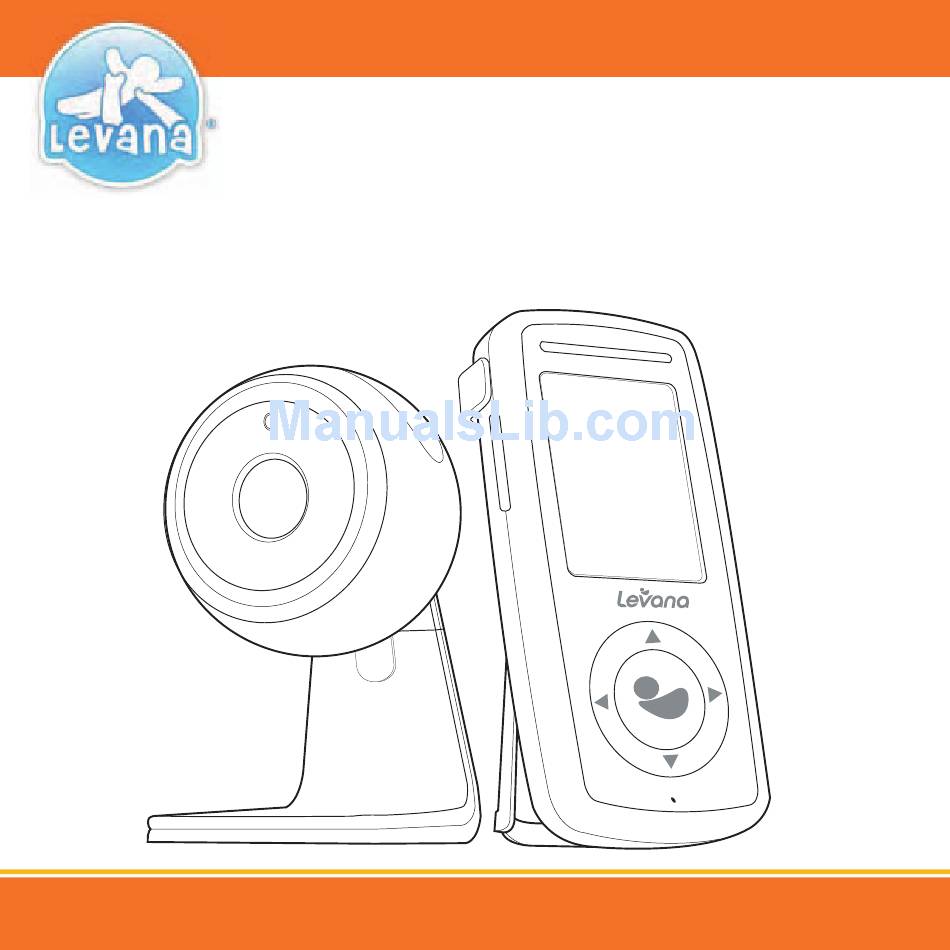

- Page 1 USER MANUAL Sophia ™ Digital Baby Video Monitor mylevana.com...
-
Page 2: Product Warranty Information
This warranty does not cover the shipping cost, insurance or any other incidental charges. You MUST contact LEVANA before sending any product back for repair. You will be sent a Return Authorization form with return instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #). -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION PRODUCT WARRANTY INFORMATION ............................... 2 WHAT’S INCLUDED ....................................4 OPTIONAL ACCESSORIES ..................................4 FEATURES ........................................ 5 BUTTONS AND CONNECTIONS - PARENT UNIT ............................6 BUTTONS AND CONNECTIONS - CAMERA ..............................8 SETTING UP YOUR SYSTEM ..................................9 CONNECTING POWER TO THE PARENT UNIT ........................... -
Page 4: What's Included
• Rechargeable Battery • 2 Power Adapters • Quick Start Guide Camera Parent Rechargeable • 1 Year Warranty unit Battery • Lifetime Live Customer Support OPTIONAL ACCESSORIES Sophia™ Additional Camera: model 32104 This system supports up to 3 additional cameras! -
Page 5: Features
LEVANA® highly recommends the use of an Uninterruptible Power Supply (UPS) with surge protection for all products. LEVANA® does not endorse any LEVANA® products for illegal activities. LEVANA is not responsible or liable in any way for any damage, vandalism, theft or any other action that may occur while a LEVANA® product is in use by the purchaser. -
Page 6: Buttons And Connections - Parent Unit
BUTTONS AND CONNECTIONS - PARENT UNIT 1. VIDEO ON/OFF/POWER Turn video image ON/OFF or Power ON/OFF 2. LED SOUND BAR LED lights show different levels of sound 6. 2.4" LCD SCREEN 3. TALK BUTTON ºC Press and hold to talk, 7. - Page 7 BUTTONS AND CONNECTIONS - MONITOR 1. SPEAKER Allows you to hear 5. BATTERY clear two-way communications 6. BATTERY COVER 2. BELT CLIP Attach the video monitor to your belt to monitor baby while on the move 3. TABLE STAND Retractable, stainless-steel table stand.
-
Page 8: Buttons And Connections - Camera
BUTTONS AND CONNECTIONS - CAMERA 1. NIGHTLIGHT Color-Changing Nightlight controlled by the parent unit 3. CDS Sensor Senses light changes in the room 2. 10 Invisible IR LEDs Emits IR light to see up to 15ft in complete darkness 3. CAMERA LENS 4. -
Page 9: Setting Up Your System
Meaning: Wisdom Get more done knowing your baby is safe and sound with the Sophia monitor at your side. This baby video monitor has been designed with parent-friendly controls and features in mind. The Sophia monitor offers all of the extra insight you need to stay in tune with your baby –... -
Page 10: Main Menu Icons
SETTING UP YOUR SYSTEM MAIN MENU ICONS Color-Changing Nightlight Nap and Feeding Timer Turns the nightlight on or off at any time Set, pre-set and turn the nap or feeding timer on/off. Temperature Monitoring ºC Three Soothing Lullabies Select to turn temperature monitoring on or off Select or turn off the lullaby feature to ensure your child is comfortable Language... -
Page 11: Screen Icons
SETTING UP YOUR SYSTEM SCREEN ICONS 1. CURRENT TIME 6. VOLUME Indicates the volume level 2. LULLABY Shows you which lullaby 7. BATTERY STRENGTH is currently playing Shows you the current 04:49PM level of battery power and 3. SIGNAL STRENGTH when to recharge Indicates the signal strength between the... -
Page 12: Pairing The Camera(S) & Parent Unit
Note: Before you begin, be sure to have the parent unit and the camera(s) side by side. To pair your camera and parent unit, press the MENU button. Using the navigational arrows on the front of the parent unit, highlight the pairing icon and press the LEVANA button once to select. Pairing When pairing a single camera, select the icon. -
Page 13: Placement Of The Parent Unit
SETTING UP YOUR SYSTEM Placement of the Parent unit This parent unit can be placed on a tabletop or you can also carry it on your belt. Removeable Belt clip You can place the parent unit on a tabletop by using the retractable, stainless-steel table stand on the back of the parent unit. -
Page 14: Placement Of The Camera
Avoid extreme heat or cold as this will affect the life of the battery. Sophia™ menu settings to increase battery life: Power Save Mode: Turns the screen off at 15 seconds or 1 minute of inactivity but keeps the audio on. -
Page 15: Mounting The Camera On A Wall Safely
SETTING UP YOUR SYSTEM Mounting the camera on a wall safely: Before drilling the holes, it is important to check the reception and camera positioning in the intended location on the wall. Ensure you are hanging the camera no less than 3 feet away from baby’s crib. Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation hazard. -
Page 16: Switching The Camera On/Off
3. To turn the parent unit ON, press the VIDEO ON/OFF/POWER button on the top of the parent unit. 4. The LEVANA logo will appear on the screen for a moment followed by the image on the camera. 5. To turn off the unit, press and hold the VIDEO ON/OFF/POWER button again for 1-2 seconds. -
Page 17: Turning The Nightlight On/Off
Press the MENU button once. Use the navigational arrows on the front of the parent unit to go to the Nightlight icon and press the LEVANA button once to select. Use the navigational arrows to choose the Nightlight ON icon and press the LEVANA ºC... -
Page 18: Setting The Brightness
Brightness Press the LEVANA button once to make your selection and press the MENU button once to exit the menu screen. Setting the Temperature ºC You can check the temperature in the nursery at any time to ensure your child is comfortable. -
Page 19: Setting The Date & Time
To set the Date and Time, press the MENU button once. Use the navigational arrows to choose the Date and Time icon then press the LEVANA button once to select. To adjust the date, use the navigational arrows to toggle to the DATE then press the LEVANA button once to select. -
Page 20: Setting The Feeding & Nap Timer
Feeding/Nap Timer icon then press the LEVANA button once to select. ºC Use the navigational arrows to toggle to one of the timers then press the LEVANA button once to select. Use the navigational arrows to increase/decrease the time. Use the Feeding/Nap Timer ►►... -
Page 21: Selecting The Camera View
The handy digital zoom feature allows you to sneak a closer peek and also pan around the image on the screen with the push of a button. To use the Zoom feature, Press the LEVANA button on the front of the Parent Unit to zoom in and out. -
Page 22: Contacting Customer Support
English, French and Spanish. 1. To access the Support information anytime, press the MENU button once. Use the navigational arrows to choose the Support icon then press the LEVANA button once to select. 2. This will take you to the screen which displays our Customer Support contact information. -
Page 23: Troubleshooting
TROUBLESHOOTING ISSUE POSSIBLE SOLUTION Equipment does not function • Camera and/or parent unit are not switched on • The battery is drained • The power adapters are not connected No reception • Camera and parent unit are not paired (see Pairing section) •... -
Page 24: Specifications
SPECIFICATIONS Parent Unit Specifications Monitor Type IPS LCD Screen Size 2.4" Resolution 320x240 Frame Rate up to 30 FPS Frequency 2.4GHz Technology Digital GFSK FHSS No. of hop/sec No. of hopping channels Channel bandwidth 2 MHz Data Rate 2 Mbps Transmission Power +18.5 dBm Transmission Range... - Page 25 SPECIFICATIONS Dimensions 4.75x2.25x0.75" Weight 0.3lbs Multiple channel support Up to 4 Camera Specifications Image sensor CMOS Resolution 640x480 0.3 Mpixel Night Vision 10ft Number of IR LEDs IR LED 940 nm Battery Operable Viewing Angle Focal Length 2.8mm Optimal Focal Distance 2-10ft Transmission Range 500ft...
-
Page 26: Fcc Statement
FCC STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. -
Page 27: Safety Instructions
SAFETY INSTRUCTIONS Read and Keep Instructions: All the safety and operating instructions should be read before the video baby monitor is operated. This product cannot replace responsible adult supervision. Strangulation Hazard: Children can become entangled in cords. Power cords should be kept more than 3 feet away from the crib and baby’s reach at all times. -
Page 28: Drilling Template
DRILLING TEMPLATE DRILLING TEMPLATE / GABARIT DE PERÇAGE / SPANISH • To wall mount the camera, pre-drill two holes using a 3/16", 4.8mm drill bit and the template below. Insert wall anchors into holes then insert a screw into each wall anchor. Tighten until the screws only stick out about a 1/2". •...
