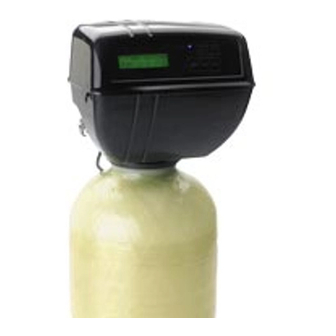

Summary of Contents for Pentair Fleck 6700XTR

  • Page 3: Job Specification Sheet

    Job Specification Sheet NOTE: Some options may not be available depending on valve model or other options chosen. Circle and/or Fill in the Appropriate Data for Future Reference. Meter Immediate / Time Clock Delayed / Volume Override Delayed. System Type: Volume Override Immediate / Meter Delayed Weekly Reserve.

  • Page 5: Timer Operation

    Timer Operation Valve State: CHG (Change of State) CHG will be displayed when the lower drive changes from one state to another in dual piston valves. INI (Initializing) INI will display on the screen for 30 to 5 seconds when initializing after a power failure reset or programming. RGQ (Regeneration Queued) RGQ indicates that the reserve has been entered in a delayed system and regeneration has been queued.
  • Page 6 Timer Operation Regeneration: • A time initiated control valve regenerates when the number of programmed days has been reached • A flow initiated control valve regenerates when the volume count is zero or is below reserve. capacity System Type Regeneration Trigger Time Clock Delayed A) Day override parameter is reached and B) the time of day matches the regeneration day override time...

  • Page 12: Master Programming Mode

    Master Programming Mode When the Master Programming Mode is entered, parameters can be set to make the timer function as needed. NOTE: Depending on current option settings, some displays cannot be viewed or set. Entering Master Programming Mode: Press and hold the Shift and Up buttons for 5 seconds. Set the time of day display to 12:01 PM or 12:01HR (See the User Programming section to.
  • Page 13 Master Programming Mode Regenerant Flow This program step selects how the regenerant flows through the tank (must match cam). The selections available will vary depending on the previously chosen valve model.. — Press the Up or Down buttons to adjust this value. —...
  • Page 14 Master Programming Mode Capacity Safety Factor This program step is used to set the reserve capacity of the unit. This is a percentage by which the unit’s capacity is reduced.. — Press the Shift button to select the digit you want to modify.. —...
  • Page 15 Master Programming Mode Regeneration Cycle Step Programming This program step programs the Regeneration Cycle step times 1 through 5. Please refer to the chart below for regenerant flow default cycle steps and times.. Regenerant Flow Cycle 1 Time Cycle 2 Time Cycle 3 Time...
  • Page 16 Master Programming Mode the first setting. Then press the Extra Cycle button to advance to the second setting. a. Timed Auxiliary Relay Output Window (Start & End Time Setting) This option setting consists of two displays. The first display sets the turn-on time of the output, referenced to the start of the first regeneration cycle.

  • Page 19: Diagnostic Programming Mode

    Diagnostic Programming Mode NOTE: Depending on current option settings, some displays cannot be viewed. Overview Diagnostic Mode The current Diagnostic Programming Mode screen will display until either the Extra Cycle button is pressed through for each screen, or the Diagnostic button is pressed. In the event of regeneration occurring while in the Diagnostic Programming Mode, the regeneration step and time remaining will be displayed.
  • Page 20 6700 Powerhead Assembly 61501-6700_REVC Page 20...
  • Page 21 6700 Power Head Assembly Item No. Quantity Part No. Description 1....1....15-0....Drive Panel Assy, 6700 2....1....17844.......Bracket, Support, 6700 3....1....13299.......Washer, Spring, 3/8 4....1....13017.......Gear, Idler 5....1....23045.......Gear, Drive, 6700 6.

  • Page 23: Control Valve Assembly

    Control Valve Assembly Item No. Quantity Part No. Description 1.....1.......1700-10..... Valve Body, 5600, Downflow 2.....2.......13255......Clip, Mounting 3.....5.......13242......Seal, 5600 4.....1.......13304......O-ring, -121 5.....1.......12281......O-ring, -338 6.

  • Page 24: Meter Assembly

    Meter Assembly 60086_REVD_60086-50 Item No. Quantity Part No. Description 1....1....13874.......Cap, Meter, Electronic 2....1....14715.......Gear Assy, Electronic Meter Cap 3....1....41055.......Plate, Intermediate 4....1....13847.......O-ring, -137, Std, Meter 5....5....17798.......Screw, Slot Hex Wsh Hd 6.
  • Page 25 Bypass Valve Assembly, Non-Metallic 600_REVD Item No. Quantity Part No. Description 1....2....13305.......O-ring, -11 2....2....13255.......Clip, Mounting 3....2....13314.......Screw, Slot Ind Hex, 8-18 x .60 A....1....18706.......Yoke, 1”, NPT, Plastic 18706-02....Yoke, 3/”, NPT, Plastic 4B....1....

  • Page 26: Bypass Valve Assembly, Brass

    Bypass Valve Assembly, Brass 6000SS_REVL 6001_REVK Item No. Quantity Part No. Description 1....1....40614.......By-pass Body, 3/” 40634.......By-pass Body, 1”, SS 2....1....14105.......Seal, By-pass, 560CD 3....1....11972.......Plug, By-pass 4....1....11978.......Plate, By-pass, Top 5....1....117-02....Lever, By-pass, Black 6.

  • Page 27: 2300 Safety Brine Valve

    2300 Safety Brine Valve 60027_REVA Item No. Quantity Part No. Description 1....1....60027-00....Safety Brine Valve, 2300 Less Elbow 2....1....10138.......Ball, 3/8” Brass 3....1....11566.......Ball Stop, Slow-Fill 4....1....10328.......Fitting, Elbow, 0 Deg. 1/ NPT x 3/8 T 5.

  • Page 28: 2310 Safety Brine Valve

    2310 Safety Brine Valve 2112_REVA Item No. Quantity Part No. Description 1....1....19645.......Body, Safety Brine Valve, 2310 2....1....19803.......Safety Brine Valve, Arm Assy 3....1....19804.......Screw, Sckt Hd, Set, 10-2 x .75 4....1....19805.......Nut, Hex, 10-2, Nylon Black 5.

  • Page 29: Error Codes

    Troubleshooting - Timer If an error is detected, an error screen will alternate with the main display screen every few seconds, and the LED light will be red. During an error condition, the unit continues to monitor the flow meter and update the remaining capacity. Once an error condition is corrected, the unit returns to the operating status it was in prior to the error, and regeneration resumes according to normal programming.
  • Page 30 Troubleshooting - Control Valve Problem Cause Correction 1. Water conditioner fails to A. Electrical service to unit has A. Assure permanent electrical service regenerate. been interrupted (check fuse, plug, pull chain, or switch) B. Timer is defective. B. Replace timer. C.

  • Page 31: General Service Hints For Meter Control

    Troubleshooting - Control Valve Problem Cause Correction 8. Softener fails to draw brine. A. Drain line flow control is A. Clean drain line flow control. plugged. B. Injector is plugged. B. Clean injector C. Injector screen plugged. C. Clean screen. D.

  • Page 32: Water Conditioner Flow Diagrams

    Water Conditioner Flow Diagrams Service Position Backwash Position Page 32...
  • Page 33 Water Conditioner Flow Diagrams Brine/Slow Rinse Position Second Backwash Page 33...
  • Page 34 Water Conditioner Flow Diagrams Brine/Slow Rinse Position Brine Tank Fill Position Page 3...
  • Page 35 Valve Wiring Diagram Page 35...

  • Page 36: Service Assemblies

    Service Assemblies Air Check: Pistons: 60002-3..Air Check, #500, 3” Long 60102-71..Piston Assy, 6600, Downflow Brining and Rapid Rinse Brine Line Flow Control: 14309....Retainer, Piston Rod 60022-12..BLFC, .125 GPM, 5000/5600/000 13001-0..Piston Rod Assy, 6600, Downflow 60022-25..BLFC, .25 GPM, 5000/5600/000 136-0..
  • Page 37 Notes Page 37...
  • Page 38 Notes Page 38...
  • Page 39 Notes Page 3...
  • Page 40 P/N 2132 Rev. A...
