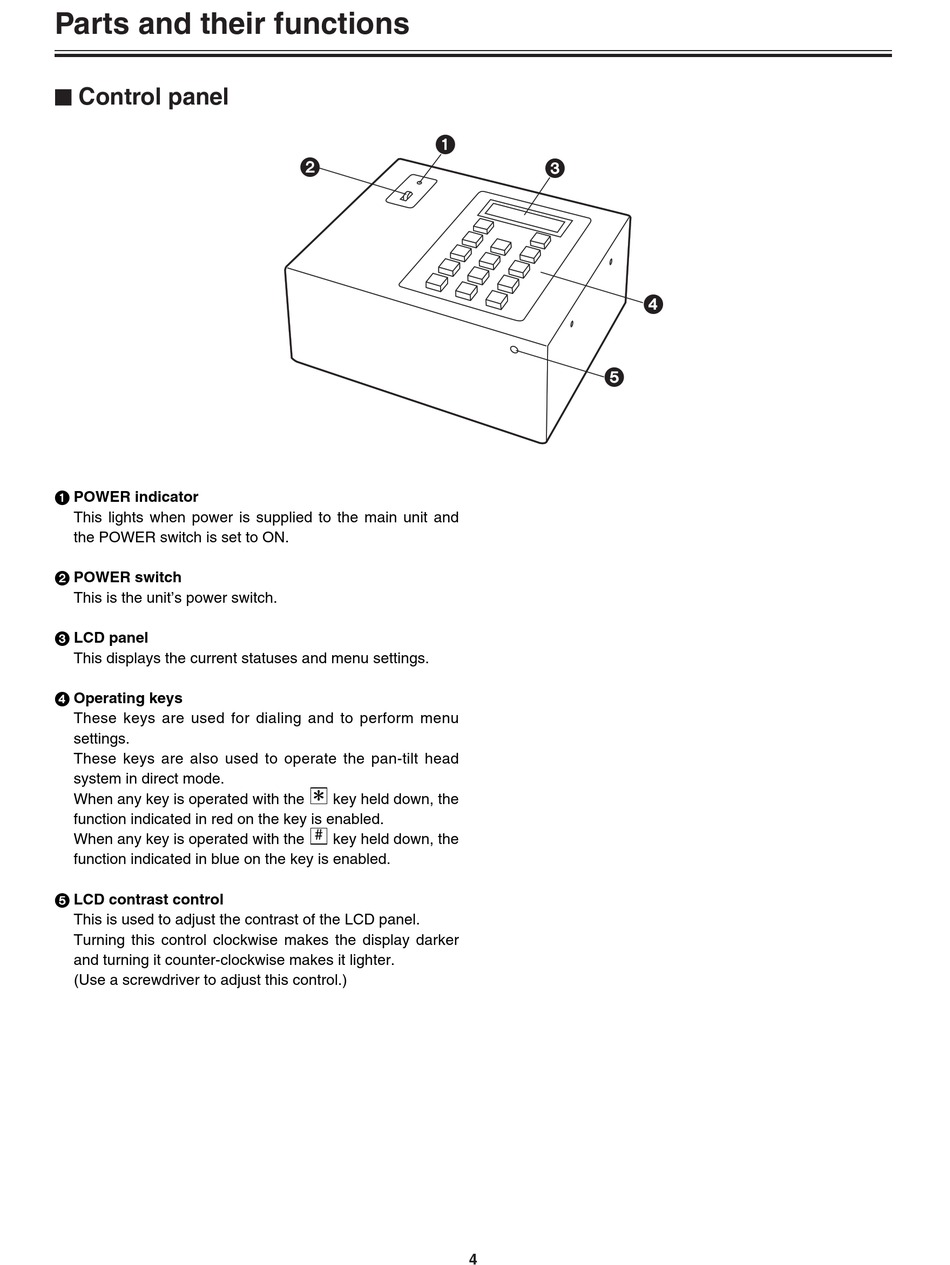

Parts and their functions

$ Control panel

1 POWER indicator
This lights when power is supplied to the main unit and
the POWER switch is set to ON.
2 POWER switch
This is the unit's power switch.
3 LCD panel
This displays the current statuses and menu settings.
4 Operating keys
These keys are used for dialing and to perform menu
settings.
These keys are also used to operate the pan-tilt head
system in direct mode.
When any key is operated with the
function indicated in red on the key is enabled.
When any key is operated with the
function indicated in blue on the key is enabled.
5 LCD contrast control
This is used to adjust the contrast of the LCD panel.
Turning this control clockwise makes the display darker
and turning it counter-clockwise makes it lighter.
(Use a screwdriver to adjust this control.)
1
2
2
key held down, the
#
key held down, the
4
3
4
5
