Changing Electrical Connections in the Field
CAUTION
For in-field conversions, the NEC requires that the voltage label on the motor be changed to match the new
configuration. Contact HySecurity for a replacement label.
To reconnect the electric motor and the 24V control transformer, refer to the motor connection
diagram found either on the motor's nameplate or inside the motor connection box. Be sure to
read the WARNINGS below if planning to convert from 1Ø to 3Ø, or vice versa. The electric motor
will need to be replaced.
WARNING
In-Field, Variable Frequency Drive Connections: SlideDriver operators are field re-configurable for 1Ø or 3Ø,
208/230VAC input power without changing the VFD. However, if reconfiguring from 208/230VAC to 460/480VAC
the VFD Motor Controller in a 208/230VAC unit must be replaced with a VFD Motor Controller manufactured for
the higher (460/480VAC) voltage input. Any electrical damage occurring to the operator will not be covered by
the Warranty.
WARNING
SlideDriver 50VF-series and all 2 hp operators CANNOT be connected to 115/120VAC, 1Ø power or 575V, 3Ø
power. If any attempts are made to do so, serious injury and possible electrical shock may result. Any electrical
damage occurring to the operator will not be covered by the Warranty.

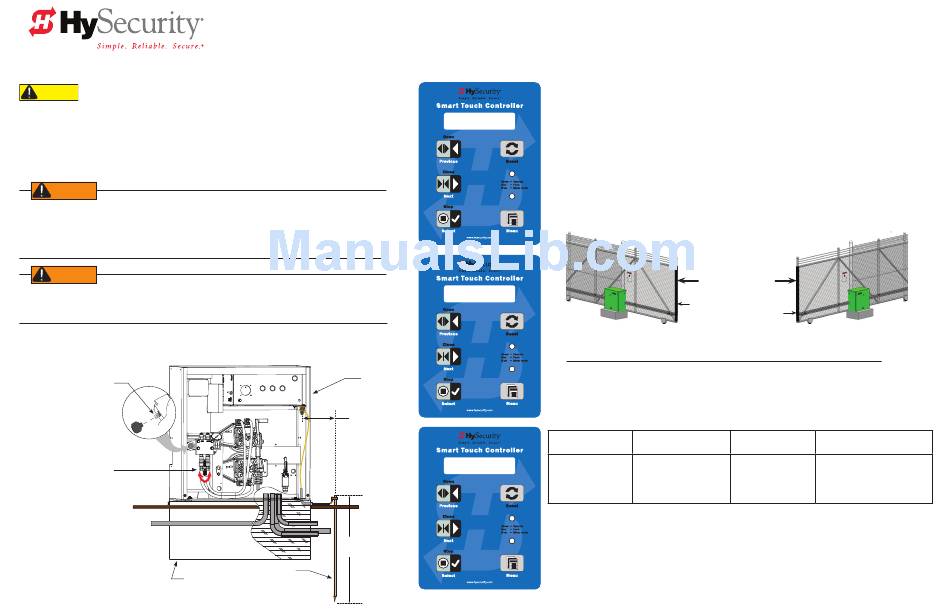

Left Handing: Swapping Hydraulic Hose Positions
Replace red vent plug
with breather cap
Operator is shipped
hydraulically configured for
"right hand" operation.
Swap hydraulic hoses for left
handing operators.
Grade level
Cut-away view
Concrete pad
© 2016 www.hysecurity.com
Initial Setup: Menu Mode
SlideDriver
3 ft
(91.4cm)
Maximum
distance
Consult local codes for
proper depth
Ground rod

Complete the Installation

When the SlideDriver is installed, power connections made, and the operator turned ON, a setup
menu appears. The gate will not move and the controls will not function until the prompts have
been answered. The prompts include:
UC 2
• Usage Class. Set the usage class to I, II, III, IV depending on the site.
USAGE CLASS
Four different vehicular usage classes are defined by UL 325.
Information about the classes can be found in the safety section of the SlideDriver
Programming and Operations Manual, online through DASMA Technical Data Sheets
www.dasma.com or UL 325 gate safety standards www.ul.com
Set Handing. SH 0 = gate disabled, SH L = Left hand, SH R = Right hand
•
Gate handing is determined by viewing the gate opening from the secure side. If the gate
opens to the left, the gate must be set for left handing.
SH R (RIGHT)
GATE HANDING
NOTE: All SlideDrivers are set at the factory for right handing. If the gate has left handing, you
must swap the position of the hydraulic hoses. See the illustration this page.
Keypad Navigation
To navigate within Menu mode, use the following chart:
To edit the Menu
Press Select
HYSECURITY
GATE STOPPED Two left characters blink
indicating the display is
ready to accept a menu
change.
For More Information
Brake valve adjustment is described on the yellow tag (MX001853) wire tied to the gate operator.
Review the SlideDriver Programming and Operations Manual, D0559 for information regarding
gate operator programming configurations, user relays, troubleshooting, safety considerations,
maintenance, and other requirements.
SlideDriver Installation and Assembly
OPEN OPEN
Left hand gate
Right hand gate
Menu Mode Navigational Buttons
To navigate through To choose what is
the selections on the display
Press Next or Previous Press Select
Continue pressing Next to Blinking characters
view all selections become static
MX3629-01 Rev. B
SlideDriver viewed
from the secure side
To navigate between
menus
Press Next or Previous
Advance = press Next
Previous = press Previous
Drawings NOT to Scale
