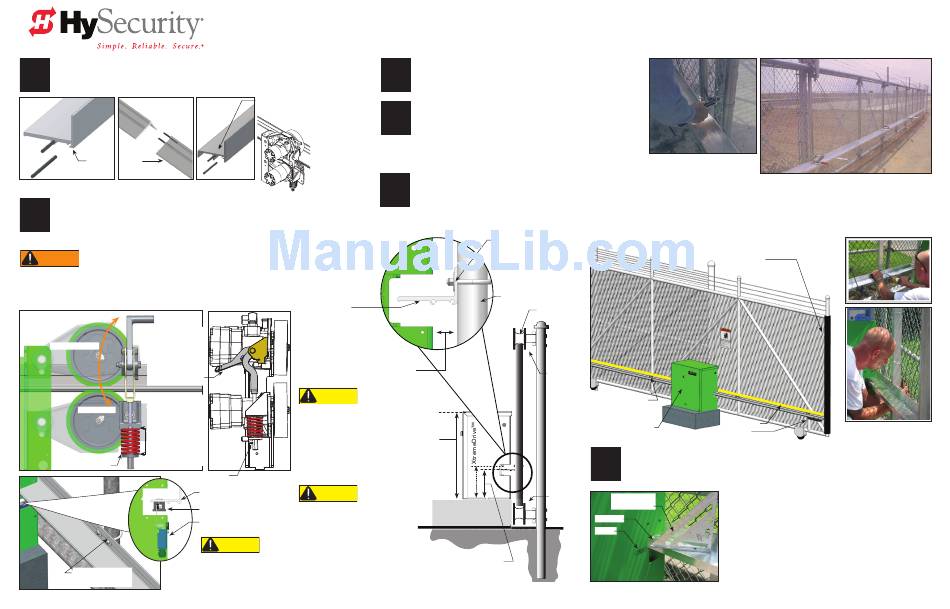

Connect sections of the drive rail.
1
Use roll pins to join the sections of the drive rail. To prevent the pins
from moving during assembly, crimp the pin channels with a pliers.
Standard grooved
drive rail
Secure the toggle handle.
2
Disengage the drive wheels by pulling on the toggle handle.
Wire the toggle handle clamp open so the wheel doesn't fall closed
when you insert the drive rail through the chassis
WARNING
Be careful where you place your hands and fingers when you disengage the
drive wheels. The compression spring at the base of the clamp causes the
handle to drop suddenly which can cause serious injury.
Clamped
Use wire to secure
the toggle handle so
the clamp remains
Handle Position
open and the drive
wheel doesn't fall
closed while you
insert the drive rail.
When clamped, the
red spring should
Unclamped
be compressed to
a height of 2-inches
(5 cm). Adjust the
nut at the base of
the spring to set the
proper tension.
Compression spring controls
drive wheel gripping force
Nut adjusts tension
U bolt securing the
drive rail.
© 2016 www.hysecurity.com
Assemble, Align & Install Drive Rail
Optional flanged drive rail used for
solenoid lock applications.
AdvanceDrive™
and XtremeDrive™
wheels shown.
Grooved drive rail
NOTE: Drill holes to increase
traction where drive wheels
first engage the drive rail.
Other traction considerations:
HySecurity XtremeDrive™
Wheel System
Distance: 1½" (38 mm)
CAUTION
When drive rail and limit
ramps (see page 5) are
installed, the drive rail must
be aligned and the operator's
chassis secure before clamping
the drive wheels and adjusting
the compression spring.
Drive rail
CAUTION
Height from top of drive rail to bottom of
Limit ramp
gate operator. All models: 9¼" (23.5 cm)
Limit switch (interior of chassis) NOTE: if using XtremeDrive™ wheels
mount drive rail ¼" to ½" (6 to 13 mm)
higher.
CAUTION
When sliding the drive rail through the cut out in the
chassis, DO NOT damage the limit switches. Damage
to the limit switches during installation is not covered
by the Warranty.
Clamp Drive Rail to Gate
3
Identify the gate structure nearest the operator and
temporarily clamp the drive rail onto the gate.
Set a String Line, Align Drive Rail and Insert Shims,
4
if needed.
For reference, run a string line along the entire length of the
drive rail. Compare the edge of the drive rail with the string
line. Place shims between the upright support structure and
drive rail to keep the drive rail straight and level.
Align and Secure Drive Rail
5
Align the top of the drive rail with the label on each side of the operator's chassis. If necessary, loosen the C-clamps and move the
drive rail up or down along the length of the gate. Drill holes through the drive rail flange and insert U bolts from the far side.
Install U bolts along the upright support structure, as needed. HySecurity recommends that you attach to a minimum of 3 supports per
length of drive rail. Keep drive rail spans straight and level. Distance between attachment points should be less than 10 feet (3 m).
Gate face*
Use shims as needed.
*NOTE: The best material to
use for shims is non-corrosive
materials, such as aluminum or
heavy-duty plastic.
Support post
Roller guide and
bracket support
Wheel cover
All models
(except SD 200):
26" (66 cm)
SlideDriver 200:
33½" (85 cm)
Wheel cover

CONCRETE PAD

All models: 9¼" (23.5 cm)
Exceptions: SD 80 & SD 200
using XtremeDrive™ wheels,
9½" to 9¾" (23.5 to 25 cm)
SlideDriver Installation and Assembly
Gate edge
U bolts fasten drive
rail to support posts
String line
SlideDriver
Limit ramp
Remove the C clamps when the drive rail is fully secure.
6
Manually, open and close the gate.
Check and adjust the height of the drive rail.
Install additional U bolts, as necessary.
Triangle tool
rafter square
NOTE: Make sure the drive wheel will be centered on the drive rail
when placed under load.
Drive rail
With the drive rail secure, tighten the chassis
Label
anchor bolts.
NOTE: Over its entire length, the drive rail must
be level and aligned with the label on the chassis to
within ± ¼-inch (6 mm).
NOTE: DO NOT use through bolts or self-
tapping screws because you won't be able to
adjust the drive rail at a later date.
