DANGER
Turn OFF AC power at the source (circuit breaker panel) before accessing the
wires in the gate operator. Follow facility Lock Out/Tag Out procedures. Make
sure all power switches are in the OFF position. Follow all electrical code standards
and regulations.
Power connections
Size the primary wires, appropriately. Consider the voltage, horsepower,
and length of the wire run from the main power panel. The electrical
wiring must be properly routed through conduit that enters the
gate operator through its base cutout and feeds through one of the
knockouts in the control box.
Verify you have the proper input voltage and conversion of voltage taps
at the motor and transformer. Measure the line voltage with a volt meter
to distinguish between 208V and 240V branch circuits or between 390V
and 480V branch circuits.

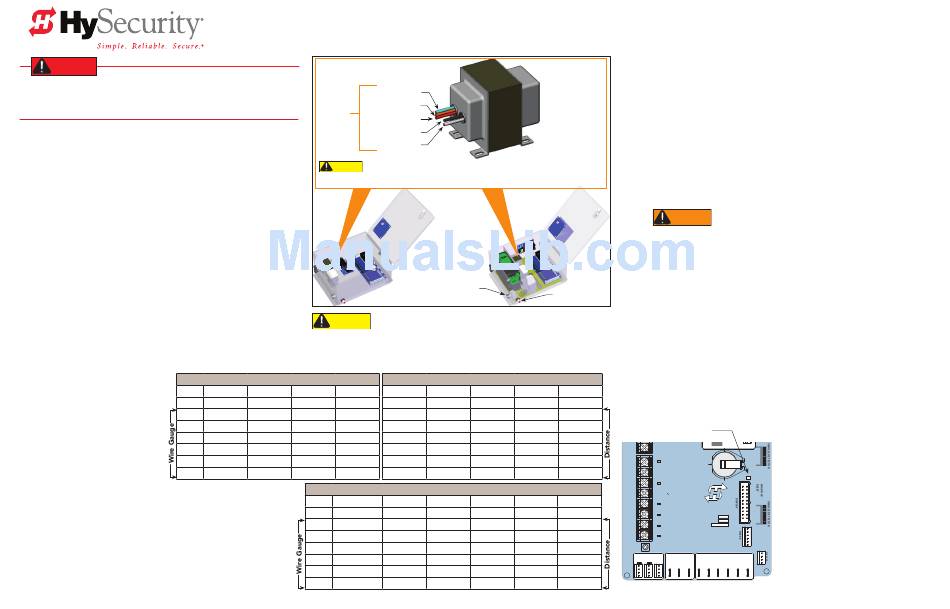

Check that the primary tap on the control transformer matches the line
voltage and frequency that you are connecting to the operator. The
site voltage and operator set voltage must be the same and match
the voltage on the operator motor's nameplate. A label on top of the
transformer identifies the various voltage taps. See illustration.
1. Connect to Power: Three pig tails and a ground are available
for connection to a 1 Phase (1Ø) and 3 Phase (3Ø) power sources.
2. Connect AC Power: Wire nut the incoming power wires to
their appropriate pig tails on the control transformer. Attach the
ground wire to the chassis.
Wire Size Charts
SlideDriver Wire Size & Distance Run - 115V 1Ø
hp
The maximum distance shown for
Amps
each wire gauge run is from the
operator to the AC power source 12
panel box that has adequate capacity
10
to support the motor load. The
8
values are for one operator, with no
6
other loads applied to the branch
4
circuit. Always, avoid placing more
2
than one operator to a circuit. If,
for any reason, more than one operator is connected, reduce the
maximum allowed wire run distance by half.
Make sure the proper wire gauge is being used. The charts here list
the maximum allowable wire run from the power source to a single
phase SlideDriver gate operator.
Wiring charts for 3Ø and the SlideDriver 50VF-series are found in the
SlideDriver Programming and Operations Manual, D0559.
NOTE: Distance shown in U.S. Standard "feet." Metric equivalents are shown in
parentheses.
© 2016 www.hysecurity.com
Blue - 480 VAC
Orange - 240 VAC
Input taps
Red - 208 VAC
Black - Common
White - 120 VAC*
* Variable Frequency (VF) or 2 hp gate operators:
CAUTION
Never connect to the white 120V wire. Make sure the
connection wires match the voltage found on the operator's nameplate.
All (Excluding SD50VF)
CAUTION
Wiring of gate operators must conform to NFPA and NEC standards and comply with all local
codes. When the installation is compliant and complete, turn on AC power at the source and at
the control box. For Variable Frequency (VF) operators, make sure the connection wires match
the voltage found on the operator's nameplate.
½ ¾ 1 2
10 11.6 14.4 27.2
90 (27m) 75 (23m) 60 (18m) 30 (9m)
140 (43m) 120 (37m) 100 (30m) 50 (15m) 460 (140m)
220 (67m) 190 (58m) 155 (47m) 80 (24m) 725 (221m)
350 (107m) 300 (91m) 245 (75m) 130 (40m) 1150 (350m) 1040 (317m)
555 (169m) 480 (146m) 385 (117m) 205 (62m) 1825 (556m) 1645 (501m) 1320 (402m)
890 (271m) 765 (233m) 620 (189m) 330 (101m) 2920 (890m) 2630 (801m) 2110 (643m) 1130 (344m) 1000 (305m)
SlideDriver Wire Size & Distance Run – 230V 1Ø
hp ½
Amps 5.0
12 350 (107m)
10 560 (171m) 480 (146m)
8 880 (268m) 760 (232m)
6 1400 (427m) 1120 (341m)
4 2220 (670m) 1915 (584m) 1550 (472m)
2 3550 (1082m) 3080 (939m) 2465 (751m) 1305 (398m) 1200 (366m)
Control Transformer
SD50VF - series
ON/OFF switch
Reset switch
SlideDriver Wire Size & Distance Run – 208V 1Ø
½ ¾ 1 2
5.5 6.1 7.6 14.2
290 (88m) 260 (79m) 205 (62m) 110 (33m) 100 (30m)
415 (126m) 330 (101m) 175 (53m) 155 (47m)
650 (198m) 525 (160m) 280 (85m) 245 (74m)
835 (254m) 445 (135m) 390 (119m)
710 (216m) 620 (189m)
¾ 1 2 3
5.8 7.2 13.6 14.8
300 (91m) 245 (75m) 130 (40m) 120 (37m) 65 (20m)
385 (117m) 205 (62m) 190 (58m) 105 (32m)
610 (186m) 325 (99m) 300 (91m) 165 (50m)
975 (297m) 515 (157m) 475 (145m) 260 (79m)
815 (248m) 750 (229m) 410 (125m)
650 (198m)
SlideDriver Installation and Assembly

Wiring AC Power

Site Considerations for AC Power
HySecurity gate operators are intended for permanent installation. Make sure to
review all the information in this manual and prepare the site with the following
considerations:
• Make sure all electrical wiring is properly routed via conduits.
• Check the distance of the wire run from the main panel to the gate
operator. Make sure the wire size of the branch circuit supplying power
to the gate operator is large enough to avoid excess voltage drop. See
the wire size charts below.
• Make sure the available power source matches the electrical
requirements specified on the voltage nameplate.
WARNING
Each gate operator is built to run on a specific line power voltage and phase.
Failure to ensure that the source voltage, phase and frequency match as specified
on the equipment may result in severe damage to the equipment. See "Changing
Electrical Connections in the Field" on page 9.
• Make sure a 20A circuit (minimum) protected with a 20A Inverse Time
Breaker is provided for all AC power connections.
• Verify that the operator is electrically grounded per NFPA 780 and NEC
Article 250, and local codes. Refer to the illustration on page 3.
NOTE: Refer to the SlideDriver Programming and Operations manual for Safety, programming,
troubleshooting, maintenance and general information. Note that DC operators do not have a
control transformer. For DC gate operators, refer to the DC Power Supply with HyCharger
supplemental manual provided with the DC Power Supply cabinet.
3
Turning the Power Switch ON
16.2
Green LED flashes indicating
processor is receiving power.
16
DO NOT USE
PHOTO EYE
17
OPEN DIRECTION
18
DO NOT USE
STATUS
19 PHOTO EYE
CLOSE DIRECTION
20
DO NOT USE
5
CHARGER
21
AC LOSS
HySecurity
27.0
22
LOCK INTERLOCK
MX000585
VERSION
23
S/N
EMERG CLOSE
24
FIRE DEPT OPEN
Smart Touch Controller
LED
LIMIT DUAL GATE RADIO OPTIONS
RPM
COM A B COM OPEN +24V +24V EDGE COM
The AC power disconnect switch
(ON/OFF switch) is located on the
same enclosure (control box) where
the electrical components, Smart
Touch Controller, transformer, power
module, etc., are found.
When power is turned ON, a green
status light (D4) on the Smart Touch
Controller blinks. The status light
appears below the coin battery
and indicates that the processor is
receiving power.
Drawings NOT to Scale
MX3629-01 Rev. B Page 8
