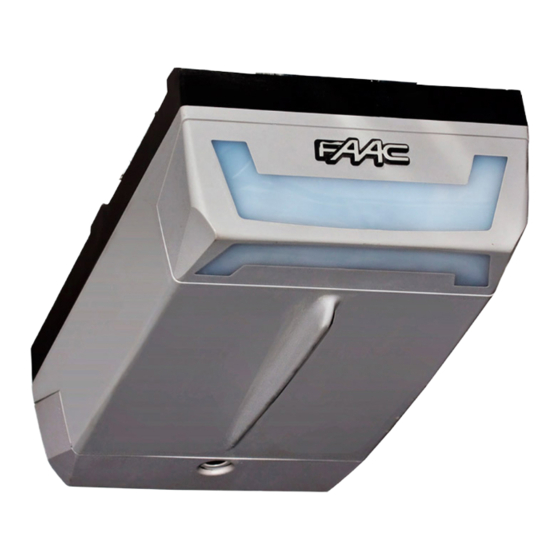

FAAC D1000 User Manual

FAAC D1000 User Manual

Automated door system
Hide thumbs Also See for D1000:

Advertisement

D1000
D1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for FAAC D1000

  • Page 1 D1000 D1000...
  • Page 2 Leggere completamente questo manuale di istruzioni prima di iniziare l’installazione del prodotto. Il simbolo evidenzia le note importanti per la sicurezza delle persone e l’integrità dell’automazione. Il simbolo richiama l’attenzione sulle note riguardanti le caratteristiche od il funzionamento del prodotto. Read this instruction manual to the letter before you begin to install the product.
  • Page 3: Table Of Contents

    Index GENERAL SAFETY INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE ........p. 2 TOOLS AND MATERIALS ........................p. 2 DECLARATION OF CONFORMITY ......................p. 3 WARNINGS FOR THE INSTALLER ......................p. 3 1. DIMENSIONS ............................. p. 4 2. TECHNICAL SPECIFICATIONS ......................p. 4 3.
  • Page 4: General Safety Instructions For Installation And Maintenance

    50 mm laid on the ground, must be correctly detected. IMPORTANT! DANGER OF CRUSHING. •If the power cable of operator D1000 is damaged, it must be replaced by qualified personnel, using a new cable of the same type. Do not use different power cables.
  • Page 5: Declaration Of Conformity

    19) Do not in any way modify the components of the automated a source of danger. system. 6) FAAC declines all liability caused by improper use or use other than 20) The installer shall supply all information concerning manual operation that for which the automated system was intended.
  • Page 6: Dimensions

    AUTOMATED SYSTEM D1000 These instructions apply to model FAAC D1000. 2. TECHNICAL SPECIFICATIONS The D1000 automated systems make it possible to automate balanced sectional doors of single garages for residential Model D1000 use. Power supply (V ~ / 50 Hz.)
  • Page 7: Description

    4. DESCRIPTION Ceiling lamp Rear door Courtesy light Plastic housing for D1000 operator Rear fitting Sliding guide Drive carriage Release knob Door fitting bracket Transmission unit Front fitting and chain tensioner Fig. 3 Front fitting bracket 5. PRELIMINARY CHECKS have been installed.
  • Page 8: Assembly

    2) Slide the transmission unit (Fig.7 ref. A) along the whole sliding 6. ASSEMBLY guide, until it is near the front terminal, the one opposite the 6.1. Sliding guide drive coupling. 3) Assemble the front fitting (Fig. 7 ref. B) to the transmission unit If you use a sliding guide in two pieces, you must assemble it, (Fig.
  • Page 9: External Release (Optional)

    6.3. External release (optional) 7.1. Sliding guide If the external release system has to be installed, the cable When you have finished the preliminary assembly operations, must be placed in its seat before beginning to install. you can begin installing the sliding guide, as follows: 1) Release the carriage (see par.
  • Page 10: On-Door Fitting

    8) Lift the sliding guide until the rear fitting is at the same level Position the fitting on the door so that the through-element as the front fitting, or until you reach the same inclination as of the release cable is facing toward the left side of the door the door’s horizontal rail.
  • Page 11: Operator

    7.3. Operator When you have assembled the rear fitting to the sliding guide and finished installing the sliding guide, you can install the operator: 1) While keeping the operator inclined at 15/20° (Fig. 20), insert the gearmotor shaft in the coupling on the rear fitting of the sliding guide and make the fins (Fig.
  • Page 12: E1000 Control Board

    8. E1000 CONTROL BOARD 8.1. Technical specifications 230 / 50 Supply voltage (V ~ / Hz.) Power supply to accessories (Vdc) Accessories max. load (mA.) -20 / +55 Operating ambient temperature (°C) for receiver boards XF433 / Quick-fit connector XF868 and battery module Automatic / Semiautomatic Operating logics Open/Stop/Safety devices/Fail-...
  • Page 13: Courtesy Light

    During the closing manoeuvre, it opens - The D1000 operator has a cable with a two-pole plug for 230 the door. Vac power supply. - To connect the external controls, safety devices and signals, If, during closure, an obstacle is detected more than break open the pre-holed element (Fig.
  • Page 14: Programming

    - the force required to move the door. 11. PROGRAMMING - the slow-down points. 11.1. Setting the board - the opening and closing stop points. - the pause time (in automatic logic). Set the appliance with Dip-Switch DS1 to obtain the operation you require, referring to chapter 8.4.
  • Page 15 During these 5 seconds, in order to lighten the load on the 1) Give the 1st OPEN command: the operator performs a release system, you can send OPEN pulses within a time interval deceleration closing manoeuvre until it detects the stop of 2 seconds from each other, in order to reverse the carriage.
  • Page 16: Pre-Flashing

    11.3 Pre-flashing The pre-flashing function can be enabled and disabled (following an OPEN command, the unit activates the flashing lamp for 5 seconds before it starts the movement). Procedure: 1) Press and hold down the SET UP push-button. 2) Press the OPEN push-button too after about 3 seconds. If the SET UP LED goes ON, pre-flashing was activated, if instead, it stays OFF, pre-flashing was disabled.
  • Page 17: Memory Storage Of Radio Controls Lc (For Some Markets Only)

    - Quickly press twice in succession the memory stored radio control push-button All codes of radio controls stored as OPEN A and OPEN B will be deleted. The automated system performs one opening operation. 13. START-UP Make sure that the automated system is free of any obstacle created by persons or things.
  • Page 18: Parachute Cables

    16 . REPAIRS - House the control unit as shown in Fig. 36. - First hook on the two fastening clips on the coupling on the For repairs, contact FAAC’s authorised Repair Centres.17.1. base. Central support - Then press lightly until you can hear the hooking snap sound.
  • Page 19: Troubleshooting

    18 . TROUBLESHOOTING Trouble Possible causes Solution When the learning procedure is started, The STOP and FSW safety devices are the SET UP LED flashes but the automated enabled also during the learning stage. system does not perform any Non-connection or wrong connection manoeuvre prevents the operator from working Check the LEDs’...
