AGRAS
Quick Start Guide
V1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the agras mg-1 and is the answer not in the manual?

Questions and answers

Related Manuals for dji agras mg-1

Summary of Contents for dji agras mg-1

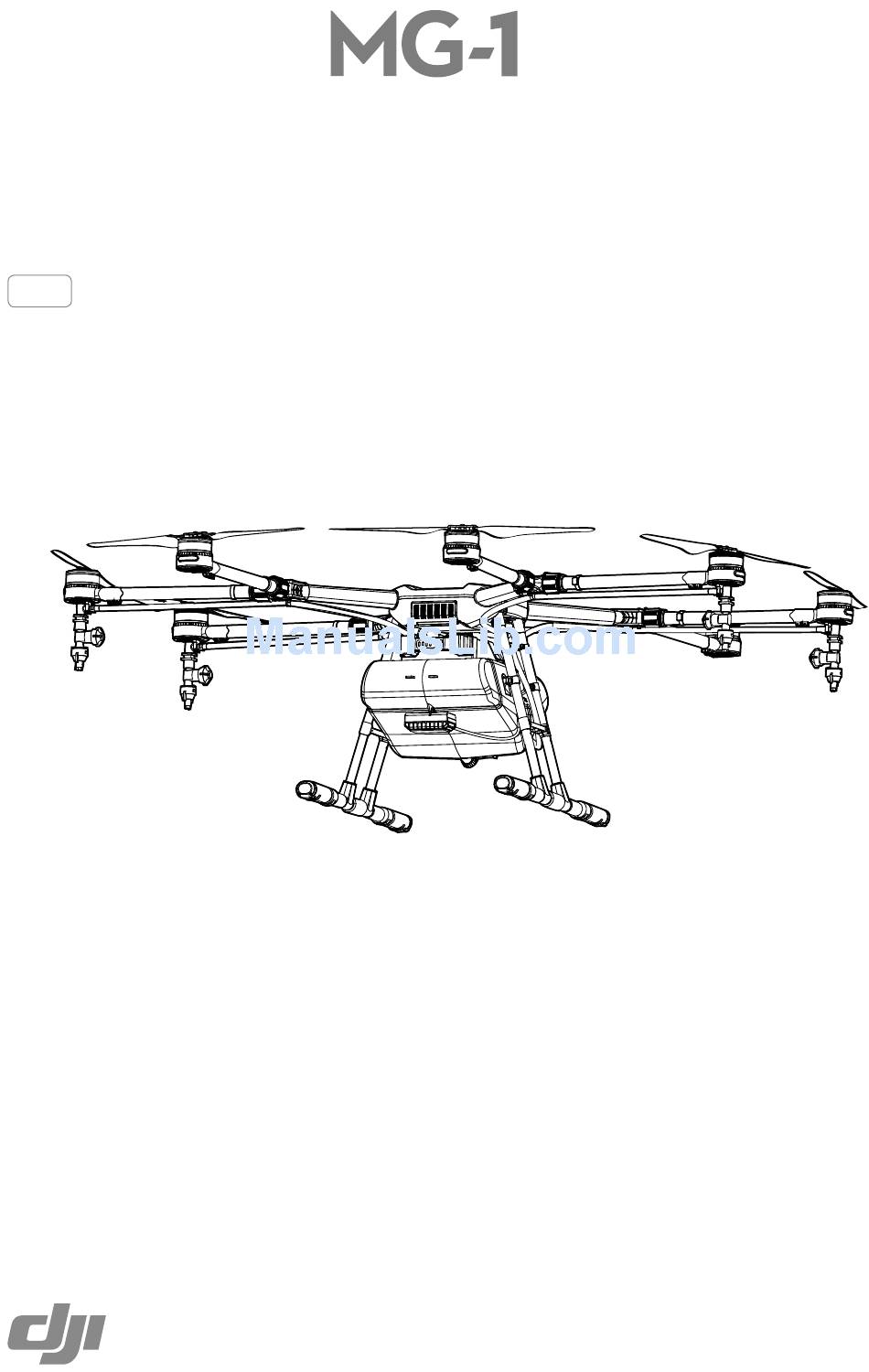

  • Page 1 AGRAS Quick Start Guide V1.2...

  • Page 2: Before Flight

    3. Watch the video tutorials about installation. http://www.dji.com/product/mg-1/info#video 4. Download the DJI GO app. Search for ‘DJI GO’ on the App Store or Google Play, and install the app on your mobile device. DJI GO The PC Assistant supports Windows XP or above. DJI GO is used to upgrade the remote controller firmware and link the remote controller to the aircraft. Refer to the User Manual to learn about more features. DJI GO supports iOS 8.0 (or later) or Android 4.1.2 (or later).
  • Page 3 Quick Start Guide Profile The AGRAS MG-1 (abbreviated as “MG-1”) is a battery-powered multirotor aircraft designed for agricultural applications in variety of environments and terrains, including fields, forests and orchards. It is dust-proof, water-proof (IP43 protection rating, IEC standard 60529) and made of anti-corrosive materials, allowing it to be rinsed clean. Built in is DJI’s industry-leading flight control system, providing three useful Operation Modes: Smart, Manual and Manual Plus. A microwave radar underneath the aircraft makes the MG-1 uniquely versatile across all sorts of terrain. The combined Altitude Stabilization System automatically maintains its distance from plants to ensure optimal spraying. The remote controller features a Spraying Status Panel decorated with intuitive icons and a range of controls for navigation, mode and spraying. While the MG-1 does all the hard work in the fields, you keep full control over it in the palm of your hands.

  • Page 4: Remote Controller

    12 CAN Port 20 Panel Cable 5 Status LED 13 USB Port 21 Back Right Button C2 6 Battery Level LED 14 Spray Rate Dial 22 Power Port 7 RTH Status LED 15 Spray Button 23 Back Left Button C1 Operation Mode Switch 16 Flight Mode Switch The default flight control is known as Mode 2. The left stick controls the aircraft’s altitude and heading, while the right stick controls its forward, backward, left and right movements. Left Stick Right Stick © 2016 DJI All Rights Reserved.

  • Page 5: Installation

    M3×10 screws. Aircraft’s Rear Cable Protector Compass Port Compass Cable 4. Mount the left landing gear leg and tighten the M3 × 10 screws. Mounting the Spray Tank 1. Insert the four spray tank plugs into the sides of the spray tank. 2. Place the spray tank between the landing gear legs with the delivery pump at the rear of the aircraft. Align the mounting holes and tighten the four M5 × 18 screws. Aircraft’s Front © 2016 DJI All Rights Reserved.

  • Page 6: Unfolding The Frame Arms

    Motors M1, M3 M5 and M7 rotate counter-clockwise as indicated by the “CCW” mark, while motors M2, M4, M6 and M8 rotate clockwise as indicated by the “CW” mark. Mounting the Sprinklers Tools required: A pair of pliers 1. Mount one pair of sprinklers under the left motors (M3 and M4) and the other pair under the right motors (M7 and M8), and then tighten the M3x6 screws. 2. Connect the sprinklers to the delivery pump. Thread the open ends of the hoses through hose clamps A (use pliers to open up the hose clamp if necessary). Connect the hoses to both sides of the delivery pump’s T-shape outlet. Press the hose clamps so that they grip the outlet firmly. © 2016 DJI All Rights Reserved.

  • Page 7: Mounting The Radar Module

    1. With the Radar Status Indicator facing outwards, align the mounting holes and tighten the M3 × 8 screws. 2. Connect the radar cable to the radar port on the aircraft body. Be sure to insert the plug in the correct orientation and tighten its ring to secure. Radar Port Radar Cable Radar Status Indicator © 2016 DJI All Rights Reserved.

  • Page 8: Mounting The Battery

    Mounting the Battery Place the battery into the recessed area above the spray tank. Pull the Velcro strap through the slots and around the battery to secure. Battery Communication Port XT90 Port Slots The MG-1 does not come with a battery. Please purchase the DJI approved MG-1 battery pack (Model: MG-12000). The voltage on the aircraft can reach 50.4 V. Read the battery’s safety guidelines and take necessary precautions when handling the battery to ensure your own safety. Mounting the Spraying Status Panel 1. Unfold the Spraying Status Panel. 2. Plug the screw lock into the screw hole and tighten. 3. Insert the slotted screw through the metal loop and tighten. 4. Tilt the Spraying Status Panel to the desired position. Adjust the antennas as shown. 5. Connect the panel cable to the CAN port on the back of the remote controller. © 2016 DJI All Rights Reserved.
  • Page 9 4. Monitor Your Altitude: For the safety of full-sized aircraft and other air traffic, always fly at altitudes less than 164 feet (50 meters) or according to local laws and regulations. Visit http://www.dji.com/fly-safe/category-mc for more information on critical safety features such as No Fly Zones. Calibrating the Compass Ensure the compass is calibrated before every flight. Failure to do so may lead to unexpected flight behavior. 1. DO NOT attempt to calibrate your compass where there is a chance of strong magnetic interference, including areas near massive metal objects, parking lots, underground steel reinforcements or under bridges. 2. DO NOT carry ferromagnetic materials, such as keys and mobile phones, with you during compass calibration. 3. The compass should always be calibrated when moving from indoor spaces to outdoor spaces. 4. If the Aircraft Status Indicator is blinking green and yellow alternately after placing the aircraft on the ground, the compass has detected magnetic interference. Change your location. 5. If the Aircraft Status Indicator is blinking red, compass calibration has failed. Please recalibrate. Flying Considerations 1. DO NOT use the aircraft in adverse weather conditions such as heavy rain (precipitation rate exceeding 25 mm or 0.98 inches in 12 hours), high winds exceeding 17 mph (28 kph), fog, snow and lightning. 2. Only fly in open areas. Tall buildings and steel structures may affect the accuracy of the onboard compass and GPS signal. 3. Avoid flying in area with high levels of electromagnetism, including near mobile phone base stations and radio transmission towers. 4. Aircraft and battery performance is subject to environmental factors such as air density and temperature. Be very careful when flying over 6,560 feet (2 km) above sea level as the battery and aircraft performance may be reduced. 5. The aircraft cannot operate in P-Mode within the Earth’s polar regions. 6. Ensure that there is a strong GPS signal in the Smart or Manual Plus operation mode. P-Mode The aircraft uses GPS to pinpoint its position and stabilize flight. The Return-to-Home feature is available. To enable P-mode, toggle the Flight Mode Switch to “P”. © 2016 DJI All Rights Reserved.
  • Page 10 4. Wear protective clothing to prevent direct body contact with the pesticide. Always rinse your hands and skin after handling pesticides. Clean the aircraft and remote controller after applying the pesticide. 5. Effective use of pesticides relies on pesticide density, spray rate, spray distance, aircraft speed, wind speed and wind direction. Consider all factors when using pesticides, but NEVER compromise the safety of people, animals and the environment in doing so. 6. DO NOT contaminate rivers and sources of drinking water. It is important to understand basic flight guidelines, for the safety of both you and those around you. Do not forget to read the Disclaimer and Safety Guidelines. © 2016 DJI All Rights Reserved.

  • Page 11: Preparing The Flight Battery

    AGRAS MG-1 Quick Start Guide Using MG-1 Preparing the Flight Battery Only use DJI approved flight batteries (Model: MG-12000). Check battery level before flying and charge according to instructions provided by the manufacturer. Model: MG-12000 Preparing the Remote Controller Check Battery Level Battery Level High Press once to check the battery level. Press once, then again and hold to turn on/off. Charging the Battery Power Outlet Charger When charging is complete, the battery level indicators will automatically turn off. The charge time is about 3.5 hours.

  • Page 12: Calibrating The Compass

    1. Flip the Flight Mode Switch back-and-forth at least 6 times, until the Aircraft Status Indicator becomes solid blue. 2. Hold the aircraft upright and rotate it 360 degrees along the central axis, until the Aircraft Status Indicator changes from solid blue to solid green. 3. Hold the aircraft with its nose facing up and rotate 360 degrees along the central axis. P-mode M-mode 4. The Aircraft Status Indicator shows the current flight mode when calibration is complete. If the Aircraft Status Indicator becomes blinking red, repeat the steps above to recalibrate the compass. © 2016 DJI All Rights Reserved.
  • Page 13 1. When the aircraft has landed, push the throttle stick down, then perform the CSC command to stop the motors. Release both sticks once the motors have stopped. Throttle Stick 2. When the aircraft has landed, push the throttle down and hold. The motors will stop after 3 seconds. (In M-mode, when “M” is set as Manual mode in the PC Assistant, use method 1 to stop the motors.) Throttle Stick Take off immediately after the motors are spinning, or else the aircraft may drift and injure nearby people. Rotating propellers can be dangerous. DO NOT start the motors in narrow spaces or when there are people nearby. Always keep your hands on the remote controller when the motors are spinning. Never stop the motors mid-flight unless in emergency situations when doing so can reduce the risk of damage or injury. After landing, power off the aircraft before turning off the remote controller. Disconnect the cable from the XT90 port and then the battery communication port. © 2016 DJI All Rights Reserved.
  • Page 14 It is recommended to keep the direction of Point A to B parallel to one side of the rectangular spray area for optimal effect. 2. Select the Route Press Back Left Button C1 or Back Right Button C2 on the remote controller to select the operating pattern. Press Back Left Button C1 for Route L and Back Left Button C2 for Route R. The Orientation LED on the Spraying Status Panel will blink to show that the selection has been made. The default route pattern is Route R, if no selection has been made. 3. Adjust the Aircraft Altitude Adjust the aircraft altitude to the desired altitude by using the throttle stick before entering Smart Operation Mode, and the Altitude Stabilization System will start working automatically and maintain the spraying distance between the aircraft and the vegetation. Instructions: a. Fly the aircraft above the vegetation and adjust the spraying distance between the aircraft and the vegetation. b. Confirm the desired spraying distance by observing the Height LEDs on the Spraying Status Panel. The optimal detection range for the spraying distance is between 1.5 to 7 meters. Always operate the aircraft above vegetation within this range while adjusting aircraft altitude. Ideal spraying distance should fall within the working range (2-3.5 meters) for altitude stabilization. Refer to the User Manual for more information about the working conditions of the Altitude Stabilization System. © 2016 DJI All Rights Reserved.
  • Page 15 Use the control sticks to control the aircraft to avoid obstacles when it is in operation, however, the heading of the aircraft cannot be adjusted. The aircraft will resume to operation route automatically upon releasing the control sticks. Release the control sticks only after the aircraft is far away from the obstacle, or else the aircraft may still hit obstacles when it is resuming its operation route. If you press Button A or B when in operation, data for Point A and B of the current route will be erased and the aircraft will hover in place. Manual and Manual Plus Operation Refer to the User Manual for details about the two operation modes. More Function Operation Resumption System Data Protection Empty Tank Warning Refer to the User Manual for details. © 2016 DJI All Rights Reserved.

  • Page 16: Specifications

    58 g Spraying System Spray Tank Volume 10 L Standard Operating Payload 10 kg Max Battery Size 151 mm × 195 mm × 70 mm Sprinklers Model XR11001 Quantity Max Spray Speed 0.43 L/min (Single nozzle, using water) Spray Width 4 - 6 m (4 nozzles, 1.5 - 3 m above plant) 130 - 250 μm Droplet Size Depending on operating environment and spraying speed Altitude Stabilization System Detection Range 1.5 - 7 m (Varies when flying above different kinds of vegetation) Working Range 2 - 3.5 m Detection Accuracy < 10 cm © 2016 DJI All Rights Reserved.
  • Page 17 14° to 104° F (-10° to 40° C) Less than 3 months: -4° to 113° F (-20° to 45° C) Storage Temperature More than 3 months: 72° to 82° F (22° to 28° C) Charge Temperature 41° to 104° F (5° to 40° C) Remote Controller Charger Model A14-057N1A Voltage 17.4 V Rated Power 57 W © 2016 DJI All Rights Reserved.
  • Page 18 DJI Support http://www.dji.com/support Download the user manual for more information: http://www.dji.com/product/mg-1 ※ This Quick Start Guide is subject to change without prior notice. AGRAS is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.
