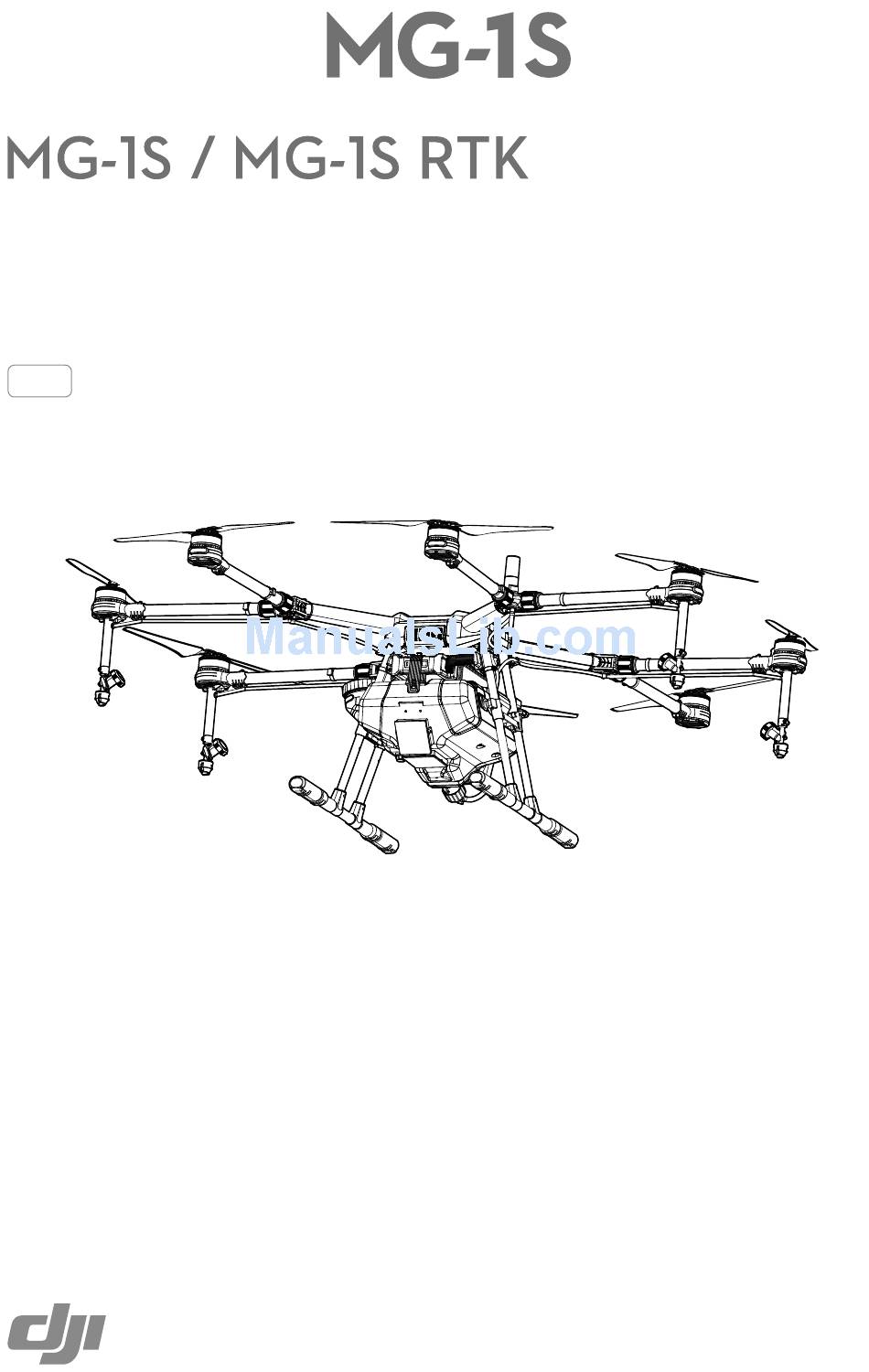

  • Page 1 AGRAS Quick Start Guide V1.0...

  • Page 2: Before Flight

    1. Read the Disclaimer and Safety Guidelines and Quick Start Guide carefully. 2. Download the User Manual and DJI ASSISTANT http://www.dji.com/mg-1s/info#downloads User Manual Assistant 2 3. Watch the video tutorials. http://www.dji.com/mg-1s/info#video DJI Assistant 2 supports Windows 7 (or later) or OS X 10.11 (or later). © 2017 DJI All Rights Reserved.
  • Page 3 The MG-1S / MG-1S RTK does not come with a battery. Please purchase the DJI approved MG-1S battery pack (Model: MG-12000S). * This should be used with a DJI Base Station (purchased additionally) or DJI approved Network RTK service. Refer to the User Manual for details.

  • Page 4: Remote Controller

    Left Stick Right Stick For more information about how to connect and use the remote controller, please refer to the User Manual. You can change the stick mode in the DJI MG app. © 2017 DJI All Rights Reserved.

  • Page 5: Installation

    Mounting the Power Port Modules Mount the two power port modules on the bottom of the aircraft onto the two landing gear legs and tighten the two M3×18 screws and one M3×22 screw. M3×18 M3×18 M3×22 © 2017 DJI All Rights Reserved.

  • Page 6: Mounting The Spray Tank

    4. Lift the spray tank and pull the mouth of the tank through the space between the two tubes of the right landing gear leg. © 2017 DJI All Rights Reserved.

  • Page 7: Unfolding The Frame Arms

    M1 and M2 at the front of the aircraft, and motors M5 and M6 at the rear. Motors M1, M3, M5 and M7 rotate counter-clockwise as indicated by the “CCW” mark, while motors M2, M4, M6 and M8 rotate clockwise as indicated by the “CW” mark. © 2017 DJI All Rights Reserved.

  • Page 8: Mounting The Sprinklers

    3. Insert the hoses on both sides into the clips on the landing gear. 4. Mount the fender to the right landing gear leg to avoid spills when pouring liquids. Handle with care to avoid damage to the fender. © 2017 DJI All Rights Reserved.

  • Page 9: Mounting The Battery

    Be sure to use a DJI approved USB stick. Use the USB stick and the SIM card according to their manuals. * Test procedure: Press once, again and hold the power button of the remote controller to turn it on. Go to DJI MG app >...
  • Page 10 4. Monitor Your Altitude: For the safety of full-sized aircraft and other air traffic, always fly at altitudes less than 164 feet (50 meters) or according to local laws and regulations. Visit http://www.dji.com/flysafe/no-fly for more information on critical safety features such as No Fly Zones.

  • Page 11: Return-To-Home

    Home Point, you should guide it with the control sticks. Return-to-Home * The Failsafe RTH must be enabled in the DJI MG app. If not enabled, the aircraft will hover in place when remote controller signal is lost.

  • Page 12: Preparing The Flight Battery

    AGRAS MG-1S Quick Start Guide Using MG-1S / MG-1S RTK Preparing the Flight Battery Only use DJI approved flight batteries (Model: MG-12000S). Check battery level before flying and charge according to instructions provided by the manufacturer. Model: MG-12000S Preparing the Remote Controller...

  • Page 13: Calibrating The Compass

    Avoid using wireless devices that use the same frequency bands as the remote controller. Getting Ready for Takeoff When using your MG-1S / MG-1S RTK for the first time, activate it in the DJI MG app. Your DJI account and internet connection are required.
  • Page 14 Flight Ensure the Flight Mode Switch is in the “F” position and wait for a strong GPS signal. Tap “Start” in the bottom left corner of the DJI MG app and enter Operation View to start the motors. Takeoff Perform the Combination Stick Command (CSC) and then slowly push the throttle stick up to take off.
  • Page 15 Quick Start Guide Using Intelligent Operation Planning System The remote controller equips a highlighted screen with a built-in Android system, which can run the DJI MG app. Measure operation area and obstacles, configure waypoints, and other settings via the intelligent operation planning system built-in the app, and the app will produce a flight route according to the settings.

  • Page 16: Operation Modes

    30 - 450 Hz Drive PWM Frequency 12 kHz Foldable Propeller Material High-performance engineered plastics Diameter × Pitch 21 × 7 inch Weight 58 g Spraying System Spray Tank Volume 10 L Standard Operating Payload 10 kg © 2017 DJI All Rights Reserved.
  • Page 17 (P-mode or F-mode, strong GNSS signal) Terrain Follow System enabled) GNSS* GPS+GLONASS Battery DJI approved battery pack (Model: MG-12000S) Max Power Consumption 6400 W Hovering Power Consumption 3800 W (Takeoff weight of 23.8 kg) 22 min (Takeoff weight of 14 kg with a 12000 mAh battery) Hovering Time* 10 min (Takeoff weight of 23.8 kg with a 12000 mAh battery)
  • Page 18 More than 3 months: 72° to 82° F (22° to 28° C) 41° to 104° F (5° to 40° C) Charge Temperature Remote Controller Charger Model A14-057N1A Voltage 17.4 V Rated Power 57 W © 2017 DJI All Rights Reserved.
  • Page 19 DJI Support http://www.dji.com/support ※ This Quick Start Guide is subject to change without prior notice. Download the user manual for more information: http://www.dji.com/mg-1s AGRAS is a trademark of DJI. Copyright © 2017 DJI All Rights Reserved. Printed in China. YC.BZ.S01513.01...
