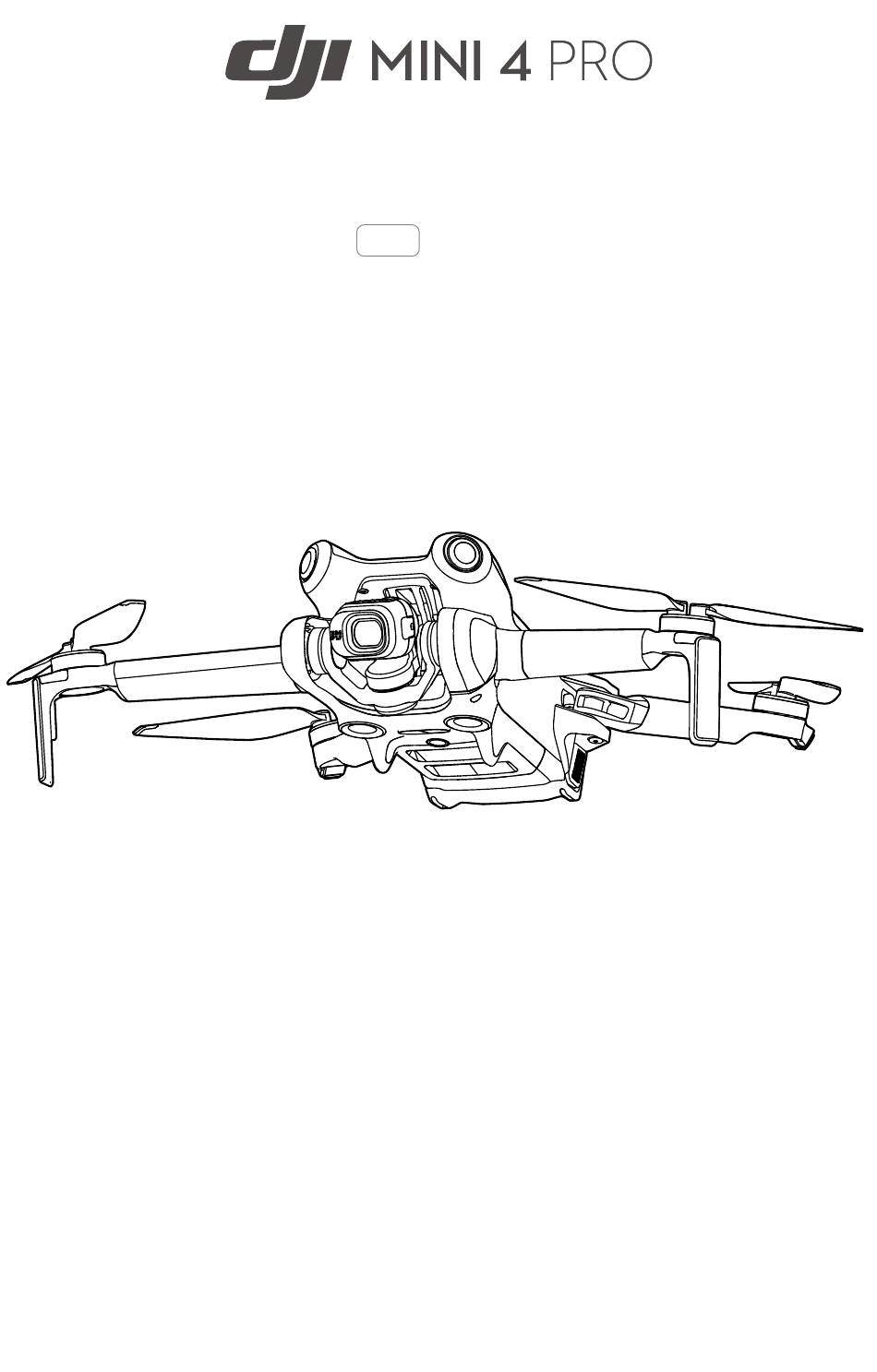

dji MINI 4 PRO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual
v1.0
2023.09

Advertisement

Table of Contents
loading

Related Manuals for dji MINI 4 PRO

Summary of Contents for dji MINI 4 PRO

  • Page 1 User Manual v1.0 2023.09...
  • Page 2 This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring or selling the document. Users should only refer to this document and the content thereof as instructions to operate DJI UAV.

  • Page 3: Using This Manual

    * For increased safety, flight is restricted to a height of 98.4 ft (30 m) and a range of 164 ft (50 m) when not connected or logged into the app during flight. This applies to DJI Fly and all apps compatible with DJI aircraft.

  • Page 4: Download Dji Assistant 2

    DJI Mini 4 Pro User Manual Download DJI Assistant 2 Download DJI ASSISTANT 2 (Consumer Drones Series) at: https://www.dji.com/downloads/softwares/dji-assistant-2-consumer-drones-series • The operating temperature of this product is -10° to 40° C. It does not meet the standard operating temperature for military-grade application (-55° to 125° C), which is required to endure greater environmental variability.

  • Page 5: Table Of Contents

    GEO (Geospatial Environment Online) System Flight Limits Flight Altitude and Distance Limits Unlocking GEO Zones Pre-Flight Checklist Basic Flight Auto Takeoff/Landing Starting/Stopping the Motors Controlling the Aircraft Takeoff/Landing Procedures Video Suggestions and Tips Intelligent Flight Mode © 2023 DJI All Rights Reserved.   ...
  • Page 6 DJI Mini 4 Pro User Manual FocusTrack MasterShots QuickShots Hyperlapse Waypoint Flight Cruise Control Aircraft Flight Mode Aircraft Status Indicators Return to Home Advanced RTH Landing Protection Precision Landing Vision Systems and 3D Infrared Sensing System Detection Range Using the Vision Systems...
  • Page 7 DJI Mini 4 Pro User Manual Remote Controller LEDs Remote Controller Alert Optimal Transmission Zone Linking the Remote Controller Operating the Touchscreen Advanced Features DJI RC-N2 Operation Battery Level LEDs Remote Controller Alert Optimal Transmission Zone Linking the Remote Controller...
  • Page 8 Product Profile This chapter introduces the major features of the product.

  • Page 9: Product Profile

    20 km and video quality at up to 1080p 60fps from the aircraft to the DJI Fly app. The remote controller works at 2.4, 5.8, and 5.1 GHz and is capable of selecting the best transmission channel automatically.

  • Page 10: Using For The First Time

    DJI Mini 4 Pro User Manual • The maximum takeoff weight will be more than 249 g if the aircraft is used with the Intelligent Flight Battery Plus. Make sure to observe local laws and regulations about the takeoff weight.
  • Page 11 3. Remove the gimbal protector from the camera. 4. Unfold the rear arms, followed by the front arms, and then all of the propeller blades. • It is recommended to use the DJI 30W USB-C Charger or other USB Power Delivery chargers.

  • Page 12: Preparing The Remote Controller

    DJI Mini 4 Pro User Manual Preparing the Remote Controller DJI RC 2 1. Remove the control sticks from the storage slots and mount them on the remote controller. 2. Unfold the antennas. 3. The remote controller needs to be activated before first use and an internet connection is required for activation.

  • Page 13: Activating The Aircraft

    Binding the Aircraft and Remote Controller After activation, the aircraft is bound to the remote controller automatically. If automatic binding fails, follow the on-screen prompts on DJI Fly to bind the aircraft and remote controller for optimal warranty services. Firmware Update A prompt will appear in DJI Fly when new firmware is available.

  • Page 14: Diagram

    DJI Mini 4 Pro User Manual Diagram Aircraft Gimbal and Camera Aircraft Status Indicators Omnidirectional Vision System Battery Buckles Downward Vision System 10. Battery Level LEDs 3D Infrared Sensing System 11. Power Button Auxiliary Light 12. USB-C Port Propellers 13. microSD Card Slot Motors 14.

  • Page 15: Dji Rc 2 Remote Controller

    Touch the screen to operate the remote aircraft movements. Set the control stick controller. Note that the touchscreen is mode in DJI Fly. The control sticks are not waterproof. Operate with caution. removable and easy to store. 9. USB-C Port 2.

  • Page 16: Dji Rc-N2 Remote Controller

    Switch between recentering the gimbal and pointing the gimbal downward. Set 17. Customizable C2 Button the function in DJI Fly by entering Camera Switch between Landscape and Portrait View > Settings > Control > Button mode. Set the function in DJI Fly by Customization.
  • Page 17 . P r e s s wireless signals. twice to switch between Landscape and 11. USB-C Port Portrait mode. Set the function in DJI Fly For charging and connecting the remote by entering Camera View > Settings > controller to your computer.
  • Page 18 Aircraft This chapter describes safe flight practices, flight restrictions, basic flight operations, and the intelligent flight modes.

  • Page 19: Flight And Safety

    DJI Mini 4 Pro User Manual Flight and Safety After completing the pre-flight preparation, it is recommended to train your flying skills and practice flying safely. Pick a suitable area to fly in according to the following flight requirements and restrictions. Strictly abide by local laws and regulations when flying. Read the Safety Guidelines before flight to ensure the safe use of the product.

  • Page 20: Operating The Aircraft Responsibly

    Flight Restrictions GEO (Geospatial Environment Online) System DJI’s Geospatial Environment Online (GEO) System is a global information system that provides real-time information on flight safety and restriction updates and prevents UAVs from flying in restricted airspace. Under exceptional circumstances, restricted areas can be unlocked to allow flights in.

  • Page 21: Flight Altitude And Distance Limits

    Flight Altitude and Distance Limits Max altitude restricts an aircraft’s flight altitude, while max distance restricts an aircraft’s flight radius around the Home Point. These limits can be changed in the DJI Fly app for improved flight safety. Max Altitude...

  • Page 22: Unlocking Geo Zones

    Once the unlocking request is approved, the user may synchronize the unlocking license through the DJI Fly app. To unlock the zone, alternatively, the user may launch or fly the aircraft directly into the approved Authorization Zone and follow the prompts in DJI Fly to unlock the zone.

  • Page 23: Basic Flight

    Only use genuine DJI parts or DJI authorized parts. Unauthorized parts may cause system malfunctions and compromise flight safety. 10. Make sure the Obstacle Avoidance Action is set in DJI Fly, and the max flight altitude, max flight distance and RTH altitude are all set properly according to the local laws and regulations.
  • Page 24 Stopping the motors mid-flight will cause the aircraft to crash. The default setting for Emergency Propeller Stop in the DJI Fly app is Emergency Only, which means that the motors can only be stopped mid-flight when the aircraft detects that it is in an emergency situation such as the aircraft is involved in a collision, a motor has stalled, the aircraft is rolling in the air, or the aircraft is out of control and is ascending or descending very quickly.

  • Page 25: Controlling The Aircraft

    DJI Mini 4 Pro User Manual Controlling the Aircraft The control sticks of the remote controller can be used to control the aircraft movements. The control sticks can be operated in Mode 1, Mode 2, or Mode 3, as shown below. The default control mode of the remote controller is Mode 2.

  • Page 26: Takeoff/Landing Procedures

    Tap Settings > Safety, and then set the Obstacle Avoidance Action to Bypass or Brake. Make sure to set an appropriate Max Altitude and RTH Altitude. Wait for the aircraft self-diagnostics to complete. If DJI Fly does not show any irregular warning, you can start the motors.

  • Page 27: Intelligent Flight Mode

    DJI Mini 4 Pro User Manual Intelligent Flight Mode FocusTrack Click the link below or scan the QR code to watch the tutorial video. https://s.dji.com/intelligent-flight FocusTrack includes Spotlight, Point of Interest, and ActiveTrack. • Refer to the Controlling the Aircraft section in the Remote Controller chapter for more information about the roll, pitch, throttle, and yaw sticks.
  • Page 28 Obstacle flight modes or obstacle avoidance action settings in avoidance action is set Avoidance DJI Fly when the vision systems are working normally. to Bypass or Brake in DJI Fly. Note: obstacle avoidance is disabled in Sport mode.
  • Page 29 Launch the aircraft and take off. Drag-select the subject in the camera view, or enable Subject Scanning under Control settings in DJI Fly and tap the recognized subject to enable FocusTrack. • FocusTrack must be used within the supported zoom ratio as follows. Otherwise, subject recognition will be affected.
  • Page 30 The aircraft enters Spotlight by default and does not fly automatically. The user needs to manually control the flight of the aircraft by using the control sticks. Tap the shutter/ record button on the camera view in DJI Fly or press the shutter/record button on the remote controller to start shooting.
  • Page 31 GO, the aircraft will start tracking the subject automatically. The user can also move the control sticks to manually control the flight while the aircraft is automatically flying. Tap the shutter/record button on the camera view in DJI Fly or press the shutter/record button on the remote controller to start shooting.
  • Page 32 • Always be prepared to press the Flight Pause button on the remote controller or tap Stop in DJI Fly in order to operate the aircraft manually in case any emergency situation occurs. • Be extra vigilant when using FocusTrack in any of the following situations: a.
  • Page 33 DJI Mini 4 Pro User Manual • It is recommended to only track vehicles, boats, and people (but not children). Fly with caution when tracking other subjects. • For the supported moving subjects, vehicles refer to cars and small to medium-sized boats.

  • Page 34: Mastershots

    1. Launch the aircraft and make it hover at least 2 m (6.6 ft) above ground. 2. In DJI Fly, tap the shooting mode icon to select MasterShots and read the instructions. Make sure you understand how to use the shooting mode and there are no obstacles in the surrounding area.

  • Page 35: Quickshots

    DJI Mini 4 Pro User Manual Exiting MasterShots Press the Flight Pause button once or tap in DJI Fly to exit MasterShots. The aircraft will brake and hover. • Use MasterShots at locations that are clear of buildings and other obstacles. Make sure there are no humans, animals, or other obstacles in the flight path.
  • Page 36 1. Launch the aircraft and make it hover at least 2 m (6.6 ft) above ground. 2. In DJI Fly, tap the shooting mode icon to select QuickShots and follow the prompts. Make sure you understand how to use the shooting mode and there are no obstacles in the surrounding area.

  • Page 37: Hyperlapse

    • After selecting the Hyperlapse shooting mode, go to Settings > Camera > Hyperlapse in DJI Fly to select the photo type of the original hyperlapse photos to be saved, or select Off to not save any original hyperlapse photos. It is recommended to store the footage in the microSD card of the aircraft.
  • Page 38 DJI Mini 4 Pro User Manual • When the lighting is sufficient and the environment is suitable for vision systems, the aircraft will brake and hover in place if an obstacle is detected during Hyperlapse. If the lighting becomes insufficient or the environment is unsuitable for the vision systems to operate during Hyperlapse, the aircraft will continue shooting without obstacle sensing.
  • Page 39 DJI Mini 4 Pro User Manual Follow the steps below to use Circle: 1. Set the interval time, video length, speed, and circle direction. The screen displays the number of photos that will be taken and the shooting duration. 2. Drag-select a subject on the screen. Use the yaw stick and gimbal dial to adjust the frame.

  • Page 40: Waypoint Flight

    The heading will point toward the POI during flight. A waypoint flight route can be saved and repeated. Using Waypoint Flight 1. Enable Waypoint Flight on the left of the camera view in DJI Fly to enable Waypoint Flight. ©    2023 DJI All Rights Reserved.
  • Page 41 Waypoints can be pinned via the map before takeoff. Waypoints can be pinned via the following methods after takeoff, GNSS is required. • Using the Remote Controller: Press once on the Fn button (RC-N2) or the C1 button (DJI RC 2) to pin a waypoint.
  • Page 42 DJI Mini 4 Pro User Manual • When pinning a waypoint, it is recommended to fly to the location for a more accurate and smoother imaging result. • The aircraft horizontal GNSS position, altitude from the takeoff point, heading, gimbal tilt, and camera zoom ratio at this waypoint will be recorded if the waypoint is pinned during flight via the remote controller or the operation panel.
  • Page 43 DJI Mini 4 Pro User Manual Camera Action The camera action at the waypoint. Choose between None, Take Photo, and Start or Stop Recording. Altitude The altitude at the waypoint from the takeoff point. Make sure to take off at the same takeoff altitude of the original flight to obtain higher accuracy of altitude when a Waypoint Flight is repeated.
  • Page 44 POI during the Waypoint Flight. 5. Perform a Waypoint Flight • Check the Obstacle Avoidance settings in Settings > Safety page of DJI Fly before performing a Waypoint Flight. When set to Bypass or Brake, the aircraft will brake and hover in place if an obstacle is detected during the Waypoint Flight.

  • Page 45: Cruise Control

    DJI Mini 4 Pro User Manual • In the flight route library, you can check the saved tasks, and tap to open or edit a task. • to edit the name of the task. • Slide left to delete a task.
  • Page 46 DJI Mini 4 Pro User Manual Using Cruise Control 1. Set the Cruise Control Button Go to DJI Fly, select Settings > Control > Button Customization, and then set the customizable button of the remote controller to Cruise Control. 2. Enter Cruise Control •...
  • Page 47 Aircraft The aircraft contains a flight controller, video downlink system, vision systems, infrared sensing system, propulsion s ys te m , a nd a n I nte l l i g e nt Fl i g ht Battery.

  • Page 48: Aircraft

    DJI Mini 4 Pro User Manual Aircraft The aircraft contains a flight controller, video downlink system, vision systems, infrared sensing system, propulsion system, and an Intelligent Flight Battery. Flight Mode The aircraft supports the following flight modes, which can be switched via the Flight Mode switch on the remote controller.

  • Page 49: Aircraft Status Indicators

    DJI Mini 4 Pro User Manual • The responsiveness of the aircraft significantly increases in Sport mode, which means a small control stick movement on the remote controller translates into the aircraft moving a large distance. Make sure to maintain adequate maneuvering space during flight.

  • Page 50: Return To Home

    If it is necessary to update the Home Point during a flight (such as where the position of the user has changed), the Home Point can be manually updated in Settings > Safety page in DJI Fly. During RTH, the aircraft will automatically adjust the gimbal tilt to point the camera toward the RTH route by default.

  • Page 51: Advanced Rth

    If the control signal between the remote controller and the aircraft is good, exit RTH by tapping in DJI Fly or by pressing the RTH button on the remote controller. After exiting RTH, users will regain control of the aircraft.
  • Page 52 3. The aircraft begins to land when it reaches above the Home Point. • If RTH is triggered through DJI Fly and the RTH distance is farther than 5 m, DJI Fly will display the two following options: RTH and Landing. Users can select either RTH or directly land the aircraft.
  • Page 53 RTH. 5. The aircraft lands and the motors stop after reaching the Home Point. RTH Settings RTH settings are available for Advanced RTH. Go to the camera view in DJI Fly, tap Settings > Safety, and then RTH. 1. Optimal: •...
  • Page 54 DJI Mini 4 Pro User Manual 2. Preset: Lighting and Environment Suitable for Vision Unsuitable for Vision Conditions Systems Systems The aircraft will plan the RTH The aircraft will ascend path, fly to an open area to the RTH altitude, and Current altitude <...
  • Page 55 DJI Mini 4 Pro User Manual • During Advanced RTH, the aircraft will adjust the flight speed automatically to suit environmental factors such as wind speed and obstacles. • The aircraft cannot avoid small or fine objects such as tree branches or power lines. Fly the aircraft to an open area before using RTH.

  • Page 56: Landing Protection

    If the ground is determined unsuitable for landing, the aircraft will hover and wait for pilot confirmation. If Landing Protection is not operational, DJI Fly will display a landing prompt when the aircraft descends to 0.5 m from the ground. Tap confirm or push the throttle stick all the way down and hold for one second, and the aircraft will land.

  • Page 57: Vision Systems And 3D Infrared Sensing System

    It will automatically turn on by default in low-light environments when the flight altitude is under 5 m. Users can also turn it on or off manually in the DJI Fly app. Each time the aircraft is restarted, the auxiliary light will revert back to the default setting Auto.

  • Page 58: Using The Vision Systems

    The omnidirectional vision system will activate automatically when the aircraft is in Normal or Cine mode and Obstacle Avoidance is set to Bypass or Brake in DJI Fly. The omnidirectional vision system works best with adequate lighting and clearly marked or textured obstacles. Due to inertia, users must make sure to brake the aircraft within a reasonable distance.
  • Page 59 DO NOT use any cleaning product that contains alcohol. c. Contact DJI Support if there is any damage to the lenses of the infrared sensing and vision systems. • DO NOT obstruct the infrared sensing system and vision systems.

  • Page 60: Advanced Pilot Assistance Systems

    The aircraft brakes and hovers for three seconds and awaits further pilot commands. To enable APAS, open DJI Fly, enter Settings > Safety, and enable APAS by selecting Bypass. Select Normal or Nifty mode when using Bypass. In Nifty mode, the aircraft can fly faster, smoother, and closer to obstacles obtaining better footage while bypassing obstacles.

  • Page 61: Flight Recorder

    DJI Mini 4 Pro User Manual Flight Recorder Flight data including flight telemetry, aircraft status information, and other parameters are automatically saved to the internal data recorder of the aircraft. The data can be accessed using DJI Assistant 2 (Consumer Drones Series).
  • Page 62 Use two propellers from the same package. DO NOT mix with propellers from other packages. • Only use official DJI propellers. DO NOT mix propeller types. • Propellers are consumable components. Purchase additional propellers if necessary.

  • Page 63: Intelligent Flight Battery

    DJI Fly. If the maintenance prompt appears in DJI Fly, follow the prompt to fully charge the battery and allow the battery to rest for 48 hours. If the battery still does not work after two times of maintenance, contact DJI Support.

  • Page 64: Using The Battery

    41° F). Make sure to fully charge the battery before takeoff. It is recommended to power on the aircraft for a while to warm up the battery. Take off after DJI Fly prompts that the battery is fully warmed up.

  • Page 65: Charging The Battery

    30W USB-C Charger are both optional accessories. Visit the official DJI online store for more information. • When you charge the battery mounted to the aircraft or inserted into the DJI Mini 3 Pro Two- Way Charging Hub, the maximum charging power supported is 30 W.
  • Page 66 Intelligent Flight Batteries into the hub and connect an external device to the USB port to charge the device, using the charging hub as a power bank. Refer to the DJI Mini 3 Pro Two-Way Charging Hub User Guide for more details.
  • Page 67 Connect the charging hub to a power outlet (100-240 V, 50/60 Hz) using a USB-C cable and a DJI 30W USB-C charger or other USB Power Delivery chargers. The battery with the highest power level will be charged first. The rest will be charged in sequence according to their power levels.
  • Page 68 The LED status for battery abnormality is the same as that on the aircraft. Refer to the Battery Protection Mechanisms section for details. • It is recommended to use a DJI 30W USB-C Charger or other USB Power Delivery chargers to power the charging hub.

  • Page 69: Inserting/Removing The Battery

    DJI Mini 4 Pro User Manual Inserting/Removing the Battery Insert the Intelligent Flight Battery into the battery compartment of the aircraft. Make sure the battery is fully inserted with a clicking sound, which indicates the battery buckles are securely fastened.

  • Page 70: Gimbal Operation Modes

    Use the gimbal dial on the remote controller to control the tilt of the gimbal. Alternatively, do so through the camera view in DJI Fly. Press and hold the screen until the gimbal adjustment bar appears. Drag the bar up and down to control the gimbal’s tilt.

  • Page 71: Camera Profile

    The gimbal will recover full functionality once it is dry. Camera Profile DJI Mini 4 Pro uses a 1/1.3-in CMOS sensor with 48MP effective pixels. The equivalent focal length is approximately 24 mm. The aperture of the camera is F1.7 and shoots from 1 m to infinity.

  • Page 72: Storing And Exporting Photos And Videos

    Storing Photos and Videos DJI Mini 4 Pro supports the use of a microSD card to store your photos and videos. A UHS-I Speed Grade 3 rating or above microSD card is required due to the fast read and write speeds necessary for high-resolution video data.
  • Page 73 QuickTransfer. • When using QuickTransfer, it is not necessary to enter the Wi-Fi password on the settings page of the mobile device in order to connect. Launch DJI Fly and a prompt will appear to connect the aircraft.
  • Page 74 Remote Controller This chapter describes the features of the remote controller and includes instructions for controlling the aircraft and the camera.

  • Page 75: Remote Controller

    Remote Controller DJI RC 2 The DJI RC 2 remote controller features O4 video transmission when used with DJI Mini 4 Pro, and works at 2.4 GHz, 5.8 GHz and 5.1 GHz frequency bands. It is capable of selecting the best transmission channel automatically and can transmit 1080p 60fps HD live view from the aircraft to the remote controller at a distance of up to 20 km (12.4 mi) (compliant with FCC standards,...
  • Page 76 DJI Mini 4 Pro User Manual Charging the Battery Connect the charger to the USB-C port on the remote controller. It takes approximately 1 hour and 30 minutes to fully charge the remote controller (with a 9V/3A USB charger). Controlling the Gimbal and Camera Focus/Shutter Button: press halfway down to auto-focus and press all the way down to take a photo.
  • Page 77 DJI Mini 4 Pro User Manual Controlling the Aircraft Three preprogrammed modes (Mode 1, Mode 2, and Mode 3) are available and custom modes can be configured in DJI Fly. Mode 1 Left Stick Right Stick Forward Down Backward Left...
  • Page 78 DJI Mini 4 Pro User Manual Remote Controller Aircraft Remarks (Mode 2) Throttle Stick: moving the left stick up or down changes the altitude of the aircraft. • Push the stick up to ascend and push down to descend. •...
  • Page 79 Home Point. Press the button again to cancel RTH and regain control of the aircraft. Customizable Button Go to Settings > Control in DJI Fly to set the functions of the customizable C1 and C2 buttons. Customizable Button C2 Customizable Button C1 ©...

  • Page 80: Remote Controller Leds

    The remote controller beeps to indicate an error or warning. Pay attention when prompts appear on the touchscreen or in DJI Fly. Slide down from the top of the screen and select Mute to disable all alerts, or slide the volume bar to 0 to disable some alerts.

  • Page 81: Optimal Transmission Zone

    Otherwise, the remote controller will experience interference. • A prompt will be displayed in DJI Fly if the transmission signal is weak during flight. Adjust the antennas to make sure that the aircraft is in the optimal transmission range.

  • Page 82: Operating The Touchscreen

    DJI Mini 4 Pro User Manual • If the remote controller is powered on and not in use for five minutes, an alert will sound. After six minutes, the remote controller automatically powers off. Move the control sticks or press any button to cancel the alert.
  • Page 83 DJI Mini 4 Pro User Manual ×2 Slide down from the top of the Slide down twice from the top screen to open the status bar of the screen to open Quick when in DJI Fly. Settings when in DJI Fly.

  • Page 84: Advanced Features

    DJI Mini 4 Pro User Manual : tap to start recording the screen. : tap to take a screenshot. 4. Adjusting Brightness Slide the bar to adjust the screen brightness. 5. Adjusting Volume Slide the bar to adjust the volume.

  • Page 85: Dji Rc-N2

    1080p 60fps HD live view from the aircraft to DJI Fly on a mobile device (depending on mobile device performance) at a maximum transmission range of 20 km (12.4 mi) (compliant with FCC standards, and measured in a wide open area without interference).
  • Page 86 DJI Mini 4 Pro User Manual 3. Gimbal Dial: control the tilt of the gimbal. Shutter/Record Gimbal Dial Button 4. Customizable Button: Press and hold the customizable button and then use the gimbal dial to Customizable Photo/Video Button Toggle zoom in or out.
  • Page 87 DJI Mini 4 Pro User Manual The default control mode of the remote controller is Mode 2. In this manual, Mode 2 is used as an example to illustrate how to use the control sticks. • Stick Neutral/Center Point: control sticks are in the center.

  • Page 88: Battery Level Leds

    Home Point. Press this button again to cancel RTH and regain control of the aircraft. Customizable Button Go to Settings in DJI Fly and select Control to set the functions of the customizable button. Battery Level LEDs Battery Level LEDs...

  • Page 89: Remote Controller Alert

    Otherwise, the remote controller will experience interference. • A prompt will be displayed in DJI Fly if the transmission signal is weak during flight. Adjust the remote controller orientation to make sure that the aircraft is in the optimal transmission range.

  • Page 90: Linking The Remote Controller

    • Make sure to use a mobile device together with the DJI RC-N2 remote controller to control the aircraft. If the mobile device turns off for any reason, land the aircraft as soon as possible for safety.
  • Page 91 DJI Fly App This section introduces the main functions of the DJI Fly app.

  • Page 92: Dji Fly App

    Enter SkyPixel to view videos and photos shared by other users. Profile View account information and flight records; visit the DJI forum and online store, access the Find My Drone feature, offline maps, and other settings such as firmware updates, camera view, cached data, account privacy, and language.

  • Page 93: Camera View

    DJI Mini 4 Pro User Manual Camera View Button Descriptions Flight Mode N Mode: displays the current flight mode. System Status Bar In Flight: displays aircraft flight status and various warning messages. Tap to view more information when a warning prompt appears.
  • Page 94 DJI Mini 4 Pro User Manual Settings : tap to view or set parameters for safety, control, camera, and transmission. Refer to the Settings section for more information. Shooting Modes Photo: Single, AEB, Burst Shooting, and Timed Shot. Video: Normal, Night, and Slow Motion.
  • Page 95 DJI Mini 4 Pro User Manual 14. Camera Mode Switch : tap to switch between Auto and Pro mode. Different parameters can be set in different modes. 15. Shooting Parameters : displays the current shooting parameters. Tap to access parameter settings.
  • Page 96 DJI Mini 4 Pro User Manual Aircraft Orientation switch to the remote switch to the aircraft as controller as the center the center Home Point Aircraft Horizontal Attitude Remote controller switch to mini map Collapse Aircraft as the Center Remote Controller as the Center...

  • Page 97: Screen Shortcuts

    DJI Mini 4 Pro User Manual 21. Back : tap to return to the home screen. Screen Shortcuts Gimbal Angle Adjustment Press and hold on the screen to bring up the gimbal adjustment bar and adjust the gimbal angle. Focus/Spot Metering Tap on the screen to enable focus or spot metering.

  • Page 98: Control

    DJI Mini 4 Pro User Manual aircraft to flash or beep or by using the map. • Advanced Safety Settings Signal Lost The behavior of the aircraft when the remote controller signal is lost can be set to RTH, Descend, or Hover.

  • Page 99: Camera

    Store the recorded files to the microSD card on the aircraft or the internal storage of the aircraft. DJI Mini 4 Pro has an internal storage of 2 GB. Custom Folder Naming When changed, a new folder will be automatically created on the aircraft storage to store future files.

  • Page 100: Transmission

    • The app is designed to assist your operation. Use sound discretion and DO NOT rely on the app to control the aircraft. The use of the app is subject to DJI Fly Terms of Use and DJI Privacy Policy. Read them carefully in the app.
  • Page 101 Appendix...

  • Page 102: Appendix

    12 m/s (N Mode) 12 m/s (C Mode) Max Takeoff Altitude With DJI Mini 4 Pro Intelligent Flight Battery: 4000 m With DJI Mini 3 Series Intelligent Flight Battery Plus: 3000 m Max Flight Time 34 minutes (with Intelligent Flight Battery)
  • Page 103 DJI Mini 4 Pro User Manual Lens FOV: 82.1° Format Equivalent: 24 mm Aperture: f/1.7 Focus: 1 m to ∞ ISO Range Video Normal and Slow Motion: 100-6400 (Normal) 100-1600 (D-Log M) 100-1600 (HLG) Night: 100-12800 (Normal) Photo 12 MP: 100-6400...
  • Page 104 DJI Mini 4 Pro User Manual Gimbal Stabilization 3-axis mechanical gimbal (tilt, roll, pan) Mechanical Range Tilt: -135° to 80° Roll: -135° to 45° Pan: -30° to 30° Controllable Range Tilt: -90° to 60° Roll: -90° or 0° Max Control Speed 100°/s...
  • Page 105 DJI Mini 4 Pro User Manual Live View Quality Remote Controller: Up to 1080p/60fps (available when the aircraft is flying in Photo or Video mode) Up to 1080p/30fps (available when the aircraft is flying in Video mode) Up to 1080p/24fps (available when the aircraft is in standby mode on...
  • Page 106 Charging Temperature 5° to 40° C (41° to 104° F) Intelligent Flight Battery: Charging Time 70 minutes (with the DJI 30W USB-C Charger and the battery mounted to the aircraft) 58 minutes (with the DJI 30W USB-C Charger and the battery inserted...
  • Page 107 DJI Mini 4 Pro User Manual Charging Temperature 5° to 40° C (41° to 104° F) Charging Time 1.5 hours Charging Type Supports up to 9V/3A charging Battery Capacity 22.32 Wh (3.6 V, 3100 mAh×2) Battery Type 18650 Li-ion Chemical System...
  • Page 108 375 g Supported Mobile Lightning, USB-C, Micro-USB Device Port Type * Using a mobile device with Micro-USB port requires the DJI RC-N1 RC Cable (Standard Micro USB connector), which is sold separately. Video Transmission Operating Frequency 2.4000-2.4835 GHz, 5.170-5.250 GHz, 5.725-5.850 GHz Transmitter Power 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
  • Page 109 When DJI Mini 4 Pro stays in standby mode for a long time, its temperature may continuously rise. The aircraft has a built-in temperature control system, when in standby mode the aircraft can make intelligent judgments based on the current temperature to better reduce the temperature.

  • Page 110: Firmware Update

    DJI Mini 4 Pro User Manual Firmware Update Use DJI Fly or DJI Assistant 2 (Consumer Drones Series) to update the aircraft and the remote controller firmware. Using DJI Fly When connecting the aircraft or remote controller to DJI Fly, you will be notified if a new firmware update is available.

  • Page 111: Troubleshooting Procedures

    The battery must be activated by charging before using it for the first time. 2. How to solve the gimbal drift issue during flight? Calibrate IMU and compass in DJI Fly. If the problem persists, contact DJI Support. 3. No function Check if the Intelligent Flight battery and the remote controller are activated by charging.

  • Page 112: Risk And Warnings

    Contact DJI support. Risk and Warnings When the aircraft detects a risk after powering on, there will be a warning prompt on DJI Fly. Pay attention to the list of situations below. 1. If the location is not suitable for takeoff.

  • Page 113: C0 Certification

    10700 RPM MTOM Statement DJI Mini 4 Pro is a quadrotor aircraft. The MTOM of DJI Mini 4 Pro (Model: MT4MFVD) is 249 g, which is compliant with the requirements of C0 certification. Users must follow the instructions below to comply with the MTOM C0 requirements.

  • Page 114: Far Remote Id Compliance Information

    PFST . The results of the PFST of the Remote ID system can be viewed in either a DJI flight control app such as DJI Fly or DJI goggles.

  • Page 115: Aftersales Information

    DJI Mini 4 Pro User Manual Aftersales Information Visit https://www.dji.com/support to learn more about aftersales service policies, repair services, and support. © 2023 DJI All Rights Reserved.   ...
  • Page 116 Contact DJI SUPPORT This content is subject to change. https://www.dji.com/mini-4-pro/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI is a trademark of DJI. Copyright © 2023 DJI All Rights Reserved.
