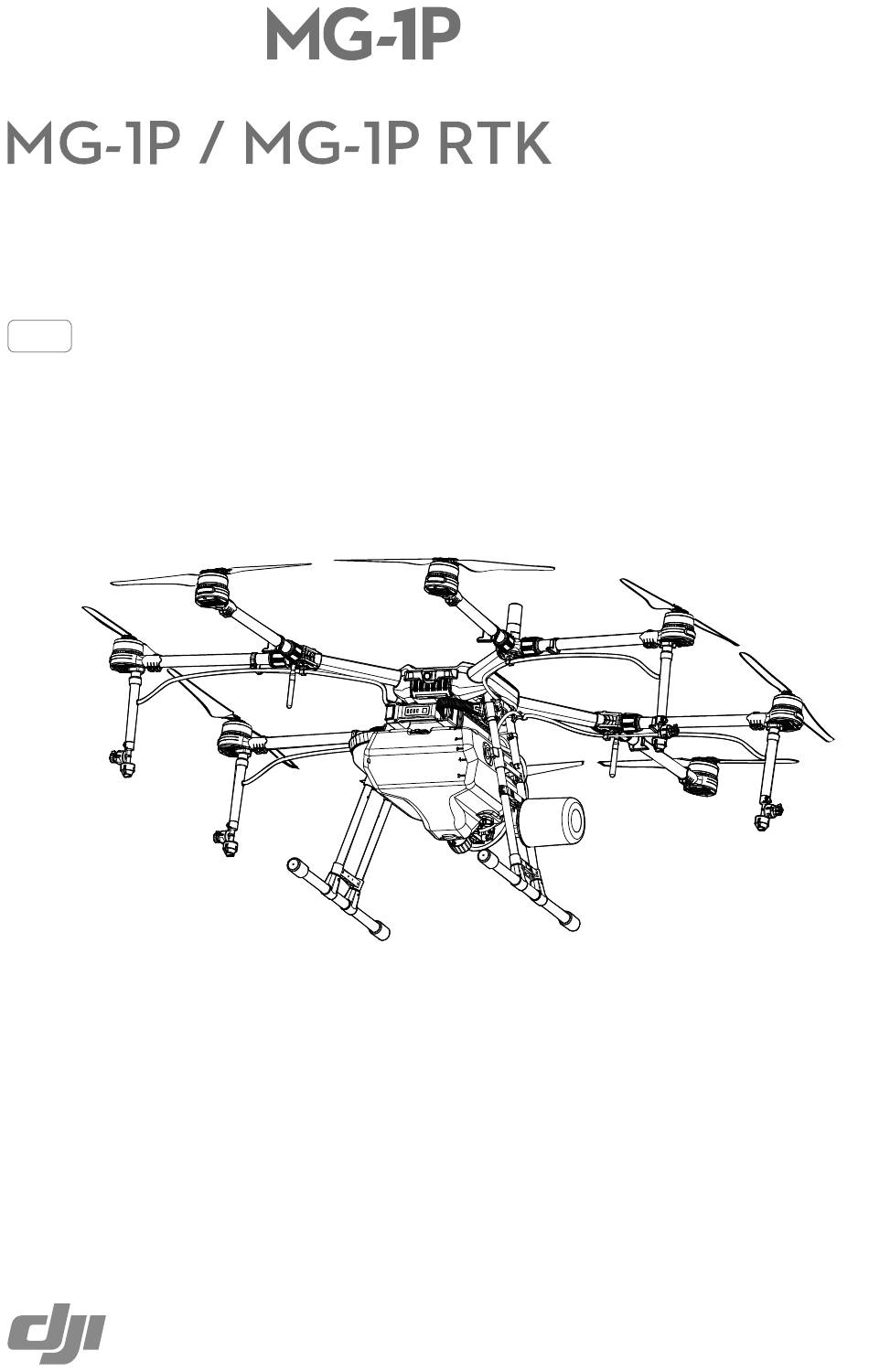

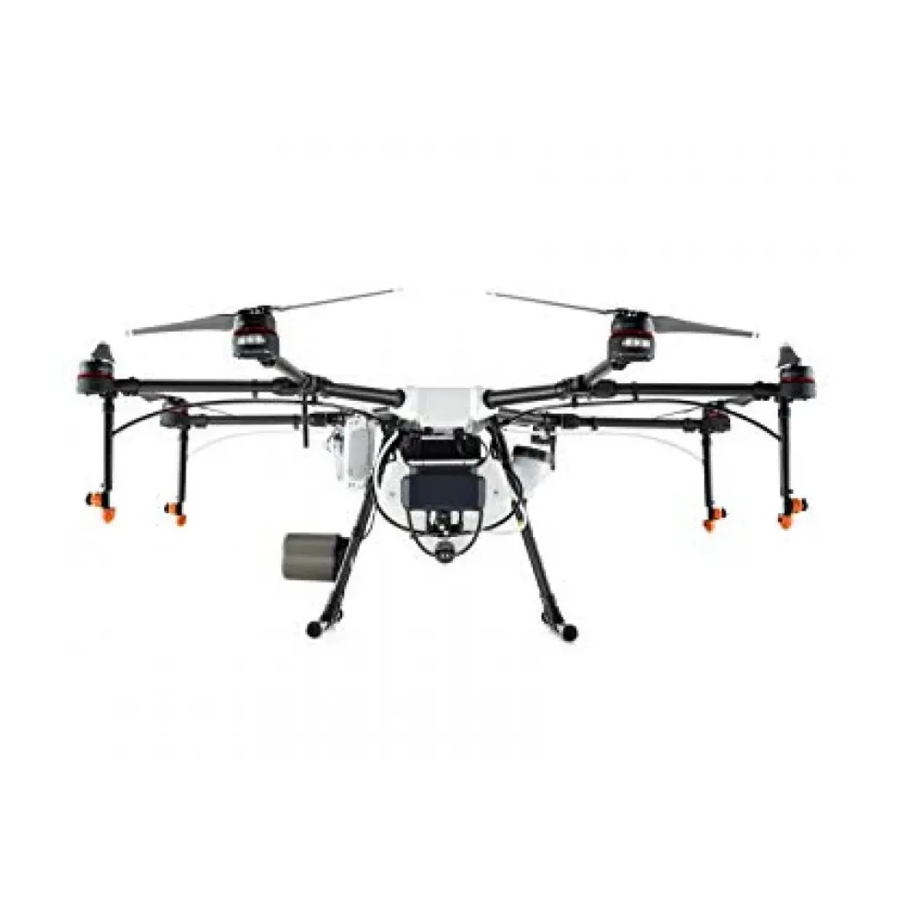

AGRAS
SERIES
Quick Start Guide
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGRAS MG-1P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji AGRAS MG-1P Series

Summary of Contents for dji AGRAS MG-1P Series

  • Page 1 AGRAS SERIES Quick Start Guide V1.0...

  • Page 2: Before Flight

    2. Download the User Manual and DJI ASSISTANT http://www.dji.com/mg-1p/info#downloads AGRAS SERIES User Manual Assistant 2 3. Watch the video tutorials. http://www.dji.com/mg-1p/info#video DJI Assistant 2 supports Windows 7 (or later) or OS X 10.11 (or later). © 2018 DJI All Rights Reserved.
  • Page 3 DO NOT obstruct the GNSS module (located at the center of the aircraft), as doing so would reduce the GNSS signal strength. The MG-1P and MG-1P RTK do not come with a battery. Please purchase the DJI approved battery pack (Model: MG-12000P).

  • Page 4: Remote Controller

    The remote controller uses the DJI OcuSync dual-band video downlink system, has a maximum control distance of up to 3.11 mi (5 km)*, and is equipped with a bright, dedicated screen with the DJI MG app built-in. Operation planning can be performed either using the remote controller only or by flying the aircraft to waypoints. The Banked Turning feature in the DJI MG app commands the aircraft to take corners without fully stopping, making flight operations more flexible and efficient.

  • Page 5: Installation

    AGRAS MG-1P SERIES Quick Start Guide Installation Threadlocker of medium strength is required for installation. Apply threadlocker when mounting the landing gear, power port module, spray tank, sprinklers, and radar module. Ensure the threadlocker is totally dry and solid before flight.

  • Page 6: Mounting The Spray Tank

    AGRAS MG-1P SERIES Quick Start Guide Mounting the Spray Tank 1. Connect the sprinkler kits to the spray tank: Pull the four hoses through the nuts to the outlets under the delivery pump, then tighten the nuts using a wrench. Note that the white and black hoses should be attached to outlets with labels of the same color.

  • Page 7: Unfolding The Frame Arms

    AGRAS MG-1P SERIES Quick Start Guide Unfolding the Frame Arms 1. Unfold the frame arms and tighten the two arm sleeves at each of the junctions 2. Identify the position and rotational direction of the motors. The top view shows motors M1 to M8 arranged in a counter-clockwise order, with motors M1 and M2 at the front of the aircraft, and motors M5 and M6 at the rear.
  • Page 8 AGRAS MG-1P SERIES Quick Start Guide 2. Mount the sprinklers with white hoses under motors M3 and M8 (with white circle marks). Mount the sprinklers with black hoses under motors M4 and M7 (with black circle marks). Mount each of the four sprinklers using three M3×8 (Plus) screws, then insert the hoses into the clips at the bottom of the frame arm junctions.

  • Page 9: Mounting The Radar Module

    Belt Stud The MG-1P and MG-1P RTK do not come with a battery. Please purchase the DJI approved MG-1P battery pack (Model: MG-12000P). The voltage on the aircraft can reach 50.4 V. Read the battery’s safety guidelines and take necessary precautions when handling the battery to ensure your own safety.

  • Page 10: Mounting The Remote Controller Battery

    The dongle and SIM card are used to enable the remote controller to access to specific networks and platforms, such as the DJI Agriculture Management Platform. Be sure to mount them correctly, or else network access will not be available.
  • Page 11 4. Monitor Your Altitude: For the safety of manned aircraft and other air traffic, always fly at altitudes lower than 98 feet (30 meters) and in accordance with all local laws and regulations. Visit https://www.dji.com/flysafe for more information on critical safety features such as GEO Zones. Calibrating the Compass Ensure the compass is calibrated before every flight.
  • Page 12 ≥ 6 m * If Failsafe RTH is disabled (the default setting in the DJI MG app) the aircraft hovers in place when the remote controller signal is lost. Obstacle avoidance is disabled in Attitude mode (which the aircraft enters in situations such as when the GNSS signal is weak) and is not available if the operating environment is not suitable for the radar module, so extra caution is required in such situations.

  • Page 13: Preparing The Flight Battery

    AGRAS MG-1P SERIES Quick Start Guide Using the MG-1P / MG-1P RTK Preparing the Flight Battery Only use DJI approved flight batteries (Model: MG-12000P). Check the battery level before flying and charge according to the instructions provided by the manufacturer.

  • Page 14: Calibrating The Compass

    Avoid using wireless devices that use the same frequency bands as the remote controller. Getting Ready for Takeoff When using your MG-1P / MG-1P RTK for the first time activate it using the DJI MG app. Your DJI account and an Internet connection are required.

  • Page 15: Calibrating The Spraying System

    3. Discharge any bubbles in the hoses using the same procedure as used when preparing for calibration. Flight In the DJI MG app go to Operation View. Ensure that there is a strong GNSS signal, otherwise the aircraft cannot take off.
  • Page 16 Using the Intelligent Operation Planning System The remote controller is equipped with a screen with a built-in Android system which can run the DJI MG app. The Intelligent Operation Planning system built-in to the app can be used to measure the operation area, identify obstacles, configure waypoints, set aircraft settings, and produce flight route plans.
  • Page 17 AGRAS MG-1P SERIES Quick Start Guide Operate the aircraft carefully when flying near obstacles to avoid collision. Calibration points are used to rectify flight route biases caused by GNSS positioning deviations. Choose one or more fixed reference points for calibration like a metal peg or obvious marker that is easy to identify for bias rectification when using the plan.

  • Page 18: Specifications

    AGRAS MG-1P SERIES Quick Start Guide Specifications Airframe Diagonal Wheelbase 1500 mm Frame Arm Length 619 mm MG-1P: 1460 × 1460 × 578 mm (Frame arms unfolded, propellers removed) 780 × 780 × 578 mm (Frame arms folded) Dimensions MG-1P RTK: 1460 ×...
  • Page 19 AGRAS MG-1P SERIES Quick Start Guide Power Consumption 12 W EIRP CE / FCC / MIC / KCC: 20 dBm; SRRC: 13 dBm Field of View (FOV) Horizontal: 50°, Vertical: 10° Altitude Detection and Detection Range: 1 to 30 m Stabilization Stabilization Working Range: 1.5 to 10 m...
  • Page 20 AGRAS MG-1P SERIES Quick Start Guide Remote Controller Model GL300N 2.400 GHz to 2.483 GHz Operating Frequency 5.725 GHz to 5.850 GHz (not supported in Japan) Max Transmitting Distance FCC: 3.11 mi (5 km) (unobstructed, free of interference) CE / MIC / KCC / SRRC: 1.86 mi (3 km) 2.4 GHz...
  • Page 21 DJI Support http://www.dji.com/support ※ This Quick Start Guide is subject to change without prior notice. Download the user manual for more information: http://www.dji.com/mg-1p AGRAS is a trademark of DJI. Copyright © 2018 DJI All Rights Reserved. Printed in China. YC.BZ.SS000432.02...
