Operating Instructions

Vibrating level switch for liquids under
extreme process temperatures and
pressures
VEGASWING 66
- two-wire
Document ID: 43758

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGASWING 66 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGASWING 66

Summary of Contents for Vega VEGASWING 66

  • Page 1: Operating Instructions

    Operating Instructions Vibrating level switch for liquids under extreme process temperatures and pressures VEGASWING 66 - two-wire Document ID: 43758...

  • Page 2: Table Of Contents

    Maintenance ........................32 Rectify faults ........................32 Exchanging the electronics .................... 33 How to proceed if a repair is necessary ................33 Dismount Dismounting steps......................34 Disposal ......................... 34 Supplement Technical data ........................ 35 Dimensions ........................41 VEGASWING 66 • - two-wire...

  • Page 3: Vegaswing 66 • - Two-Wire

    Contents Safety instructions for Ex areas Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions manual. Editing status: 2015-11-10 VEGASWING 66 • - two-wire...

  • Page 4: About This Document

    Action This arrow indicates a single action. Sequence of actions Numbers set in front indicate successive steps in a procedure. Battery disposal This symbol indicates special information about the disposal of bat- teries and accumulators. VEGASWING 66 • - two-wire...

  • Page 5: For Your Safety

    During work on and with the device the required personal protective equipment must always be worn. Appropriate use The VEGASWING 66 is a sensor for point level detection. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Safety Label On The Instrument

    That is why we have introduced an environment management system with the goal of continuously improving company environmental pro- tection. The environment management system is certified according to DIN EN ISO 14001. Please help us fulfill this obligation by observing the environmental instructions in this manual: • Chapter "Packaging, transport and storage" • Chapter "Disposal" VEGASWING 66 • - two-wire...

  • Page 7: Product Description

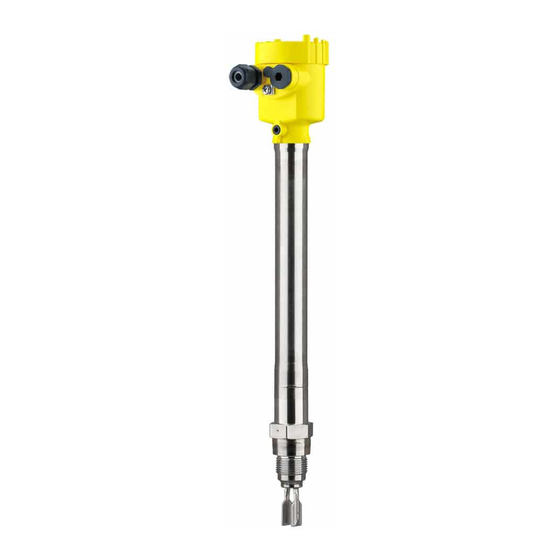

    The VEGASWING 66 consists of the components: • Housing lid • Housing with electronics • Process fitting with tuning fork Fig. 1: VEGASWING 66 - compact version with plastic housing Housing lid Housing with electronics Temperature adapter 4 Process fitting VEGASWING 66 • - two-wire...
  • Page 8 3 Product description Fig. 2: VEGASWING 66 with plastic housing and tube extension Housing lid Housing with electronics Temperature adapter 4 Process fitting Tube extension The type label contains the most important data for identification and Type label use of the instrument: • Article number • Serial number • Technical data •...

  • Page 9: Principle Of Operation

    3 Product description Principle of operation Application area VEGASWING 66 is a point level sensor with tuning fork for point level detection. It is designed for industrial use in all areas of process technology and can be used in liquids. It is particularly suitable for applications with high temperatures up to 450 °C (842 °F) and high process pressure...

  • Page 10: Storage And Transport

    For connecting the sensors with a separator to voltage supply or sig- nal processing, the sensors are also available with plug connectors. The following plug connectors are available: • M12 x 1 • ISO 4400 VEGASWING 66 • - two-wire...
  • Page 11 3 Product description • Harting HAN 7D • Harting HAN 8D • Amphenol-Tuchel VEGASWING 66 • - two-wire...

  • Page 12: Mounting

    You can find the specifications in chapter "Technical data" and on the nameplate. Switching point In general, VEGASWING 66 can be installed in any position. The instrument only has to be mounted in such a way that the tuning fork is at the height of the desired switching point.
  • Page 13 Fig. 5: Horizontal installation (recommended mounting position, particularly for adhesive products) Switching point Marking with screwed version, facing up In the case of flange versions, the fork is aligned as follows. Fig. 6: Fork position with flange versions 1 Marking with flange version, facing up Moisture Use the recommended cables (see chapter "Connecting to power supply") and tighten the cable gland. VEGASWING 66 • - two-wire...

  • Page 14: Mounting Instructions

    Mounting instructions Welding socket The thread and the seal on the threaded version of VEGASWING 66 correspond to DIN 3852 part 1, screwed plug Form B (sealing via metallic sealing edge).
  • Page 15 (1.16 in). To mount the sensor, proceed as follows: 1. Screw the VEGASWING 66 into the mounting boss up to the stop. You can determine the later position already before welding. 2. Mark the position of the VEGASWING 66 on the mounting boss.
  • Page 16 GASWING 66 at a position in the vessel where no disturbances, e.g. from filling openings, agitators, etc., can occur. This applies particularly to instrument types with long extension tube. Fig. 9: Inflowing medium Product flow To make sure the tuning fork of VEGASWING 66 generates as little resistance as possible to product flow, mount the sensor so that the surfaces are parallel to the product movement. Agitators Due to the effects of agitators, equipment vibration or similar, the level switch can be subjected to strong lateral forces.
  • Page 17 See "Technical data". Caution: If it is determined (e.g. via an error message from VEGASWING 66) that medium has already penetrated into the vibrating element, the instrument must be exchanged immediately.

  • Page 18: Connecting To Power Supply

    Ex applications Cover all housing openings conforming to standard according to EN 60079-1. Connection procedure With Ex instruments, the housing cover may only be opened if there is no explosive atmosphere present. Proceed as follows: VEGASWING 66 • - two-wire...

  • Page 19: Wiring Plan, Single Chamber Housing

    Plastic (not with Ex d) Aluminium Stainless steel, precision casting Stainless steel, electropolished (not with Ex d) Filter element for pressure compensation or blind plug with version IP 66/ IP 68, 1 bar (not with Ex d) VEGASWING 66 • - two-wire...
  • Page 20 Suitable signal conditioning instruments are listed in chapter "Technical data". If VEGASWING 66 is used in Ex areas, take note of the regulations in the safety instructions and conformity certificates. If the instrument is to be operated directly on the analogue input of a PLC, a suitable safety barrier should be connected.
  • Page 21 5 Connecting to power supply Fig. 13: Wiring plan, single chamber housing Signal conditioning instrument VEGASWING 66 • - two-wire...

  • Page 22: Setup

    VEGASWING 66 to "max.". Note: Always immerse the tuning fork of VEGASWING 66 in a liquid to test its function. Do not test the function of VEGASWING 66 with your hand. This can damage the sensor.

  • Page 23: Adjustment Elements

    With the mode setting (4), the switching condition and hence the function of the signal lamp can be changed. • Yellow LED lights = 8 mA • Yellow LED off = 16 mA • Signal lamp (3) - Operat- Green LED lights = operating voltage on ing condition (green) VEGASWING 66 • - two-wire...

  • Page 24: Function Chart

    The test process will be carried out after releasing the key. Function chart The following chart provides an overview of the switching conditions depending on the set mode and the level. VEGASWING 66 • - two-wire...

  • Page 25: Proof Test (Whg, Sil)

    6 Setup Note: Keep in mind that the mode switch of VEGASWING 66 must be always set to "max.". Sensor Signal con- ditioning instrument Mode on the Level Signal cur- Signal lamp - Signal lamp - Signal lamp Analogue signal con-...
  • Page 26 Test key on VEGATOR 636 - by monitoring the switching sequence of the test process You can carry out the function test with the outputted current values also directly via a safety PLC or a process control system. VEGASWING 66 • - two-wire...
  • Page 27 2 Dismounting of the sen- You can dismount the sensor for test purposes and check its function sor and immersion in the by immersing the vibrating element in the original medium. original medium VEGASWING 66 • - two-wire...
  • Page 28 1. Separate the instrument briefly (>2 s) from voltage supply. Check if all three switching conditions change in the correct sequence and the specified duration. By doing so, you can check the function of the measuring system. You can find the test procedure under "Implementation - Function test". Make sure the connected downstream devices are activated dur- ing the function test. VEGASWING 66 • - two-wire...
  • Page 29 An integrated test key is lowered in the front plate of the VEGATOR 636 signal conditioning instrument or in the electronics module of the VEGASWING 66. Push the test key for > 2 seconds with a suitable object. 1. Push the test key.
  • Page 30 2. Empty approx. energized currentless energized signal 8 mA (approx. 1.5 s) 3. Full signal approx. currentless energized energized 16 mA (approx. 1.5 s) 4. Return to current operating condition Starting time of the voltage supply VEGASWING 66 • - two-wire...
  • Page 31 Make sure the connected downstream devices are activated during the function test. • Failure LED lights red - test not passed- Please check the com- plete measuring system. • Failure LED lights green - test passed. The proof test is hence finished. VEGASWING 66 • - two-wire...

  • Page 32: Maintenance And Fault Rectification

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred.

  • Page 33: Exchanging The Electronics

    Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Please contact the agency serving you to get the address for the return shipment. You can find the agency on our home page www.vega.com. VEGASWING 66 • - two-wire...

  • Page 34: Dismount

    WEEE directive. Correct disposal avoids negative effects on humans and the environ- ment and ensures recycling of useful raw materials. Materials: see chapter "Technical data" If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGASWING 66 • - two-wire...

  • Page 35: Supplement

    (99.5 %) Ʋ Contacts Kovar (gold-plated) Ʋ Helium leak rate < 10 mbar l/s Ʋ Pressure resistance PN 160 Sensor length - Compact version Ʋ Alloy C22 (2.4602) 74 mm (2.91 in) or gas-tight leadthrough VEGASWING 66 • - two-wire...
  • Page 36 +18 … +30 °C (+64 … +86 °F) Ʋ Product density 1 g/cm³ (0.036 lbs/in³) (water) Ʋ Product viscosity 1 mPa s Ʋ Superimposed pressure 0 kPa Ʋ Sensor installation Vertically from top Ʋ Density selection switch ≥ 0.7 g/cm³ Depending on the mounting boss of the vessel. VEGASWING 66 • - two-wire...
  • Page 37 -6 (-0.24") -8 (-0.31") -10 (-0.39") (290) (580) (870) (1160) (1450) (1740) (2030) (2320) Fig. 48: Influence of the process pressure to the switching point Shifting of the switching point in mm (in) Process pressure in bar (psig) Switching point at reference conditions (notch) Tuning fork VEGASWING 66 • - two-wire...
  • Page 38 Fig. 50: Process temperature - Process pressure - Version up to 160 bar (2321 psig) Process pressure in bar (psig) Process temperature in °C (°F) Process temperature (thread or flange temperature) Ʋ VEGASWING 66 of 316L/Alloy C22 -196 … +450 °C (-321 … +842 °F) (2.4602)/Inconel 718 (2.4668) VEGASWING 66 • - two-wire...
  • Page 39 1.5 mm² (AWG 16) Max. permissible process pressure: 25 bar (363 psig)/not in safety-instrumented systems (SIL)/not in WHG applications. Depending on the version M12 x 1, according to ISO 4400, Harting, 7/8" FF. VEGASWING 66 • - two-wire...
  • Page 40 IP 66/IP 68 (0.2 bar), NEMA 6P Ʋ Aluminium and stainless housing IP 66/IP 68 (1 bar), NEMA 6P (optionally available) Overvoltage category Protection class Approvals Instruments with approvals can have different technical specifications depending on the version. A suitable cable is required for maintaining the protection rating. VEGASWING 66 • - two-wire...

  • Page 41: Dimensions

    For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded under www.vega.com, "VEGA Tools" and "Instrument search" as well as in the general download area.
  • Page 42 9 Supplement VEGASWING 66, compact version ø 33,7 mm ø 33,7 mm (1.33") (1.33") DN50 PN40 G 1, 1 NPT Fig. 54: VEGASWING 66, compact version Sealing surface VEGASWING 66 • - two-wire...
  • Page 43 DN50 PN40 G 1, 1 NPT ø 21,3 mm (0.84") ø 29,2 mm ø 29,2 mm (1.15") (1.15") Fig. 55: VEGASWING 66, tube version Sensor length - see Technical data - General data Sealing surface VEGASWING 66 • - two-wire...
  • Page 44 Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 45 Notes VEGASWING 66 • - two-wire...
  • Page 46 Notes VEGASWING 66 • - two-wire...
  • Page 47 Notes VEGASWING 66 • - two-wire...
  • Page 48 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2015 VEGA Grieshaber KG Phone +49 7836 50-0 Am Hohenstein 113...
