GRAPHTEC GL840 Quick Start Manual page 5

* Make sure that the SD memory card is not locked.
CAUTION: When removing the SD memory card, make sure that the SD card display on the display is green
and then remove it.
* Make sure that the SD memory card is not locked.
CAUTION: The SD memory card is unlocked by pushing gently the SD memory card. Then, remove the SD
memory card.
When the optional wireless LAN unit is installed, the SD memory card cannot be mounted.
When connecting to the PC with
the USB cable, attach the supplied
ferrite core to the USB cable as
shown in the following figure.
USB cable
Ferrite core (Supplied)
This midi LOGGER complies with the EMC Directive in the state when the supplied ferrite core is attached to the
USB cable.
When connecting with the USB cable, the USB driver must be installed to the PC. For information about how to
install, refer to the "USB Driver Installation Manual" in the supplied CD-ROM.

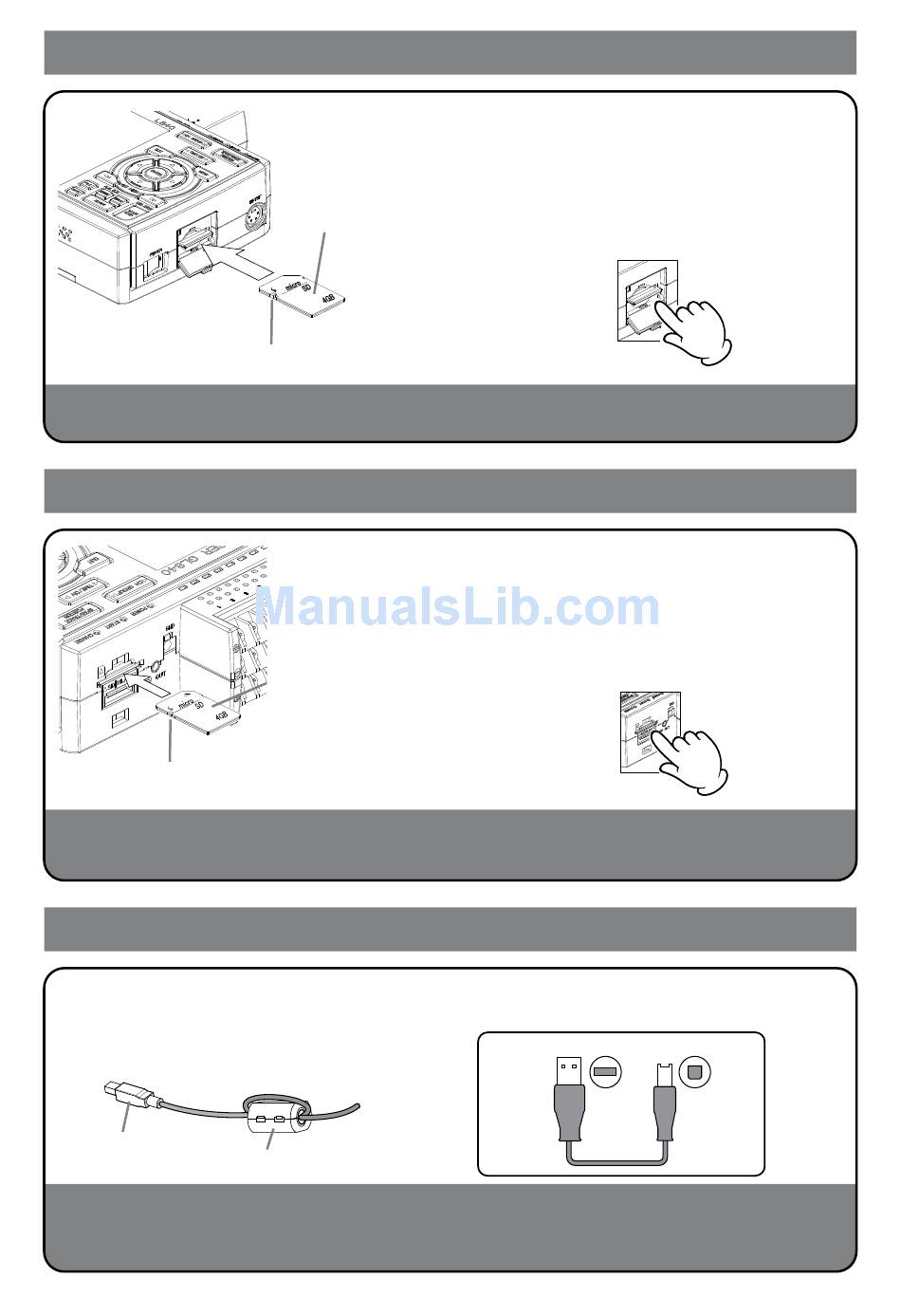

Mounting of the SD CARD 1
< How to mount >
(1) Open the protective cover
of SD CARD 1.
(2) Push the SD memory card
until it clicks and is
locked.
Mounting of the SD CARD 2
< How to mount >
(1) Open the protective cover
of SD CARD 2.
(2) Push the SD memory card
until it clicks and is
locked.
Connection of the USB cable
Using the cable with A-type and B-type connectors,
connect between the midi LOGGER and PC.
< How to remove >
(1) The SD memory card is
unlocked by pushing
gently the SD memory
card. Then, remove the
SD memory card.
< How to remove >
(1) The SD memory card is
unlocked by pushing
gently the SD memory
card. Then, remove the
SD memory card.
A-type connector B-type connector
