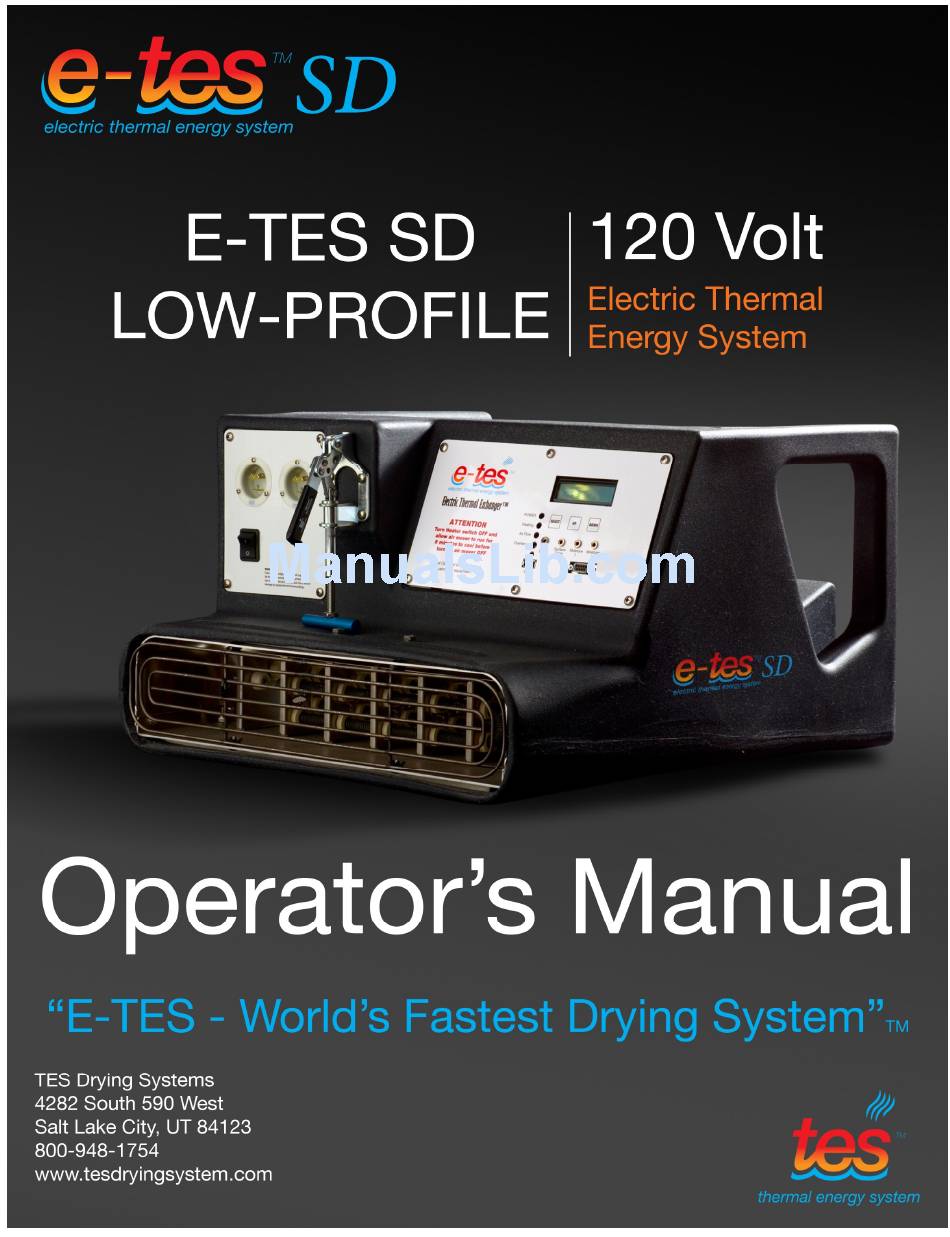

TES E- SD Operator's Manual

120 volt electric thermal energy system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

LMANMB120LP

REVISED: 01/29/2015

Table of Contents

Need help?

Do you have a question about the E-TES SD and is the answer not in the manual?

Questions and answers

Summary of Contents for TES E-TES SD

Page 2: Table Of Contents
Remote Fan Control Dual Circuit Indicator Software Updates Data Charting SECTION 3 Heater Operation Troubleshooting Re-initializing Memory Resetting Processor Wiring Diagrams SECTION 4 Maintenance Parts SECTION 5 Drying Carpet Drying Wood Floors Drying Walls © Copyright Tes Drying Systems, 2014...
Page 3: Introduction
Introduction Congratulations on your purchase of the Tes Drying Systems E-TES SD 120 Volt Low Profile Electric Thermal Energy System. This manual is a guide for safe operation and maintenance of this unit. Read and understand this manual completely before operating this unit.
Page 4: General Information
E-TES SD 120 Volt Standard Equipment ELECTRIC THERMAL EXCHANGE UNIT NM4407A (2) 50’ - 12/3 GFCI Power Cords w/ 5-15P& 5-15R ends SMART E-TES SD 120 Volt Optional Sensors & Controls ST001 E-TES Charter Software (Available free online at tesdryingsystem.com) AT210...
Page 5 AC128 SureTest Circuit Analyzer AX68 Breaker Buddy II MB230 Single Stage Exhaust Controller AC514 Flexi Dry Wall Drying System MI22 Injectidry HP60FDP Floor Drying Package AX33 AC25A AC246 AC514 AT56 MB230 MI22 AX68 AC128 © Copyright Tes Drying Systems, 2014...
Page 6: Warranty
Warranty Your E-TES SD 120 Volt Low Profile Electric Thermal Exchanger is designed to give you years of reliable service. If a problem should arise use the troubleshooting section in the operation manual to diagnose and correct the problem if possible. If you are unable to determine the cause or solution to the problem contact your distributor or Tes Drying Systems for assistance.
Page 7: Heater Operation Safety
Examine the electric outlet before connecting your E-TES SD. A Loose fitting or damaged outlet can cause the power cord to overheat. Do not use a loose fitting or damaged outlet. If necessary, have an electrician repair the outlet before connecting your E-TES SD to prevent cord or outlet damage.
Page 8 • Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended. • Always unplug the heater when not in use. To unplug the heater, turn E-TES SD switch to off, then remove plugs from outlets.
Page 10: Menu Navigation
Charting E-TES SD MENU NAVIGATION: With the GFCI reset and the power cord connected to the E-TES SD, turn power switch to the ON position. Display will quickly scroll through the first six screens, before stopping at the Main Screen.
Page 11 PRESS UP: TO CURRENT DATE & TIME SCREEN Air Temperature Screen: This tells you the current reading of the Air Temperature Sensor probe if it is connected to the E-TES SD or the default value of 00F if the probe is not connected.
Page 12 Moisture 1 Value Screen: This tells you the current reading of the Moisture probe if it is connected to the E-TES SD or the default value of 00% if the probe is not connected. Press SELECT to set Moisture Probe shutdown percentage.
Page 13: Air Flow Set-Up
• Press DOWN to move to Date & Time Screen • Press UP to return to Current Job Time Screen Current Date and Time Screen Press SELECT to set the E-TES SD Date & Time Clock. HOUR will flash first. Use the UP/DOWN buttons to change the HOUR setting.
Page 14: Remote Probe Set-Up
• Moisture 2 Value Default Setting: 00% To use the remote temperature or moisture probes to control the E-TES SD, simply plug the desired remote sensor in the corresponding port on the front panel of the E-TES SD. Return to the MENU NAVIGATION section to set the shutdown points for each probe.
Page 15 When the temperature cools sufficiently the green HEATING light will turn back on and the unit will again heat up. The SURFACE TEMPERATURE SHUTOFF will not shutoff the power to the heating elements if the SURFACE TEMPERATURE probe is not connected. © Copyright Tes Drying Systems, 2014...
Page 16 To assure that the E-TES SD will shut off & stay off when the If the E-TES SD is ON when the Moisture 1 Probe is connected, Moisture 1 Value drops below the the MOISTURE 1 VALUE SHUTOFF will shutoff the power to...
Page 17: Remote Fan Control
REMOTE EXHAUST CONTROLLER: This allows you to set the temperature at which the E-TES SD will send a signal to turn on a remote exhaust fan. The Remote Exhaust Controller can be located up to 100 yards away from the E-TES SD unit and control electrical devices with a total amp load up to 15amps.
Page 18: Dual Circuit Indicator
DUAL CIRCUIT INDICATOR: The amp draw of the two circuits of the E-TES SD 120 Volt unit requires that the two power cords be plugged into separate outlets. To assist you in determining if the cords are plugged into separate circuits, The E-TES SD 120 Volt unit is now equipped with a dual circuit indicator.
Page 19: Software Updates
If your USB Flash Drive is protected by a password, you will need to temporarily disable the password to connect it to the E-TES SD. This goes for installing the activation key, installing updates, and downloading the job data.
Page 20: Data Charting
DATA CHARTING: The E-TES SD now has the ability to measure and store data regarding the operating status of the unit and the environmental conditions during the drying process. The E-TES SD will hold up to one month of continuous operational data.
Page 21 The jobs files are sorted by the serial number of the E-TES SD unit from which the data was retrieved. Serial numbers starting with “2” are 240 volt units and serial numbers starting with “1” are 120 volt units. The jobs are listed by either file name or date.
Page 22 120°F, the SURFACE TEMPERATURE LIMIT was set at 95°F, and the MOISTURE 1 LIMIT and MOISTURE 2 LIMIT were set at 15%. The RH or Relative humidity stayed around 15 to 20%. The INTERNAL TEMPERATURE stayed around 80-90°F. The E-TES unit never had the AIR FLOW turn off or an OVERTEMP condition.
Page 23: Heater Operation
1) Read and understand the Remote Probe connection procedures and Menu Navigation in SECTION #2 before proceeding with set-up and operation. 2) Place the E-TES SD unit as required for your drying situation. (SEE SET-UP SECTION #2) 3) Connect Remote Sensors as needed, place Remote Sensors in desired locations.
Page 24 5) Make sure E-TES SD unit power switch is in the OFF position, and then connect the receptacle end of the GFCI cords to E-TES SD unit. Reset GFCI on both power cords. Push TEST button to test GFCI and if RESET button pops out and the red FAULT Indicator light turns on, push RESET button back in and proceed with set-up.
Page 25: Indicator Lights
(See SECTION 2 for Instruction on how to set activation points.) 8) If you are planning using the data files which the E-TES SD will log during this job, check the current date & time on the E-TES SD display. Set time & date to correct settings.
Page 26 If the two red lights are OFF, but the HEATING light does not come on, make sure you have power to E-TES SD and the green POWER light is ON. Check your set points on your remote sensors. One or more of them may be reading beyond their set point and have shut off the power to the heating elements.
Page 27 ON and OFF. Remove restrictions to increase air flow as needed to maintain proper air flow rate. 12) Make sure circuit breakers are not tripping and the power supply to the air mover and E-TES SD unit will not be interrupted.
Page 28: Troubleshooting
Reprogram processor (See page 19) Display Circuit Board Faulty Replace circuit board To reduce the risk of injury, repairs to electrical systems should only be performed by experienced technicians. Contact your nearest service center for assistance. © Copyright Tes Drying Systems, 2014...
Page 29 Reset air & surface temperature set points Defective remote sensors Replace air or surface temperature sensors To reduce the risk of injury, repairs to electrical systems should only be performed by experienced technicians. Contact your nearest service center for assistance. © Copyright Tes Drying Systems, 2014...
Page 30 E-TES SD 120 VOLT INDICATOR LIGHT PANEL CONFIGURATIONS E-TES SD INDICATOR LIGHTS: During normal operation both Green lights will be ON when the unit is heating. POWER LIGHT When the green POWER light is ON, the switch is on and power is being supplied to the unit.
Page 31 OVERTEMP In some situations when the air flow is too low and the AIRFLOW light comes ON, the E-TES will also over heat POWER and cause the OVERTEMP light to come ON too.
Page 32 When the temperature cools sufficiently or the moisture level rises the green HEATING light will turn back ON and the unit will again heat up. The power supply to the E-TES SD unit has been cut off. Check the building circuit breakers and the GFCI cords POWER and reset as needed.
Page 33: Re-Initializing Memory
E-TES SD 120 Re-initializing the Memory On occasion the memory on the E-TES SD units will need to be re-initialized. When this happens, the E- TES SD will not function and the display will show the Start-up Error screen when the power switch is turned on or will not accept new software updates.
Page 34 Update Screen. Once the memory is re-initialized and the software is updated the unit should advance to the main screen and operate normally. If not, contact you E-TES SD distributor for advice or assistance. E-TES SD...
Page 35: Resetting Processor
E-TES SD machines have a small hole in the front face plate just above the USB port and below the indicator light. With the E-TES SD unplugged and the Power Switch in the OFF position, poke a toothpick or paper clip through the small hole to push the reset button behind the front faceplate.
Page 36: Wiring Diagrams
Three jumpers used to convert circuit board for use with 120vac must be in the positions shown for proper operation of E-TES SD unit. Circuit board may be damaged if board is used with jumpers in the wrong position The battery used in this device may present a fire or chemical burn hazard if mistreated.
Page 37 E-TES SD 120V LOW PROFILE WIRING LIST# PART # DESCRIPTION " QTY END #1 END #2 LENGTH NM4033B WIRE 10 GA HI-TEMP BLACK STRIPE 18.00 NM5061 NM4317 NM4033B WIRE 10 GA HI-TEMP BLACK STRIPE 22.00 NM5061 NM4317 NM4033R WIRE 10 GA HI-TEMP RED STRIPE 18.00...
Page 40: Maintenance
• Check power cords for wear or damage and repair or replace as needed. Repair or replace worn or damaged power cords before using this equipment. Check Clock setting. If clock does not keep time & needs to be reset after turning the E-TES SD off and back •...
Page 41: Parts
Section Parts Replacement parts available for repair of your E-TES SD 120 VOLT LOW PROFILE ELECTRIC THERMAL EXCHANGER. E-TES SD 120V LOW PROFILE FRONT SWITCH PLATE AND CONTROL PANEL FLANGED PLUG NEMA 5-15P NM4399 DECAL E-TES SD NM5392B (QTY 2)
Page 42 E-TES LOW PROFILE FRONT VIEW OF COMPONENTS 14 & 14A FLANGED PLUG NEMA 5-15P NM4399 SCREW ¼-20 X 3/4” HXHD SS (QTY 2) NM5017 (QTY 2) (Attach Heater Box to Body) ROCKER SWITCH DPST NM5714 FLAT WASHER ¼” SS (QTY 2)
Page 43 NUT 1/4-20 HEX NYLOCK SS NUT 1/4-20 HEX NYLOCK SS SCREW ¼-20 X 1” HXHD SS SCREW ¼-20 X 1” HXHD SS SCREW 1/4-20 x 1/2” PH FTHD SS SCREW 1/4-20 x 1/2” PH FTHD SS © Copyright Tes Drying Systems, 2014...
Page 44 E-TES LOW PROFILE BACK VIEW OF COMPONENTS 22 & 23 BODY E-TES LOW PROFILE NM5901 HEATER BOX E-TES LP SEE PAGES 45 - 48 EXCHANGER (Includes #6A) (BOTTOM) NOT SOLD SEE PAGE BACK ACCESS PLATE E-TES LP HEATER BOX E-TES LP...
Page 45 28 & 27 28 & 27 45 & 46 28 & 27 Heater Assembly – E-TES SD 120 Volt LP Front side view – TOP OFF HEATER BOX - BOTTOM NM5916 WIRE TIE 4” WHITE NM5418 (Secure Snout Temp Sensor Assembly away from heater) SCREW 8-32 X ½”...
Page 46 Heater Assembly – E-TES SD 120 Volt LP Back side view – TOP OFF 28 & 27 28 & 27 26 & 27 HEATER BOX - BOTTOM NM5916 HEATER COIL ASSEMBLY 3000W 120V NM5920 SCREW 8-32 X ½” PHP SS NM5124 WIRE SLEEVE 5/8”...
Page 47 Heater Assembly – E-TES SD 120 Volt LP TOP OFF -Side view 26 & 27 28 & 27 28 & 27 HEATER BOX - BOTTOM NM5916 WIRE TIE 7” BLACK 100003 (Secure 5/8” wire sleeve) SCREW 8-32 X ½” PHP SS NM5124 WIRE TIE 4”...
Page 48 Heater Assembly – E-TES SD 120 Volt LP TOP ON -Rear view 38 & 39 26 & 27 HEATER BOX - TOP NM5916B WIRE TIE 4” WHITE NM5418 (Secure 7/16” wire sleeve) HEATER BOX - BOTTOM NM5916 BUSHING SNAP-IN WIRE GUARD NM5445 SCREW 8-32 X ½”...
Page 49 TUBING 3/32” ID SOLD PER INCH (12”) NM5914B GRILL NM5932 (One in front & one in rear) SNOUT TEMP SENSOR ASSEMBLY NM5394B GROMMET NM4116 (Protects tubing through Heater Box Top) 38 & 39 26 & 27 © Copyright Tes Drying Systems, 2014...
Page 50 Heater Set-up Procedures The best way to dry wet carpet, hardwood floors and walls is to implement the Reets Evaporation Method utilizing your E-TES SD unit. The following steps will explain how to this method can be applied for drying different surfaces.
Page 51 7. Place remote sensors for air temperature, surface temperature and moisture level as needed in desired locations. Connect the sensors to the E-TES SD 120 Volt unit. 8. Turn on the E-TES SD unit and adjust the set points for each of the remote sensors as required for your application.
Page 52 8. Adjust the set points for each of the remote sensors as required for your application. 9. If you have a crawlspace to place an E-TES SD or can direct more heated airflow below the floor, it will aid in the drying process.
Page 53 (Evaporation) 1. We are getting air movement with two pieces of equipment – the air mover / E-TES SD box and also the floor drying panel system. We are heating the water to cause the evaporation, but the floor drying panel system is removing the vapor from the floor by providing airflow through the interspatial cavities in the floor.
Page 54 Step #2 - Energy applied directly to the water (Temperature) 1. Insert the snout of the E-TES SD unit into the large opening of the Flexi Dry. Secure the Flexi Dry to the E-TES SD snout with the Velcro strap and the carpet clamp. Seal the ends of the Flexi Dry to prevent air leaking.
Page 55 Set the Remote Activation temperature to turn on the exhaust fan using the Smart E-TES Remote Exhaust Fan Control or use a separate exhaust control unit set to keep the ambient room temperature below 105ºF .
