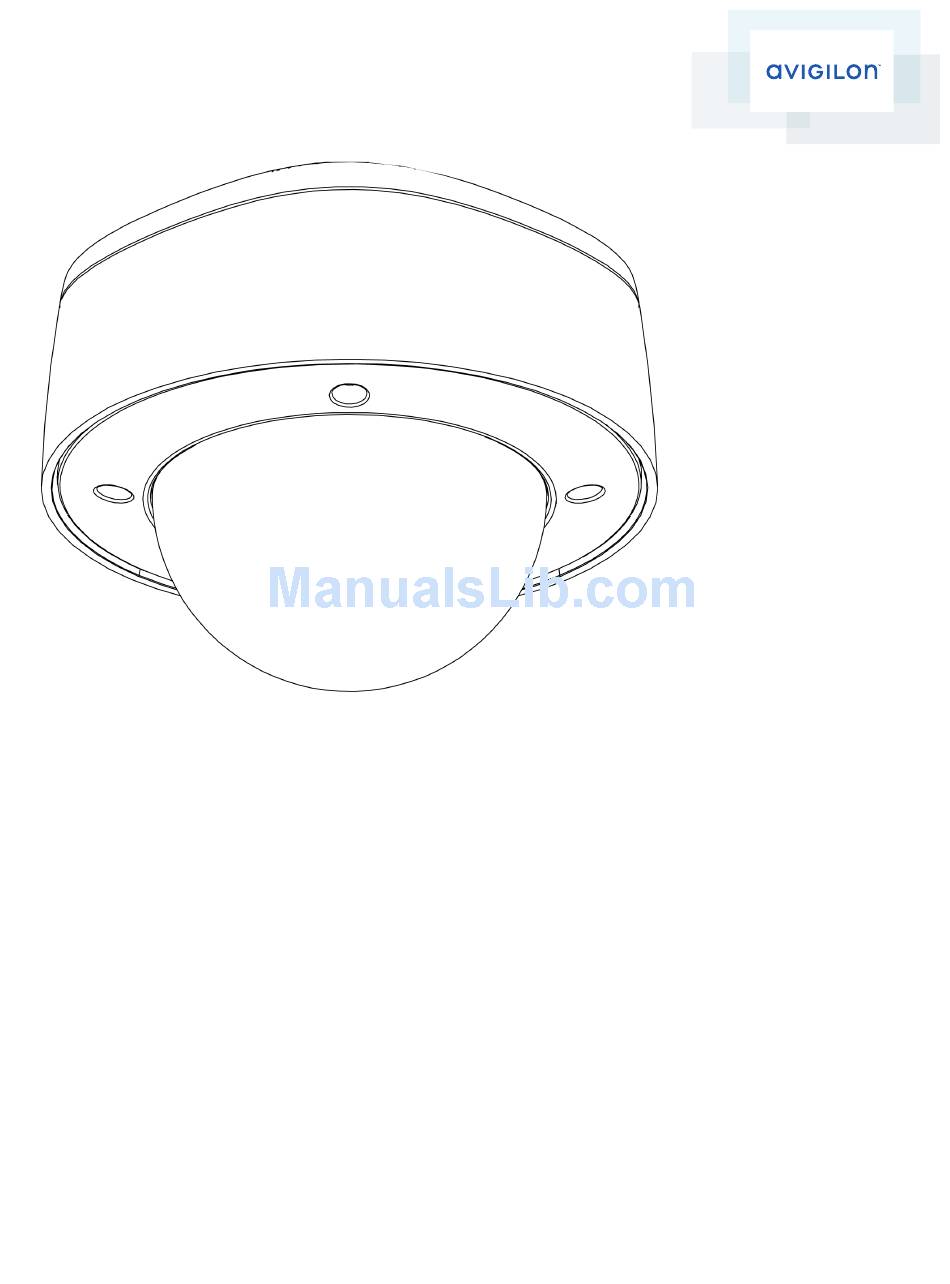

Page 1: Installation Guide
Installation Guide Avigilon™ H4 HD Dome Camera Models: H4A-DP1, H4A-DP1-IR, H4A-DP2... - Page 2 Ethernet (PoE), rated 48 VDC, 7 W min (9 W min. for -IR model). Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
-
Page 3: Fcc Notice
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines. -
Page 4: Legal Notices
The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark. Avigilon Corporation protects its innovations with patents issued in the United States of America and other jurisdictions worldwide: http://www.avigilon.com/patents... -
Page 5: Table Of Contents
Table of Contents Overview Cover View Bottom View Top View Front View Rear View IR View Pendant Wall Mount Bracket View Pendant Wall Mount View Pendant NPT Mount View Installation Required Tools and Materials Package Contents Installation Steps Removing the Dome Cover Mounting and Aiming Video Analytics Cameras Inserting Cables through the Sealing Grommet Mounting the Dome Camera... - Page 6 Resetting to Factory Default Settings Setting the IP Address Using the ARP/Ping Method Cleaning Dome Bubble Body Specifications Limited Warranty & Technical Support...
-
Page 7: Overview
Overview Cover View 1. Tamper Resistant Screws Torx captive screws to fix the dome cover to the base. 2. Dome Cover Vandal proof dome cover. Overview... -
Page 8: Bottom View
Bottom View 1. Camera Alignment Latch A latch for locking the camera into the pendant wall mount or the pendant NPT mount. 2. Camera Lanyard Hook A hook for suspending the camera from the lanyard provided in the pendant wall mount or the pendant NPT mount. -
Page 9: Top View
Top View 1. Camera Mounting Screws Screws for securing the camera to the pendant wall mount or the pendant NPT mount. 2. Lanyard Connects to a lanyard hook on the dome cover. Top View... -
Page 10: Front View
Front View 1. Power Connector Block Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only required when Power over Ethernet is not available. 2. Link LED Indicates if there is an active connection in the Ethernet port. 3. -
Page 11: Rear View
2. SD Card Slot Accepts an SD card for onboard storage. 3. Micro USB Port Accepts a micro USB to USB adapter. Only required when using the Avigilon USB Wifi Adapter. 4. I/O Connector Block Provides connections to external input/output devices. -
Page 12: Ir View
IR View 1. IR Illuminator Ring Provides scene illumination in the IR spectrum. The IR illuminator ring is not included with all models. IR View... -
Page 13: Pendant Wall Mount Bracket View
Pendant Wall Mount Bracket View 1. Bracket Mounting Holes Points for mounting the pendant wall mount bracket to a mounting surface. 2. Mounting Tabs Tabs for placing the pendant wall mount onto the bracket. 3. Mounting Points Points for securing the pendant wall mount to the mounting bracket. Pendant Wall Mount Bracket View... -
Page 14: Pendant Wall Mount View
Pendant Wall Mount View 1. Pendant Wall Mount Dome camera mount for walls and other mounting surfaces. 2. Pendant Wall Mount Screws Screws for securing the pendant wall mount to the mounting bracket. 3. NPT Pipe Entry Hole A 3/4” NPT threaded hole for NPT pipe conduits. Pendant Wall Mount View... -
Page 15: Pendant Npt Mount View
Pendant NPT Mount View 1. 1-1/2” NPT-Female to NPT-Female Adapter An adapter for attaching the pendant NPT mount to an NPT pipe. 2. Pendant NPT Mount Dome camera mount for NPT pipes. 3. Locking Ring Locking ring for securing the pendant NPT mount on the NPT-female to NPT-female adapter. Pendant NPT Mount View... -
Page 16: Installation
NPT mount to a pipe Silicone sealant Package Contents NOTE: The pendant wall mount and pendant NPT mount are sold separately. Avigilon™ H4 HD Dome Camera Pendant Wall Mount: Mounting template sticker Mounting bracket ... -
Page 17: Removing The Dome Cover
Keep the protective covers on the bubble until after the installation is complete. Mounting and Aiming Video Analytics Cameras When installing an Avigilon video analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities: ... -
Page 18: Mounting The Dome Camera
3. Push an Ethernet cable through the grommet by one of the following methods: a. If the Ethernet cable is uncrimped, push the cable through the grommet. b. If the Ethernet cable is already crimped, place the grommet piercing cap on the Ethernet connector then push the cable through the grommet. - Page 19 4. Fasten the pendant wall mount bracket to the mounting surface. 5. Pull the required cables through the wall mount and place it on the mounting tabs on the bracket. Figure 1: 1 — mounting tabs on the bracket, 2 — pendant wall mount screws 6.
- Page 20 7. Connect the lanyard in the mount to the camera lanyard hook on the bottom of the camera. Allow the camera to hang. 8. Install the sealing grommet with all the required cables. For more information, see Inserting Cables through the Sealing Grommet on page 11 9.
-
Page 21: Mounting The Dome Camera To The Pendant Npt Mount
10. Secure the camera body to the mount using the camera mounting screws. Mounting the Dome Camera to the Pendant NPT Mount NOTE: This procedure requires a 1-1/2” NPT-female to NPT-female pipe adapter. It is recommended that the pendant NPT mount is mounted to a 1-1/2” conduit pipe. 1. - Page 22 5. Connect the lanyard in the mount to the camera lanyard hook on the bottom of the camera. Allow the camera to hang. 6. Install the sealing grommet with all the required cables. For more information, see Inserting Cables through the Sealing Grommet on page 11 7.
-
Page 23: Connecting Cables
8. Secure the camera body to the mount using the camera mounting screws. Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. 1. If external input or output devices are part of the installation (for example: door contacts,relays, etc), connect the devices to the I/O connector block. -
Page 24: (Optional) Using The Usb Wifi Adapter
For more information about configuring the camera from the mobile web interface see Avigilon USB Wifi Adapter System User Guide. NOTE: The camera will reserve the 10.11.22.32/28 subnet for internal use while the USB Wifi Adapter is plugged Accessing the Live Video Stream... -
Page 25: (Optional) Configuring Onboard Sd Card Storage
The SD card can only be inserted in the orientation shown on the camera. 2. Access the camera’s web interface to enable the onboard storage feature. For more information, see the Avigilon High Definition H.264 Camera Web Interface User Guide. Installing the Dome Cover NOTE: Be careful not to touch or scratch the dome bubble. -
Page 26: Configuring The Camera
For more information, see the Avigilon Camera Configuration Tool User Guide. If the camera is connected to the Avigilon Control Center, you can use the client software to configure the camera. For more information see the Avigilon Control Center Client User Guide. -
Page 27: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the camera needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The power consumption information is listed in the product specifications. -
Page 28: Connecting To Microphones, Speakers And Video Monitors
1. Ground 2. Input — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. 3. Output — When active, Output is internally connected with the Ground pin. Circuit is open when inactive. Maximum load is 25 VDC, 120 mA. - Page 29 Figure 2: Mini-jack audio video connector 1. Audio IN 2. Composite Video OUT 3. GND 4. Audio OUT Connecting to Microphones, Speakers and Video Monitors...
-
Page 30: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 31: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. Figure 3: The firmware revert button on the dome camera. 1. -
Page 32: Setting The Ip Address Using The Arp/Ping Method
NOTE: The ARP/Ping Method will not work if the Disable setting static IP address through ARP/Ping method check box is selected in the camera's web browser interface. For more information, see the Avigilon™ High Definition H.264 Web Interface User Guide. -
Page 33: Cleaning
Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints ... -
Page 34: Specifications
Camera Audio Input/Output Line level input and output, A/V mini-jack (3.5 mm) Video Output NTSC/PAL, A/V mini-jack (3.5 mm) H4A-DP1: (1 – 3 MP models) 3-9 mm, F1.3, P-iris (5 – 8 MP models) 4.3-8 mm, F1.8, P-iris... - Page 35 Finish Powder coat, RAL 9003 Adjustment Range 360° pan, 9° - 95° tilt (30° - 95° tilt with -IR option), ±180° azimuth Electrical Power Consumption 9 W for -IR option VDC: 12 V +/- 10%, 7 W min (9 W min with -IR option) Power Source VAC: 24 V +/- 10%, 10 VA min (13 VA min with -IR option) PoE: IEEE802.3af Class 3 compliant...
-
Page 36: Limited Warranty & Technical Support
Limited Warranty & Technical Support Avigilon warrants to the original consumer purchaser, that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
