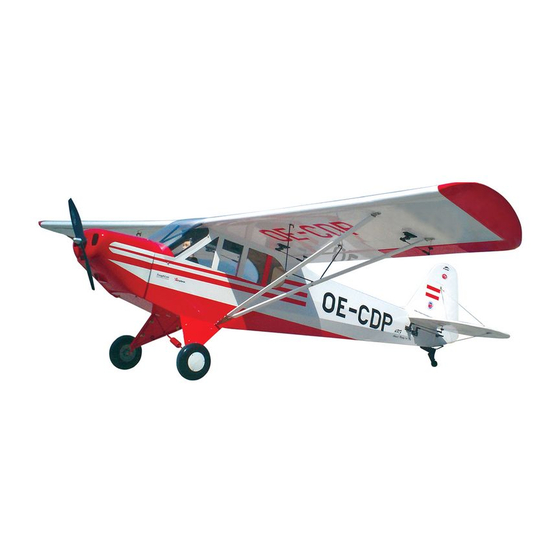

1/3 SUPER CUB
1/3 SUPER CUB
Requires: 80 c.c. gasoline engine,
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with
this kind of engine powered precision model. Operating this model without prior
preparation may cause injuries. Remember, safety is the most important thing. Always
keep this instruction manual at hand for quick reference.
Manufacturing Co.,Ltd.
A186SRPO24801009
5-channel radio w/ 8 high
torque servos .
Specifications
* Specifications are subject to change without notice.*
141 in / 3580 mm
2821 sq in / 182 sq dm
28.5 lbs / 13000 g
91 in / 2310 mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
FACTORY PRE-FABRICATED
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for TWM 1/3 SUPER CUB
Summary of Contents for TWM 1/3 SUPER CUB
- Page 1 INSTRUCTION MANUAL 1/3 SUPER CUB 1/3 SUPER CUB Requires: 80 c.c. gasoline engine, 5-channel radio w/ 8 high torque servos . Specifications Wing Span 141 in / 3580 mm Wing Area 2821 sq in / 182 sq dm Flying Weight 28.5 lbs / 13000 g...
-
Page 2: Before You Begin
1/3 SUPER CUB 1/3 SUPER CUB I N D E X BEFORE YOU BEGIN P. 1 PARTS LIST P. 2 ASSEMBLY P. 3 -12 SAFETY PRECAUTIONS P.12 BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. -
Page 3: Parts List
Parts List 1. MAIN WING -- 1 pair 12. PUSHROD Ø2.3x215mm w/ Threads (For Elevator) -- 2 pcs SCREW PM4x50mm -- 2 pcs 2. SERVO MOUNTING PANEL (For Aileron) -- 2 pairs M4 NYLON INSERT LOCK NUT -- 2 pcs HEAVY DUTY CLEVIS PL4112200 -- 8 sets SWIVEL CLEVIS HORN FAIRING PL4610010 -- 2 sets SCREW PM4x60mm -- 4 pcs... - Page 4 Main Wing Aileron & Flap Servo Lead Bottom View Pre-glued Aileron & Flap servo PM4x60mm Screw M4 NYLON INSERT LOCK NUT Screw PWA2.3 x 8mm M2x8mm PL4120300 PWA 2.3 x 8mm M2 NUT Heavy Duty Horn Bracket M4 Nylon Insert M2x10mm Lock Nut M2 Nylon Insert...
- Page 5 Wing Struts 280mm 260mm Main Wing Strut HM4x20mm HM4x20mm Screw 174mm 184mm d4xD12mm Washer Washer d4xD9mm 465mm 481mm 3.5mm d4xD9mm Washer HM4 x 20mm M4 NYLON INSERT LOCK NUT M4 Nylon Insert Lock Nut d4xD12mm Washer Bottom View Stabilizer & Elevator Temporary install the main wing, adjust (Stabilizer) leveling of the stabilizer to make it as...
-
Page 6: Main Landing Gear
Tail Landing Gear PWA2.5 x 12mm PA3x18mm Screw PA3 x18mm PWA2.5x12mm Screw Spring 2.5mm 1.5mm Copper Plate 1x12x60mm Bottom View Main Landing Gear HM4x18mm Screw HM4x18mm d4xD9mm 1.5mm Washer PA3x14mm Screw Aluminum Plate PA4x20mm Screw 3x15x77mm PA4x20mm d4xD12mm d4xD12mm Washer 2.5mm Washer PA3x14mm... - Page 7 Engine M6x30mm Socket Head Screw d6xD15mm Washer 7.5mm M6 Blind Nut Socket Head Screw M6x30mm M6 Blind Nut Washer d6xD15mm Cowling First insert the grommet to the cowling then apply screw. PA3x12mm Screw 207mm 8.15 in. d2.5x8.5mm Silicon Grommet d3xD7mm Washer Please refer to the attached sheet for usage of the transparent 3D template.
-
Page 8: Fuel Tank
Fuel Tank CABLE TIE 1.5x8x500mm DOUBLE-SIDED 40x160mm Fuel Tank Completed 1500cc Elevator Pushrod M2x8mm PL4120250 PM4x50mm Screw Nylon Insert Lock Nut M2 Nut Heavy Duty Horn Bracket M4 Nylon Insert Lock Nut M2 Nylon Insert Lock Nut Heavy Duty Clevis M2x10mm PM4x50mm PA1.7x8mm... - Page 9 Flying Wire PM2x18mm Screw Copper Tube M2 Nut Press down the center 1/3 portion d2xD5mm Washer PM2x18mm PM2x18mm d2xD5mm Washer d2.5xD3.2x8mm M2 NUT Windows Window A Window B COMPLETED COMPLETED Securely glue the windows to the fuselage. Servo Set 3x3mm Set Screw 3x3mm Set Screw Linkage Connector Washer...
-
Page 10: Radio Equipment
Radio Equipment lnstall and arrange the servos as hown in the diagram. Plastic Tube d2xD3x300mm Sponge Throttle Pushrod D1.2x480mm Battery Receiver Charge Receptacles Throttle Servo Bottom View KP0041300 Pilot PWA 2x12mm Screw PWA 2x12mm Screw PC101110A Apply thick CA or Wind Shield Canopy glue. - Page 11 Main Wing Step 1. Insert the aluminum wing tube with the pre-drilled hole end into the right wing. Align the lines marked at the wing root and wing tube and apply the PM3 x 30mm machine screw through the pre-drilled hole on top of the wing. ( please confirm the alignment of the hole by HM3x30mm Screw putting a 2.5mm diameter rod through the pre-drilled wing hole before applying the screw ) The hole on the wing tube is pre-threaded, do not over tighten the PM3mm screw, the set up is for...
- Page 12 Wing Struts HM4x15mm Screw Washer d4xD12mm Washer d4xD12mm HM4x15mm M4 NYLON INSERT LOCK NUT M4 NYLON INSERT LOCK NUT Wing Setting Adjust the wing and fuselage configuration as shown in the diagrams. P.11 A186SRPO24801009...
- Page 13 # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. is specially designed to be powered by 80C.C. gasoline engine, using 1/3 SUPER CUB a more powerful engine does not mean better performance. In fact, over powered engine may cause severe damage and injuries.
- Page 14 LINKAGE CONNECTOR HW7111050 & HW7111060 Drill 2mm hole at servo horn. Insert linkage connector into servo horn. Make sure shoulder of screw is cleared from servo horn. Add washer to reduce play if necessary. Shoulder Tighten up the round nut against the shoulder.
- Page 15 Usage of the transparent 3D template This transparent 3D template is used for position guidance of the actual cutting of the pre-painted cowling. Simply cut the transparent 3D template to fit your engine and exhaust pipe, then slide onto the actual cowling and use as template to mark the openings required for final cutting.
-
Page 16: Optional Parts
Optional Parts ACCESSORIES 180mm Extension Clevis Wrench Package Package Code No. Size Code No. Size PL8210010 1 set KW0011800 180mm 1 set Large Clevis Small Clevis Special tool for clevis installation. Suitable for standard and small (EP) clevis. 180mm Y Cord Package Code No. - Page 17 The World Models Manufacturing Co., Ltd. www .thew orldm odels .com A186SRPO24801009...
