9. Connecting cameras/devices:
ReServ1WPV - Connect 12VDC cameras/devices to terminals marked [P 1-4, N 1-4] (Fig. 2, pg. 5).
Connect 24VAC cameras/devices to terminals marked [5-16] (Fig. 2, pg. 5).
ReServ2WPV - Connect 24VAC cameras/devices to terminals marked [1-16] (Fig. 2, pg. 5).
ReServ3WPV - Connect 12VDC cameras/devices to terminals marked [P 1-16, N 1-16] (Fig. 3, pg. 6).
10. Connect batteries to the terminals marked [-- BAT + ] (Figs. 1-3, pg. 5-7). Use two (2) 12VDC batteries connected in
series for 24VDC operation (battery leads included).
Use batteries - Casil CA1270 (12V/7AH), Genesis NP7-12 (12V/7AH) or NP7-12 (12V/12AH), Ultratech UT1270
(12V/7AH) or Ultratech UT12120 (12V/12AH).
11. Connect appropriate signaling notification devices to AC FAIL and BAT FAIL (Figs. 2-3, pg. 5-6)
supervisory relay outputs.
12. The power LEDs on the unit for Outputs 1-16 will illuminate when AC power is present (Figs. 2-3, pg. 5-6).
Note: If any of the power LEDs are not illuminated, the cause may be due to the following:
a. AC mains and battery fail.
b. One (1) or more power output PTCs are tripped due to a short circuit or overload condition.
c. Unit damaged/defective.
To reset the PTC:
1. Disconnect corresponding camera/device connected to terminals marked [1-16] (Figs. 2-3, pg. 5-6).
2. Eliminate the trouble condition (short circuit or overload).
3. Allow 1 minute for PTC to cool off (reset).
4. Connect corresponding cameras/devices to terminals marked [1-16] (Figs. 2-3, pg. 5-6).
5. Power LEDs will illuminate indicating power has been restored to outputs (Figs. 2-3, pg. 5-6).
WARNING: This installation should be made by qualified service personnel and should conform to the
National Electrical Code and all local codes.

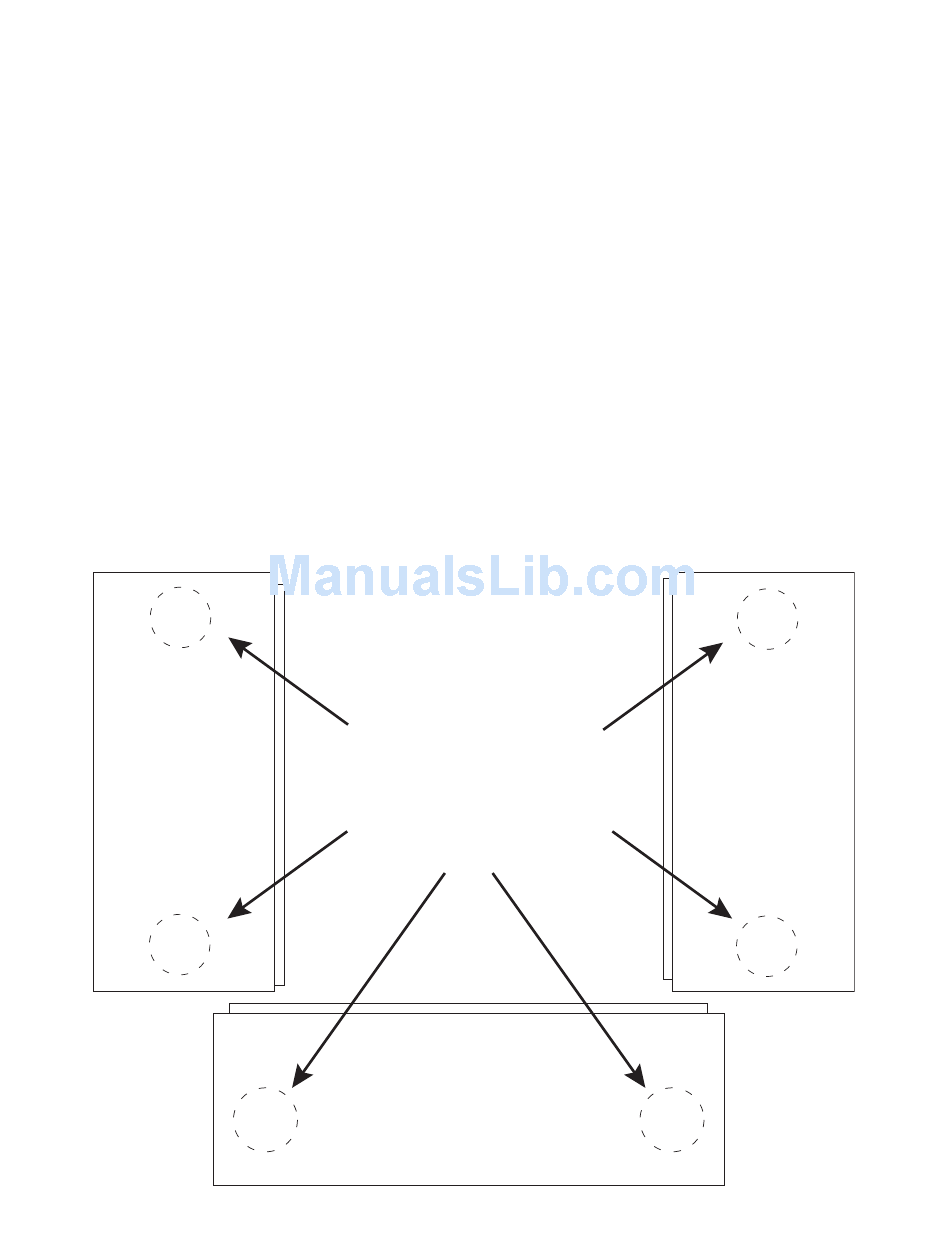

Left Panel

Fig. 1
ReServWPV
Suggested Locations
for Wire Entries

Bottom Panel

Right Panel

- 3 -
