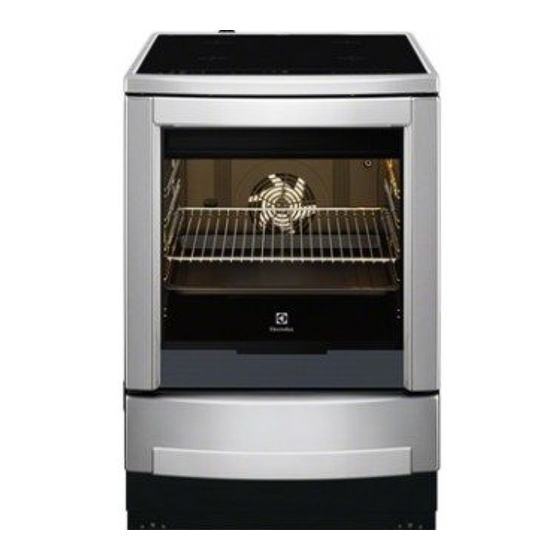

EKI6751AOX
EN
Cooker
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Electrolux EKI6751AOX

Summary of Contents for Electrolux EKI6751AOX

  • Page 1 EKI6751AOX Cooker User Manual...

  • Page 2: Table Of Contents

    14. ENERGY EFFICIENCY.................. 39 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. 1.1 Children and vulnerable people safety WARNING! Risk of suffocation, injury or permanent...
  • Page 4 Never try to extinguish a fire with water, but switch off • the appliance and then cover flame e.g. with a lid or a fire blanket. Do not store items on the cooking surfaces. • Do not use a steam cleaner to clean the appliance.

  • Page 5: Safety Instructions

    ENGLISH The means for disconnection must be incorporated in • the fixed wiring in accordance with the wiring rules. 2. SAFETY INSTRUCTIONS 2.1 Installation • The appliance must be earthed. • Make sure that the electrical WARNING! information on the rating plate agrees Only a qualified person must with the power supply.
  • Page 6 • Do not change the specification of this – do not put water directly into the appliance. hot appliance. • Make sure that the ventilation – do not keep moist dishes and openings are not blocked. food in the appliance after you •...

  • Page 7: Product Description

    ENGLISH • Be careful when you remove the door household appliances. Do not use it from the appliance. The door is for house lighting. heavy! WARNING! • Remaining fat or food in the appliance Risk of electrical shock. can cause fire. •...

  • Page 8: Before First Use

    3.2 Cooking surface layout Induction cooking zone 2300 W with the Power function 3200 W Steam outlet - number and position depend on the model Induction cooking zone 2300 W with the Power function 3200 W Induction cooking zone 2300 W with...

  • Page 9: Hob - Daily Use

    ENGLISH 4.4 Preheating 5. Set the function and the maximum temperature. Preheat the empty appliance to burn off 6. Let the appliance operate for 15 the remaining grease. minutes. 1. Set the function and the maximum Accessories can become hotter than temperature.
  • Page 10 Sen‐ Function Comment field To increase or decrease the time. To set a heat setting. Power function To activate and deactivate the function. 5.2 Heat setting displays Display Description The cooking zone is deactivated. The cooking zone operates. STOP+GO function operates.
  • Page 11 ENGLISH acoustic signal sounds and the hob for some time and then decreases to the deactivates. Remove the object or correct heat setting. clean the control panel. To activate the function the • the hob gets too hot (e.g. when a cooking zone must be cold.
  • Page 12 To deactivate the function: set the To deactivate the function: touch cooking zone with and touch . The The previous heat setting comes on. remaining time counts back to 00. The When you deactivate the indicator of the cooking zone goes out.

  • Page 13: Hob - Hints And Tips

    ENGLISH 6. HOB - HINTS AND TIPS WARNING! Cooking zone Cookware di‐ Refer to Safety chapters. ameter (mm) 6.1 Cookware Right rear 125 - 210 Right front 125 - 210 For induction cooking zones a strong electro-magnetic Left front 125 - 210 field creates the heat in the cookware very quickly.

  • Page 14: Hob - Care And Cleaning

    Heat setting Use to: Time Hints (min) Keep cooked food warm. as nec‐ Put a lid on the cookware. essary 1 - 2 Hollandaise sauce, melt: but‐ 5 - 25 Mix from time to time. ter, chocolate, gelatine. 1 - 2...

  • Page 15: Oven - Daily Use

    ENGLISH 8. OVEN - DAILY USE WARNING! Refer to Safety chapters. 8.1 Oven Control Panel Use the sensor fields to operate the appliance Sensor Function Comment field – Display Shows the current settings of the appliance. ON / OFF To activate or deactivate the oven. Down / Up key To move in the menu and to set an oven function.

  • Page 16: Oven Functions

    Name Description Lamp / Defrost indi‐ Shows that the Lamp / Defrost function is active. cator Heat-up and residual Shows that the Heat-up / residual heat is active. heat indicator Temperature / Clock Shows the temperature and the time in minutes.
  • Page 17 ENGLISH Symbol Oven function Application Defrost To defrost frozen food. Light To activate the lamp without a cooking function. 8.4 Activating and deactivating 8.10 Using the Child Lock The Child Lock prevents an accidental Press to activate the oven. operation of the appliance. 8.5 Setting the oven function 1.

  • Page 18: Temperature Sensor

    8.13 Oven automatic switch-off For safety reasons the appliance deactivates automatically after some time if a heating function operates and you do not change any settings. Temperature Switch-off time 30 °C - 115 °C 12.5 h 120 °C - 195 °C 8.5 h...
  • Page 19 ENGLISH 8.16 Telescopic runners - WARNING! inserting the oven accessories Be careful when you remove the tip and plug of the core Keep the installation temperature sensor. The instructions for the core temperature sensor is telescopic runners for future hot. There is a risk of burns. use.

  • Page 20: Oven - Clock Functions

    9. OVEN - CLOCK FUNCTIONS 9.1 Clock functions table Clock function Application Time of day To set, change or check the time of day. Minute Minder To set countdown time. This function has no effect on the operation of the appliance.

  • Page 21: Tips On Baking

    ENGLISH • You can extend baking times by 10 – The temperature and baking 15 minutes if you bake cakes on more times in the tables are than one shelf position. guidelines only. They • Cakes and pastries at different depend on the recipes and heights do not always brown equally the quality and quantity of...
  • Page 22 Baking results Possible cause Remedy The cake is not ready in The oven temperature is The next time you bake, the baking time given. too low. set a slightly higher oven temperature. 10.3 Hot Air Baking Food Temperature Time (min) Shelf posi‐...
  • Page 23 ENGLISH Food Temperature Time (min) Shelf posi‐ (°C) tion Foccacia 220 - 230 15 - 20 3 - 4 Pita bread 5 - 15 3 - 4 Pretzels 180 - 200 12 - 15 3 - 4 White loaf 190 - 210 25 - 40 1 - 2 Ciabatta...
  • Page 24 Food Temperature Time (min) Shelf posi‐ (°C) tion Fruit tarts, crumble pastry 175 - 200 25 - 35 2 - 3 Pizza, home made (thick - with a 180 - 200 25 - 35 1 - 2 lot of topping)
  • Page 25 ENGLISH Veal Food Temperature Time (min / kg) Shelf po‐ (°C) sition 60 - 70 2 - 3 Fillet of beef 1) Other. Can be browned off after roasting under the grill or with top / bottom heat at 250°C. If you are using a meat probe, remove it before grilling. Lamb Food Temperature...
  • Page 26 Food Temperature Time (min / kg) Shelf posi‐ (°C) tion Rump steak - browning total 10 2 - 3 Rump steak - roasting 50 - 60 2 - 3 Roast beef 90 - 120 1 - 3 1) Other. Can be browned off after roasting under the grill or with top / bottom heat at 250°C.
  • Page 27 ENGLISH Food Temperature Time (min / Shelf posi‐ (°C) tion Turkey breast 70 - 80 2 - 3 1) Other. Can be browned off after roasting under the grill or with top / bottom heat at 250°C. If you are using a meat probe, remove it before grilling. 10.9 Browning Beef Food...
  • Page 28 Poultry Food Temperature Time (min / kg) Shelf posi‐ (°C) tion Chicken 55 - 65 2 - 3 55 - 65 2 - 3 Duck not suitable total around 5 2 - 3 Duck slow roasting hours Roast turkey, stuffed...
  • Page 29 ENGLISH Poultry Food Food core temperature Shelf position (°C) Turkey breast 75 - 80 2 - 3 10.11 Low temperature cooking 1. Sear the meat in the deep pan (if present) in a very high heat. Use the function to prepare lean, tender 2.
  • Page 30 10.12 Grilling in general • Always preheat an empty oven with the grill functions for 5 minutes. WARNING! Always grill with the oven door closed. • Always grill with the maximum temperature setting. • Set the shelf into the shelf position as recommended in the grilling table.

  • Page 31: Oven - Care And Cleaning

    ENGLISH Food Quantity Defrosting Further Comments time (min) defrosting time (min) Butter 250 g 30 - 40 10 - 15 Cream 2 x 200 g 80 - 100 10 - 15 Whip the cream when still slightly frozen in places. Cake 1.4 kg 11.
  • Page 32 To support the self-cleaning procedure, CAUTION! heat the empty oven on a regular basis. Make sure that the longer 1. Clean the oven floor with warm water fixing wire is in the front. The and washing up liquid, then dry it.

  • Page 33: Troubleshooting

    ENGLISH 11.6 Removing the drawer WARNING! Do not keep flammable items (such as cleaning materials, plastic bags, oven gloves, paper or cleaning sprays) in the drawer. When you use the oven, the drawer can become hot. There is a risk of fire The drawer below the oven can be removed for cleaning.
  • Page 34 Problem Possible cause Remedy An acoustic signal sounds You put something on one Remove the object from and the hob deactivates. or more sensor fields. the sensor fields. An acoustic signal sounds when the hob is deactiva‐ ted. The hob deactivates.
  • Page 35 ENGLISH Problem Possible cause Remedy The oven does not heat The necessary settings are Make sure that the settings not set. are correct. The oven does not heat The automatic switch-off is Refer to "Automatic switch- activated. off". The oven does not heat The Function Lock is on.

  • Page 36: Installation

    13. INSTALLATION WARNING! CAUTION! Refer to Safety chapters. Be careful when you put the appliance on the floor, there 13.1 Technical data is a risk of damage. Lay the appliance on sheets of cardboard or polystyrene Dimensions foam for protection.
  • Page 37 ENGLISH Adjusting the cooker plinth When you install the appliance, set the appliance top surface horizontally.
  • Page 38 CAUTION! Make sure you install the anti-tilt protection at the correct height. Make sure that the surface behind the appliance is smooth. 1. Set the correct height and area for the appliance before you attach the anti-tilt protection. Use a screwdriver to adjust the wheels 2.

  • Page 39: Energy Efficiency

    • Make sure that the cover is securely fastened. 14. ENERGY EFFICIENCY 14.1 Product information for hob according to EU 66/2014 Model identification EKI6751AOX Type of hob Hob inside Freestanding Cooker Number of cooking zones Heating technology Induction...
  • Page 40 14.3 Product Fiche and information for ovens according to EU 65-66/2014 Supplier's name Electrolux Model identification EKI6751AOX Energy Efficiency Index 105.9 Energy efficiency class Energy consumption with a standard load, con‐ 0.99 kWh/cycle ventional mode Energy consumption with a standard load, fan- 0.90 kWh/cycle...

  • Page 41: Environment Concerns

    ENGLISH 15. ENVIRONMENT CONCERNS Recycle the materials with the symbol marked with the symbol with the household waste. Return the product to . Put the packaging in applicable your local recycling facility or contact containers to recycle it. Help protect the your municipal office.
  • Page 42 www.electrolux.com...
  • Page 43 ENGLISH...
  • Page 44 www.electrolux.com/shop...
