Page 1: Installation Guide

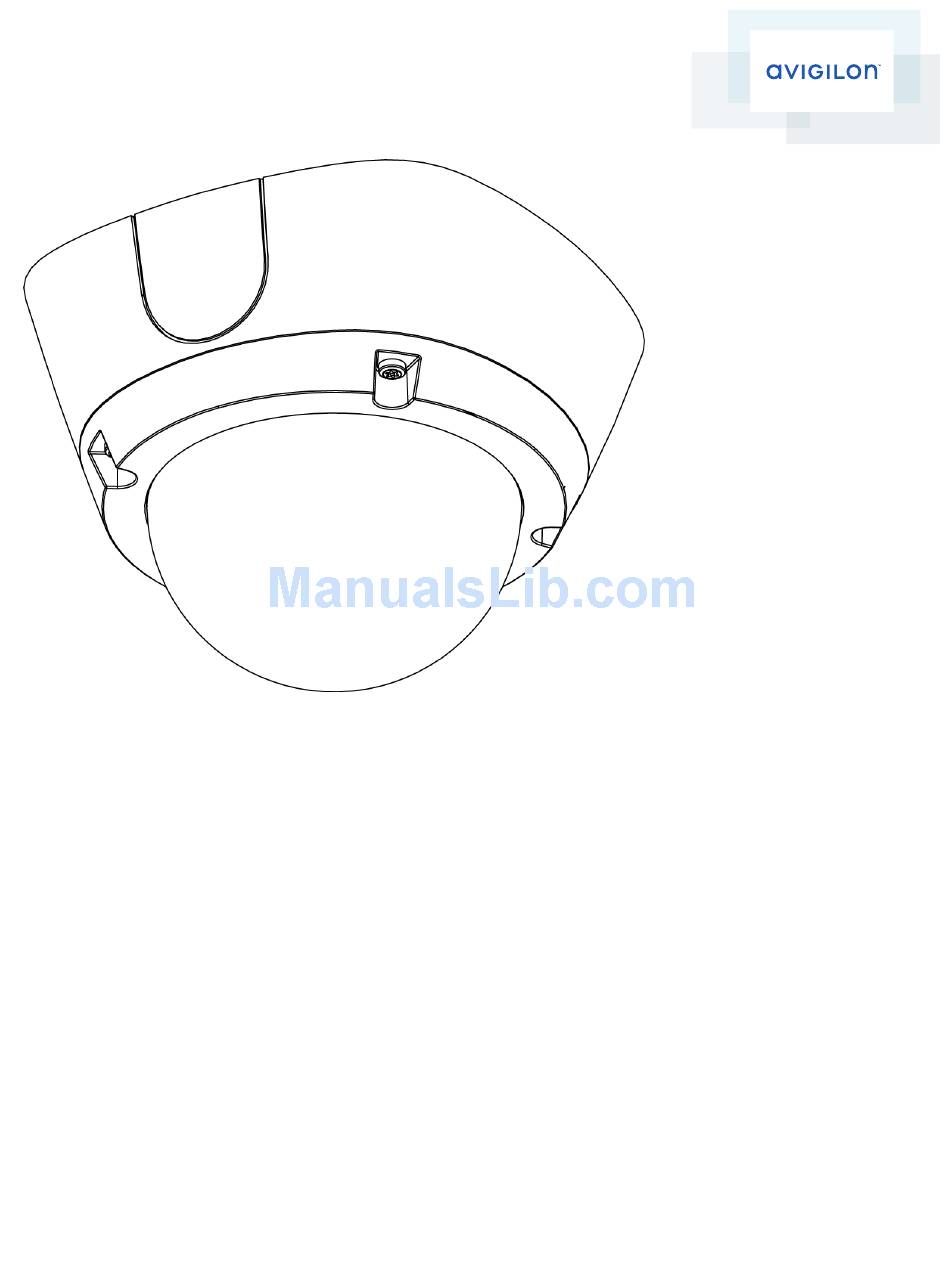

Installation Guide Avigilon™ H4 HD Dome Camera Models: H4A-DO1, H4A-DO1-IR, H4A-DO2, H4A-G-DO1-IR... - Page 2 Ethernet (PoE), rated 48 VDC, 7 W min (9 W min. for -IR model). Any external power supply connected to this product may only be connected to another Avigilon product of the same model series. External power connections must be properly insulated.
-
Page 3: Fcc Notice
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Avigilon Corporation or parties authorized by Avigilon Corporation could void the user’s authority to operate this equipment. Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines. -
Page 4: Legal Notices
© 2016, Avigilon Corporation. All rights reserved. AVIGILON, the AVIGILON logo, AVIGILON CONTROL CENTER, and ACC are trademarks of Avigilon Corporation. Other product names mentioned herein may be the trademarks of their respective owners. The absence of the symbols ™ and ® in proximity to each trademark in this document is not a disclaimer of ownership of the related trademark. -
Page 5: Table Of Contents
Table of Contents Overview Cover View Top View Wall Plate View Front View Rear View IR View Installation Required Tools and Materials Camera Package Contents Installation Steps Removing the Dome Cover Mounting and Aiming Video Analytics Cameras Inserting Cables through the Sealing Grommet Mounting the Dome Camera Mounting the Dome Camera Using the Bottom Cable Entry Hole Mounting the Dome Camera Using the Side Cable Entry Hole... - Page 6 Setting the IP Address Using the ARP/Ping Method Cleaning Dome Bubble Body Specifications Limited Warranty and Technical Support...
-
Page 7: Overview
Overview Cover View 1. Dome cover Vandal proof dome cover. 2. Tamper resistant screws Torx captive screws to fix the dome cover to the base. 3. Side cable entry cover Covers the side cable entry hole. Overview... -
Page 8: Top View
Top View 1. Wall plate mounting screws Screws for mounting the camera to the wall plate. 2. Lanyard Connects to a lanyard hook on the dome cover. 3. Bottom cable entry hole A bottom entry hole for the cables required for camera operation. 4. -
Page 9: Wall Plate View
Wall Plate View 1. Camera mounts Points for mounting the camera body to the wall plate. 2. Cable entry hole An entry hole for the cables required for camera operation. 3. Mounting holes Holes for mounting the wall plate to the following: A. -
Page 10: Front View
Front View 1. Power connector block Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only required when Power over Ethernet is not available. 2. Link LED Indicates if there is an active connection in the Ethernet port. 3. -
Page 11: Rear View
Accepts an SD card for onboard storage. Not available on H4 Edge Solution (ES) Cameras. 3. Micro USB port Accepts a micro USB to USB adapter. Only required when using the Avigilon USB Wifi Adapter. 4. I/O connector block Provides connections to external input/output devices. -
Page 12: Ir View
IR View IR Illuminator Ring Provides scene illumination in the IR spectrum. The IR illuminator ring is not included with all models. IR View... -
Page 13: Installation
No. 2 Phillips screwdriver — for attaching camera to an electrical box or mounting surface T20 Pin-In Torx driver Silicone sealant Camera Package Contents Ensure the package contains the following: Avigilon™ H4 HD Dome Camera Mounting template sticker RJ-45 grommet piercing cap Pipe grommet ... -
Page 14: Removing The Dome Cover
Keep the protective covers on the bubble until after the installation is complete. Mounting and Aiming Video Analytics Cameras When installing an Avigilon video analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities: ... -
Page 15: Mounting The Dome Camera
1. Remove the sealing grommet from the camera. 2. Pull the tab on the grommet to open a hole for the Ethernet cable. 3. Push an Ethernet cable through the grommet by one of the following methods: a. If the Ethernet cable is uncrimped, push the cable through the grommet. b. -
Page 16: Mounting The Dome Camera Using The Side Cable Entry Hole
Mounting the Dome Camera Using the Side Cable Entry Hole Perform the following steps if you will be mounting to a surface with the required cables coming out of an external conduit pipe. Use this procedure if the mounting surface cannot be easily cut, or when cables must be brought along the outside of the mounting surface. - Page 17 4. Insert the pipe grommet into the conduit pipe 5. If a flush mount is preferred, remove the wall plate gasket. 6. Drive three screws into the mounting holes to fasten the wall plate to the mounting surface. NOTE: It is recommended that silicone sealant be applied around the edges of the wall plate gasket to prevent moisture from entering the mounting surface.
- Page 18 7. Unscrew the side cable entry cover to expose the side cable entry hole. 8. Remove the sealing grommet from the side cable entry hole. Mounting the Dome Camera Using the Side Cable Entry Hole...
- Page 19 9. Remove the conduit's locking ring and insert the conduit into the side cable entry hole. 10. Fasten the camera body to the wall plate using the wall plate mounting screws. Mounting the Dome Camera Using the Side Cable Entry Hole...
-
Page 20: Mounting The Dome Camera To An Electrical Box
11. Replace the locking ring to secure the conduit pipe. Mounting the Dome Camera to an Electrical Box Perform the following steps if the required electrical components and cables will be contained in an electrical gang box inside the mounting surface. 1. -
Page 21: Connecting Cables
Connecting Cables Refer to the diagrams in the Overview section for the location of the different connectors. 1. If external input or output devices are part of the installation (for example: door contacts, relays, etc.), connect the devices to the I/O connector block. 2. -
Page 22: Assigning An Ip Address
For more information about configuring the camera from the mobile web interface see Avigilon USB Wifi Adapter System User Guide. NOTE: The camera will reserve the 10.11.22.32/28 subnet for internal use while the USB Wifi Adapter is plugged in. -
Page 23: Setting The Time
The SD card can only be inserted in the orientation shown on the camera. 2. Access the camera’s web interface to enable the onboard storage feature. For more information, see the Avigilon High Definition H.264 Camera Web Interface User Guide. Setting the Time If you are installing an H4 ES camera, you must set the time on the camera. -
Page 24: Zooming And Focusing The Dome Camera
In the camera web browser interface or the Avigilon Control Center software, use the camera’s Image and Display settings to zoom and focus the camera. a. Use the zoom buttons to zoom the camera in or out. -
Page 25: For More Information
For more information, see the Avigilon H.264 Web Interface User Guide. If you installed an H4 ES camera, you can use the Avigilon Control Center Client software to configure the camera and the embedded software. For More Information Additional information about setting up and using the device is available in the following guides: ... -
Page 26: Cable Connections
Cable Connections Connecting External Power NOTE: Do not perform this procedure if Power over Ethernet (POE) is used. If PoE is not available, the camera needs to be powered through the removable power connector block. Refer to the diagrams in this guide for the location of the power connector block. The power consumption information is listed in the product specifications. -
Page 27: Connecting To Microphones, Speakers And Video Monitors
Figure 1: Example application. 1. Ground 2. Input — To activate, connect the Input to the Ground pin. To deactivate, leave disconnected or apply between 3-15 V. 3. Output — When active, Output is internally connected with the Ground pin. Circuit is open when inactive. Maximum load is 25 VDC, 120 mA. - Page 28 Figure 2: Mini-jack audio video connector 1. Audio IN 2. Composite Video OUT 3. GND 4. Audio OUT Connecting to Microphones, Speakers and Video Monitors...
-
Page 29: Led Indicators
LED Indicators Once connected to the network, the Connection Status LED will display the progress in connecting to the Network Video Management software. The following table describes what the LEDs indicate: Connection Status Connection State Description One short flash every Obtaining IP Address Attempting to obtain an IP address. -
Page 30: Resetting To Factory Default Settings
Resetting to Factory Default Settings If the camera no longer functions as expected, you can choose to reset the camera to its factory default settings. Use the firmware revert button to reset the camera. The firmware revert button is shown in the following diagram: NOTE: For the ES camera models, resetting the camera will erase all recorded video from the camera. -
Page 31: Setting The Ip Address Using The Arp/Ping Method
NOTE: The ARP/Ping Method will not work if the Disable setting static IP address through ARP/Ping method check box is selected in the camera's web browser interface. For more information, see the Avigilon™ High Definition H.264 Web Interface User Guide. -
Page 32: Cleaning
Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or finger prints ... -
Page 33: Specifications
Specifications Camera Audio Input/Output Line level input and output, A/V mini-jack (3.5 mm) Video Output NTSC/PAL, A/V mini-jack (3.5 mm) H4A-DO1: (1 – 3 MP models) 3-9 mm, F1.3, P-iris (5 – 8 MP models) 4.3-8 mm, F1.8, P-iris Lens H4A-DO2: ... - Page 34 Adjustment Range 360° pan, 9° - 95° tilt (30° – 95° tilt with -IR option), ±180° azimuth Electrical Power Consumption 9 W for -IR option VDC: 12 V +/- 10%, 7 W min (9 W min with -IR option) Power Source VAC: 24 V +/- 10%, 10 VA min (13 VA min with -IR option) PoE: IEEE802.3af Class 3 compliant Power Connector...
-
Page 35: Limited Warranty And Technical Support
Limited Warranty and Technical Support Avigilon warrants to the original consumer purchaser that this product will be free of defects in material and workmanship for a period of 3 years from date of purchase. The manufacturer’s liability hereunder is limited to replacement of the product, repair of the product or replacement of the product with repaired product at the discretion of the manufacturer.
