Summary of Contents for Vista VK2-5MPBIR36V10Re

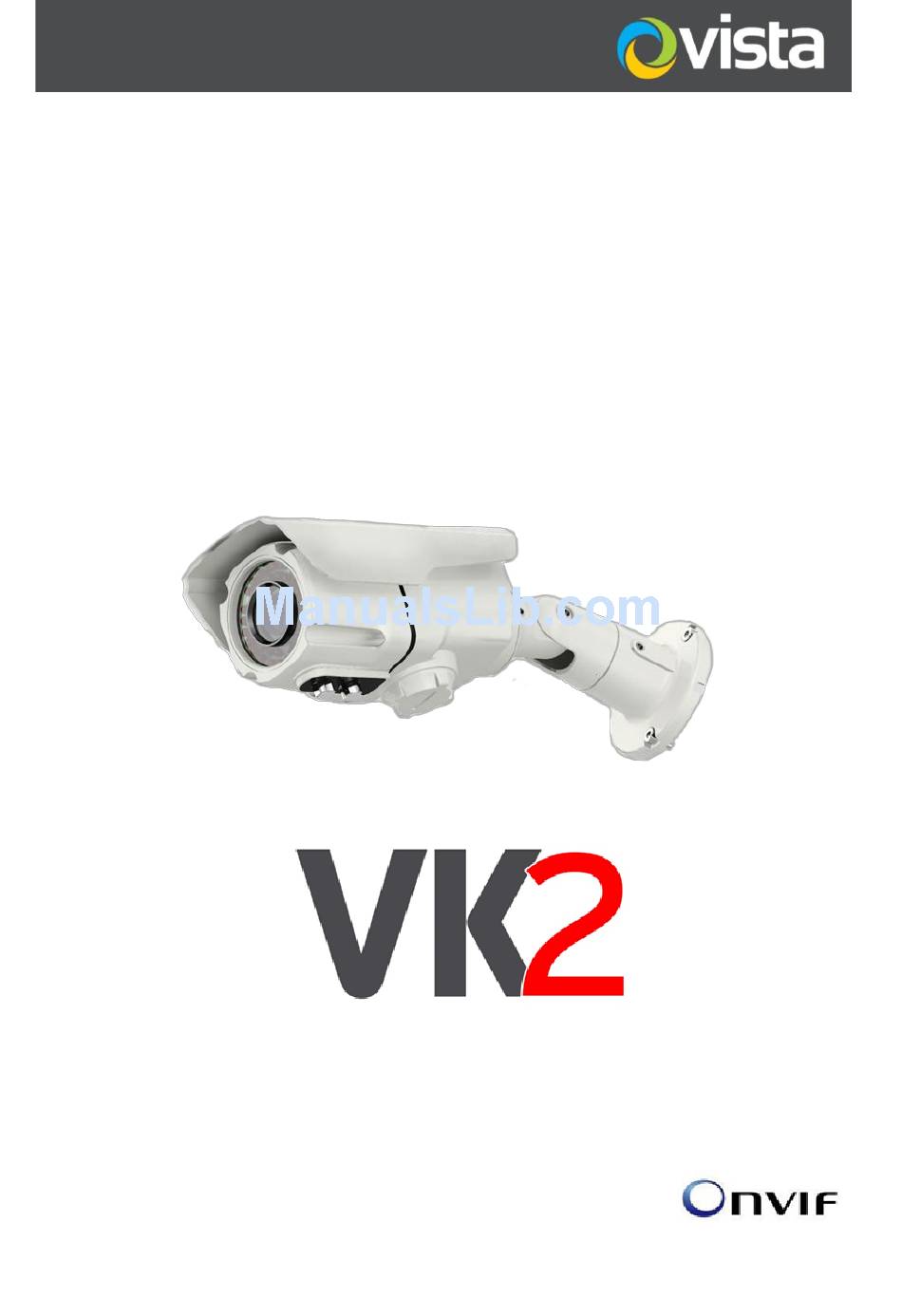

- Page 1 VK2-5MPBIR36V10Re 5MP BULLET Quick Guide...
- Page 2 Please read this manual thoroughly before use and keep it handy for future reference.
-
Page 3: Warnings And Cautions
Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: •... -
Page 4: Important Safety Instructions
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. - Page 5 1 Introduction The VK2-5MPBIR36V10Re is a 5MP bullet camera with built-in IR illumination, remote focus lens, Alarm inputs and outputs plus audio and Video Content Analysis functions. 1.1 Components This system comes with the following components; Network Camera Installation Guide/CD Accessory Kit Note 1.
-
Page 6: Installation
2 Installation For the operation of the Network Camera, it is necessary to connect a network cable for data transmission, power connection from supplied power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. For its fixation on different locations, please consult with an installer. - Page 7 • Installing Camera To mount the bullet camera, fix the bace of the camera with the three screws provided in the accessory kit.
- Page 8 2.2 Connection • Micro SD memory slot on the Bottom Board Remove the cap at buttom of the camera to insert the SD memory card. • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub.
-
Page 9: Resetting To The Factory Default Settings
2.3 Resetting to the factory default settings To reset the network camera to the original factory settings, go to the Setup > System > Maintenance web page (described in “System > Maintenance” of Users Manual) or use the Reset button on the network camera inside the bottom cap. •... -
Page 10: Network Connection & Ip Assignment
2.4 Network Connection & IP assignment The camera supports the operation through the network. When a camera is first connected to the network, it is necessary to allocate an IP address to the device with the “SmartMan- ager” utility on the CD. (Default IP 192.168.30.220) 1) Connect the network camera/device to the network and power up. -
Page 11: Network Camera
5MP BULLET NETWORK CAMERA 50303xxxx VK2-5MPBIR36V10Re Quick guide V1.0...
