- Page 1 VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick guide V1.0 Quick Installation Guide VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick Guide Please read this manual thoroughly before use and keep it handy for future reference.
- Page 2 VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick guide V1.0 Before You Begin Read these instructions before installing or operating this product. Note: This installation should be made by a qualified service person and should conform to local codes. This manual provides installation and operation information. To use this document, you must have the following minimum qualifications: ...
-
Page 3: Warnings And Cautions

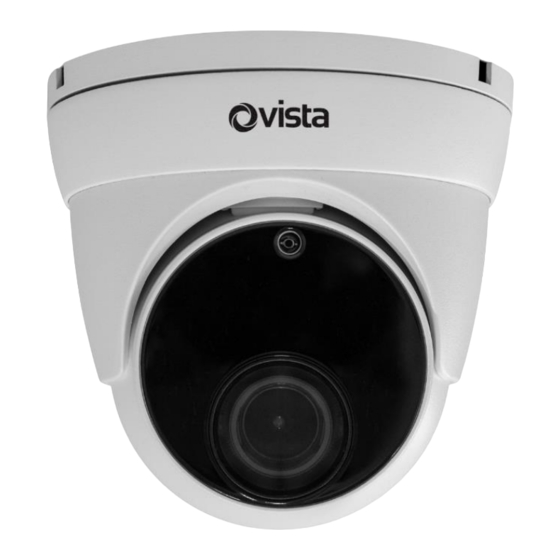

VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick guide V1.0 time without prior notice. WARNINGS AND CAUTIONS: To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation grills or other openings on the equipment. IMPORTANT SAFEGUARDS 1. - Page 4 VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick guide V1.0 1. Introduction The VK2L-4MPTIR28 and VK2-4MPTIR28V12M Turrets are highly featured CCTV cameras offering the installer and user the following: 1. H265 / H264 Compression 2. IR Illumination 3. Hi-Stream bandwidth / storage optimizer function 4.
-
Page 5: Installation
VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick guide V1.0 2. Installation For the operation of the n etwork c amera, it is necessary to connect a network cable for data transmission, power connection from power adapter. Depending on operation methods, it is possible to connect an alarm cable additionally. - Page 6 VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick guide V1.0 • Installing Camera To mount the turret camera, fix the base of the camera with the three screws provided in the accessory kit. • Fixed Turret Camera 1) Paste the template sheet in place at the 2) Remove the collar off the camera proper position.
- Page 7 VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick guide V1.0 • MVF Turret Camera 1) Paste the template sheet in place at th 2) Remove the collar off the camera by ro e proper position. tating it down. Collar 3) Fix the base of the camera with the thr...
-
Page 8: Network Connection & Ip Assignment
VK2L-4MPTIR28 / VK2-4MPTIR28V12M Quick guide V1.0 Network Connection & IP assignment The camera supports the operation through the network. When a camera is first connected to the network, it is necessary to allocate an IP address to the device with the “SmartManager” utility on the CD.
