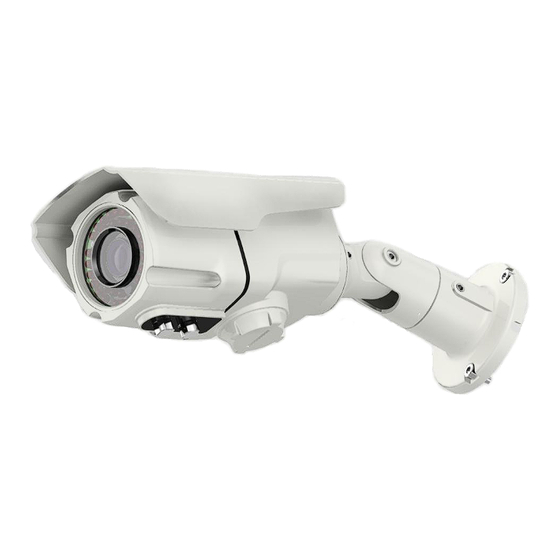

Vista VK2-1080BIR35V16e Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VK2-1080BIR35V16e
Installation Manual
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Vista VK2-1080BIR35V16e

Summary of Contents for Vista VK2-1080BIR35V16e

  • Page 1 VK2-1080BIR35V16e Installation Manual Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 2 VK2-1080BIR35V16e User manual V1.0...

  • Page 3: Caution

    The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. VK2-1080BIR35V16e User manual V1.0...

  • Page 4: Ce Compliance Statement

    This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS VK2-1080BIR35V16e User manual V1.0...

  • Page 5: Table Of Contents

    3.1 Access from a browser ................12 3.2. Access from the internet ...............13 3.3 Setting the admin password over a secure connection .......13 3.4 Live View Page ..................14 3.5 VK2-1080BIR35V16e Setup ..............16 3.5.2 Live View ......................23 3.5.3 Video & Image ..................... 24 3.5.4 Audio........................30 3.5.5 Event........................

  • Page 6: Important Safety Instructions

    OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO. 16. Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only. ITE is to be connected only to PoE networks without routing to the outside plant. VK2-1080BIR35V16e User manual V1.0...

  • Page 7: Description

    1. Description This manual applies to the VK2-1080BIR35V16e full HD Bullet camera with IR illumination. • Installation Steps Follow these steps to install the VK2-1080BIR35V16e on your local network (LAN): 1. Check the package contents against the list below. 2. Connect the VK2-1080BIR35V16e 3.

  • Page 8: Key Features

    This is a global interface standard that makes it easier for end users, integrators, consultants, and manufacturers to take advantage of the possibilities offered by network video technology. ONVIF enables interoperability between different vendor products, increased flexibility, reduced cost, and future-proof systems. VK2-1080BIR35V16e User manual V1.0...

  • Page 9: Layout

    1.3 Layout • Connection Cable Name Description Power Cable Cable for Power source (DC 12V) Ethernet Cable Cable for Ethernet (POE)  Camera Dimension See the diagrams below for the exact dimension Dimensions Unit: mm VK2-1080BIR35V16e User manual V1.0...

  • Page 10: Installation

    PC, while a direct cable is used for connection to a hub.  Micro SD memory slot Remove the front cap of the camera to insert the SD memory card. • Connecting the Power VK2-1080BIR35V16e User manual V1.0...

  • Page 11: Network Connection And Ip Assignment

    When the camera is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager” utility on the CD. (Default IP 192.168.30.220) Connect the VK2-1080BIR35V16e to the network and power up. Start SmartManager utility (Start>All programs>SmartManager>SmartManager), the main window will be displayed, after a short while any network devices connected to the network will be displayed in the list.

  • Page 12: Operation

    3.1 Access from a browser Start a browser (Internet Explorer). Enter the IP address or host name of the VK2-1080BIR35V16e in the Location/Address field of your browser. You can see a starting page. Click Live View or Setup to enter web page.

  • Page 13: Access From The Internet

    3.2. Access from the internet Access from the internet once connected, the VK2-1080BIR35V16e is accessible on your local network (LAN). To access the VK2-1080BIR35V16e from the Internet you must configure your broadband router to allow incoming data traffic to the network camera. To do this, enable the NAT- traversal feature, which will attempt to automatically configure the router to allow access to the network camera.

  • Page 14: Live View Page

    The live viewer toolbar is available in the web browser page only. It displays the following buttons: The Stop button stops the video stream being played. Pressing the key again toggles the start and stop. The Start button connects to the VK2-1080BIR35V16e or start playing a video stream.
  • Page 15 The Live View page in VK2-1080BIR35V16e provides access to H.264, MPEG-4 and Motion JPEG video streams, and to the list of available video streams. Other applications and clients can also access these video streams/images directly, without going via the Live View page.

  • Page 16: Basic Configuration

    Basic, Live View, Video & Image and System Configuration. You can configure the VK2-1080BIR35V16e by clicking Setup in the top right-hand corner of the Live View page. Click on this page to access the online help that explains the setup tools When accessing the VK2-1080BIR35V16e for the first time, the “Admin Password”...
  • Page 17 An administrator has unrestricted access to the Setup tools and Administrator can determine the registration of all other users. Enable anonymous viewer login: Check the box to use the webcasting features. Refer to “3.5.2 Video & Image” for more details. VK2-1080BIR35V16e User manual V1.0...
  • Page 18 When using IPv4, the IP address for the VK2-1080BIR35V16e can be set automatically via DHCP, or a static IP address can be set manually. If IPv6 is enabled, the VK2-1080BIR35V16e receive an IP address according to the configuration in the network router.
  • Page 19 Primarily for low-cost applications that requires additional error robustness, this profile is used rarely in videoconferencing and mobile applications, it does add additional error resilience tools to the Constrained Baseline Profile. The importance of this profile is fading after the Constrained Baseline Profile has been defined. VK2-1080BIR35V16e User manual V1.0...
  • Page 20 Limiting the frame rate and quality optimizes bandwidth and storage usage, but may give poor image quality. To prevent increased bandwidth and storage usage, the Resolution, Frame rate, and Frame Quality should be set to an optimal value. VK2-1080BIR35V16e User manual V1.0...
  • Page 21 When satisfied with the settings, click Save, or click Reset to revert to previously saved settings. 4) Audio The VK2-1080BIR35V16e can transmit audio to other clients using an external microphone and can play audio received from other clients by attaching a speaker. The Setup page has an additional menu item called Audio, which allows different audio configurations, such as, full duplex, and simplex.
  • Page 22 From the Time Mode section, select the preferred method to use for setting the time: Synchronize with computer time: sets the time from the clock on your computer. Synchronize with NTP Server: the VK2-1080BIR35V16e will obtain the time from an NTP server every 60 minutes.

  • Page 23: Live View

    Date Format: Specify the date format. YYYY: Year, MM: Month, DD: Day Time Format: Specify the date format. 24Hours or 12 Hours 3.5.2 Live View  Source • Video Input Mode Video Mode: Choose Video Mode you wish to use from the drop-down list: NTSC or PAL VK2-1080BIR35V16e User manual V1.0...

  • Page 24: Video & Image

    3.5.3 Video & Image  Basic Refer to “3.5.1 Basic Configuration > Video & Image” for more details. VK2-1080BIR35V16e User manual V1.0...
  • Page 25 Enable flip image: Check this box to flip the image. Enable mirror image: Check this box to mirror the image. Enable Noise Reduction: Check this box to reduce an image noise. VK2-1080BIR35V16e User manual V1.0...
  • Page 26 60Hz: Select at 60 Hz environments. Enable Long Exposure: Set this checkbox to activate the electronic shutter of the camera. Max. Shutter: Select a shutter speed value in the drop-down list. The default setting is 1/15. VK2-1080BIR35V16e User manual V1.0...
  • Page 27 4000K to 5000K. Fixed Outdoor: Fixed color adjustment for sunny, with a color temperature around 6500K to 7500K.  Day & Night • Day & Night Control Select the day/night mode from among three modes. VK2-1080BIR35V16e User manual V1.0...
  • Page 28 The privacy masks are configured by Mask windows. Each window can be selected by clicking with the mouse. It is also possible to resize or delete, or move the window, by selecting the appropriate window at the mouse menu on the video screen. VK2-1080BIR35V16e User manual V1.0...
  • Page 29 Select “Enable” to activate the privacy masking function.  Webcasting The VK2-1080BIR35V16e can stream live video to a website. Copy the HTML code generated on the screen and pastes it in page code of the website you want to display live video.

  • Page 30: Audio

    Refer to “3.5.1 Basic Configuration > Audio” for more details. 3.5.5 Event 1) Event-In  On Boot This is used to trigger the event every time the VK2-1080BIR35V16e is started. Select “Enable” to activate the motion event. VK2-1080BIR35V16e User manual V1.0...
  • Page 31 This option makes use of the manual trigger button provided on the live view page, which are used to start or stop the event type manually. Alternatively the event can be triggered via the product's API (Application Programming Interface). VK2-1080BIR35V16e User manual V1.0...
  • Page 32 To create a motion or mask window, follow steps: Click the right button of mouse to see the mouse menu. Select New Motion (or Mask) Window in the mouse menu. Click and drag mouse to designate a motion area. VK2-1080BIR35V16e User manual V1.0...
  • Page 33 You can also modify or delete a motion index. Select an index and then, click the Modify or Delete button. Select “Enable” to activate the motion window.  Network Loss This is used to trigger the event every time the network connection is failed. Select “Enable” to activate the Network Loss event. VK2-1080BIR35V16e User manual V1.0...
  • Page 34 2) Event-Out  SMTP(E-Mail) The VK2-1080BIR35V16e can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP(E-Mail) Setting Select “Enable” to activate the SMTP operation. Mail Server / Port: Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP.
  • Page 35  FTP & JPEG When the VK2-1080BIR35V16e detects an event, it can record and save images to an FTP server. Images can be sent as e-mail attachments. Check the box to enable the service.
  • Page 36 Additional suffix: Add either a date/time suffix or, a sequence number - with or without a maximum value  HTTP Server When the VK2-1080BIR35V16e detects an event, HTTP Server is used to receive uploaded image files and/or notification messages. Check the box to enable the service. •...
  • Page 37 ▼ Record When the VK2-1080BIR35V16e detects an event, it can record a video stream in the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device. Check the box to enable the service. • Record Setting Overwrite: Click checkbox to overwrite the storage device.
  • Page 38 * Capacity: Enter the capacity of storage to be used. It must be less than the total storage capacity. * IP/Password: Enter ID and Password. The VK2-1080BIR35V16e will ask them whenever you access NAS device. * Check: Press the Check button to check the validity of Device Setting data.
  • Page 39 XML data format. Check the box to enable the service. • Event Notification Setting Notification Server URL: The network address to the server and the script that will handle the request. VK2-1080BIR35V16e User manual V1.0...
  • Page 40 Framerate: Select a frame refresh rate per second for each condition in the drop-down list. Bitrate control: Select VBR or CBR in the drop-down list in Normal Condition. You can’t change it in Boost Condition. Bitrate: Select a value for each condition in the drop-down list. VK2-1080BIR35V16e User manual V1.0...
  • Page 41 The event map allows you to change the settings and establish a schedule for each event trigger from the Network Camera. You can register the event map up to max. 15. Click Add button to make a new event map and you can see a popup window as below. VK2-1080BIR35V16e User manual V1.0...
  • Page 42 Check the box to enable the Function. Record: When the VK2-1080BIR35V16e detects an event, it can record video stream in the Micro SD Memory (not supplied) or NAS (Network Attached Device) as a storage device.

  • Page 43: System

    You can enter the system information. This page is very useful when you refer device information after installation. • Device Name Configuration Enter the device name. • Location Configuration Enter the location information. You can enter that by four. VK2-1080BIR35V16e User manual V1.0...
  • Page 44 Live View page, as described below: • User Setting Check the box to enable anonymous viewer login to the VK2-1080BIR35V16e without the user account. When using the user account, users have to try log-in at every access. •...
  • Page 45  HTTPS For greater security, the VK2-1080BIR35V16e can be configured to use HTTPS (Hypertext Transfer Protocol over SSL (Secure Socket Layer)). That is, all communication that would otherwise go via HTTP will instead go via an encrypted HTTPS connection. •...
  • Page 46 Note that users from IP addresses that will be allowed must also be registered with the appropriate access rights (Guest, Operator or Administrator). This is done from Setup> System>Security>Users. VK2-1080BIR35V16e User manual V1.0...
  • Page 47 From the Time Mode section, select the preferred method to use for setting the time: Synchronize with computer time: sets the time from the clock on your computer. Synchronize with NTP Server: the VK2-1080BIR35V16e will obtain the time from an NTP server every 60 minutes.
  • Page 48 4) Network Setting in regard to network can be executed. Settings for IP, DNS, Host Name, Port, and ARP/Ping can be established, along with setting for DDNS, uPnP, QoS, Zeroconfig, Bonjour and wireless. VK2-1080BIR35V16e User manual V1.0...
  • Page 49 IP address: Specify a unique IP address for your Network Camera. Subnet mask: Specify the mask for the subnet the VK2-1080BIR35V16e is located on. Default router: Specify the IP address of the default router (gateway) used for connecting devices attached to different networks and network segments.
  • Page 50 Internet DDNS(Dynamic Domain Name Service) When using the high-speed Internet with the telephone or cable network, users can operate the VK2-1080BIR35V16e even on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/, or http://www.cctv-network.co.kr/.
  • Page 51 • Port Range Start port: Enter a value between 30000 and 39920 End port: Enter a value between 30000 and 39920 • Multicast(Stream1/Stream2/Stream3) This function is for sending Video to Multicast group. VK2-1080BIR35V16e User manual V1.0...
  • Page 52 For a detailed setting, please consult with a network manager.  UPnP The VK2-1080BIR35V16e includes support for UPnP™. UPnP™ is enabled by default, and the VK2- 1080BIR35V16e then is automatically detected by operating systems and clients that support this protocol.
  • Page 53 The following types of traffic are marked: Live Stream DSCP: Event/Alarm DSCP: Management DSCP: • Automatic Traffic Control Set a limitation on user network resources by designating the maximum bandwidth. VK2-1080BIR35V16e User manual V1.0...
  • Page 54 For NAT traversal to work, this must be supported by the broadband router. The broadband router has many different names: “NAT router”, “Network router“, Internet Gateway”, “Broadband sharing device” or “Home firewall” but the essential purpose of the device is the same. VK2-1080BIR35V16e User manual V1.0...
  • Page 55 Save.  Zeroconfig Zeroconfig allows the VK2-1080BIR35V16e to create and assign IP address for network cameras and connect to a network automatically. Zero configuration networking (zeroconf), is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers.
  • Page 56 Automatic location of network services, such as printing devices through DNS service discovery.  Bonjour The VK2-1080BIR35V16e includes support for Bonjour. When enabled, the VK2-1080BIR35V16e is automatically detected by operating systems and clients that support this protocol. Note: Bonjour - Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses or configure DNS servers.
  • Page 57 5) Language It will be able to select a user language. The type of language it will be able to select is the English, the Russian and the Korean. 6) Maintenance VK2-1080BIR35V16e User manual V1.0...
  • Page 58 Note: Backup and Restore can only be used on the same unit running the same firmware. This feature is not intended for multi-configurations or for firmware upgrades. 7) Support The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. VK2-1080BIR35V16e User manual V1.0...
  • Page 59 • Logs The VK2-1080BIR35V16e support system log information. Click the System Log button to get the log data. • Reports Server Report: Click the Server Report button to get the important information about the server’s status and should always be included when requesting support.
  • Page 60 - Networks Check: Click the Network Check button to get the information about the camera’s network setting and traffic. You can see the pop-up window below. - Hardware Check: Click the Hardware Check button to diagnose the camera’s hardware like video. VK2-1080BIR35V16e User manual V1.0...

  • Page 61: About

    3.5.7 About The following website will provide the support information for the VK2-1080BIR35V16e information and operation. VK2-1080BIR35V16e User manual V1.0...

  • Page 62: Playback

    Step backward play: go back one frame of the video clip. Pause: pause playback of the video clip. Step forward play: go forward one frame of the video clip. Forward Play: play forward the video clip. VK2-1080BIR35V16e User manual V1.0...
  • Page 63 24-hour basis. (4) Search Calendar Search results from the SD local storage in the VK2-1080BIR35V16e connected are displayed monthly. If there is a recorded data for a particular date, a blue square on the date will be displayed.

  • Page 64: Help

    The Help information window will be provided as a popup window so that users can open and read it without a need for log-in. It will offer a description on setting and Help page by which users can manipulate the VK2-1080BIR35V16e without a reference to the manual. VK2-1080BIR35V16e User manual V1.0...

  • Page 65: Resetting To The Factory Default Settings

    >Maintenance web page (described in “3.5.6 System>Maintenance” of the User’s Manual) or use the Reset button on the network camera, as described below: Follow the instructions below to reset the VK2-1080BIR35V16e to the factory default settings using the Reset button.

  • Page 66: Appendix

    4. Appendix 4.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the VK2-1080BIR35V16e with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information.

  • Page 67: Preventive Maintenance

    Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. Inspect all connection cables for deterioration or other damage. Clean components with a clean damp cloth. Verify that all the mounting hardware is secure. VK2-1080BIR35V16e User manual V1.0...

  • Page 68: Product Specification

    -10°C ~ 45°C Operation Humidity 0~80% (non-condensing) DC 12V 600mA, 7.2W / PoE 150mA, 7.2W (with IR on) Power Consumption Power over Ethernet IEEE 802.3af Class0 Dimensions (WxHXD) 300 x 98.4 x 87mm Unit Weight 1050g VK2-1080BIR35V16e User manual V1.0...

  • Page 69: System Requirement For Web Browser

    -. Heavy network utilization due to poor infrastructure. Frame rate and Bandwidth affected. -. Heavy network utilization via wireless router due to poor infrastructure. Frame rate and bandwidth affected. -. Viewing on poorly performing client PCs lowers perceived performance. Frame rate affected. VK2-1080BIR35V16e User manual V1.0...
  • Page 70 Printed in Korea VK2-1080BIR35V16e User manual V1.0...
