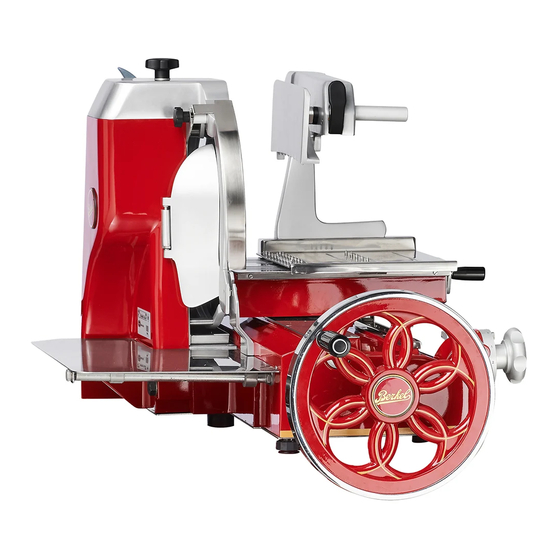

Berkel 330M Instructions For Use, Installation And Maintenance
Flywheel slicing machine
Hide thumbs
Also See for 330M:
- Owner's/operator's manual (40 pages) ,
- Owner's and operator's manual (40 pages) ,
- Instructions for use, installation and maintenance (21 pages)
Related Manuals for Berkel 330M
Summary of Contents for Berkel 330M

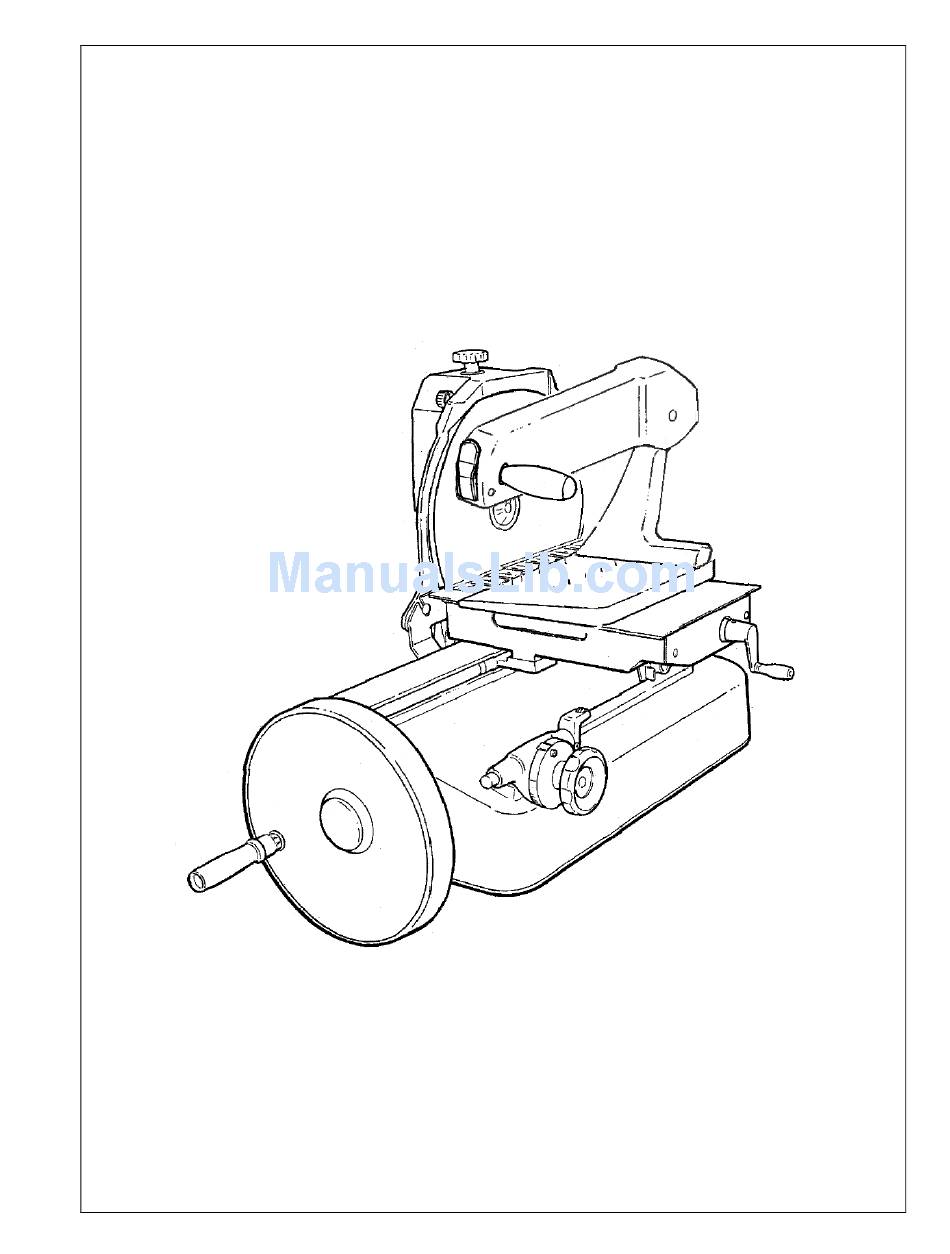

- Page 1 MANUAL FLYWHEEL SLICING MACHINE Instruction for use, installation and maintenance Model 330M BK46716 (03-11)
-
Page 2: Table Of Contents
Installation, use and maintenance 330M LIST OF CONTENTS Page 1. INTRODUCTION ..............................2 1.1 PURPOSE OF THE MANUAL..........................2 1.2 KEEPING THE MANUAL ........................... 2 1.3 USE OF THE MACHINE............................2 2. GENERAL INFORMATION............................ 2 2.1 MACHINE LIMITS, SAFETY, REGULATIONS....................2 2.2 GUARANTEE AND MANUFACTURER’S RESPONSIBILITY ............... -
Page 3: Introduction
Installation, use and maintenance 330M 1. INTRODUCTION 1.1 PURPOSE OF THE MANUAL For any explanation or doubts on the contents of This publication contains all the information necessary this manual, please contact immediately the for the installation, use and maintenance of the manual... -
Page 4: Guarantee And Manufacturer'sresponsibility
Installation, use and maintenance 330M Install the machine according to the instructions in 2.2 GUARANTEE AND MANUFACTURER’S the paragraph “Installation”; RESPONSIBILITY The guarantee of a good function and a complete Install the machine so that it is far from people conformity of the machines, that are to be used who must not use it, especially children;... -
Page 5: User's Obligations
Installation, use and maintenance 330M 2.3 USER’S OBLIGATIONS 2.4 PLATES The user must scrupulously observe the instructions in The following plate is installed on the machine: this manual for the manufacturer’s guarantee to be - manufacturer’s identification plate, machine plate, valid and particularly: technical data plate;... -
Page 6: Technical Characteristics
Installation, use and maintenance 330M 3. TECHNICAL CHARACTERISTICS 3.1 MAIN TECHNICAL DATA Rif. Detail Feet distance Distance beginning carriage movement/blade cover Max. distance beginning/end movement Feet distance Max. width distance Height Max. height distance Table lenght Table width Blade diameter... -
Page 7: Products That Can Be Sliced
Installation, use and maintenance 330M 3.2 PRODUCTS THAT CAN BE SLICED 3.3 PRODUCTS THAT CANNOT BE SLICED The following are products that can be sliced: The following are products that cannot be sliced because they could cause damage to people and - All types of cold cuts (cooked, raw, smoked);... - Page 8 Installation, use and maintenance 330M Supply of machine only: Lift the machine carefully and insert the four similar rubber feet in the lodgings in the base. Put under the head of the machine the other foot (different from the rubber feet) screwing it in the lodging in the head.
- Page 9 Installation, use and maintenance 330M Assembly of the flywheel: Move the machine carriage all the way towards the operator. Take out the taper pin from the flywheel shaft. Attention: hammer the pin at the tapered end (smaller diameter); Insert the flywheel so that the manoeuvring handle is at the top and to the left, as shown in the figure, compared to the hole for the taper pin.
-
Page 10: Main Components
Installation, use and maintenance 330M 4.2 MAIN COMPONENTS 1. Food plate 8. Blade protection 2. Slice deflector 9. Special handgrip 3. Sliding overplate 10. Handwheel overplate advance 4. Carriage 11. Regulating knob for slice thickness 5. Flywheel manouevring handle 12. Blade cover 6. -
Page 11: General Description
Installation, use and maintenance 330M 4.2 MAIN COMPONENTS 4.3 GENERAL DESCRIPTION 4.3.1 Risks during use The slicing machine has been designed and made to DO NOT use the machine if you are not in perfect offer maximum safety when in use, during cleaning psycho-physical condition and DO NOT let anyone and ordinary maintenance;... -
Page 12: Installation
Installation, use and maintenance 330M 5. INSTALLATION 5.1 INSTALLATION OF THE MACHINE If a support column is not used, install the machine on a surface which is level, dry and suitable for the weight of the machine plus the food to be sliced; refer to paragraph 3.1. -
Page 13: Using The Slicing Machine
Installation, use and maintenance 330M 6. USING THE SLICING MACHINE 6.1 LOADING THE GOODS Using the flywheel (1) bring the carriage (2) all forward (towards the operator); Pull back the sliding overplate (3) completely (away from the blade) using the handwheel (4);... -
Page 14: Cleaning The Slicing Machine
Installation, use and maintenance 330M 6.3 CLEANING THE SLICING MACHINE 6.3.1 GENERAL INFORMATION The machines must be properly cleaned at least once a day, if necessary even more. If the machines have not been used for a while they must be cleaned before use as well. -
Page 15: Maintenance And Repairs
Installation, use and maintenance 330M 7. MAINTENANCE AND REPAIRS 7.1 GENERAL INFORMATION The operator is allowed to carry out the following maintenance: Maintenance to be carried out exclusively by personnel Blade sharpening, periodically; the interval and authorised by the manufacturer is as follows:... -
Page 16: Sharpening The Blade
Installation, use and maintenance 330M 7.2 SHARPENING THE BLADE Proceed as follows as soon as it is noticed that there is less cutting capacity: WARNING: Danger of cutting! Use protective gloves which are resistant to cutting and tearing and concentrate on the job at hand. -
Page 17: Lubricating The Guide Bars Of The Carriage And Overplate
Installation, use and maintenance 330M 7.3 LUBRICATING THE GUIDE BARS OF THE CARRIAGE AND OVERPLATE After each cleaning operation of the machine put a few drops of oil in the hole (1) of the plate (2); Put a few drops of oil along the sliding bar (3) of the carriage;... -
Page 18: Adjusting The Bevel Gear Pair
Installation, use and maintenance 330M 7.5 ADJUSTING THE BEVEL GEAR PAIR If there is too much play in the flywheel at the start of rotation proceed as follows to eliminate it: Remove the cover (1) using a screwdriver; Tighten the nut (2) until all play is eliminated;... - Page 20 BK46716 (03-11)
