Design and function

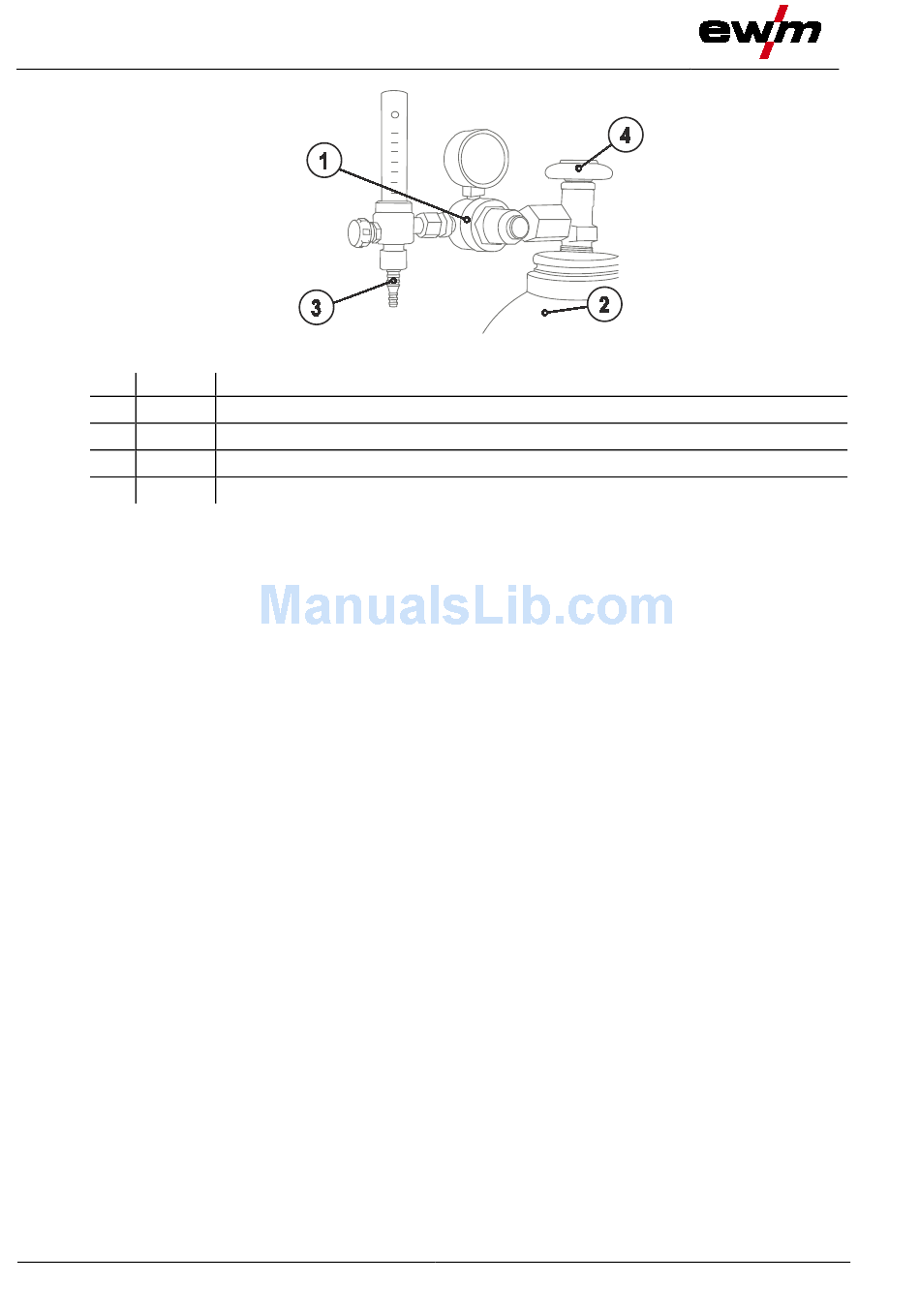

Shielding gas supply (shielding gas cylinder for welding machine)
Item Symbol
1
2
3
4
Place the shielding gas cylinder into the relevant cylinder bracket.
Secure the shielding gas cylinder using a securing chain.
Tighten the pressure regulator screw connection on the gas bottle valve to be gas-tight.
Tighten gas hose on pressure regulator to be gas tight.
28
Description
0
Pressure regulator
Shielding gas cylinder
Output side of the pressure regulator
Cylinder valve
Figure 5-5
099-005130-EW501
07.03.2013
