Reco
Table 1 list s basic , recom mended, and opt ional t ools used to ser vice t his and ot her similar
products.
Table 1 Recommended Service Tools
Description
Detail
Torx Drivers Bits
T5, T8, T10, T15, T20
Phillips Drivers
Phillips # 2 and # 1 5.0 x 75 mm, 3.0 x 75 mm, 6.0 x 100 mm
Flathead Drivers
5.0 x 75 mm, 3.0 x 75 mm
Torque Screw Driver
Required for this system P/N 003082700
Hex Bit
2.5mm Hex Bit, T-20 P/N 003086600
Driver Extension
Small Channel lock Pliers
Needle Nose Pliers
Wire Cutters
Flashlight
Assorted Nut Drivers
Lint-Free Cloths
Cleaners
Multipurpose surface cleaner and Alcohol
ESD Strap
Nut Driver
5.5mm (magnetic) P/N 600T2123
Network Cross-over cable
Tech
Scanner Cali b ration page
P/N 109K01910
Toner Vac
Toner and general cleaning
Multimeter
Volts, Ohms, Current
Lubricant/Grease
Reolube P/N 006799700
Repairs and Adjustments
Disassembly Overview, REP 1.0.1
REP 1.0.1 Front Door / Tray 1 Assembly
Parts List on PL 1.0
Removal
1.
Open the Front Door and release the 2 Stopper Straps.

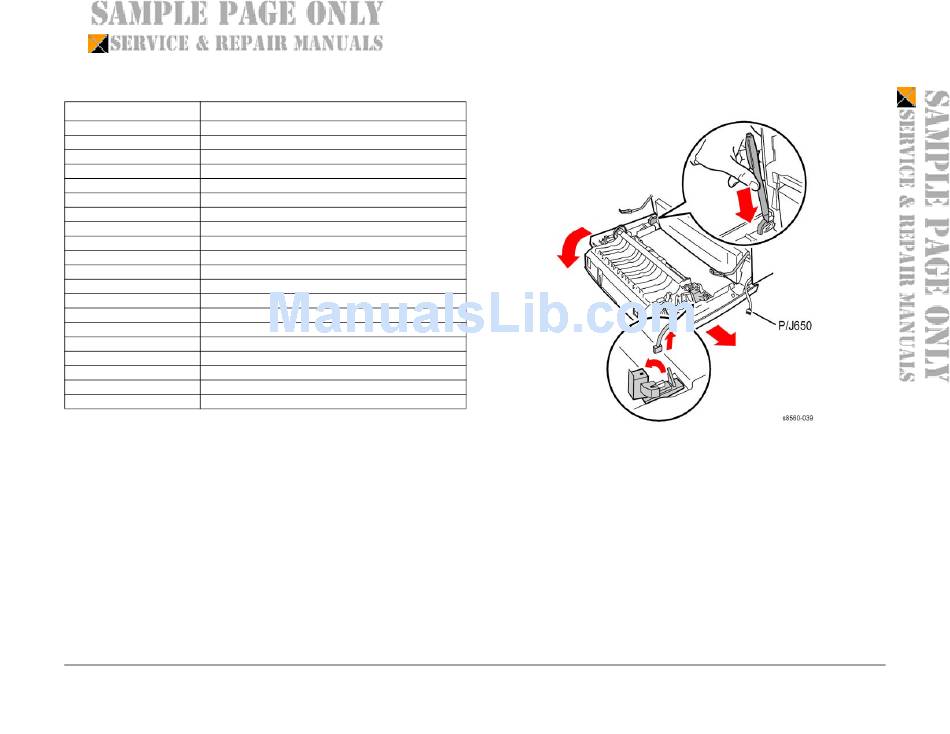

Figure 1 Releasing the Front Door Stopper Straps
2.
Open the plug cover and disconnect P/J650 from the right side of the Front Door (Tray1/
MPT).
3.
Free the plug wiring from cable retainers.
4.
Carefully remo ve t he Front Door (Tray 1/ MPT) assem bly by releasing t he lef t hinge pin
from the frame and sliding the door to the right to remove it.
10/2006
4-4
Initial Issue
Phaser 8510/8560MFP Multifunction Product
