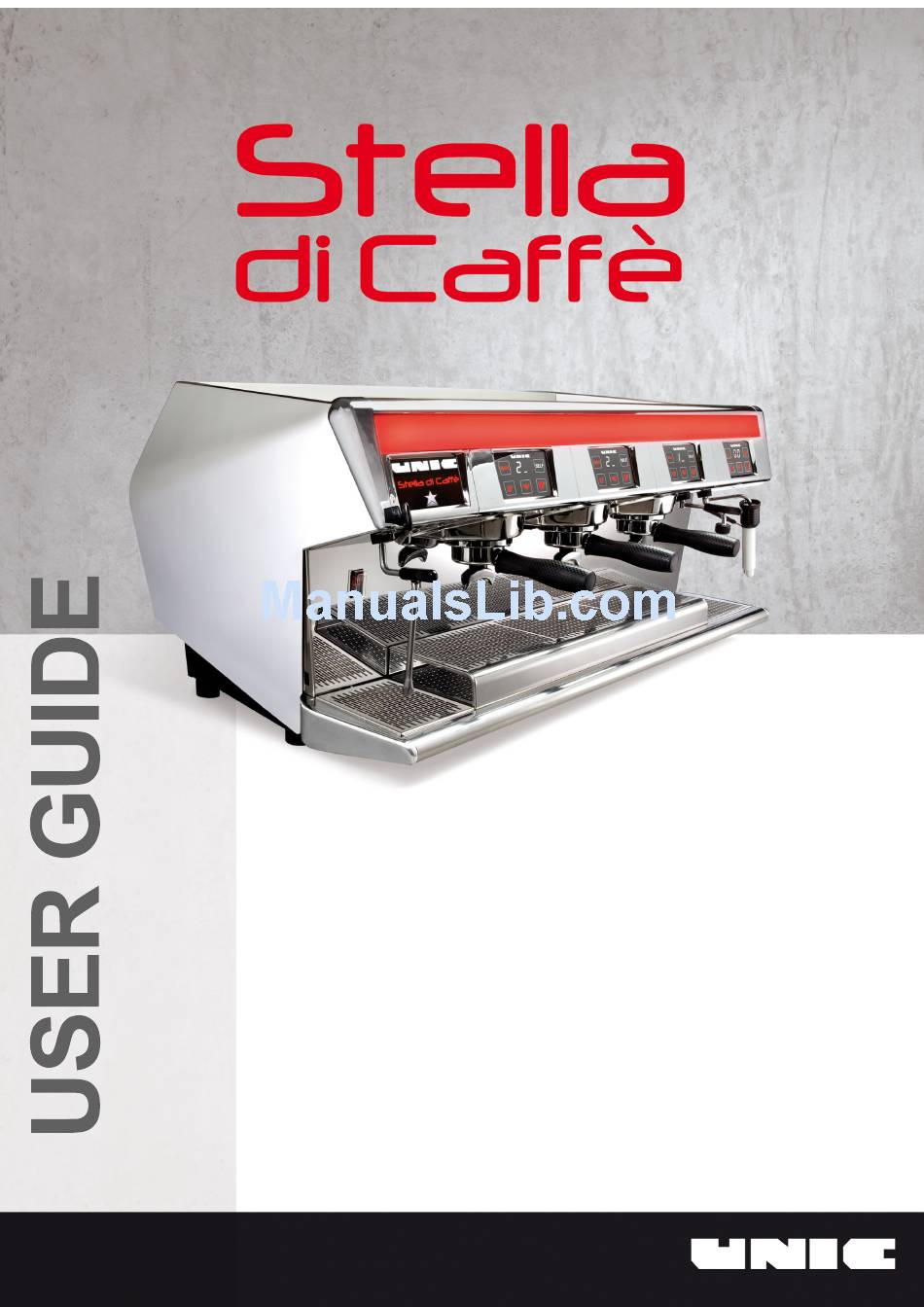

Unic Stella di Caffè User Manual
Hide thumbs
Also See for Stella di Caffè:
- Maintenance procedures (16 pages) ,
- Technical notes (94 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Unic Stella di Caffè
Summary of Contents for Unic Stella di Caffè
-
Page 2: Table Of Contents
USER GUIDE Stella di Caffè Table of contents SAFETY ADVICES ..................................3 IMPORTANT NOTES ................................. 3 TURNING THE MACHINE ON ..............................4 ..............................4 ARMING UP ............................4 ACHINE WARMED UP DETAILED DESCRIPTION OF THE MENU ............................ 5 MENU NAVIGATION ................................6 SPECIAL MENU FUNCTIONS .............................. -
Page 3: Safety Advices
USER GUIDE Stella di Caffè Safety advices This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 4: Turning The Machine On
USER GUIDE Stella di Caffè Turning the machine on When the machine is turned on, the machine goes through a starting up procedure that allows it to check all of the elements. The process takes approximately 45 seconds. Never turn the machine on with the USB key inserted into the side of the machine. Warming up The machine begins the warming up process once the Control Parameters panel appears. -
Page 5: Detailed Description Of The Menu
USER GUIDE Stella di Caffè Detailed Description of the Menu Codes: allow you to access the various menu levels. Parameters: allow you to use to set parameters: date and time, language, sound, desktop background, units, and lighting. Utilization: allows you to use or set parameters for the functions: rinse group, cleaning group, coffee counters, maintenance planning, Led bar on/off, softener. -
Page 6: Menu Navigation
USER GUIDE Stella di Caffè Menu navigation The icons mentioned above represent all of the menu navigation functions of the STELLA. Menu name Return to the Confirmation previous menu after change of a parameter Increase one value Scroll up or Make all values down equal... -
Page 7: Codes
USER GUIDE Stella di Caffè Codes (level 1, 2, 3) By default, most menus are locked. The various settings and programming options are impossible. Access to settings is authorized by input of a code according to three access levels. For more complete information, consult the Stella programming flowchart chapter «... -
Page 8: Parameters
USER GUIDE Stella di Caffè Parameters Date & Time (level 1, 2, 3) Allow you to set date and time. Touch the + and – keys to set the desired value. When you select a value to make a setting, the color of the value turns pink. -
Page 9: Desktop Background
USER GUIDE Stella di Caffè Desktop background (level 1, 2, 3) The desktop background allows you to attach a picture / photo or to view the machine parameters. View of the programmed and actual temperature of each group. View of the steam and pump pressure. View of the steam and pump pressure, the temperature of each group, and the amount of water in the steam boiler. -
Page 10: Led Band And Key Lighting
USER GUIDE Stella di Caffè Led band and key lighting (level 1, 2, 3) Allows you to change the color of the headband and keys. Touch the + and – keys to set the desired value. When you select a value to make a setting, the color of the value turns pink. Do not forget to confirm the setting in order to save the parameters. -
Page 11: Machine Settings
USER GUIDE Stella di Caffè Machine settings (level 1, 2, 3) Allow you to make various settings for the coffee machine: temperature, doses, pressures, etc... Group settings (level 1, 2, 3) Allow you to set and view the temperature of the groups, pre-infusion, self-times, and doses: Temperature settings (level 1, 2, 3) Allow you to set the temperature of each group. -
Page 12: Dose Settings
USER GUIDE Stella di Caffè Dose Settings (level 1, 2, 3) Allow you to set and view doses. Do not forget to activate the PROgramming mode. The point appears on the group display in PROgramming mode. If the MAN key is not enabled, press above (Only for DOSAMAT machines);... -
Page 13: Pre-Infusion Settings
USER GUIDE Stella di Caffè Pre-infusion settings (level 1, 2, 3) Allow you to set the wetting time of the coffee before infusion. (T1) Pre-inf times "Open" is the time during which the electrovalve remains open Touch the + and – keys to set the desired value. Setting range: 0.1 sec à... -
Page 14: Self-Time Settings
USER GUIDE Stella di Caffè Self-time settings (level 1, 2, 3) Allow you to set the time-delay letting you prepare the cups in SELF mode, before the onset of the automatic cycle. Only for DOSAMAT machines. Touch the + and – keys to set the desired value. Setting range: 0 to 10 sec., default setting 1 cup: 0.5 second Do not forget to confirm the setting in order to save... -
Page 15: Steam Settings
USER GUIDE Stella di Caffè Steam settings (level 1, 2, 3) Allow you to set the pressure of steam boiler. Spot pressure of the steam boiler. – Touch the keys to set the desired value. Setting range: 0.7 Bar to 1.4 Bar, default setting 1 Bar Do not forget to confirm the setting in order to save the parameters. -
Page 16: Fast Settings
USER GUIDE Stella di Caffè Fast Settings (level 1, 2, 3) Allow you to set all the machine parameters on a single page. Report all the setting values of all the groups. Example: setting group temperature at 90°C; all the groups are set at 90°C. Scroll through the other settings using the navigation arrows: Small Dose 1 Cup Small dose 2 Cups... -
Page 17: Miscellaneous
USER GUIDE Stella di Caffè Miscellaneous (level 1, 2, 3) Allows you to activate the chronometer function and set the dose priority at the start of a cycle: small dose, large dose, last dose used (Only for DOSAMAT machines). Setting dose priority at the Setting of the start of a cycle: chronometers display in... -
Page 18: Panel Cleaning
USER GUIDE Stella di Caffè Panel cleaning The clean panel mode deactivates the sensitivity of all of the touch keys in order to allow their cleaning. Press the icon in the form of a broom until the boxes display "nC." When the command boxes show "nC,"... -
Page 19: Dosamat Control Box
USER GUIDE Stella di Caffè DESCRIPTION AND FUNCTION OF KEYS Dosamat Control Box (reference 45100) 1 2 3 • The numbers correspond to the selected portafilter (1 cup, 2 cups, or 3 cups). • The keys correspond respectively to the selection: (small dose) , or (large dose) •... -
Page 20: Control Box 3 Cups
USER GUIDE Stella di Caffè • A short click at the end of the cycle also allows you to display the infusion time if the chronometer function was activated. Note: it is possible to switch from a small cup to a large cup during the cycle and vice versa; in this case, if the change from large to small dose is made when the small dose has already passed, the cycle stops. -
Page 21: Control Box Steam Air
USER GUIDE Stella di Caffè Control Box Steam Air (reference 45100) • The display shows the breakdown of the volume of the water dose, the steam time-delay, or displays the actual temperature of the Steam Air probe according the cycle in progress. •... -
Page 22: Stella Program Flowchart
USER GUIDE Stella di Caffè Stella program flowchart Level 0: User 4 Level choice 5 Enter code N1 3 CODES 6 Enter code N2 7 Enter code N3 1 DESK BACK 8 Confirmation UTILIZATION 45 Clean Group The dotted lines represent the main menu. -
Page 23: Level 1: Brewer Roaster
USER GUIDE Stella di Caffè Level 1: Brewer Roaster 4 Level Choice 5 Enter code N1 6 Enter code N2 7 Enter code N3 8 Confirmation 3 CODES 10 Date & Time 11 lLanguage 12 Sound 9 PARAMETERS 13 Desktop Background 14 Lighting 15 Unit... -
Page 24: Level 2: Barista
USER GUIDE Stella di Caffè Level 2: Barista 4 Level Choice 5 Enter code 6 Enter code 3 CODES 7 Enter code 8 Confirmation 10 Date & Time 11language PARAMETERS 12 Sound 13 Desk back 14 Lighting 15 units Temperature (If installed on the 17 Group settings... -
Page 25: Level 3: Supervisor / Owner
USER GUIDE Stella di Caffè Level 3: Supervisor / Owner 4 Level choice 5 Enter code N1 3 CODES 6 Enter code N2 7 Enter code N3 8 Confrmation 10 Date & Time 11 language 9 PARAMETERS 12 Sound 13 Desk back 14 Lighting 15 unit 16 MACHINE... -
Page 26: Level Usb
USER GUIDE Stella di Caffè Level 4: Technician Level USB: 4 Level choice 5 Enter code N1 3 CODES 6 Enter code N2 7 Enter code N3 8 Confirmation 10 Date & Time 11 language 9 PARAMETERS 12 Sound 13 Desk back 14 Lighting 15 uniit 18 Temperature... -
Page 27: Cleaning And Maintenance
USER GUIDE Stella di Caffè Cleaning and maintenance After each use Steam outlet tube : After each use, clean the steam tube with a wet rag and push steam push-button for a short moment to eliminate the small amount of liquid (milk) left inside the tube. Daily Before the service or after few hours of inactivity: Dispense to the drain:... - Page 28 Z.I. 4° Rue - B.P.425 - 06515 CARROS CEDEX 1 - FRANCE info@unic.fr Tél: (33) 04 92 08 62 60 Fax: (33) 04 93 29 24 23...
