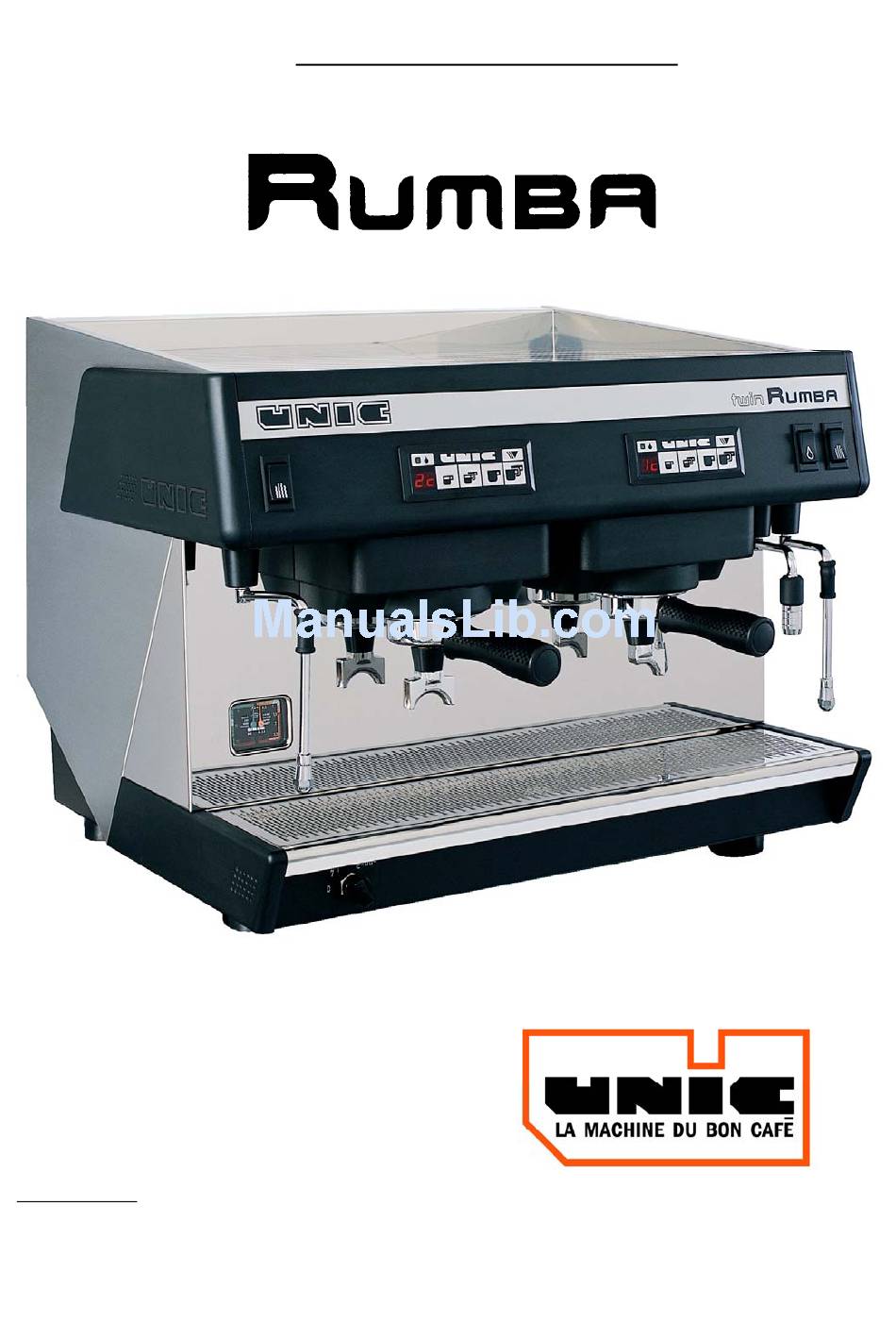

NOTICE TECHNIQUE
UNIC SAS
1st EDITION
eme
Z.I. 4
RUE – B.P. 425
MAY 2004
06515 CARROS CEDEX 1 – France
- 1 -

Advertisement

Table of Contents
loading

Related Manuals for Unic Rumba

Summary of Contents for Unic Rumba

  • Page 1 NOTICE TECHNIQUE UNIC SAS 1st EDITION Z.I. 4 RUE – B.P. 425 MAY 2004 06515 CARROS CEDEX 1 – France - 1 -...

  • Page 2: Hydraulic Connection

    1. PREPARATION OF THE SITE The machine is delivered in a cardboard box screwed onto a wooden pallet. A. Unpack the machine Cut the tightening strap with shears. Open the cardboard box and take the accessories’ container out. Make screws loose by slightly inclining the cardboard box. Take the machine out of the cardboard box and put it on wooden blocks.

  • Page 3: Electric Connection

    3. ELECTRIC CONNECTION .None of the switches must be in ON position. Make sure that the voltage, frequency and power values marked on the descriptive plate of the machine are in conformity with the electric network mains. Mount a plug on the end of the machine cable (plug with grounding: green/yellow wire). .
  • Page 4 4. STARTING-UP 4.1 FILLING THE BOILERS Turn on the shutoff valve. Plug in the machine. Set the charge switch to Position 1. Do not set the charge switch to Position 2 until the boiler has been filled. ON/OFF SWITCH 4.1a STEAM BOILER - As soon as the machine is turned on, the filling takes place automatically.A safety is programmed, if the filling does not occur before 3 minutes.
  • Page 5 Use a pin-wrench; after the adjustment,do not forget to block the counter nut. TWIN RUMBA and TRI RUMBA Model The HP valve is located in the lower part at the left rear of the machine: it is necessary to dismantle the left side.
  • Page 6 .TIGHTEN to INCREASE the pressure. .LOOSEN to DECREASE the pressure. TWIN RUMBA and TRI RUMBA Model The pump is located in the right side and the adjustment must be done from the same side of the machine.
  • Page 7 6. PROGRAMING OF THE DIFFERENT COFFEE QUANTITIES IN THE CUP The keys from P1 à P4 can be programmed. The multiple doses (1 , 2 ou 3 cups ) are calculated automatically from the programming of one of them on each box. Set the machine switch to Position 0.
  • Page 8 6.1 2 CUPS ELECTRONIC BOXES (type d2) Continu / Stop key 6.1a USE OF THE DOSES TO BE PROGRAMED − 4 coffee doses and 1 manual function, Continu/Stop are available. During the infusion, it is displayed : * 1c or 2c = 1 or 2 small cups * 1C or 2C = 1 or 2 large cups...
  • Page 9 6.2 3 CUPS ELECTRONIC BOXES (type d3) Continu / Stop key 6.2a USE OF THE DOSES TO BE PROGRAMED − 6 coffee doses and 1 manual function, Continu/Stop are available. During the infusion, it is displayed : * 1c, 2c ou 3c = 1, 2 or 3 small cups * 1C, 2C or 3C= 1, 2 or 3 large cups * C- = Continu/Stop...
  • Page 10 7. DAILY CLEANING AND MAINTENANCE Coffee unit : - Carry out 2 or 3 infusion cycles without any coffee in the filter to clean the unit and the filter-holder joint (filter-holders not tightened) - Wash the filter-holders and the filters in soapy water. Overflow tray : - Remove the overflow tray to empty it and rinse it under the tap.
  • Page 11 Water Softener Regeneration : how ? A - Water intake Use 1 kg of salt when the B - Water outlet softener is 400 mm high. C - Intake tap D - Outlet tap Use 2 kg of salt when the E - Discharge pipe softener is 600 mm high.
  • Page 12 Water Softener Regeneration : when ? Example : Daily amount of used coffee : 3 kg Number of 7-centilitre cups : 420 Daily water consumption : 30 litres Daily number of 20-centilitre cups of tea : 150 Daily water consumption : 30 litres. Conclusion : - Total daily water consumption is 60 litres - Water hardness is 30°TH.
  • Page 13 Each barman has got a coded badge that gives him permission to use the coffee machine and directly charge the served drinks. B. MACHINE PREPARATION Prior to being connected to a computer system, a coffee machine of the RUMBA range must be modified as follows: 1. Ref. 45026 and 45027 (with memory dated 22/07/97) The following equipment is also supplied: 2.

  • Page 14: Trouble Shooting

    TROUBLE SHOOTING VERY IMPORTANT BEFORE TAKING ANY ACTION MAKE SURE THAT ALL THE ADJUSTMENTS ARE CORRECT. 1. TEMPERATURE 120°C STEAM PRESSURE 0,9 to 1 bar (14 PSI) 2. INFUSION PRESSURE 9 to 10 bar (140 PSI) High pressure valve opening : over 13 bar (188 PSI) 3.
  • Page 15 9. DISPLAYED FAILURES Push button 1 Push button 2 § Push button 3 See on Push button 4 Push button 5 Fuse § See on Time § See on 9.3a > 105 sec Metering + Time § See on 9.3b >...
  • Page 16 9.1 PROBLEMS IN CONNECTION WITH THE ELECTRONIC BOXES'S CONTROL BUTTONS If it is displayed P1, P2 ... or P5, this means that the corresponding key is in short-circuit and can't be used any more. Remedy: - Check that the front is not deformed - Change the electronic box 9.2 FUSE PROBLEMS Display:...
  • Page 17 9.3 DOSAGE PROBLEMS 9.3a 105-second safety system of the coffee unit Thanks to such a safety system, the maximum infusion time is reduced and ranges from 1 minute to 45 seconds. As a result, the infusion process automatically stops, if the dosing device no longer works or if the flow capacity is insufficient so that the motor-pump and the valve of the unit are better protected.
  • Page 18 9.3b Metering safety system During the infusion process, is displayed. This means that the dosing device has been no longer transmitting impulses to the unit electronic box for 5 seconds. If the metering interruption is only temporary, the infusion cycle will stop as soon as the number of metered impulses matches the number of programed impulses.
  • Page 19 9.3c Dosing device safety system Display of Display of The 9V power supply of the dosing The 9V power supply circuit of the device is short circuited: dosing device is opened: Terminal 30 (+) is earthed Terminal 30 (+) or earth are disconnected.
  • Page 20 10. OTHER FAILURES 10.1 HYDRAULIC PROBLEMS OF THE COFFEE UNIT 10.1a Doses lighter than initially set The obtained doses are lighter than initially set There is a leak located just after the dosing device The decompression way of the unit One of the connections located valve leaks during the infusion after the dosing device outlet leaks...
  • Page 21 10.1c An insufficient infusion pressure The infusion pressure is lower than 10 bar § Set the pump as indicated on ( Setting operations are unsuccessful The pump is faulty The motor-pump is The motor-pump is no - dirty filter mechanically blocked longer power-supplied - coil condenser - damaged pallets...
  • Page 22 10.2 PROBLEMS IN CONNECTION WITH THE LEVEL REGULATION 10.2a The steam boiler is flooded The steam boiler is flooded  Problem generated by the Problem generated by the filling valve water level probe * The filling valve flap is no The probe is covered with an longer in place and generates insulating agent (scale) or the...
  • Page 23 10.3 INSUFFICIENT OR NO HEATING PROCESS - After getting a few cups of coffee, the machine gets "cold". - Check the infusion time and adjust the grind accordingly. - Make sure that each pin of the heating element works. 10.4 IMPOSSIBLE PROGRAMING IMPOSSIBLE PROGRAMING ...
  • Page 24 CARACTERISTIQUES TECHNIQUES / TECHNICAL CHARACTERISTICS 12.2 35.1 25,6 23.2 23.2 23.2 155.4 88.6 206.5 166.5 63X40X74 75X110X82 75X132X76 24.8X15.8X29.7 29,5X43,3X32.36 29,5X52X30 Mono seulement Mono only 110 V mono 200 V mono 2,3 / 3,5 220 V mono - 380V tri + N 2,7 / 4,3 230 V mono - 400V tri + N / 4,7...
  • Page 25 PlECES DETACHEES POUR MODELE RUMBA SPARE PARTS FOR RUMBA MODEL PLANCHES PLATES MODELE RUMBA RUMBA MODEL MODELE TWIN / TRI RUMBA TWIN / TRI RUMBA MODEL COTES RUMBA RUMBA SIDES JUPETTE COVER FACE AVANT FRONT VIDANGE ET ENTREE EAU DRAIN AND WATER FEEDING...
  • Page 26 CHAUFFE TASSES 1 GROUPE CUP WARMER DV3205 VERRIERE LG 232 CUP RACK DV3240 COTE DROIT INOX STAINLESS STEEL RIGHT SIDE DV3250 CALANDRE RUMBA 1GR UPPER FRONT PANEL FR7045 ENJOLIVEUR JOUE GAUCHE ORNAMENTAL LEFT SIDE 46041 BANDEAU ADHESIF RUMBA STICKER RUMBA 45006...
  • Page 27 RUMBA 03/04...
  • Page 28 DV3260 CALANDRE RUMBA 2GR 2 UNITS UPPER FRONT PANEL FR7045 ENJOLIVEUR JOUE GAUCHE ORNAMENTAL LEFT SIDE 46042 BANDEAU ADHESIF TWIN RUMBA STICKER TWIN RUMBA 45006 BOITE ELECTRONIQUE d2 115V ELECTRONIC BOX 115V d2 45007 BOITE ELECTRONIQUE d3 115V ELECTRONIC BOX 115V d3...
  • Page 29 TWIN - TRI RUMBA 03/04...
  • Page 30 16/04/2004 UNIC PLANCHE/PLATE : 115 DESIGNATION FR7046 ENJOLIVEUR JOUE DROIT ORNAMENTAL RIGHT SIDE FR7045 ENJOLIVEUR JOUE GAUCHE ORNAMENTAL LEFT SIDE DV3230 COTE GAUCHE INOX STAINLESS STEEL LEFT SIDE DV3240 COTE DROIT INOX STAINLESS STEEL RIGHT SIDE PG-125 ECROU RAPIDE 2.5...
  • Page 31 COTES RUMBA 03/04 RUMBA SIDES...
  • Page 32 16/04/2004 UNIC PLANCHE/PLATE : 200 DESIGNATION DV-164 JOINT POUR JUPETTE NSF GASKET COVER DV-163 JUPETTE PLASTIQUE MOD COVER PLASTIC ID-129 VIS INOX POELIER VM 4 X 8 SCREW 4X10 TC-80 JOINT TORIQUE GASKET 52514 ECROU RAPID M4 EN CAGE INSERT NUT M4...
  • Page 33 JUPETTE 03/04 COVER...
  • Page 34 16/04/2004 UNIC PLANCHE/PLATE : 210 DESIGNATION 50703 VIS PARKER N6 9.5 SP CRUCIF. PARKER SCREW 45003 PATTE DE FIXATION FASTENING LUG ID-129 VIS INOX POELIER VM 4 X 8 SCREW 4X10 52514 ECROU RAPID M4 EN CAGE INSERT NUT M4...
  • Page 35 FACE AVANT 03/04 FRONT...
  • Page 36 16/04/2004 UNIC PLANCHE/PLATE : 230 DESIGNATION DV3331 GRILLE DE BASSINE 2GR 1 UNITS OVERFLOW TRAY GRID DV3332 GRILLE DE BASSINE 2GR 2 UNITS OVERFLOW TRAY GRID DV3333 GRILLE DE BASSINE 2GR 3 UNITS OVERFLOW TRAY GRID DV3301 BASSINE 2GR 1 UNITS OVERFLOW TRAY...
  • Page 37 VIDANGE ET ENTREE D'EAU 04/04 DRAIN AND WATER INLET...
  • Page 38 16/04/2004 UNIC PLANCHE/PLATE : 240 DESIGNATION DV1049 EMBOUT DE DECOMPRESSION DECOMPRESSION TIP DV6039 TUBE CUIVRE DE DECOMPRESSION DECOMPRESSION PIPE 24455 ECROU 1/8 NUT 1/8 PI-45X ELECTROV. V 1 SANS BOBINE ELECTOVALVE 3W WITHOUT COIL MI-80 VIS TCHC M4x12 INOX SCREW M4 X 12...
  • Page 39 GROUPE MAESTRO 03/04 MAESTRO UNIT...
  • Page 40 16/04/2004 UNIC PLANCHE/PLATE : 241 DESIGNATION DV1049 EMBOUT DE DECOMPRESSION DECOMPRESSION TIP DV6039 TUBE CUIVRE DE DECOMPRESSION DECOMPRESSION PIPE 24455 ECROU 1/8 NUT 1/8 PI-45X ELECTROV. V 1 SANS BOBINE ELECTOVALVE 3W WITHOUT COIL MI-80 VIS TCHC M4x12 INOX SCREW M4 X 12...
  • Page 41 GROUPE CREMA 03/04 CREMA UNIT...
  • Page 42 16/04/2004 UNIC PLANCHE/PLATE : 242 DESIGNATION DV1049 EMBOUT DE DECOMPRESSION DECOMPRESSION TIP DV6039 TUBE CUIVRE DE DECOMPRESSION DECOMPRESSION PIPE 24455 ECROU 1/8 NUT 1/8 PI-45X ELECTROV. V 1 SANS BOBINE ELECTOVALVE 3W WITHOUT COIL MI-80 VIS TCHC M4x12 INOX SCREW M4 X 12...
  • Page 43 GROUPE MAESTRO CREMA 03/04 MAESTRO CREMA UNIT...
  • Page 44 16/04/2004 UNIC PLANCHE/PLATE : 250 DESIGNATION ID-82E MANOMETRE DOUBLE 3,5 x 20 B. MANOMETER CF-194 RONDELLE LAITON DE 5 MOYENNE WASHER CF-193 ECROU LAITON Hu 5...
  • Page 45 RUMBA / PHOENIX-R RUMBA CLASSIC / TWIN RUMBA / TRI RUMBA TWIN PHOENIX-R / TRI PHOENIX-R MANOMETRE 04/04 MANOMETER...
  • Page 46 16/04/2004 UNIC PLANCHE/PLATE : 260 DESIGNATION ID-62 JOINT TORIQUE POUR EV PI-45 SOLENOID O'RING - GROUP ID-61 EMBASE D'ELECTROVANNE O.D.E SOLENOID BODY - GROUP MI-80 VIS TCHC M4x12 INOX SCREW M4 X 12 ID-60 NOYAU ELECTROVANNE O.D.E. NM SOLENOID PISTON - GROUP ID-59 RESSORT NOYAU ELECTROV.
  • Page 47 ELECTROVANNE 3 VOIES 01/04 ELECTROVALVE 3 WAYS...
  • Page 48 27/05/2004 UNIC PLANCHE/PLATE : 281 DESIGNATION PC-58 BEC UNE TASSE CHROME 1 CUP SPOUT DV7050 CACHE SORTIE BEC SPOUT HIDDER DV4010 PROLONGATEUR SORTIE BEC SPOUT SPACER 33102 COUPE NUE FILTER HOLDER BODY 33104 CARRE POIGNEE COUPE STEEL SQUARE FOR HANDLE...
  • Page 49 PORTE FILTRE 1 TASSE 03/04 1 CUP FILTER HOLDER...
  • Page 50 27/05/2004 UNIC PLANCHE/PLATE : 282 DESIGNATION PC-25 BEC 2 TASSES CHROME 2 CUP SPOUT DV7050 CACHE SORTIE BEC SPOUT HIDDER DV4010 PROLONGATEUR SORTIE BEC SPOUT SPACER 33102 COUPE NUE FILTER HOLDER BODY 33104 CARRE POIGNEE COUPE STEEL SQUARE FOR HANDLE...
  • Page 51 PORTE FILTRE 2 TASSES 03/04 2 CUPS FILTER HOLDER...
  • Page 52 27/05/2004 UNIC PLANCHE/PLATE : 283 DESIGNATION PH-34 BEC 3 TASSES CHROME 3 CUP SPOUT DV7050 CACHE SORTIE BEC SPOUT HIDDER DV4010 PROLONGATEUR SORTIE BEC SPOUT SPACER 33102 COUPE NUE FILTER HOLDER BODY 33104 CARRE POIGNEE COUPE STEEL SQUARE FOR HANDLE...
  • Page 53 PORTE FILTRE 3 TASSES 03/04 3 CUPS FILTER HOLDER...
  • Page 54 16/04/2004 UNIC PLANCHE/PLATE : 310 DESIGNATION 45006 BOITE ELECTRONIQUE d2 115V ELECTRONIC BOX 115V d2 45012 CLAVIER TYPE d2 2 tasses KEYBOARD d2 45022 BOITE ELECTRONIQUE d2 230V ELECTRONIC BOX 230V d2 DV-79 FUSIBLE TTT 5A 125V RETARDE FUSE 5A 125V DELAYED...
  • Page 55 R P C Fu BOITE ELECTRONIQUE TYPE d2 110V / ELECTRONIC BOX d2 110V : 45006 BOITE ELECTRONIQUE TYPE d2 220V / ELECTRONIC BOX d2 220V : 45022 R P C Fu BOITE ELECTRONIQUE TYPE d3 110V / ELECTRONIC BOX d3 110V : 45007 BOITE ELECTRONIQUE TYPE d3 220V / ELECTRONIC BOX d3 220V : 45023 BOITIER ELECTRONIQUE CAFE 03/04...
  • Page 56 16/04/2004 UNIC PLANCHE/PLATE : 420 DESIGNATION 20951 RACCORD 3/8M-3/8M FITTING 3/8M-3/8M CN-544 RONDELLE ACIER ZN 17 x 28 x 2 WASHER NA-18 ECROU LAITON 3/8 6 mm 3/8 NUT PH-83 JOINT TORIQUE 2,62X9,19 PTFE GASKET 9,19 X 2,62 PTFE DV-62...
  • Page 57 ENTREE EAU 04/04 WATER FEEDING...
  • Page 58 16/04/2004 UNIC PLANCHE/PLATE : 450 DESIGNATION CN-648 COMPTEUR VOLUMETRIQUE WHOLE W.DOSING DEVICE F UNIT DV-44 VIS TH M4X10 ACIER SCREW M4x10 CN-618 JOINT CUIVRE 11,4 x 6,2 x 1 GASKET - 11.4 x 6.2 X 1 23751 AXE DE BANJO 1/8...
  • Page 59 ELECTROVANNE DE REMPLISSAGE 04/04 FEEDING ELECTROVALVE...
  • Page 60 16/04/2004 UNIC PLANCHE/PLATE : 451 DESIGNATION CN-648 COMPTEUR VOLUMETRIQUE WHOLE W.DOSING DEVICE F UNIT DV-44 VIS TH M4X10 ACIER SCREW M4x10 28104 JOINT TORIQUE 2X9,5 FKM 80SH GASKET 2X9,5 CH-16 JOINT CUIVRE RECUIT 3/8 WASHER - COPPER - 3/8 CN-539...
  • Page 61 ELECTROVANNE DE REMPLISSAGE1GR 04/04 1 UNIT FEEDING ELECTROVALVE...
  • Page 62 16/04/2004 UNIC PLANCHE/PLATE : 452 DESIGNATION DO-191 SOUPAPE H.P. COMPLETE COMPLET H.P. VALVE 20975 RACCORD 1/8 M 1/8 F FITTING 1/8M-1/8 F 20410 RACCORD NOURRICE SIMPLE 3/8M-3/8M FITTING 3/8M-3/8 M 23751 AXE DE BANJO 1/8 BANJO SCREW 28104 JOINT TORIQUE 2X9,5 FKM 80SH...
  • Page 63 ENTREE EAU ET SOUPAPE HP 1 GR 04/04 1 UNIT WATER FEEDING AND HP VALVE...
  • Page 64 16/04/2004 UNIC PLANCHE/PLATE : 455 DESIGNATION DO-191 SOUPAPE H.P. COMPLETE COMPLET H.P. VALVE DO-187 CORPS DE SOUPAPE VALVE BODY MI-36 RACCORD 1/8M 1/8M CONNECTION 1/8 PH-83 JOINT TORIQUE 2,62X9,19 PTFE GASKET 9,19 X 2,62 PTFE PC-14 BILLE INOX POLIE DE 11...
  • Page 65 D0-191 SOUPAPE COMPLETE / COMPLET VALVE SOUPAPE HAUTE PRESSION 03/04 HIGH PRESSURE VALVE...
  • Page 66 16/04/2004 UNIC PLANCHE/PLATE : 460 DESIGNATION CN-648 COMPTEUR VOLUMETRIQUE WHOLE W.DOSING DEVICE F UNIT CN-830 CORPS DU DOSEUR D'EAU WATER DOSER BODY CN-829 TURBINE DE COMPTEUR VOLUMETR. TURBINE CN-828 JOINT TORIQ DESSUS DOSEUR EAU GASKET - DOSING DEVICE CN-827 COUVERCLE DOSEUR D'EAU LED R.
  • Page 67 DOSEUR D'EAU 04/04 WATER DOSER...
  • Page 68 16/04/2004 UNIC PLANCHE/PLATE : 470 DESIGNATION 27200 SOUPAPE VAPEUR 3,5 BARS LP VALVE 1/8 29815 CACHE RESISTANCE INSULATOR BOOT...
  • Page 69 SOUPAPE BP 04/04 VALVE LP...
  • Page 70 16/04/2004 UNIC PLANCHE/PLATE : 530 DESIGNATION RO-29 BRISE JET VAPEUR CHROME STEAM SPOUT 25721 ISOLANT POUR TUBE D8 STEAM PIPE INSULATOR DV6060 TUBE CHROME SORTIE VAPEUR STEAM OUTLET PIPE RO-52 EMBOUT SORTIE EAU CHAUDE CHR. WATER SPOUT 25720 ISOLANT SORTIE EAU CHAUDE...
  • Page 71 ELECTROVANNES EAU CHAUDE VAPEUR 04/04 HOT WATER STEAM ELECTROVALVES...
  • Page 72 16/04/2004 UNIC PLANCHE/PLATE : 535 DESIGNATION RO-69 SORTIE VAPEUR TEFLON TEFLON STEAM SPOUT 25915 CACHE SORTIE VAPEUR EAU CHAUDE STEAM HOT WATER OUTLET HIDE DV6061 TUBE CHROME SORTIE EAU CHAUDE HOT WATER OUTLET PIPE RO-76 BAGUE SORTIE VAPEUR FITTING PLASTIC...
  • Page 73 SORTIE VAPEUR TEFLON 04/04 TEFLON STEAM SPOUT...
  • Page 74 16/04/2004 UNIC PLANCHE/PLATE :540 DESIGNATION 29081 CHAUDIERE INJECTION 1 GROUPE 1 UNIT BOILER DO-127 CHAUDIERE INJECTION 2 GROUPES 2 UNIT BOILER DO-128 CHAUDIERE INJECTION 3 GROUPES 3 UNIT BOILER CN-670 SONDE NIVEAU BAS INOX 2,5X165 LEVEL PROBE 2.5 x 165...
  • Page 75 CHAUDIERE INJECTION 03/04 BOILER...
  • Page 76 04/03/2005 UNIC PLANCHE/PLATE :551 DESIGNATION DV6060 TUBE SORTIE VAPEUR PIPE HOT WATER OUTLET DV6061 TUBE SORTIE EAU CHAUDE PIPE STEAM OUTLET DV6080 TUBE ALIMENTATION 1ER GROUPE PIPE UNIT FILLING DV6026 TUBE ALIMENTATION EV EAU CHAUDE PIPE HOT WATER EV FILLING...
  • Page 77 CHAUDIERE INTERNE INTERNAL BOILER CIRCUIT HYDRAULIQUE 1 GR INJECTION 03/05 HYDRAULIC CIRCUIT 1 UNIT INJECTION...
  • Page 78 04/03/2005 UNIC PLANCHE/PLATE :552 DESIGNATION DV6060 TUBE SORTIE VAPEUR PIPE HOT WATER OUTLET DV6061 TUBE SORTIE EAU CHAUDE PIPE STEAM OUTLET DV6070 TUBE ALIMENTATION 1ER GROUPE PIPE UNIT FILLING DV6071 TUBE ALIMENTATION 2EME GROUPE PIPE UNIT FILLING DV6072 TUBE ALIMENTATION EV EAU CHAUDE...
  • Page 79 CHAUDIERE INTERNE INTERNAL BOILER CHAUDIERE INTERNE INTERNAL BOILER CIRCUIT HYDRAULIQUE 2 GR INJECTION 03/05 HYDRAULIC CIRCUIT 2 UNITS INJECTION...
  • Page 80 04/03/2005 UNIC PLANCHE/PLATE :553 DESIGNATION DV6060 TUBE SORTIE VAPEUR PIPE HOT WATER OUTLET DV6061 TUBE SORTIE EAU CHAUDE PIPE STEAM OUTLET DV6084 TUBE ALIMENTATION 1ER GROUPE PIPE UNIT FILLING DV6086 TUBE ALIMENTATION 2EME GROUPE PIPE UNIT FILLING DV6085 TUBE ALIMENTATION 3EME GROUPE...
  • Page 81 CHAUDIERE INTERNE INTERNAL BOILER CHAUDIERE INTERNE INTERNAL BOILER CHAUDIERE INTERNE INTERNAL BOILER CIRCUIT HYDRAULIQUE 3 GR INJECTION 03/05 HYDRAULIC CIRCUIT 3 UNITS INJECTION...
  • Page 82 16/04/2004 UNIC PLANCHE/PLATE :560 DESIGNATION CN-618 JOINT CUIVRE 11,4 x 6,2 x 1 GASKET - 11.4 x 6.2 X 1 CN-638 ECROU 1/4 M NUT 1/4 51870 RONDELLE PLATE ZN M14 WASHER AE-53 PRESSOSTAT A CONTACT SEC PRESSURESTAT-SIRAI AE-53A PRESSOSTAT HOMOLOGUE UL...
  • Page 83 PRESSOSTAT ELECTRIQUE 04/04 ELECTRIC PRESSURESTAT...
  • Page 84 16/04/2004 UNIC PLANCHE/PLATE :570 DESIGNATION 52514 ECROU RAPID M4 EN CAGE INSERT NUT M4 CN-724 SUPPORT BORNIER L=95mm RAIL RO-13 VIS TC M 4 X 10 INOX SCREW AE-50 BORNIER G.M. GRIS TERMINAL BOARD GREY AE-51 BORNIER BLEU TERMINAL BOARD BLUE...
  • Page 85 BORNIER 04/04 TERMINAL BOARD...
  • Page 86 16/04/2004 UNIC PLANCHE/PLATE :572 DESIGNATION 52514 ECROU RAPID M4 EN CAGE INSERT NUT M4 DV2055 TOLE SUPPORT BORNIER SHEET METAL TERMINAL BOARD RO-13 VIS TC M 4 X 10 INOX SCREW AE-50 BORNIER G.M. GRIS TERMINAL BOARD GREY AE-51 BORNIER BLEU...
  • Page 87 BORNIER POUR RUMBA 1GR 04/04 1 UNIT RUMBA TERMINAL BOARD...
  • Page 88 16/04/2004 UNIC PLANCHE/PLATE :580 DESIGNATION NM-002 PIED CAOUTCHOUC NOIR FOOT CF-335A VIS INOX STHC 8 X 25 SCREW M8x25 STAINLESS STEEL NM-176 PIED ALU POUR MACHINE NSF FOOT FOR NSF MACHINE NM-003 PATIN CAOUTCHOUC POUR PIED BASE...
  • Page 89 PIEDS NSF 04/04 NSF FEET...
  • Page 90 16/04/2004 UNIC PLANCHE/PLATE : 590 DESIGNATION DESIGNATION CH-16 JOINT CUIVRE RECUIT 3/8 WASHER - COPPER - 3/8 CN-347A RACCORD D'ALIM. 3/8 - 3/8 MM FITTING - 3/8 X 3/8 - BVL 37260 POMPE SANS FILTRE ROTATIVE 200L/H PUMP 37212 KIT ACCOUPLEMENT...
  • Page 91 MOTEUR POMPE 02/01 PUMP MOTEUR...
  • Page 92 16/04/2004 UNIC PLANCHE/PLATE : 591 DESIGNATION DESIGNATION CH-16 JOINT CUIVRE RECUIT 3/8 WASHER - COPPER - 3/8 CN-347A RACCORD D'ALIM. 3/8 - 3/8 MM FITTING - 3/8 X 3/8 - BVL 37260 POMPE SANS FILTRE ROTATIVE 100L/H PUMP 37223 POMPE SANS FILTRE 100L/H PROCON...
  • Page 93 MOTEUR POMPE RUMBA 03/04 RUMBA PUMP MOTEUR...
  • Page 94 16/04/2004 UNIC PLANCHE/PLATE : 592 DESIGNATION DESIGNATION CH-16 JOINT CUIVRE RECUIT 3/8 WASHER - COPPER - 3/8 CN-347A RACCORD D'ALIM. 3/8 - 3/8 MM FITTING - 3/8 X 3/8 - BVL 37225 POMPE SANS FILTRE PROCON 200L/H PROCON PUMP 37226...
  • Page 95 MOTEUR POMPE AVEC POMPE PROCON 04/04 PUMP MOTEUR WITH PROCON PUMP...
  • Page 96 16/04/2004 UNIC PLANCHE/PLATE : 595 DESIGNATION DESIGNATION CN-347A RACCORD 3/8 - 3/8 FITTING 3/8 - 3/8 37236 RESSORT SORTIE OUTLET SPRING 37240 VALVE BY-PASS OPEN BY-PASS VALVE 37239 AXE BY-PASS BY-PASS PLUNGER 37238 JOINT TORIQUE GASKET 37234 JOINT PLAT GASKET...
  • Page 97 37220 POMPE NU ERT COMPLETE 37220 WHOLE PUMP NU ERT POMPE ROTATIVE SANS FILTRE 200L/H 03/04 PUMP...
  • Page 98 16/04/2004 UNIC PLANCHE/PLATE : 596 DESIGNATION DESIGNATION CN-347A RACCORD 3/8 - 3/8 FITTING 3/8 - 3/8 37236 RESSORT SORTIE OUTLET SPRING 37240 VALVE BY-PASS OPEN BY-PASS VALVE 37239 AXE BY-PASS BY-PASS PLUNGER 37238 JOINT TORIQUE GASKET 37234 JOINT PLAT GASKET...
  • Page 99 37260 POMPE NU ERT COMPLETE 37260 WHOLE PUMP NU ERT POMPE ROTATIVE SANS FILTRE 100L/H 03/04 PUMP...
  • Page 100 16/04/2004 UNIC PLANCHE/PLATE : 655 DESIGNATION DESIGNATION ELECTROVANNE COMPLETE / WHOLE ELECTROVALVE CN-245 ELECTROVANNE 2V 220V 50HZ ELECTROVALVE 2W 220V-50HZ CN-245D ELECTROVANNE 2V 220-60/208-50 ELECTROVALVE 2W 220-60/208-50 CN-631 ELECTROVANNE 2V REGL.220V50HZ ELECTROVANNE 2W ADJ 220-50Hz CN-631A ELECTROV.2V REG.220/60-208/50 WHOLE FLOW ADJ. EV 220V60HZ...
  • Page 101 ELECTROVANNE 03/04 ELECTROVALVE...
  • Page 102 11/05/2004 UNIC PLANCHE/PLATE : 690 DESIGNATION DESIGNATION B-53 ECROU CHROME BLOCAGE BASSINE OVERFLOW-TRAY LOCK NUT CN-45 JOINT TORIQUE 2,62X17,13 GASKET - 17,13 X 2,62 CH-19 JOINT FIBRE DE 3/4 3/4 FIBER JOINT CH-9 ECROU 3/4 LAITON NUT 3/4 B-51 DISQUE CUIVRE DE 3/4...
  • Page 103 RACCORD DE VIDANGE 04/04 DRAIN CONNECTION...
  • Page 104 16/04/2004 UNIC PLANCHE/PLATE : 730 DESIGNATION DESIGNATION ID-68A CACHE DE COMMUTATEUR TERMINAL COVER ID-67A COMMUTATEUR A1700 UL/CSA SWITCH A1700 UL/CSA PA-77 JOINT 6,5 x 16 x 5 GASKET 6,5 X 16 X 5 CN-879 ECROU DE COMMUTATEUR 3/8 NUT 3/8...
  • Page 105 COMMUTATEUR 03/04 SWITCH...
  • Page 106 16/04/2004 UNIC PLANCHE/PLATE : 770 DESIGNATION 29810 ELEMENT CHAUFFANT 110V-1500W HEATING ELEMENT 110V-1500W 29811 ELEMENT CHAUFFANT 230V 2730W HEATING ELEMENT 230V 2730W 29812 ELEMENT CHAUFFANT 230V-4370W HEATING ELEMENT 230V-4370W CV-20 JOINT TORIQUE 3,53X66,68 FKM GASKET - 66.68 x 3.53 29815...
  • Page 107 ELEMENT CHAUFFANT 03/04 HEATING ELEMENT...
  • Page 108 16/04/2004 UNIC PLANCHE/PLATE : 772 DESIGNATION 34201 THERMOSTAT SECURITE 160C TRI THERMOSTAT 160C TRI 34202 THERMOSTAT SECURITE 160C UL THERMOSTAT 160C UL DV2005 TOLE SUPPORT THERMOSTAT SUPPORT SAFETY THERMOSTAT CN-325 VIS INOX TC 4 x 6 SCREW M4 X 6...
  • Page 109 THERMOSTAT DE SECURITE 03/04 SAFETY THERMOSTAT...
  • Page 110 PIECES DETACHEES / SPARE PARTS Ref: RO-68 Ref: RO-55 CACHE BARILLET COVER SORTIE TEFLON COMPLETE WHOLE TEFLON PIPE REF : RO-62A Ref: RO-57 Ref: RO-54 SORTIE TEFLON MELANGEUR PIPE TEFLON PIPE MIXER Ref: PC-38 Ref: RO-58 Ref: CN-436 BUTEE A BILLE JOINT VIS POINTEAU M5 LOCKING SCREW M5...
  • Page 111 16/04/2004 UNIC PLANCHE/PLATE : 975 DESIGNATION DESIGNATION DV1010 KIT CAPPUCCINATORE COMPLET WHOLE CAPPUCCINATORE KIT PH-54 JOINT TORIQUE 2,62X13,95 EPDM GASKET - 13.95 x 2.62 DV6001 TUBE SORTIE VAPEUR STEAM OUTLET PIPE PH-78 JOINT TORIQUE 2,62X9,13 EPDM GASKET - 9,13 X 2,62...
  • Page 112 03/04 CAPPUCCINATORE...
  • Page 113 16/04/2004 UNIC PLANCHE/PLATE : 1010 DESIGNATION DESIGNATION DV55 Fil sonde de niveau Probe wire DV8009 Câble pour commande eau / vapeur Water / steam cable DV8018 Câble doseur volumétrique Volumetric doser cable DV8020 Câble pont Bridge cable DV8105 Câble commutateur / bornier...
  • Page 114 REFERENCES DE CABLES RUMBA 1010 03/04 RUMBA WIRES REFERENCES...
  • Page 115 16/04/2004 UNIC PLANCHE/PLATE : 1020 DESIGNATION DESIGNATION DV55 Fil sonde de niveau Probe wire DV8009 Câble pour commande eau / vapeur Water / steam cable DV8018 Câble doseur volumétrique Volumetric doser cable DV8020 Câble pont Bridge cable DV8105 Câble commutateur / bornier...
  • Page 116 REFERENCES DE CABLES TWIN RUMBA 1020 03/04 TWIN RUMBA WIRES REFERENCES...
  • Page 117 16/04/2004 UNIC PLANCHE/PLATE : 1030 DESIGNATION DESIGNATION DV55 Fil sonde de niveau Probe wire DV8009 Câble pour commande eau / vapeur Water / steam cable DV8018 Câble doseur volumétrique Volumetric doser cable DV8020 Câble pont Bridge cable DV8027 Fil de transmission de données...
  • Page 118 REFERENCES DE CABLES TRI RUMBA 1030 03/04 TRI RUMBA WIRES REFERENCES...
  • Page 119 EV VAPEUR STEAM EV WATER EV L1 L2 ON / OFF SWITCH CHAUDIERE VAPEUR EV CAFE EV VAPEUR EV CAFE STEAM BOILER COFFEE EV COFFEE EV STEAM EV SCHEMA DE CABLAGE TWIN RUMBA 06/09/03 WIRING DIAGRAM 380-400-415 V Tri 50/60HZ+N+TERRE...
  • Page 120 EV EAU PUMP MOTOR STEAM EV WATER EV L1 L2 ON / OFF SWITCH CHAUDIERE VAPEUR EV CAFE EV VAPEUR EV CAFE STEAM BOILER COFFEE EV COFFEE EV STEAM EV SCHEMA DE CABLAGE RUMBA 27/10/03 230V 2GR RUMBA WIRING DIAGRAM...
  • Page 121 WATEUR DOSER WATER EV ENTRELEC N 1 2 3 N 1 2 3 N1 L1L2 L3 ON / OFF CHAUDIERE VAPEUR SWITCH STEAM BOILER N 1 2 3 CABLE D'ALIMENTATION GENERALE GENERAL FEEDING CABLE SCHEMA DE CABLAGE 27/10/03 RUMBA WIRING DIAGRAM...
  • Page 122 WATER EV ENTRELEC N 1 2 3 N 1 2 3 N1 L1L2 L3 ON / OFF CHAUDIERE VAPEUR SWITCH STEAM BOILER N 1 2 3 CABLE D'ALIMENTATION GENERALE GENERAL FEEDING CABLE SCHEMA DE CABLAGE 27/10/03 RUMBA RUMBA WIRING DIAGRAM...
  • Page 123 FILLING EV DOSING BOX EV EAU PUMP MOTOR WATER EV L1 L2 ON / OFF SWITCH CHAUDIERE VAPEUR EV CAFE EV VAPEUR EV CAFE STEAM BOILER COFFEE EV COFFEE EV STEAM EV SCHEMA DE CABLAGE 27/10/03 TWIN RUMBA WIRING DIAGRAM...
  • Page 124 M POMPE EV CAFE 3 EV CAFE 2 CHAUDIERE VAPEUR PUMP MOTOR COFFEE EV COFFEE EV EV CAFE 1 EV VAPEUR STEAM BOILER COFFEE EV STEAM EV EV REMPLISSAGE FILLING EV SCHEMA DE CABLAGE TRI RUMBA 27/10/03 WIRING DIAGRAM 220V 50/60HZ...
  • Page 125 EV CAFE 3 EV CAFE 2 CHAUDIERE VAPEUR PUMP MOTOR COFFEE EV COFFEE EV EV CAFE 1 EV VAPEUR STEAM BOILER COFFEE EV STEAM EV EV REMPLISSAGE FILLING EV SCHEMA DE CABLAGE TRI RUMBA 06/09/03 WIRING DIAGRAM 380-400-415 V Tri 50/60HZ+N+TERRE...
