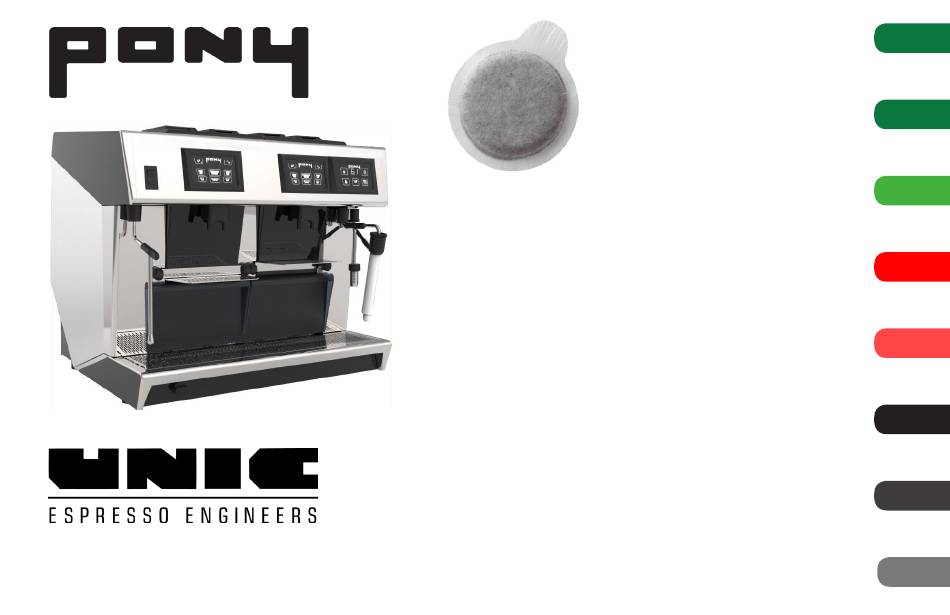

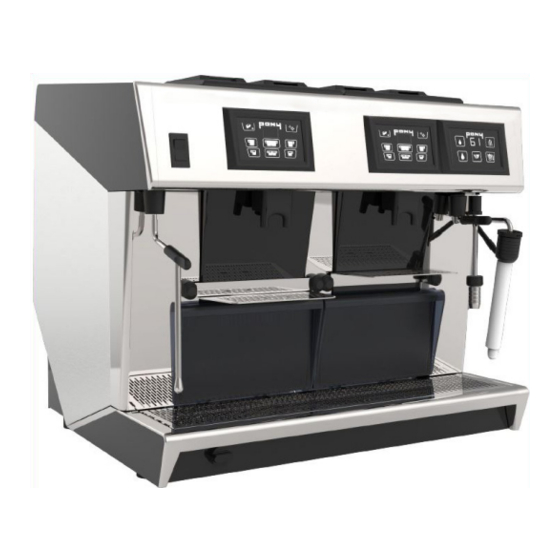

- Page 1 Brew Espresso E.S.E. 7 gram pods Steam Milk Empty Waste Drawer Daily Coffee Cleaning Steam Wand Cleaning Programming Messages v2.16 EN 11-18 Troubleshooting www.unic-usa.com © 2018 UNIC USA...
- Page 2 Insert Pod Start Steam Start Brewing Start Water Tap Hot Water Tap Adjust Foam Cup tray can be mounted Setting in 3 positions: Empty Waste Drawer when full Down no heat with heat Power Switch Attached to drawer...
- Page 3 Brew Espresso Open packet Take care not to tear the pod Store pods so they are E.S.E. not crushed or damaged! Easy Serve Espresso Do not use misshapen or 7 gram pods torn pods! Insert a pod into 1 of the 2 slots on top Place pod halfway in slot before releasing Select Short or...
- Page 4 Brew Double Shot Open packets Use Two E.S.E. Take care not to tear the pods Easy Serve Espresso Store pods so they are 7 gram pods not crushed or damaged! Do not use misshapen or torn pods! Insert 1 pod into both slots on top Place pods halfway in slot before releasing Select Do not drop pods in from...
-
Page 5: Steam Milk
Steam Milk ••• More air • • • • • • • Less air Turn the adjusting Steam Wand should be Press SteamAir Button Fill the Pitcher with collar to vary the centered in the pitcher milk Steam will automatically amount of air in Tip must be at least 1”... - Page 7 Empty Waste Drawer Drawer icon turns red Screen also flashes “dF” Drawer holds 45 spent Empty waste drawer when full pods when full Drawer must be re- Screen displays “dA” Empty Waste Drawer Icon turns green when moved for 8 seconds. (drawer absent) when counter resets - Replace The counter will...
- Page 8 Drawer Level Alert Machine will continue Drawer icon turns Screen flashes “dF” and Drinks can still be counting down and orange when almost displays the number of made when the drawer flashing a warning full drink remaining icon is orange after each cycle The drawer counter re- The drawer may be emptied...
- Page 9 Daily Coffee Cleaning Before Starting the Cleaning Tools Needed: Automatic Cleaning Cycle: 1. Install the Spout Funnel 2. Load Tablets into the Cleaning Tablet Holders Spout Funnel 2 Silicone Tablet Cleaning Tablets #RB 1120 Holders #Cafiza-1.2 tabs #RB 0100 Install Funnel: Attach Tablets: Attach the Insert one cleaning...
- Page 10 Daily Coffee Cleaning Start Cycle: Before starting cleaning see previ- ous page for set-up instructions The cleaning button Carefully insert one Press and hold the cleaning holder with tab- starts flashing blue. cleaning button until cL let into each pod slot. appears on the screen.
- Page 11 Daily Coffee Cleaning Finish Cleaning Cycle: Press either double When finished the dF Empty and replace Remove the drink button to clear (drawer full) or PE (pod Cleaning Inserts. the waste drawer. the display. error) message flashes. Ready See next page for cleaning alerts:...
- Page 12 Mandatory Cleaning Alert Mandatory Cleaning Operation is locked out after a pre-set number of pods are brewed. This is to ensure continued performance. Each cleaning re-set the counter. The number can be changed in the programming section. For low volume machines set the number lower so it will request a cleaning once a day Do not set the alert higher than 250! 20 more drinks are...
-
Page 13: Steam Wand Cleaning
Steam Wand Cleaning Clean the Steam Tip everyday or if steam leaks from the top of the wand The SteamAir Wand may be removed for cleaning if it has heavy milk build-up Switch OFF Switch the machine OFF NEVER soak the before removing the Wand! steam wand in Turn switch all the way... - Page 14 Steam Wand Cleaning Wipe Inner wand Clean Outer Wand Wipe Temperature Make sure all 12 steam tip and Steam Tip in sink Probe holes are clear! Replace Steam Tip Insert Temperature Make sure the probe tip is Install Outer wand Probe into outer wand pushed all the way down when with probe...
- Page 15 Program Steam & Hot Water Manual Steam Small Hot Water Set Time Set volume 30 sec standard or 1 sec purge Large Hot Water Auto shut-off Steam Set volume Set Temperature Hold triangular stop button for 5 seconds to enter programming mode. Program each button by pressing once to start and once again when desired Time, Temerature, or Volume is reached.
- Page 17 Program Coffee Dose part 1 Each of the 4 single buttons needs to Program each button to The center double buttons are auto- be programmed individually the desired level using a matically set from the single values pod (Not just water) Press and hold the Button turns yellow and screen shows do Ready to program!
- Page 18 Program Coffee Dose part 2 START Set machine into Press desired button Place measuring cup Insert a pod on the programming mode to start programming under spout side you wish to (See previous page) program STOP Repeat for the other 3 buttons Coffee starts dispensing Press the same button No need to program the...
- Page 19 Save & Exit Coffee Dose Programming Switch the machine OFF Turn switch all the way to save the values back ON Wait 3 seconds! (2 clicks) (2 clicks) When finished Pro- gramming press the stars key to exit...
- Page 20 Set Mandatory Cleaning Alert Coffee Dose (Level in the cup) & Cleaning Alert are the only user changeable sections Dose: Program coffee doses, see previous pages Pre-infusion: Do Not Change Press and hold the green drawer button for 3 seconds (Will turn yellow) Exhaust: Eject delay Do Not Change...
- Page 21 Set Mandatory Cleaning Alert 25 . Press and hold the Stop at cL for Cleaning Press yellow button to Shows 250 drinks green drawer button for Warning and Press the cycle through the pro- dot = times ten 3 seconds stars button gramming options Wait 3...
- Page 23 See troubleshooting section for details Cleaning: Cleaning required Normal Operation Top Open: Top cover open Drawer Full: Waste drawer full (45 pods) Drawer Absent: Waste drawer removed Pod Error: Pod insertion slots in top cover are blocked Dose Error: Unable to measure water volume when brewing Next Page...
- Page 24 Alternate flashing rows: Normal water filling during startup See troubleshooting section Messages on Steam & Hot Water display: See troubleshooting section for details Filling: Displays on startup See troubleshooting section Filling Error: Water filling error 99: SteamAir milk temperature probe defective Call for Service...
- Page 25 Troubleshooting Cleaning: Cleaning required See Clean Coffee Groups section Orange button: flashes number of drinks left before cleaning. Red button: No drinks possible, machine must be cleaned. Top Open: Top cover open • Make sure the top cover is completely closed. •...
-
Page 26: Troubleshooting
Troubleshooting Drawer Full: Waste drawer full (45 pods) See Empty Waste Drawer section Drawer Absent: Waste drawer removed Call Service if the message doesn’t clear See the end of this section for a temporary override setting Make sure drawer is Check for an obstruction pushed all the way in such as fallen pods... - Page 27 Troubleshooting Pod Error: Pod Sensors in top cover are blocked Never Use Water to clean! Remove the cleaning Brush dirt off sensors just Check for a jammed pod inserts if they are still in inside each side of pod slots place Call Service if the message doesn’t clear...
- Page 28 Troubleshooting Dose Error: Unable to measure water volume when brewing • Make sure that water to the machine is turned on. • Change water filters if they are clogged. • Run a cleaning cycle. • Call service if the message doesn’t clear. Group 1: Displays briefly on startup •...
- Page 29 Troubleshooting Alternate flashing rows: Water filling error and / or Filling Error: Water filling error (Steam & Hot Water display) • Make sure that water to the machine is turned on. • Change water filters if they are clogged. • Switch machine OFF and ON to reset.
- Page 30 Troubleshooting Cold Coffee or No Steam: Machine may be on the power only setting (Position 1) Turn main power switch fully to the right Position 0 Position 2 Position 1 Full OFF position Power and Heating Power with no heating (used for servce) No Foam in Milk / Steam Wand leaking from top: Steam wand and steam tip may be dirty or clogged...
- Page 31 Troubleshooting Jammed or Broken Pod: Never pour water into Open the top cover and Carefuly remove as much Use the handle of a spoon the group try to lift pod out of the of the pod as possible to gently push any remaining holder pods through to the drawer Call for Service...
- Page 32 Troubleshooting Emergency settings to allow operation if pod or drawer sensors are not working Override PE “pod error” message: Manual drink mode: Press all 3 top row buttons at the same time for 10 seconds. Buttons flash 3 times to confirm. Screen shows 2 lines blinking.
- Page 33 Parts & Supplies Spout Funnel Waste Drawer Silicone Tablet Cleaning Tablets #RB 1120 RB 1200 Holders #Cafiza-1.2 tabs #RB 0100 100 count Steam Tip Cup Shelf 25909 RB 3066...
- Page 34 © 2018 UNIC USA...
