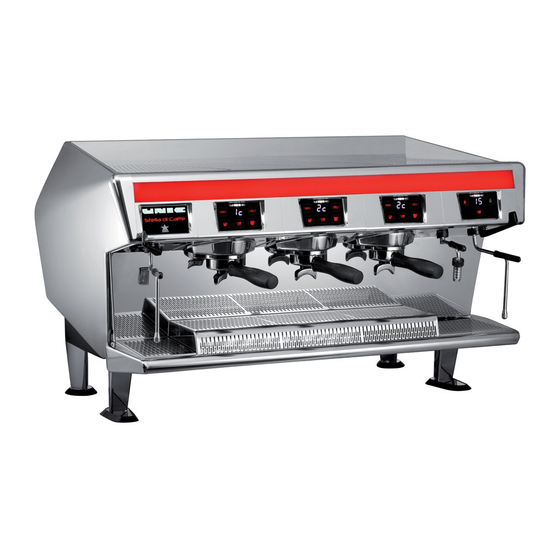

Bgx/bst control box replacement

Hide thumbs Also See for Stella di Caffe:

 BGX/BST control box replacement:

Switch the machine off and unplug.

Loosen the two screws (A) under the side grilles of the cup warmer by approximately 7 turns and

release the front panel from the hooks by pushing the screws downward.

Tilt the front panel forward to gain access to the wiring connections.

Disconnect both wiring connections from BTA and the following connections from each BGX: CN1,

CN4, CN5, CN6.

Place the front panel flat on a protected surface to avoid scratching it and to have access to the

screws on the back.

Tools required:

Flat screwdriver

Philips screwdriver, P1

Table of Contents

Do you have a question about the Stella di Caffe and is the answer not in the manual?

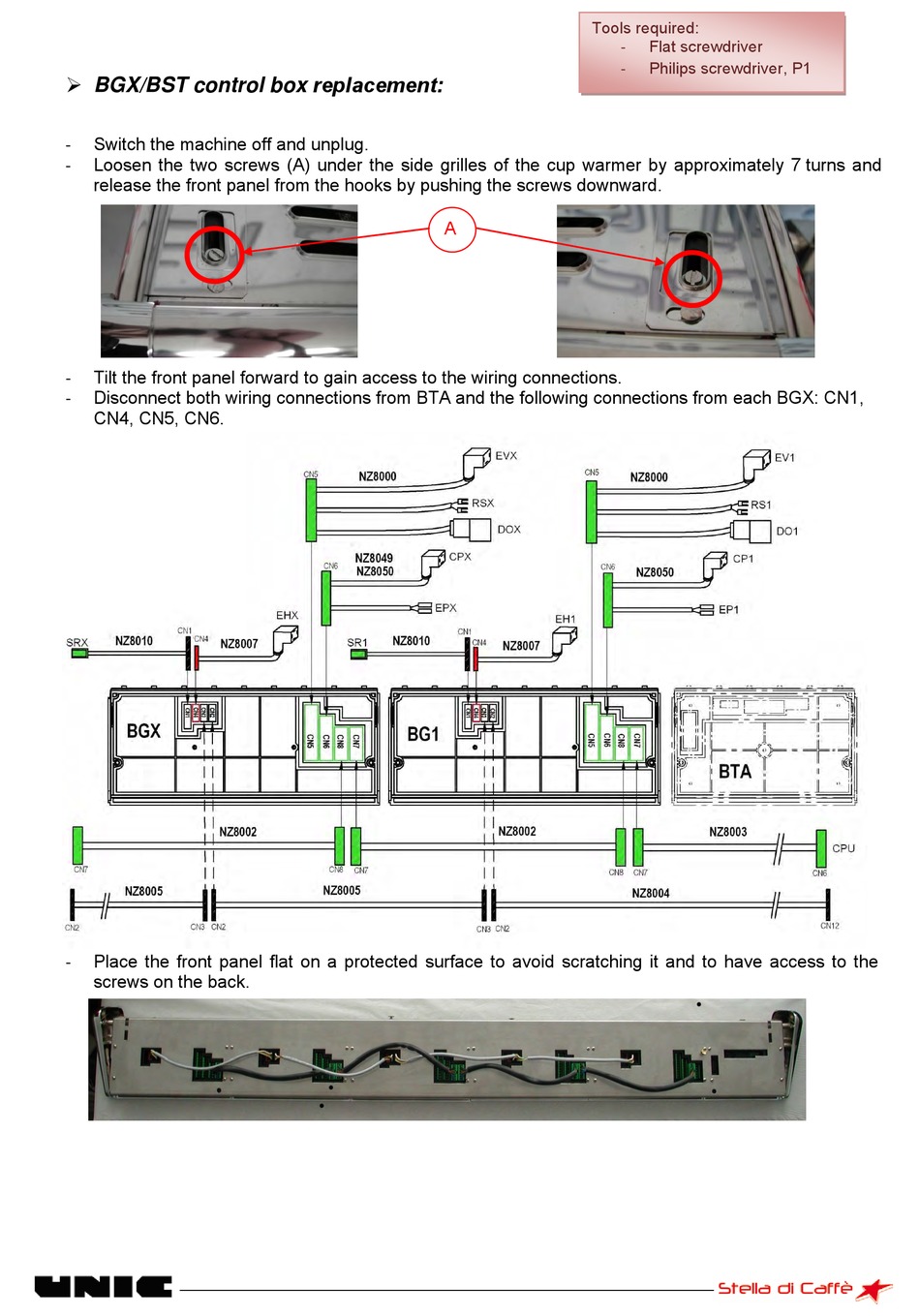

Page 1 Tools required: Flat screwdriver Philips screwdriver, P1  BGX/BST control box replacement: Switch the machine off and unplug. Loosen the two screws (A) under the side grilles of the cup warmer by approximately 7 turns and release the front panel from the hooks by pushing the screws downward. Tilt the front panel forward to gain access to the wiring connections.
Page 2 Loosen the screws holding the top of the panel (B) to remove it. Remove the light diffuser strip. Disconnect all wiring harnesses from the control box to be changed and remove its four screws Also loosen the screws holding the adjacent BGX control boxes to leave enough clearance to be able to remove the control box being changed.
