Summary of Contents for Clarke PSE1A

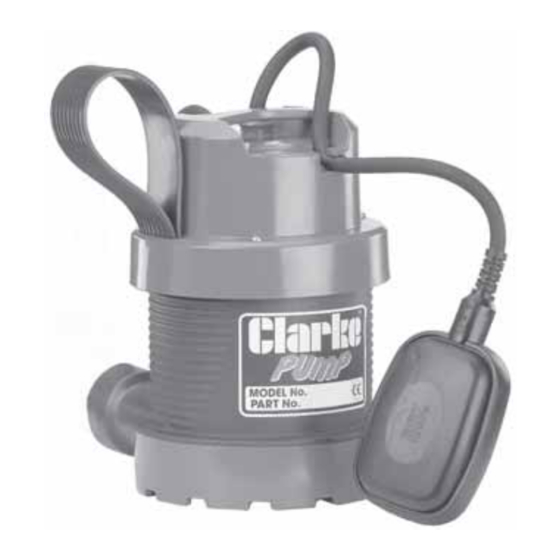

- Page 1 CLEAN WATER PUMP CLEAN WATER PUMP MODEL No: PSE1A + PSE2A Part No: 7236025, 7236030 OPERATION & MAINTENANCE INSTRUCTIONS 0807...
-
Page 2: Table Of Contents
INTRODUCTION • Thank you for purchasing this CLARKE clean water pump. • This highly efficient pump is designed for pumping clean water only, and is ideal for draining ornamental ponds, swimming pools etc. GUARANTEE • This product is guaranteed against faulty manufacture for a period of 12 months. -
Page 3: Specifications
SPECIFICATIONS t t i ” 4 ” 4 * Duty Cycle = 2 hours on, followed by 1 hour off. PSE1A PSE2A... -
Page 4: For Your Own Safety
FOR YOUR OWN SAFETY KEEP CHILDREN AWAY • Do not allow children to touch the pump, cables or connections. USE A RESIDUAL CURRENT DEVICE: • The pump must be connected to a high sensitivity residual current device (RCD) which has a tripping current of less than 30mA. STORAGE •... -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. WARNING! THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green &... - Page 6 RECOMMENDED USES The recommended uses for this pump are: • Drainage after flooding • The transfer of liquids • Drainage of containers • Taking water from wells and shafts Liquids that CAN be pumped: • Clean water • Contaminated water (maximum particle size 5 mm) •...
-
Page 7: Parts Identification
PARTS IDENTIFICATION Handle Pump Float Base Switch May be supplied fitted to the pump 1/2” 3/4” 1” Elbow Multi Hose Adaptor... -
Page 8: Preparation
The pump is completely submersible, and should be placed in a vertical position, on a solid flat surface, Placing the pump on a couple of house bricks if required. SUITABLE HOSES, and SPARE/REPLACEMENT MULTI HOSE ADAPTERS ARE AVAILABLE FROM YOUR CLARKE DEALER... -
Page 9: Using The Pump
USING THE PUMP CAUTION! CHECK THE PUMP FOR DAMAGE BEFORE USE, DO NOT USE THE PUMP IF IT IS DAMAGED IN ANY WAY Place the pump on a flat surface in the area that you want to drain. • If there is sediment in the operating area, the pump should be placed on house bricks, or similar. -
Page 10: Cleaning And Maintenance
BEFORE CLEANING, OR PERFORMING ANY MAINTENANCE. • These pumps should require no maintenance other than regular cleaning. If the pump starts to show signs of wear or damage, contact your CLARKE dealer for advice. • Do not attempt to repair the pump yourself, repairs must be carried out by your CLARKE dealer, or contact the CLARKE Service Department, on 020 8988 7400. -
Page 11: Troubleshooting
, s t e l l PARTS & SERVICE CONTACTS For spare parts and service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. PARTS & SERVICE TEL: 020 8988 7400 or e-mail as follows: PARTS: Parts@clarkeinternational.com...
