One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the iCoupler
FEATURES
Access to all 6 data channels
Multiple connection options
Support for Tektronix active probes
Provision for cable terminations
Support for PCB edge-mounted coaxial connectors
Easy configuration
Installed iCoupler digital isolator:
SUPPORTED iCoupler MODELS
ADuM7640
ADuM7641
ADuM7642
ADuM7643
See the last page for an important warning and disclaimers.
ADuM7640/ADuM7641/ADuM7642/ADuM7643
6-Channel Digital Isolators
ADuM7643

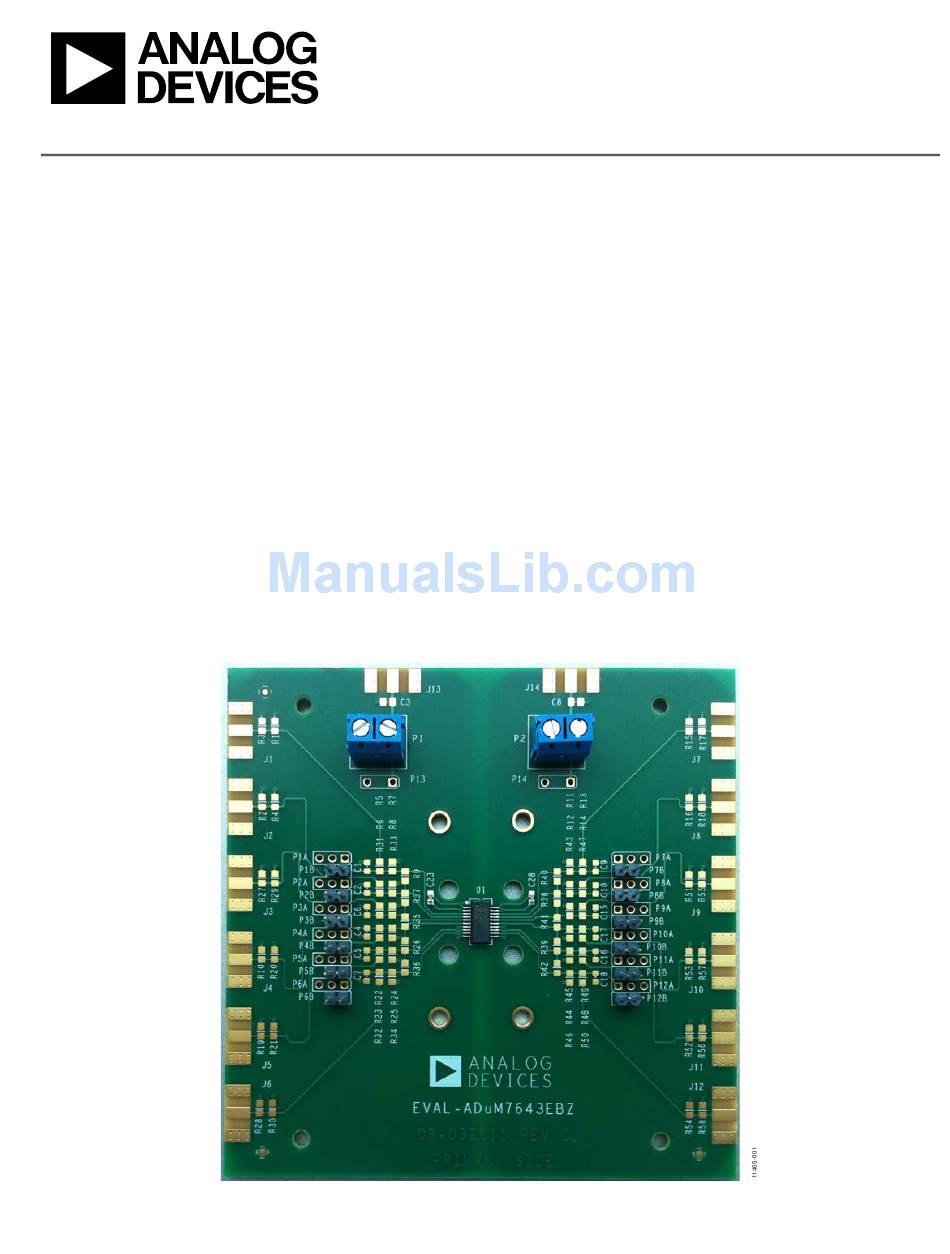

PHOTOGRAPH OF THE EVALUATION BOARD
Figure 1.
EVAL-ADuM7643EBZ
Rev. 0 | Page 1 of 8
Evaluation Board User Guide
GENERAL DESCRIPTION
The
EVAL-ADuM7643EBZ
ADuM7641, ADuM7642, and ADuM7643, which are 1 kV,
6-channel iCoupler® isolators. The evaluation board provides a
JEDEC standard 20-lead QSOP pad layout, support for signal
fanout, and loopback as well as optimal bypass capacitance. Signals
can be wired onto the board as well as brought onto the board
through edge-mounted SMA connectors (sold separately) or
terminal blocks for power connections. The board includes 200 mil
header positions for compatibility with Tektronix active probes.
The board follows best printed circuit board (PCB) design practices
for 4-layer boards, including a full power and ground plane on
each side of the isolation barrier. No other EMI or noise mitigation
design features are included on this board. In cases of very high
speed operation or when ultralow emissions are required, refer
to the
AN-1109
application note for additional board layout
techniques.
Evaluation Board
UG-547
supports the ADuM7640,
Advertisement
Table of Contents
Related Manuals for Analog Devices UG-547
Summary of Contents for Analog Devices UG-547
-
Page 1: Features
Evaluation Board User Guide UG-547 One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com Evaluating the iCoupler ADuM7640/ADuM7641/ADuM7642/ADuM7643 6-Channel Digital Isolators FEATURES GENERAL DESCRIPTION EVAL-ADuM7643EBZ supports the ADuM7640, Access to all 6 data channels... -
Page 2: Table Of Contents
UG-547 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Connectors ..................3 Power Input ..................3 Supported iCoupler Models ............1 General Description ................. 1 Data I/O Structures ...............3 Photograph of the Evaluation Board ..........1 Bypass on the PCB ................4 Revision History ................ -
Page 3: Evaluation Board Circuitry
Evaluation Board User Guide UG-547 EVALUATION BOARD CIRCUITRY Power can be connected through the P1 and P2 terminal blocks, or PCB EVALUATION GOALS can be wired directly to the PCB via the P13 and P14 through- EVAL-ADuM7643EBZ board is intended to achieve the hole connectors. -
Page 4: Bypass On The Pcb
UG-547 Evaluation Board User Guide 2-pin header to allow adjacent channels to temporarily be supply. Parallel bypass capacitors are installed near the ADuM7643 shorted together. and consist of a 0.1 µF capacitor for each V on the top side DDxA A 0805 pad layout between the signal and ground where a and bottom side and a 0.1 µF capacitor for each V... -
Page 5: Evaluation Board Schematics And Artwork
Evaluation Board User Guide UG-547 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 4. EVAL-ADuM7643EBZ Schematic Rev. 0 | Page 5 of 8... - Page 6 UG-547 Evaluation Board User Guide Figure 5. Top Side Layout Rev. 0 | Page 6 of 8...
-
Page 7: Bill Of Materials
Evaluation Board User Guide UG-547 BILL OF MATERIALS Table 1. Bill of Materials Reference Designator Description Part Number Analog Devices, Inc., ADuM7643 C19, C21, C23, C28 0.1 µF, 25 V, 10%, 0805 C3, C8 0805 bypass capacitor position R1 to R58... - Page 8 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
