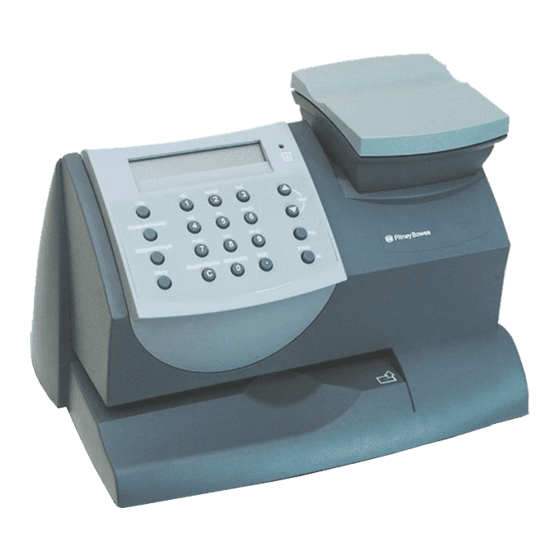

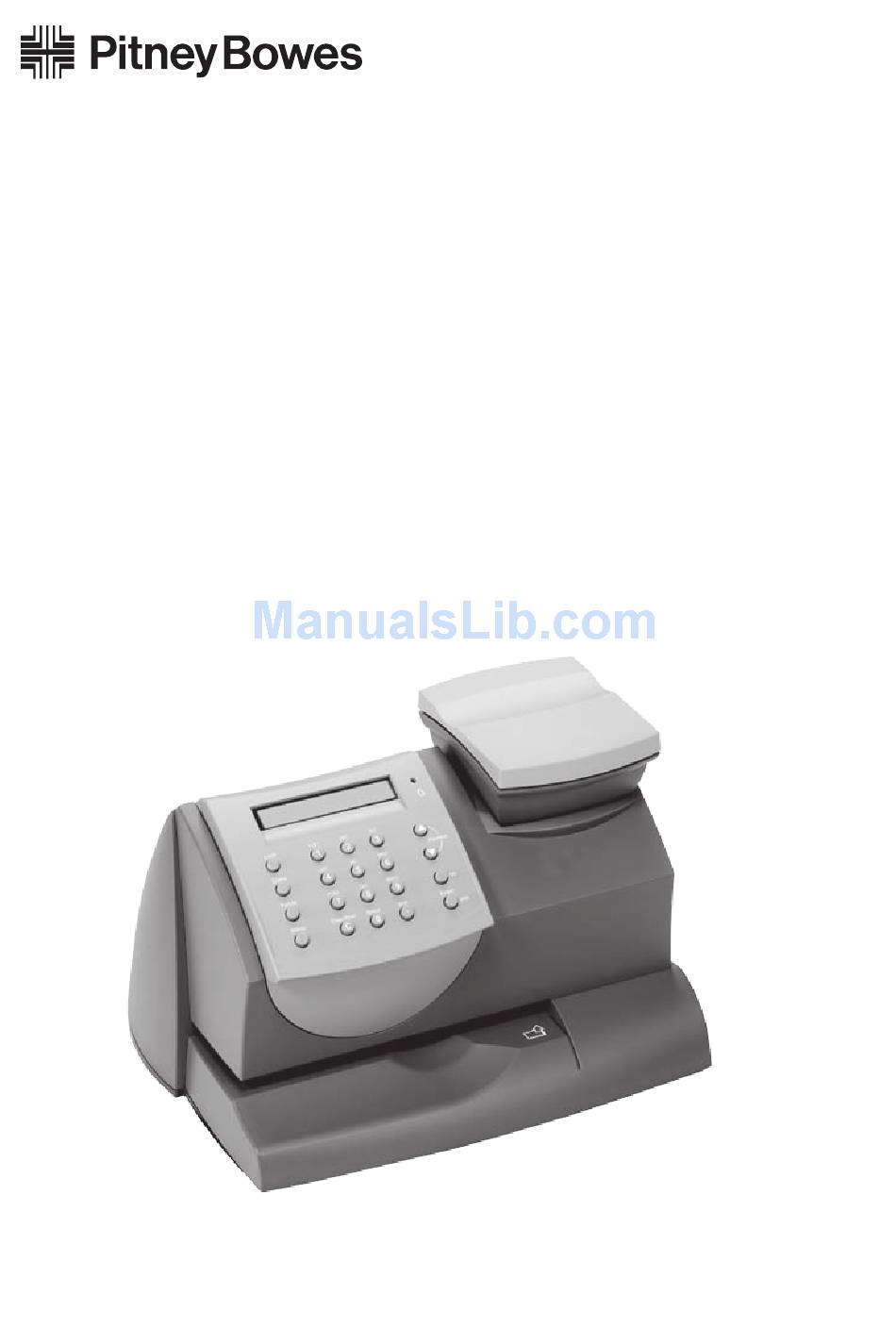

DM50 Series Digital Mailing System
(K700 series)
Your new system has been
designed to let you set it
up on your own. It should take
approximately 20-25 minutes to
complete the installation.
It is important that you
carefully read and follow the
sequence of steps in this
guide to successfully install
this product.
Quick Install Guide
UK Version

Advertisement

loading
Need help?

Need help?

Do you have a question about the DM50 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pitney Bowes DM50 Series

Summary of Contents for Pitney Bowes DM50 Series

  • Page 1 DM50 Series Digital Mailing System (K700 series) Your new system has been designed to let you set it up on your own. It should take approximately 20-25 minutes to complete the installation. It is important that you carefully read and follow the...
  • Page 2  USB Cable Splitter NOTE: If you have received a replacement system, you will only have a Mailing Machine and a Pitney Bowes Ink Catridge. If anything is missing, please contact our support team at: customerservicesccc@pb.com Check that the Mailing Machine 'Meter #' matches the meter number...
  • Page 3 Step Choose a Connection Method You have to connect to the Pitney Bowes Data Centre to add postage funds, get software updates, and perform required Postal Authority inspections. You have the choice of connecting either via an internet enabled PC using Pitney Bowes PC Meter Connect™...
  • Page 4 Step Connect to the Phone and Power Only follow this step if you have chosen to connect using an analogue telephone line and you are not using PC Meter Connect™. To install your system, you must have an analogue phone line. The following are usually analogue phone lines: •...
  • Page 5 Step Install the Ink Cartridge Add ink cartridge, Continue - Press Enter Press Enter/yes on the When prompted, lift the cover. control panel. NOTE: If the carriage is not visible, close the cover and press Enter/yes again. Press unlock symbol Remove new cartridge from its plastic wrapping.
  • Page 6 Step Install the Ink Cartridge (continued) Install new cartridge Remove protective into machine. Align tape from bottom of ink base of cartridge first cartridge. before pushing the top back. Close cover. Press ink cartridge latch where shown until it Press Enter/yes. clicks and loosely holds cartridge in place.
  • Page 7 Step Install the Ink Cartridge (continued) When prompted, insert a spare envelope or a tape/label sheet for a test print. NOTE: To print correctly, insert envelope or tape against the Right Registration Wall and gently slide it into the machine. The machine will detect the envelope or tape and automatically begin printing.
  • Page 8 Step Account Balance, Add Postage and Updating Software You have to add postage funds to your meter before you use it. If you are installing the system using an analogue phone line, you will be asked if you need to dial a number to reach an outside line (for example, if you have to dial 9).
  • Page 9 Step Account Balance, Add Postage and Updating Software (continued) Either press Enter/yes to accept this amount, or press Clear/Back and type in the amount of postage you wish to add (the amount must be in increments of £10). Press Enter/yes to confirm. Confirm the amount by pressing Enter/yes again.

  • Page 10: Envelope Messaging

    Creating a Preset with your company Step Envelope Messaging You don’t have to program the values that go into the preset in the traditional sense. Instead, the system takes a “snapshot” of the current values on your machine when you define the preset. For example, if the machine is set up to print a Graphic Ad, no class is selected, and a postage amount is already on the screen, these are the conditions that will be recorded by your system when you...

  • Page 11: Troubleshooting

    Troubleshooting No Dial Tone - Check that you are using an analogue line such as: a) Fax lines b) Lines used by modems or credit card readers c) Residential phone lines Check that you have entered a dialling prefix if your phone system needs a code to reach an outside line.
  • Page 12 PB Form SDC668C RevB (01-12) *SDC668C* © Pitney Bowes Limited, 2012 We have made every reasonable effort to assure the accuracy and usefulness of this guide, however we cannot assume responsibility for errors or omissions or liability for the misuse or misapplication of our products.
