  • Page 1 MPEG-2 Encoder with Multiplexer, with 8x CVBS Input, with ASI & IP Output User’s Manual EMU-8110...

  • Page 2: Table Of Contents

    3.1 Initializing ............................13 3.2 General Setting ..........................13 4.1 Installation ............................26 4.2 Software Operation ......................... 26 4.3 IRENIS EMU-8110 Encoder Operation ..................32 4.4 Other Settings ..........................42 Chapter 5 Troubleshooting ........................45 Chapter 6 Packing list ........................... 46...

  • Page 3: Chapter 1 Product Introduction

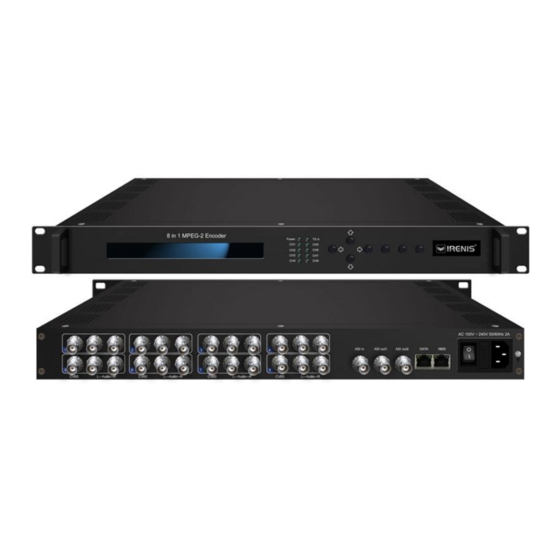

    Chapter 1 Product Introduction 1.1 Outline This IRENIS EMU-8110 encoder supports 8 AV (8 CVBS and 8 unbalanced analog stereo audio) and 1 ASI input, after multiplexing process, it gives ASI and IP output at the same time. Users can manage the device through the NMS. Besides, it supports MPEG-2 video encoding, and the audio encoding supports MPEG1-LAYER 2, AAC and AC3.

  • Page 4: Specifications

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 1.3 Specifications 8 CVBS inputs , BNC interface Input 8 pairs unbalanced stereo audio input, BNC interface 1 ASI input, BNC interface PAL: 720×576_50i ,704*576_50i,640*576_50i, 320*288_50i, 176*288_50i, ,176*144_50i Resolution NTSC: 720×480_60i, 544×480_60i,352×480_60i 320*240_60i ,176*240_60i, 176*120_60i...

  • Page 5: Principle Chart

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 1.4 Principle Chart 1.5 Appearance and Illustration Front Panel Illustration: Indicate area: All indicators will light on when the device is on the current working state. LCD screen Power indicator TS in: input lock indicator...
  • Page 6 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Rear Panel Illustration: 8 * CVBS input ports CVBS input serial number from 1 to 8 Video input port Audio input port (Left & Right channels) ASI input port 2 * ASI output ports...

  • Page 7: Chapter 2 Installation Guide

    2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  IRENIS EMU-8110 Encoder  User Manual  Analog Audio/Video Composite Input Cable ...
  • Page 8 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m.

  • Page 9: Wire's Connection

    When the device adopts united way, the grounding resistance should be smaller than 1Ω. Caution: Before connecting power cord to IRENIS EMU-8110 Encoder, user should set the power switch to “OFF”. 2.4 Signal Cable Connection The signal connections include the connection of input signal cable and the connection of output signal cable.
  • Page 10 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 2.4.2 ASI output cable illustration: 2.4.3 Network Cable illustration (CAT5): 2.4.4 Unbalanced audio and CVBS video input connection User can firstly find the CVBS input connector on the device according to the connector mark described on the rear panel illustration, and then connect the analog CVBS video and unbalanced audio cables (in the accessories).
  • Page 11 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 2.4.5 ASI output interface connection User can firstly find the ASI output interface on the device according to the connector mark described on the rear panel illustration, and then connect the ASI cable (in the accessories).
  • Page 12 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Users can firstly find the NMS interface on the device according to the connector mark described on the rear panel illustration, and then connect the network (CAT5). One end of the network cable is connected to the encoder’s NMS connecter, while the other end to the computer or the PC.

  • Page 13: Chapter 3 Operation

    IRENIS EMU-8110 Chapter 3 Operation This IRENIS EMU-8110 Encoder’s front panel is user operating interface. Before operating, user can decide whether directly use the default setting or customize the input and output parameters setting. The detail operations go as follows:...

  • Page 14: Video Setting

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 By pressing LOCK key, users can enter in the main menu and set the input and output parameters in the following editing interfaces, the LCD will display the following pages: ►1 Input Setting 2 ASI Setting...
  • Page 15 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 ►1.1.1.5 Hue 1.1.1.6 Aspect Rati 1.1.1.7 Coding Type 1.1.1.8 Resolution ►1.1.1.9 Rate Mode 1.1.1.A Bit Rate 1.1.1.B Max Bit Rate 1.1.1.C Gop Struct ►1.1.1.D Video Sharp 1.1.1.E MP4 Profile  Input This is for user to check the input port type and it is read-only. It will identify the input port type automatically.
  • Page 16 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 NOTE: Below explanations are applied in this entire manual. 1) To press ENTER to start editing. 2) To move the underline through LEFT/RIGHT keys. 3) To modify the value of underlined character through UP/DOWN keys.
  • Page 17 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 1.1.1.8 Resolution 01/06 [720*576_50I] 704*576_50I  Rate Mode User can choose CBR & VBR at this menu. CBR (Constant Bit-rate) means that the bit-rate will be a constant value. VBR (Variable Bit-rate) means that the bit-rate will always change along with the video scene changing.
  • Page 18 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 1.1.1.D Video Sharp 01/01 Close Flat Common [Sharp]  MP4 Profile Setting Users can set the MP4 Profile in this interface, and the LCD will display the following page. There are three options (SP1, SP2 and ASP) to select.

  • Page 19: System Settings

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110  Audio Format Setting AAC: Advanced Audio Coding AC3: Audio Coding Users can set the input audio format in this interface, and the 5 options are MPEG1 Layer Ⅱ, PD-CE (AC3-CE), DD-PE (AC3-PE), LC-AAC, and HE-AAC. When users enter the main editing menu, the LCD will display the following page: 1.1.2.3 Format...
  • Page 20 MPEG-2 Encoder User’s Manual IRENIS EMU-8110  Video/Audio/PMT/PCR PID Settings Users can set these parameters by pressing ENTER to enter these submenus. The LCD will display the following pages, and the maximum PID number cannot exceed 0x1fff. 1.1.3.2 Video PID 0*0102 1.1.3.3 Audio PID...
  • Page 21 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 3.2.1.4 Program Mux Setting Users can decide whether to open the multiplexing function of the device.  Channel Mux Under this interface, users can decide whether to multiplexer the channel encoding stream. YES means that the device multiplexes the encoding stream into the MPTS, while NO means that the output program is SPTS.
  • Page 22 IRENIS EMU-8110 3.2.3.1 IP Out Enable This is the new function of this EMU-8110 encoder, user can decide whether to open the IP output function by press the ENTER key in this menu, and the operating interface will show the following page: ►...

  • Page 23: Output Mode

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 3.5 Output Stream 040.000 Mbps 3.2.3.6 Output Mode Users can set the output mode in this interface after pressing the ENTER key to enter the main editing page. 3.6 Output Mode 01/01 [1IP] 3.2.3.7 ASI Output Users can set the ASI output in this interface under this menu, and there are 9 options: MPTS, Channel 1-8.
  • Page 24 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 4.1 IP Address 192.168.002.136 4. 2 Subnet Mask 255.255.255.000 4.3 Gateway 192.168.002.001 4.4 Console Address 192.168.002.211 The MAC address is read-only in the keyboard operation interface, so users can just check the physical address under this interface, and the modification must be done in the network updating tools.
  • Page 25 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 will display the following interfaces: ►6.1 Load Saved 6.2 Load Default 3.2.7 Version Users can check the device software version and hardware version, and the LCD will display the following interface when users press the ENTER key.

  • Page 26: Installation

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Chapter 4 NMS Operation Network Management System Profile Network management system is applied to digital TV equipment operation, control and management and parameters setting, etc. It centralizes digital TV equipment through network. 4.1 Installation The software doesn’t need special installation.
  • Page 27 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 User can login the NMS by pressing OK key after inputting user name. Upon the inputs, the software will verify them with database record automatically and the main interface will appear. 4.2.2 Main Interface User can create a device node tree in the left column by adding, modifying and deleting the device node.
  • Page 28 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 The Add Freq Point dialog box popes up when the user clicks the Add Freq Point item in the Edit pull down menu on the menu row. The device will confirm the given frequency while user clicks OK.
  • Page 29 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 4.2.4 Adding Equipment under Given Frequency Point User should choose the frequency point in advance, and then the dialog box of Add Equipment will pop up when user clicks “Add Equipment” item in the Edit pull down menu on the menu row.
  • Page 30 “▼” Or Click “?” to auto search the type of device. NOTE: The default IP of the IRENIS EMU-8110 Encoder is 192.168.2.136, also you can check its IP address in the front panel of device in case the IP changed unexpected.

  • Page 31: Save Configuration

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 “delete” item in the pull down menu which appears by clicking the right mouse key. 4.2.7 Save Configuration After finishing all the parameters setting, user can click button on the toolbar to save the modifications to the device’s flash, while user can also reload the saved parameters from device’s flash and refresh the device’s parameters setting according to the loaded values...

  • Page 32: Irenis Emu-8110 Encoder Operation

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 4.3 IRENIS EMU-8110 Encoder Operation User can choose the 8 in 1 MPEG-2 encoder in the device tree; the procedure will display the encoder interface in operating area. The interface is mainly composed of encoding video parameters, audio parameters and the encoding system parameters, output parameters and etc.
  • Page 33 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Check the checkbox with “√”, then the IP output is enabled, otherwise it is not. Users can decide whether to open the IP output function or not.Users can modify the IP address here as well.
  • Page 34 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 In this field, users can decide whether to effect the NIT insertion function.  MPTS Filter Null Packet If this function is effected, then the null packets in IP output stream will be filtered.
  • Page 35 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 2. If any parameter is modified, it is supposed to click Set to make the modified to read and effect the current device’s parameters activate and click Get activating parameters. 4.3.1.2 Audio Parameters Users can set...
  • Page 36 MPEG-2 Encoder User’s Manual IRENIS EMU-8110  IP Output Enable Check the checkbox with “√”, then the IP output is enabled, otherwise it is not. Users can decide whether to open the IP output function or not.Users can modify the IP address here as well.
  • Page 37 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 8 CVBS Encoding Channels 1 ASI Input Channel Instruction for input channel status The programs in the left column represent all input programs and which port they come from, while the programs in the right column represent the output programs and from which port they are from.
  • Page 38 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Select the target item and input the new value in the box below, then click to effect the modification. : The parsing overtime value 4.3.3 Tables 4.3.3.1 PID Filter Table Users can operate PID filter in this table by checking the check boxes of corresponding items and click CONFIRM to effect.
  • Page 39 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Refresh: getting PID filter table from the device Setting: submitting the PID filter table to the device Check All: selecting all the selections of the list After user selects one PID in the table, then the corresponding output PSI/SI table will not be sent to the output stream.
  • Page 40 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Input PID and Output PID The Old (Input) PID is the PID number in the TS from given Port. The correspondent New (output) PID number could be same as input PID number while it could be different if a PID remapping is needed.
  • Page 41 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 ：The parameter describes the output TS’s network name. Insertion private description ：This checkbox will allow user to insert the private descriptor into the output TS. The private descriptor includes two parts. One is descriptor tag, and the other is descriptor information.

  • Page 42: Other Settings

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 ：The “Modify” button will trigger a modify window and allow user to modify the selected items in the NIT. ：The “Delete” button will remove the selected items in the NIT. ：The set “Button” will send the NIT to the chosen output Port.
  • Page 43 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 configuration permanently, it is required to operate through “Remote Save” on the toolbar explained in 4.2.7. This is the difference between “Set” and “Remote Save”. 4.4.2 IP Modification Users can click Operate and select Modify IP in the drop-down list, and a dialog box presents itself as shown below.
  • Page 44 MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Input the new IP Address in the box and click OK button, the device will be connected again. After finishing all the parameters setting, user should click button on the toolbar to save the modifications to the device’s flash.

  • Page 45: Chapter 5 Troubleshooting

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Chapter 5 Troubleshooting Our ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All our products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by us.

  • Page 46: Chapter 6 Packing List

    MPEG-2 Encoder User’s Manual IRENIS EMU-8110 Chapter 6 Packing list  IRENIS EMU-8110 Encoder 1 pce  User manual 1 pce  Analog Audio/Video Composite Input Cable 8 pcs  ASI cable 1 pce  Power cord 1 pce 46 / 46...
