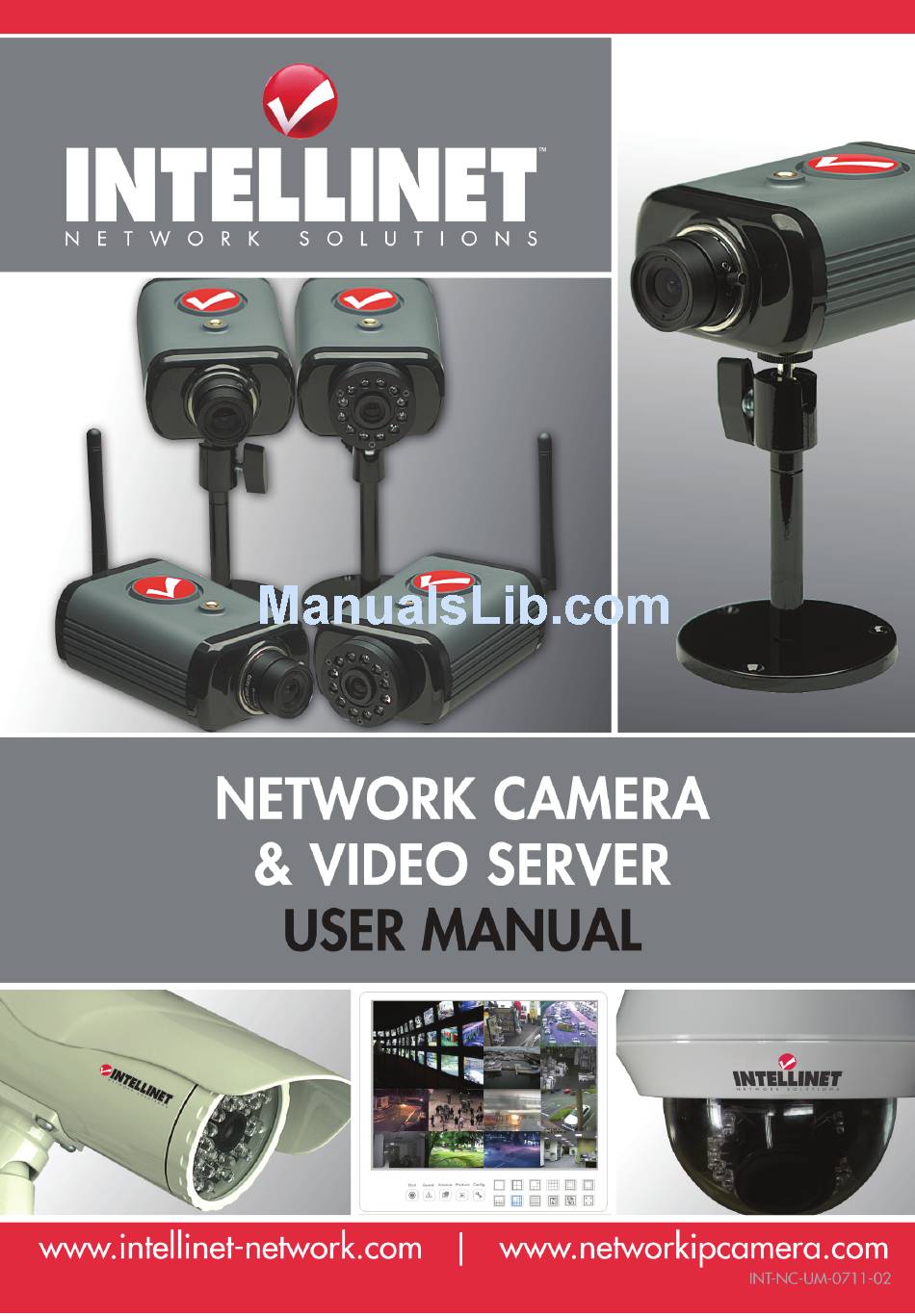

Intellinet NSC15 User Manual

Network camera & video server
Hide thumbs Also See for NSC15:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NSC15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellinet NSC15

Summary of Contents for Intellinet NSC15

  • Page 2: Table Of Contents

    3.1 F & R ................11 RONT 3.1.1 NSC15/NSC15-WG/NSC16-WG Network SOHO Cameras ..... 11 3.1.2 NFC30/NFC31 Network Fixed Cameras ........13 3.1.3 NFD30 Network Dome Camera ..........15 3.1.4 NFD130-IR Network Dome Camera .......... 17 3.1.5 NFD130-IRV Network Dome Camera ........18 3.1.5 NBC30-IR Outdoor Network Camera .........

  • Page 3: Safety And Regulatory Notices

    Safety and Regulatory Notices Thank you for purchasing this INTELLINET NETWORK SOLUTIONS™ Network Camera or Network Video Server. This user manual includes instructions for using and managing the camera on your network. Experience in networking will be helpful when setting up and using this product. Updated versions of this document will be posted to www.intellinet- network.com as they become available.
  • Page 4 Waste Electrical & Electronic Equipment Disposal of Electric and Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or its packaging indicates that this product shall not be treated as household waste. Instead, it should be taken to an applicable collection point for the recycling of electrical and electronic equipment.

  • Page 5: Important Information

    Important Information Camera surveillance laws may differ for each country. Contact the local authorities to avoid any surveillance law violations. Note that the image sensor of this network camera can be damaged permanently if exposed to direct sunlight. Defective image sensors that have been damaged by prolonged exposure to direct sunlight are excluded from the product warranty.

  • Page 6: 1: Product Overview

    1: Product Overview 1.1 Network Cameras Network cameras are closed-circuit television (CCTV) cameras that use the Internet Protocol (TCP/IP) to transmit image data over an Ethernet or Wireless LAN connection. As such, network cameras are also referred to as IP cameras. IP cameras are primarily used for surveillance applications.

  • Page 7: Model Overview

    1.3 Model Overview This user manual contains information for the following models: 1. NSC15/NSC15-WG Motion-JPEG + MPEG4, Audio, 300k CMOS NSC15-WG only: Day/Night, 54 Mbps Wireless 802.11g 2. NSC16-WG Motion-JPEG + MPEG4 + H.264, Audio, 1.3M CMOS, Day/Night, 54 Mbps Wireless 802.11g 3.
  • Page 8 5. NFC31/NFC31-WG Motion-JPEG + MPEG4 + H.264, Audio, 1.3M CMOS NFC31-WG only: 54 Mbps Wireless 802.11g IEEE 802.3af PoE Support for wired model NFC31. 6. NFC31-IR/NFC31-IRWG Motion-JPEG + MPEG4 + H.264, Audio, 1.3M CMOS, Day/Night, IR LEDs NFC31-IRWG only: 54 Mbps Wireless 802.11g IEEE 802.3af PoE Support for wired model NFC31-IR.

  • Page 9: 2: System Requirements

    RAM: 2 GB OS: Windows XP, Windows Vista or Windows 7 2.2 Operating System and Web Browser Support INTELLINET NETWORK SOLUTIONS network cameras support Web-browser based access for all major operating systems. • Windows 2000, Windows XP, Windows Vista and Windows 7 - MS Internet Explorer 7.x and 8.x (ActiveX &...

  • Page 10: Limitations

    2.3 Limitations Web Browser Access While it is possible to connect to the network camera with a Web browser other than MS Internet Explorer, some of the features cannot be used. Refer to the overview below: MS Internet Explorer 7.x and 8.x (ActiveX) - view live video in all formats - record live video by right-clicking the live video - listen to audio...

  • Page 11: Front & Rear

    3.1.1 NSC15/NSC15-WG/NSC16-WG Network SOHO Cameras Front The image above shows the options for the wireless models NSC15/16-WG. The wireless antenna connector and the Night-Vision LEDs are exclusive to these models and cannot be found on the wired model NSC15. - 11 -...
  • Page 12 Stereo connector for the connection of active speakers or other line-out audio sources. LAN: Connection for standard RJ45 Cat5 (or better) network cable. Maximum length is 100 m / 300 ft. Connection of NSC15 to the network (wired) - 12 -...

  • Page 13: Nfc30/Nfc31 Network Fixed Cameras

    3.1.2 NFC30/NFC31 Network Fixed Cameras Front Top Mounting Point 1/3” CS-Mount Lens Bottom Mounting Point Camera Stand Front IR Versions The IR cameras are equipped with a fixed lens that cannot be removed or replaced. The IR lens features 12 IR LEDs that output a wavelength of 850 nm and allow the camera to capture video in complete darkness.
  • Page 14 Rear Microphone / Line-In Connector: Connector for external microphones or other line-in audio sources. Wireless Antenna Connector: RP-SMA jack for the connection of external antennas, such as the one provided with your wireless camera. Digital I/O Connector: Terminal block adapter for the connection of external alarm devices.

  • Page 15: Nfd30 Network Dome Camera

    3.1.3 NFD30 Network Dome Camera Power Connector: For connection of 12 V DC input. Audio Out (Green Line): To support audio out with earphones or speakers for two-way audio. Audio In (Red Line): To support audio in for microphone. Network Connector: For the connection to the RJ45 Ethernet cable.
  • Page 16 1: Connection using IEEE 802.3af Power over Ethernet. 2. Connection using a standard power adapter (1) and a regular LAN switch or router (2). - 16 -...

  • Page 17: Nfd130-Ir Network Dome Camera

    3.1.4 NFD130-IR Network Dome Camera Housing (rotate lower part to open) 2.7 mm - 9 mm megapixel lens IR LEDs & light sensor Dome bubble Power connector (12 V DC) Factory reset IEEE 802.3af PoE network connector Analog video output Light sensor Infrared LEDs Zoom and focus adjustment lever...

  • Page 18: Nfd130-Irv Network Dome Camera

    3.1.5 NFD130-IRV Network Dome Camera IP66-rated Housing (use included screw driver to loosen security screws) 2.7 mm - 9 mm megapixel lens IR LEDs & light sensor Dome bubble Analog video output Power connector (12 V DC) Terminal block connector (digital input / output) PAL / NTSC video out MicroSD / SDHC memory...

  • Page 19: Nbc30-Ir Outdoor Network Camera

    3.1.5 NBC30-IR Outdoor Network Camera IP67-rated housing Infrared LEDs Cable Manager Bracket Reset Switch Terminal Block Connector 12 V DC RJ45 Network Connector Audio In Audio Out - 19 -...
  • Page 20 1: Connection using IEEE 802.3af Power over Ethernet. 2. Connection using a standard 12 V DC power adapter (1) and a regular LAN switch or router (2). The power adapter is not included. - 20 -...

  • Page 21: Nvs30 Network Video Server

    3.1.6 NVS30 Network Video Server Front Video In: Input connector for analog CCTV camera. Video Out: Loop-through port that outputs analog video, which can be integrated into an existing CCTV surveillance system. Mic In: Microphone/Line-In input connector. Line Out: Line-Out connector for active speakers. I/O Terminal Connector: 1 Input and 1 Output to support External Alarm and Sensor devices used for motion detection, event...

  • Page 22: Connection Diagram

    Rear PWR: LED lights up once the network video server has successfully started up. Power Connector: Connect the power adapter here, unless you wish to utilize the Power over Ethernet functionality. Network / PoE Connector: Standard RJ45 socket for Cat5 (or better) network cable.

  • Page 23: Digital I/O Terminal Block Connector

    3.2 Digital I/O Terminal Block Connector The Network Camera and Network Video Server, with the exception of the NSC15 models, are equipped with a digital I/O interface. It can be used to connect external alarm sensors (pins 1 and 2) or to power external devices (pins 3 and 4).

  • Page 24: Package Contents

    6. Mounting hardware (NFDxx and NBCxx models) 7. Power adapter (except for NBC30 (550932)) -> Input: 110/230 V, 50/60 Hz -> Output: - 5 V DC (NSC15 models) - 12 V DC (other models) If any items are missing, contact your dealer. - 24 -...

  • Page 25: 4: Installation

    4: Installation 4.1 Connecting to the Camera Connect the RJ45 network cable from the camera’s LAN port to your network; e.g., the router or a LAN switch, then power on the camera. The boot sequence will take about one minute. You will need to use the camera’s power adapter, unless your camera supports PoE (see section 1.3 Model Overview).

  • Page 26: Windows Xp, Vista And Windows 7

    CD with Windows Explorer and double-click the autorun.exe file. 1. User Manuals The user manual for the INTELLINET NETWORK SOLUTIONS Network Camera is available in electronic form on the installation CD, along with user manuals in different languages.
  • Page 27 IP Installer for Windows Installation Before you start with the installation, make sure that you are connected to your computer with a user account that has administrator rights. The screen shots below are taken from an installation on a Windows XP system. The procedure on Vista and Windows 7 systems is similar.
  • Page 28 Specify the location where the program should be installed. The default path is OK to be used on most systems. Click on “Browse…” to select a different location and click on “Next” to continue. Select the Windows Start Menu folder. Select or de-select the optional Xvid Codec and MSN Plugin.
  • Page 29 Verify the installation summary and click “Install” to begin the installation. Once the installation has completed, click on “Finish”. A new shortcut has been created on your computer desktop; Double-click it to start the application. - 29 -...

  • Page 30: Camera Tab

    IP Installer for Windows When the program starts, you are presented with the screen shown below. Depending on your camera model, the screen may look slightly different, but the functionality is the same. The IP Installer utility lists all cameras that can be found on your network.
  • Page 31 Setup: Select a camera from the list and click the Setup button in order to open the camera configuration dialog. Upgrade: Select a camera from the list and click the Upgrade button if you wish to upgrade the firmware of the camera. The firmware upgrade can also be performed with your Web browser.
  • Page 32 User Account Settings Page User Name: Enter the user name you wish to use for the new account. Password: Enter the password for the new user account. Confirm: Type the password in again. Mode: There are three possible values to choose from: 1.
  • Page 33 Date/Time Settings Page The network camera is equipped with an internal clock. You can display the current date and time information on the video, so that when you look at recorded video material or images you can easily tell when the recording was made.
  • Page 34 Network Settings Page The default configuration is shown above, and for most users there should be no need to change these settings. Advanced users can change the following values: HTTP Port: This is the Web server port of the camera. The default value is 80.
  • Page 35 PPPoE Settings Page This page allows defining of the PPPoE settings of the camera. This function is not required for the vast majority of users, and if you are not planning on connecting the camera directly to a DSL modem (no network present, just the camera connects directly to the modem) you can safely skip this page.
  • Page 36 DDNS Settings Page DDNS stands for “Dynamic DNS.” DDNS is useful for all users who have an Internet service with a dynamic IP address. Most DSL services utilize IP addresses that are highly dynamic and change as often as once every 24 hours. Cable modem services typically keep the IP address assigned to a user for a longer period of time;...
  • Page 37 Language Settings Page The INTELLINET NETWORK SOLUTIONS network camera provides a multi- language user interface for Web-browser access. In order to use this function, you first need to install the additional languages by uploading them to the camera. The default language is English. Additional languages can be found on the Installation CD, or you can download them from the INTELLINET NETWORK SOLUTIONS Web site at www.networkipcamera.com.
  • Page 38 2. Am I absolutely sure that I downloaded the correct firmware file for my camera from the INTELLINET NETWORK SOLUTIONS Web site? 3. Can I be reasonably certain that the power will not go out during the next 10 minutes? 4.
  • Page 39 5. Will the battery in my notebook last for at least another 10 minutes? 6. Am I connected to the camera with an RJ45 cable (not wireless)? 7. Is the camera I want to upgrade located in my local network? 8.

  • Page 40: User Tab

    User tab This screen offers two functions: 1. You can change the individual settings of the camera in a similar fashion as with the Setup function on the main screen. However, instead of clicking on Previous and Next to switch between the screens, you can access the individual options more quickly by clicking on any of the tabs (User, Date/Time, TCP/IP, PPPoE and DDNS).

  • Page 41: About Tab

    About tab This screen displays the version number and date of the IP Installer utility. If you need to contact the INTELLINET NETWORK SOLUTIONS Technical Support, make sure that you obtain the information from this page and include it in your message to Technical Support.
  • Page 42 When you connect to the INTELLINET NETWORK SOLUTIONS network camera for the first time with MS Internet Explorer, you need to install an ActiveX control. The following message appears: Click on Install to being the installation. Depending on your system, additional messages may appear;...

  • Page 43: Macos

    4.1.2 MacOS The installation on Apple systems running MacOS X does not involve the INTELLINET installation CD. The INTELLINET NETWORK SOLUTIONS network camera supports Apple’s Bonjour service. Bonjour, formerly Rendezvous, is Apple Inc.'s trade name for its implementation of Zeroconf, a service discovery protocol.
  • Page 44 The Network Camera is shown in the category Webpages. In order to connect to the camera, double-click the circled link. Safari then connects to the camera and the message below appears: Click on Allow and you will see the camera live image a few moments later. Refer to Chapter 5 for explanations on the Web interface options of your network camera.
  • Page 45 4.1.3 Linux The installation on Linux systems does not require any special software. The network camera is compatible to Web browsers such as Firefox and Konqueror. The initial installation requires the setup of the camera’s IP address. As the camera by default obtains an IP address from a DHCP server in the network (e.g., a router), you can access the camera as soon as you have obtained the IP address from the router’s DHCP...

  • Page 46: 5: Web Browser Interface

    5: Web Browser Interface 5.1 Live Video Page Date/Time Stamp Snapshot/Full Screen Audio Controls Digital Zoom Video Controls (1): This link opens the Settings page of the network camera. This is the administrator area that only users with admin user rights have access to. Refer to Chapter 5.2 for detailed information on the administrator settings.
  • Page 47 View size: You can define the size of the live video by selecting the value of your choice. Depending on the camera model and settings, you may select values such as 320x240, 640x480, 2x, 1x, 1/2x, 1/4x. Protocol: Select from any of these protocols: HTTP, TCP, UDP. The default value is HTTP, and normally there is no reason to change it.
  • Page 48 Digital Zoom: The digital zoom function allows magnification of certain areas of the video. After you click on the magnification icon, a window appears as an overlay on top of the image. See below. You can drag the box over the image, and you can adjust the magnification by moving the slider toward “T”...
  • Page 49 Snapshot: Use this button to take a snapshot of the video. When you click the button, a window opens showing the capture frame. You can then save the image by clicking on the Save button. Full Screen: Click this button to view the video in full screen mode. In full screen mode, the video is stretched to fit the entire screen and all control graphics and window elements are no longer displayed.

  • Page 50: Settings Page (Administrator Menu)

    5.2 Settings Page (Administrator Menu) The camera’s administrator menu consists of two main options. Basic: The camera’s network, image and security settings are configured here. Advanced: Motion detection, event triggers, e-mail and FTP uploads can be configured here. 5.2.1 Settings Page – Basic Settings The basic link reveals the subsections “System,”...
  • Page 51 Date/Time: In order to display the date and time stamp on the live video, or to utilize its scheduler, the camera is equipped with an internal time clock. There are several ways to set up the camera time. Note: Depending on your camera model and firmware version, the Daylight Saving Time option may not be available.
  • Page 52 become inaccurate as time passes and you will need to re-synchronize the time periodically. “Synchronize with NTP”: This option is the recommended setting. In this mode, the camera will synchronize its time settings based on the interval setting (ranging from once per hour to once per day).
  • Page 53 Backup setting data: This function allows saving the current configuration of the camera to a file on your computer’s hard drive. Saving the configuration is useful in case you ever want to reload a specific configuration; e.g., in order to set up another camera of the same model and firmware version with the exact same configuration.
  • Page 54 Another message will appear: Click on Cancel to abort the operation. Click on OK to start the upgrade process. You will see the following messages: Note: You may see additional messages at this stage. When you see this message, the upgrade has been completed.
  • Page 55 Camera: This section contains the video-related settings of the camera. Depending on the camera model, the options may vary. There are two different styles, each of which has slightly different options. First you need to identify which style applies to your camera. Style 1: The main options are: - General...
  • Page 56 Camera -> General (Style 1): RTSP: RTSP stands for Real Time Streaming Protocol. RTSP is supported by most media clients, such as Real Player, VLC and QuickTime. If you only plan to view the camera video with your Web browser or with one of the provided software utilities, you do not need to activate this option.
  • Page 57 Cameras that are equipped with infrared allow the control of the camera’s function at night. On: Activates the night vision mode. The IR cut filter is removed when this option is enabled. The IR LEDs are activated and the image turns black and white. Off: The IR functionality is deactivated and the camera will always send color images.
  • Page 58 When privacy masking is activated, a new option appears on the screen that allows you to censor (black out) an area in the image you don’t wish the camera to capture. Use your mouse in order to resize the box and move it into the desired position on the live video.
  • Page 59 Camera -> MPEG4 -> Computer View (Style 1): The RTSP and RTP options are for advanced users only. If you are not familiar with any of these terms, including Multicast and Unicast, there is a good chance that you do not need these functions of the camera. RTSP: This is only shown if the RTSP mode is enabled in the general settings.
  • Page 60 Once you activate the multicast option, the screen will show additional options: Enter the address of your multicast server along with the audio and video port. The Time-To-Live value defines how long multicast traffic will expand across routers. Routers have a TTL threshold assigned and only datagrams with a TTL greater than the interface's threshold are forwarded.
  • Page 61 The camera uses two ports, one for regular connections and one for SSL (HTTPS) encrypted connections. If you are using the INTELLINET NETWORK SOLUTIONS network camera only in your local network and do not wish to access the video remotely over an Internet connection, these values are unimportant.
  • Page 62 Camera -> MPEG4 -> Mobile View (Style 1): The network camera has the ability to send out a low-resolution video stream that is ideal for remote viewing via a mobile phone. The camera supports 3GPP and 2.5 WAP for older phones. The options are the same as the computer view, except that the image size is fixed to 160x120 pixels, and the...
  • Page 63 Camera -> General (Style 2): RTSP: Specify the RTSP port here. The default port is 554. RTP: Define the RTP port range here. Image Rotated: Choose from one of the following options: “None,” “Mirror,” “Flip” and “Mirror + Flip.” With this function you can mirror the image vertically, horizontally or both.
  • Page 64 Video Clip Format: The camera has the ability to send out short video clips to an FTP server, via e-mail or to a local SMB network storage device. Find more about that in the advanced section. Here you define the format of the video clip. You can choose between H.264 and MPEG4.
  • Page 65 Camera -> H.264/MPEG4/MJPEG (Style 2): The network camera is a multi-stream device. It can send out H.264, MPEG4 and Motion-JPEG video. Each stream can be configured independently concerning video resolution, video quality and more. The individual setup pages have the same parameters. Viewer authentication: When activated, a user name and password is required in order to access the video stream.
  • Page 66 Quality: This allows you to control the image quality of the video. Auto: The camera automatically adjusts the quality based on the connection speed of the connected client. Fixed quality: Select the quality from medium to excellent. Fixed bitrate: Define the maximum network bandwidth for this stream from 64 kbps (low quality) to 6 Mbps (high quality).
  • Page 67 Camera -> Advance (Style 2): White Balance: Select the value that best represents the installation environment of the camera, or leave it on auto to let the camera do the adjustment automatically for you. Lighting: If the camera is installed indoors, select either 50 or 60 Hz, depending on the power grid frequency in your country.
  • Page 68 Camera -> Playback (Style 2): The INTELLINET NETWORK SOLUTIONS Network Camera is equipped with an integrated video player. With this player you can play back videos that you have recorded with the camera; e.g., by using the record function on the live video page.
  • Page 69 Camera -> Network -> Information: On this page you can define the network settings of the camera. By default the camera is set up to automatically obtain the necessary IP information from the DHCP server (e.g., the router) in your network. You can, however, set up the IP address and related settings manually.
  • Page 70 Camera -> Network -> PPPoE: PPPoE is the most common form of connection for DSL-based Internet service. You can use this function to connect the camera directly to a DSL modem. A common application for this is where the network camera is installed in a remote location where no network is present.
  • Page 71 2. Set up a DDNS client in the home network that contacts the DDNS service provider and updates the IP information. The INTELLINET NETWORK SOLUTIONS network camera supports three different DDNS providers: DYNDNS.ORG, DHS.ORG and TZO.COM. Of the three, as of February 2010 only dyndns.org is a free service (be aware that this may change).
  • Page 72 Note: If the router in your home network is equipped with a DDNS client, we recommend using the router instead of the camera. Most SOHO routers are equipped with a DDNS client and since the router is in direct control of handling the Internet connection, it’s the device best suited for the DDNS task.
  • Page 73 Camera -> Network -> UPnP: UPnP stands for Universal Plug and Play. A UPnP-enabled device, such as your network camera, announces its presence in the local network to other computers that support UPnP as well. The operating systems Windows XP, Windows Vista and Windows 7 support UPnP.
  • Page 74 Camera -> Network -> Bonjour: Bonjour is a service that, just like UPnP, helps to find the network camera on the network. Bonjour is available for Windows, but is more commonly used for MacOS. Refer to section “4.1.2 MacOS” for additional information on the usage. Bonjour: On: Enables the service (on by default).
  • Page 75 Notify type: Select which type of connection (DHCP, Static IP or PPPoE) should be observed by the IP notification function. For example, if you uncheck Static IP and your camera is set up with a static IP address, you will not receive an e-mail notification.
  • Page 76 Camera -> Network -> Wireless: If your network camera supports wireless, you can configure the related settings on this page. The camera has the ability to find the wireless network and allows you to quickly enter the correct encryption key. Status of wireless networks: All wireless networks in range are shown here.
  • Page 77 Passphrase: Enter the password for your wireless network here. Repeat the password in the field below. The wireless interface has its own IP settings. These are independent from the regular settings (Network -> Information) and must be configured separately. Obtain an IP address automatically (DHCP): Enable this and the camera will obtain the IP information from the DHCP server in your network.
  • Page 78 Camera -> Network -> Messenger: The INTELLINET NETWORK SOLUTIONS network camera has a unique feature that allows it to act as a Web camera for Windows Live Messenger. Note: Microsoft has updated LIVE Messenger 2009 in May 2010 removing some features from the application;...
  • Page 79 In order to use the function, you need to perform two steps. First, you need to set up a new account for the Windows Live / Hotmail service. This account will be used by your network camera. You cannot use your existing Messenger account for the camera.
  • Page 80 Privacy: Set this to “On” to only allow people in the allow list to be able to connect to the camera and view the video. User: In order to add a user to the allow list, type in the user’s e- mail address here and click on “Add.”...
  • Page 81 Camera -> Security -> Account: The INTELLINET NETWORK SOLUTIONS network camera allows the creation of different user accounts with different levels of access to the camera. There are three main user levels. The Viewer account only allows viewing the live video page of the camera.
  • Page 82 Camera -> Security -> HTTPS: Secure Sockets Layer (SSL) is a cryptographic protocol that provides security for communications over networks such as the Internet. HTTPS is a URI scheme used to indicate a secure HTTP connection (SSL encrypted). It is syntactically similar to the http:// scheme that is normally used for accessing resources using HTTP.
  • Page 83 Camera -> Security -> IP Filter (only certain models): The IP filter allows blocking or access to the camera based on the IP address of the connecting client. This is an additional layer of security, which helps to limit access to the camera in security-sensitive environments. IP Filter: Activate this function by setting this option to On.

  • Page 84: Settings Page - Advanced Settings

    5.2.2 Settings Page – Advanced Settings The advanced settings menu allows control of the alarm management functions of your network camera. The camera has the ability to send pictures or videos to a remote location in case of an alarm or based on a schedule. The alarm event can be triggered by the camera’s internal motion detection or by an external alarm sensor.
  • Page 85 FTP server name: Enter the address of your FTP server here. Valid entries are either the IP address of the server (format: 111.222.333.444), or the domain name of the server (format: domainname.com). Invalid entries are ftp.domainname.com or http://domainname.com. User name: Key in a valid FTP user name here.
  • Page 86 Camera -> Advance -> FTP Client -> Alarm sending: On this screen you activate the alarm-triggered FTP upload. In this mode, the camera only uploads an image or a short video clip to the FTP server if an alarm condition (motion, audio alarm, network link down or external alarm input) has occurred.
  • Page 87 Audio Detection: Activate this option if you want the camera to monitor the audio levels picked up by the camera’s internal microphone, or by the external microphone, should you have one connected. The button to the right opens the audio detection setup screen. Network Link Down (only H.264 cameras): In case the network connection breaks down, the camera keeps the last 10 seconds in its internal buffer.
  • Page 88 Camera -> Advance -> FTP Client -> Periodical sending: Certain applications call for the periodic uploading of an image to an FTP server. A typical application is when you want to display a live image of your camera on your Web site, which, for example, refreshes itself every 60 seconds.
  • Page 89 Camera -> Advance -> SMTP -> General: In addition to FTP uploads, the network camera can also send images or short video clips via e-mail. Simple Mail Transfer Protocol (SMTP) is an Internet standard for e-mail delivery across Internet Protocol (IP) networks. Whenever you send an e-mail from your computer, SMTP is the protocol that makes sure it reaches its destination.
  • Page 90 Authentication: Most SMTP servers require that the client authenticates properly prior to accepting e-mail delivery. Unless your SMTP server does not require authentication, this option should be enabled. SMTP: When this option is activated, the camera will submit a user name and password to the SMTP server for authentication.
  • Page 91 Camera -> Advance -> SMTP -> Alarm Sending: On this page you can link the trigger condition to the e-mail delivery function of the camera. The options are identical to those of the FTP Alarm Sending page. Camera -> Advance -> SMTP -> Periodical sending: This page allows setting up the INTELLINET NETWORK SOLUTIONS network camera to send an e-mail based on a time interval from 30 minutes to...
  • Page 92 Protocol: Select the correct protocol here. If you want the camera to store the data on a shared Windows drive or folder, you should select “SMB”. If you have a NAS device in your network, the correct value depends on which protocol (SMB or NFS) is supported by the NAS.
  • Page 93 Camera -> Advance -> Storage -> Alarm Sending: On this page you can define which alarm trigger event is linked to the storage recording function. The options on this page are identical to those on the FTP and SMTP Alarm Sending page, with one exception. The Recording time allows you to specify the length of the video clip.
  • Page 94 Camera -> Advance -> HTTP Event -> General: HTTP Event represents the most advanced form of the event trigger actions. When this function is enabled, the camera will not upload or send any video clips to a remote location, but will instead send an HTTP request to a specified URL.
  • Page 95 URL: The basic script URL goes here. Note: You need to enter the URL without any leading http://. Port: Standard HTTP requests are made on port 80, but if your application requires a different port, you can define it here. User ID: If the script URL is password protected, you need to enter a valid User ID in this field.
  • Page 96 Alarm: Motion Detection: Activate this option if you want the motion detection trigger event to be linked to the HTTP event. Audio Detection: This parameter is only available on the H.264 Megapixel cameras. It allows linking of the audio detection event to the HTTP event.
  • Page 97 Camera -> Advance -> Alarm Output: If your Network Camera features a terminal block connector, you can connect an external alarm device to it. The camera can send power to the device when a trigger event has occurred. Digital output: Sets the digital output to either high or low in case of an alarm event.
  • Page 98 Camera -> Advance -> Schedule: The Network Camera supports event trigger actions that can be based on a schedule. This can be used, as an example, to only activate motion detection between 9 pm and 6 am during business days and around the clock on the weekends.
  • Page 99 Camera -> Advance -> Alarm Input: If your Network Camera features a terminal block connector (digital I/O) for the connection of external alarm sensors, you can set up the trigger condition for the input on this page. There are two types of sensors when it comes to the actual alarm trigger.
  • Page 100 Camera -> Advance -> Alarm Buffer (only certain models): On this page you can define the size of the alarm image buffer. The camera holds a maximum of 10 seconds of video in the buffer. When an event occurs and the camera uploads a video clip to an FTP server or sends it via e-mail, the length of the video is determined by the buffer settings on this page.
  • Page 101 Camera -> Advance -> Motion Detection: The Network Camera features integrated motion detection. The camera does a frame-by-frame comparison and then determines, based on the motion detection window, sensitivity settings and threshold, whether or not a motion has occurred. This motion detection does not use Infrared. It requires a visible image in order to function.
  • Page 102 Motion Detection 1, 2, 3: Click to activate the motion detection window. Once clicked, you will see a rectangle appear on the screen. Use the mouse to move the rectangle to a different position or to resize it. Threshold: The smaller the number, the lower the threshold of the amount of movement that triggers an alarm.
  • Page 103 Camera -> Advance -> Audio Detection (only certain models): The INTELLINET NETWORK SOLUTIONS H.264 Megapixel Network Camera has an integrated microphone, and it also allows the connection of an external line- in source. The camera can monitor the audio levels and trigger an alarm if the noise level exceeds a specified threshold.
  • Page 104 Camera -> Advance -> System Log: The Network Camera features a log function for system messages. These are system messages about the camera start-up procedure, e-mail deliveries, FTP uploads, motion detection and more. The camera stores the messages in its internal memory and displays them on the system log screen.
  • Page 105 The remote log function uses the Syslog Protocol, which is a standard for forwarding log messages in an IP network. Syslog is a client/server protocol. The Syslog sender (the Network Camera) sends a small (less than 1KB) textual message to the Syslog server. This user manual shows one example of a Syslog server, the 3CDaemon utility by 3Com Corporation (Download Location: http://support.3com.com/software/utilities_for_windows_32_bit.htm).

  • Page 106: 6: Video Surveillance Software

    6: Video Surveillance Software 6.1 Function Description The INTELLINET NETWORK SOLUTIONS Network Camera ships with a surveillance application that can monitor and record up to 16 network cameras. You can record video permanently or based on a schedule, or you can use the integrated motion detection function and only record motion events to preserve disk...

  • Page 107: 7: Remote Access And Router Setup

    7: Remote Access and Router Setup To gain access to a camera in your local network over the Internet, certain ports need to be opened and forwarded in your router. The Network Cameras use the following ports: a) M-JPEG/MPEG4 (VGA) models running firmware V 1.6.16.03 or older - Web Server port = 80 - MPEG4 Audio/Video port = 8090...
  • Page 108 Setup Example: INTELLINET NETWORK SOLUTIONS Wireless N Router Series: Click on NAT -> Virtual Server. Check (x) Enable Virtual Server. Enter the camera’s local IP address in the Private IP text field (example: 192.168.1.221). Enter the port you want to forward. Enter the same port number into the Private and Public Port text fields.

  • Page 109: 8: Developer Information

    8: Developer Information MPEG4/Motion-JPEG (VGA) Cameras running firmware 1.6.16.03 and older. Direct Image Access You can access the image using the URL below: http://camera_ip/jpg/image.jpg Motion-JPEG Stream You can access the image using the URL below: http://camera_ip:8070/video.mjpeg http://username:password@camera_ip:8070/video.mjpeg MPEG4 Stream You can access the image using the URL below: http://camera_ip:8090/video.mp4 http://username:password@camera_ip:8090/video.mp4 Via RTSP:...
  • Page 110 Accessing the video streams with VLC Player VLC Player (among other players) supports video streaming via RTSP. You can use VLC player to display the camera live video. First, open VLC Player, then go to Media -> Open Network Stream. Enter the stream URL;...

  • Page 111: 9: Questions And Answers

    9: Questions and Answers 9.1 Accessing the Camera What are the camera’s default IP address, administrator user name and password? The camera obtains an IP address from a DHCP server in your network. If no DHCP server is present, the camera reverts back to its default IP address 192.168.1.221.

  • Page 112: Web Browser Access

    After changing the camera's Web server port from 80 to a different value, access to the camera is no longer possible. Whenever you change the Web server port from the standard 80 to a different value, you need to append the port to the camera's IP address. The syntax is always http://cameraip:portnumber.

  • Page 113: Camera Related Issues

    9.3 Camera Related Issues The camera does not send any e-mails. Why? 1. The problem occurs because the camera cannot contact the e-mail server. Check: Is the e-mail (SMTP) server address correct? (Advance->SMTP) Did you specify the correct gateway IP address? (Basic->Network) Did you specify correct DNS servers? (Basic->Network) Did you enter the correct e-mail address? (Advance->SMTP) Did you specify the e-mail title? (Advance->SMTP)
  • Page 114 - NFC31-IR Network Camera - NBC30-IR Outdoor Network Camera - NBC31-IR Outdoor Network Camera What kinds of accessories are available? INTELLINET NETWORK SOLUTIONS offers the following accessories: 1: CCTV lenses Replacement lenses for your Network Camera, that can be used with models NFC30, NFC30-WG, NFC31 and NFC31- 2: External camera enclosures Protective housings for your Network Camera.
  • Page 115 INTELLINET NETWORK SOLUTIONS™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
