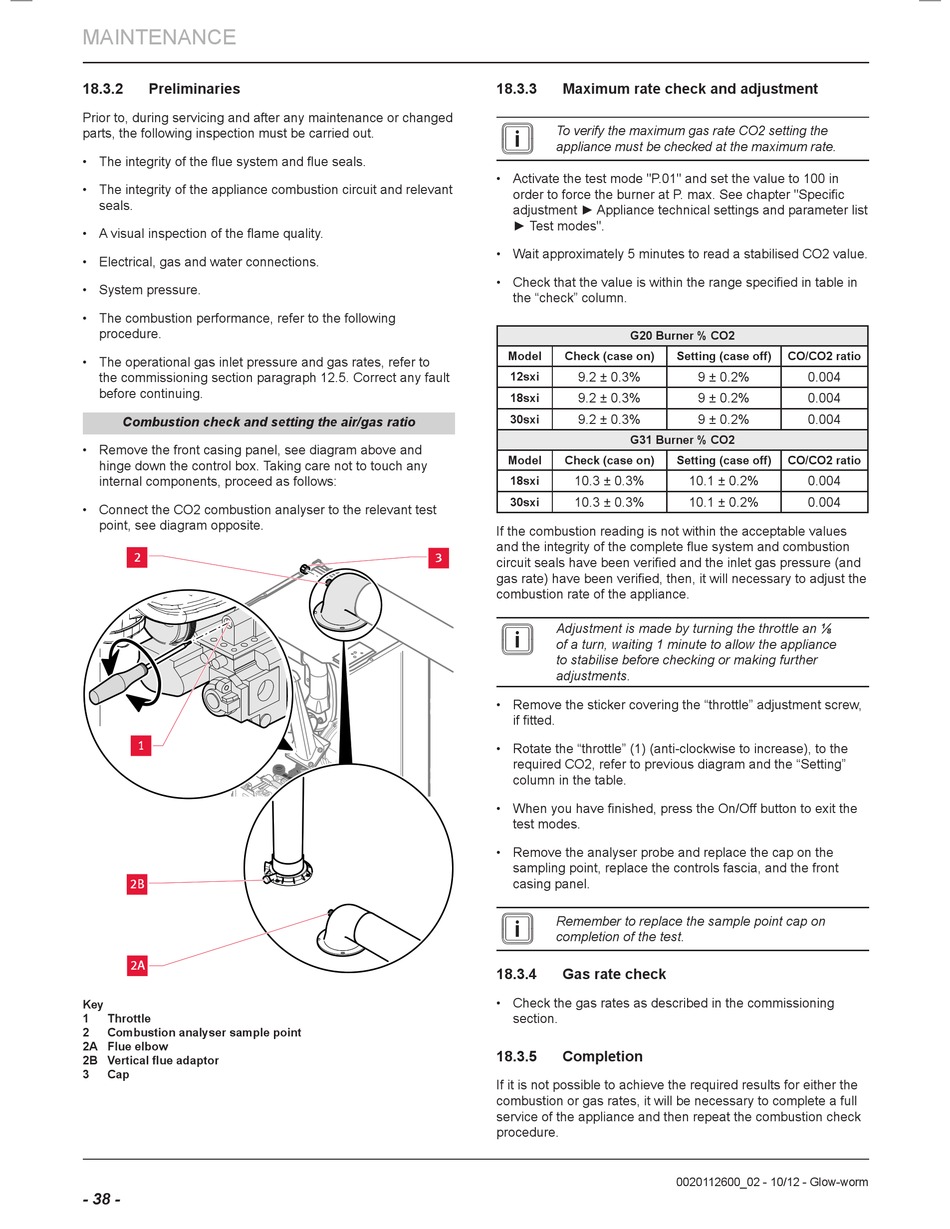

MAINTENANCE
18.3.2 Preliminaries
Prior to, during servicing and after any maintenance or changed
parts, the following inspection must be carried out.
• The integrity of the flue system and flue seals.
• The integrity of the appliance combustion circuit and relevant
seals.
• A visual inspection of the flame quality.
• Electrical, gas and water connections.
• System pressure.
• The combustion performance, refer to the following
procedure.
• The operational gas inlet pressure and gas rates, refer to
the commissioning section paragraph 12.5. Correct any fault
before continuing.
Combustion check and setting the air/gas ratio
• Remove the front casing panel, see diagram above and
hinge down the control box. Taking care not to touch any
internal components, proceed as follows:
• Connect the CO2 combustion analyser to the relevant test
point, see diagram opposite.
2
1
2B
2A
Key
1 Throttle
2 Combustion analyser sample point
2A flue elbow
2b Vertical flue adaptor
3 Cap
- 38 -
18.3.3 Maximum rate check and adjustment
To verify the maximum gas rate CO2 setting the
i
appliance must be checked at the maximum rate.
• Activate the test mode "P.01" and set the value to 100 in
order to force the burner at P. max. See chapter "Specific
adjustment ► Appliance technical settings and parameter list
► Test modes".
• Wait approximately 5 minutes to read a stabilised CO2 value.
• Check that the value is within the range specified in table in
the "check" column.
Model Check (case on)
9.2 ± 0.3%
12sxi
9.2 ± 0.3%
18sxi
9.2 ± 0.3%
30sxi
Model Check (case on)
10.3 ± 0.3%
18sxi
10.3 ± 0.3%
30sxi
If the combustion reading is not within the acceptable values
and the integrity of the complete flue system and combustion
3
circuit seals have been verified and the inlet gas pressure (and
gas rate) have been verified, then, it will necessary to adjust the
combustion rate of the appliance.
Adjustment is made by turning the throttle an ⅛
i
of a turn, waiting 1 minute to allow the appliance
to stabilise before checking or making further
adjustments.
• Remove the sticker covering the "throttle" adjustment screw,
if fitted.
• Rotate the "throttle" (1) (anti-clockwise to increase), to the
required CO2, refer to previous diagram and the "Setting"
column in the table.
• When you have finished, press the On/Off button to exit the
test modes.
• Remove the analyser probe and replace the cap on the
sampling point, replace the controls fascia, and the front
casing panel.
Remember to replace the sample point cap on
i
completion of the test.
18.3.4 Gas rate check
• Check the gas rates as described in the commissioning
section.
18.3.5 Completion
If it is not possible to achieve the required results for either the
combustion or gas rates, it will be necessary to complete a full
service of the appliance and then repeat the combustion check
procedure.
G20 burner % CO2
Setting (case off)
9 ± 0.2%
9 ± 0.2%
9 ± 0.2%
G31 burner % CO2
Setting (case off)
10.1 ± 0.2%
10.1 ± 0.2%
0020112600_02 - 10/12 - Glow-worm
CO/CO2 ratio
0.004
0.004
0.004
CO/CO2 ratio
0.004
0.004
