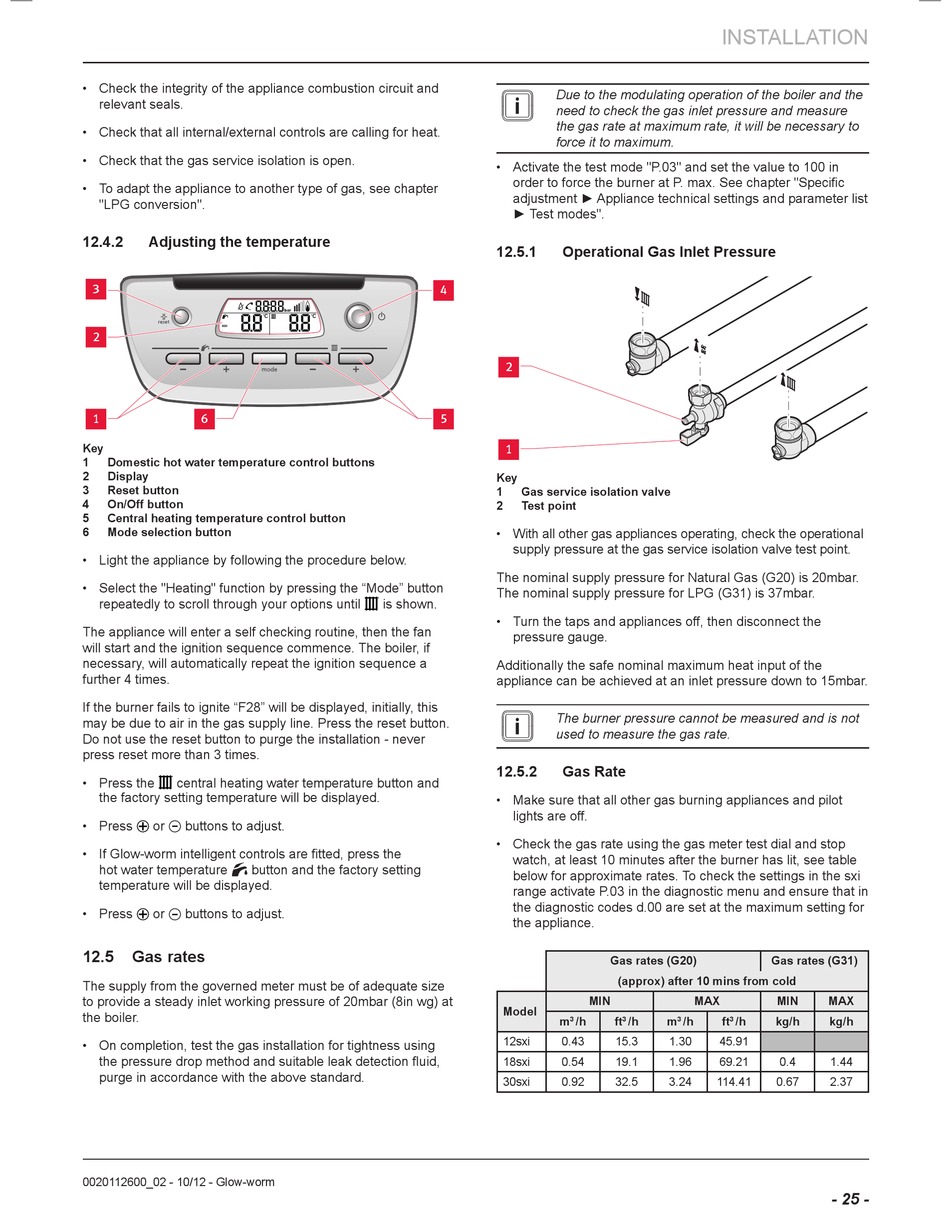

Gas Rates; Adjusting The Temperature - Glow-worm Ultracom2 sxi Installation And Servicing

• Check the integrity of the appliance combustion circuit and
relevant seals.
• Check that all internal/external controls are calling for heat.
• Check that the gas service isolation is open.
• To adapt the appliance to another type of gas, see chapter
"LPG conversion".
12.4.2

Adjusting the temperature

3
2
1 6
Key
1 Domestic hot water temperature control buttons
2 Display
3 Reset button
4 On/Off button
5 Central heating temperature control button
6 Mode selection button
• Light the appliance by following the procedure below.
• Select the "Heating" function by pressing the "Mode" button
repeatedly to scroll through your options until
The appliance will enter a self checking routine, then the fan
will start and the ignition sequence commence. The boiler, if
necessary, will automatically repeat the ignition sequence a
further 4 times.
If the burner fails to ignite "F28" will be displayed, initially, this
may be due to air in the gas supply line. Press the reset button.
Do not use the reset button to purge the installation - never
press reset more than 3 times.
• Press the central heating water temperature button and
the factory setting temperature will be displayed.
• Press or buttons to adjust.
• If Glow-worm intelligent controls are fitted, press the
hot water temperature
temperature will be displayed.
• Press or buttons to adjust.
12.5

Gas rates

The supply from the governed meter must be of adequate size
to provide a steady inlet working pressure of 20mbar (8in wg) at
the boiler.
• On completion, test the gas installation for tightness using
the pressure drop method and suitable leak detection fluid,
purge in accordance with the above standard.
0020112600_02 - 10/12 - Glow-worm
is shown.
button and the factory setting
Due to the modulating operation of the boiler and the
i
need to check the gas inlet pressure and measure
the gas rate at maximum rate, it will be necessary to
force it to maximum.
• Activate the test mode "P.03" and set the value to 100 in
order to force the burner at P. max. See chapter "Specific
adjustment ► Appliance technical settings and parameter list
► Test modes".
12.5.1 Operational Gas Inlet Pressure
4
2
5
1
Key
1 Gas service isolation valve
2 Test point
• With all other gas appliances operating, check the operational
supply pressure at the gas service isolation valve test point.
The nominal supply pressure for Natural Gas (G20) is 20mbar.
The nominal supply pressure for LPG (G31) is 37mbar.
• Turn the taps and appliances off, then disconnect the
pressure gauge.
Additionally the safe nominal maximum heat input of the
appliance can be achieved at an inlet pressure down to 15mbar.
i The burner pressure cannot be measured and is not
used to measure the gas rate.
12.5.2 Gas Rate
• Make sure that all other gas burning appliances and pilot
lights are off.
• Check the gas rate using the gas meter test dial and stop
watch, at least 10 minutes after the burner has lit, see table
below for approximate rates. To check the settings in the sxi
range activate P.03 in the diagnostic menu and ensure that in
the diagnostic codes d.00 are set at the maximum setting for
the appliance.
MIN
Model
m /h
3
12sxi 0.43
18sxi 0.54
30sxi 0.92
INSTALLATION
Gas rates (G20)
(approx) after 10 mins from cold
MAX
ft /h m /h ft /h
3 3 3
15.3 1.30 45.91
19.1 1.96 69.21
32.5 3.24 114.41
Gas rates (G31)
MIN MAX
kg/h kg/h
0.4 1.44
0.67 2.37
- 25 -
